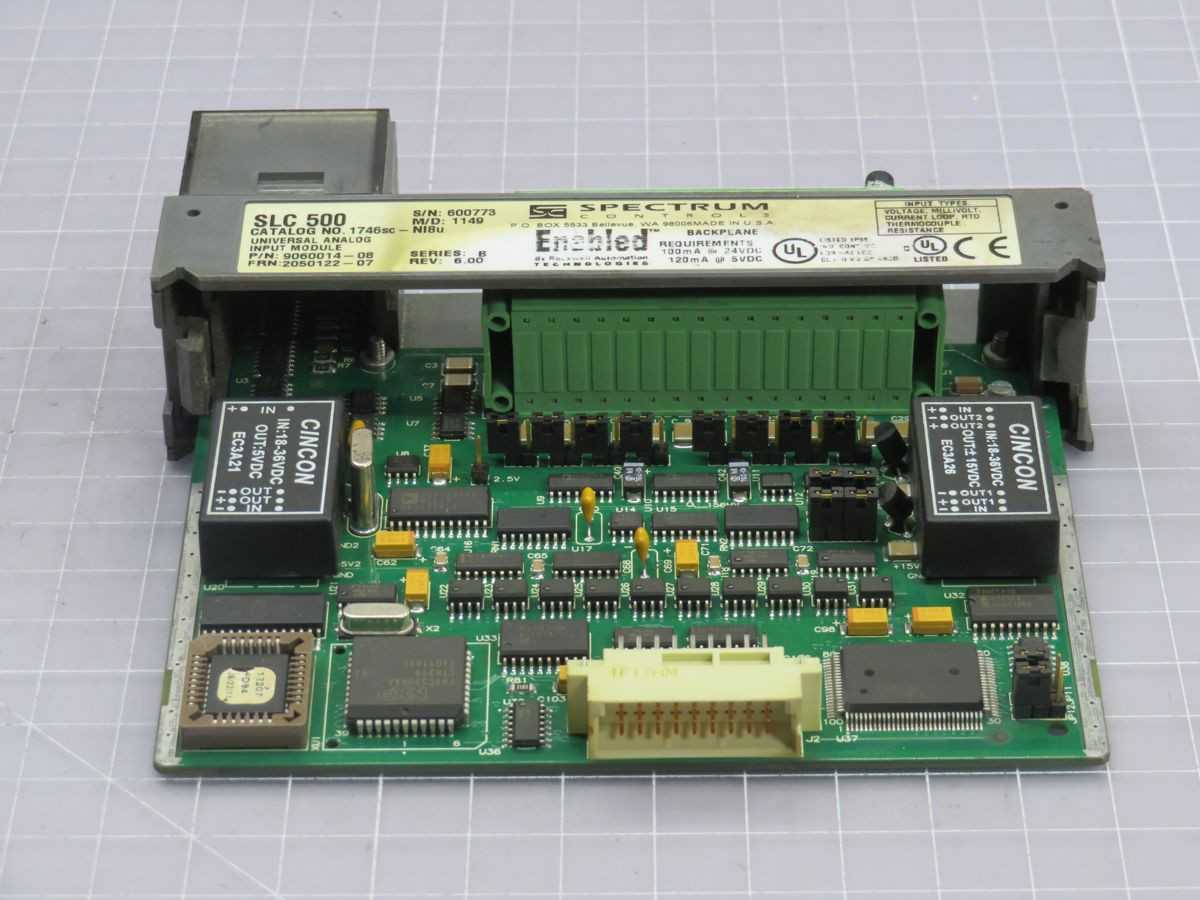

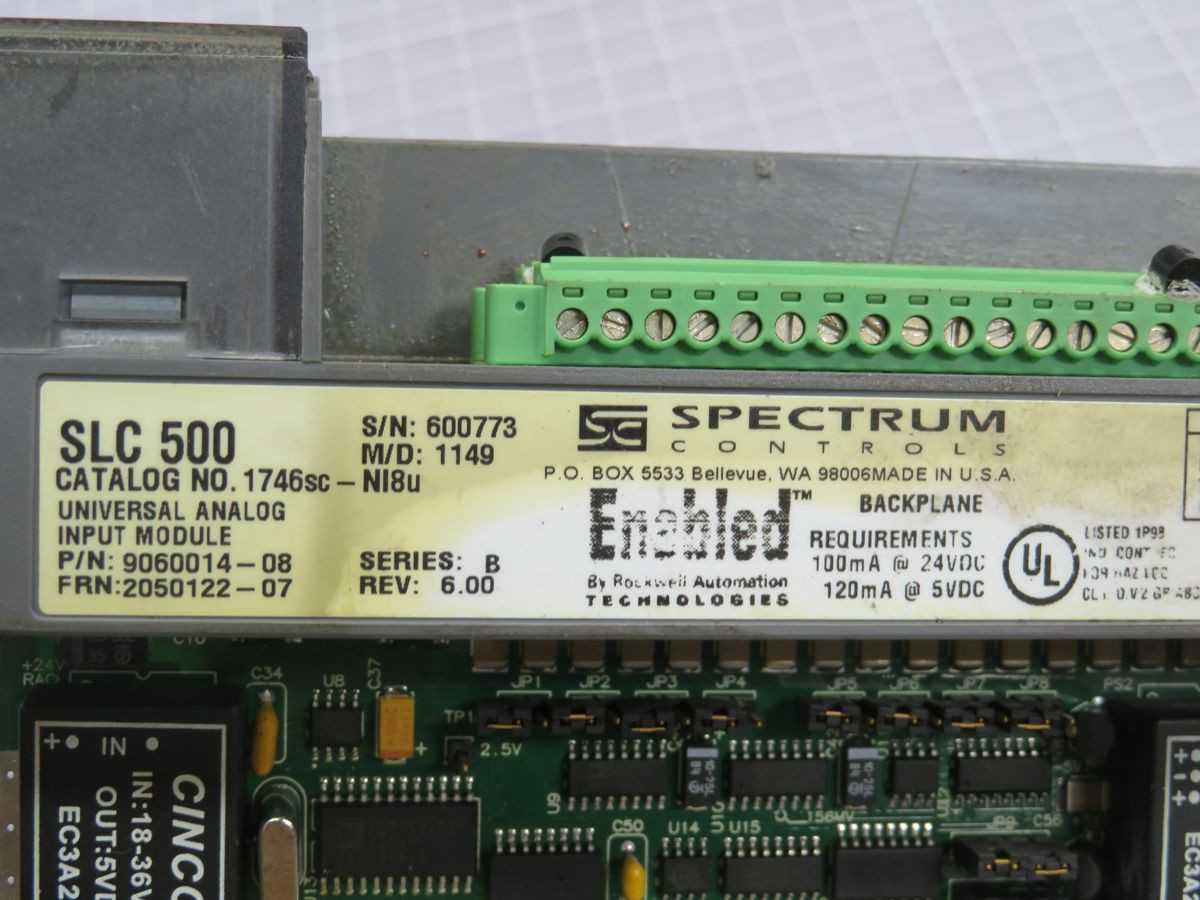

SPECTRUM CONTROLS 1746SC-NI8U PLC INPUT MODULE, 8 PT UNIVERSAL ANALOG, 16 BIT RESOLUTION

THE SPECTRUM CONTROLS 1746SC-NI8U IS AN 8-POINT UNIVERSAL ANALOG INPUT MODULE DESIGNED FOR PROGRAMMABLE LOGIC CONTROLLER (PLC) SYSTEMS, COMPATIBLE WITH ALLEN-BRADLEY SLC 500 SERIES 1746 I/O CHASSIS. THIS MODULE SUPPORTS A WIDE ARRAY OF INPUT SIGNALS, ENCOMPASSING VOLTAGE RANGES SUCH AS 0-5 V, 1-5 V, 0-10 V, ±5 V, AND ±10 V. CURRENT INPUT CAPABILITIES INCLUDE 0-20 MA, 4-20 MA, AND ±20 MA. ADDITIONALLY, IT ACCOMMODATES VARIOUS THERMOCOUPLE TYPES (J, K, T, E, R, S, B, N, C) AND RTD TYPES (PT, CU, NI), ALONG WITH MILLIVOLT RANGES. THE MODULE FEATURES UP TO 16-BIT RESOLUTION FOR PRECISE SIGNAL CONVERSION AND SUPPORTS 31 SELECTABLE INPUT TYPES/RANGES, MAKING IT HIGHLY VERSATILE FOR DIVERSE INDUSTRIAL APPLICATIONS. IT IS CHARACTERIZED BY CHANNEL-TO-CHANNEL AND CHANNEL-TO-BACKPLANE ISOLATION.
