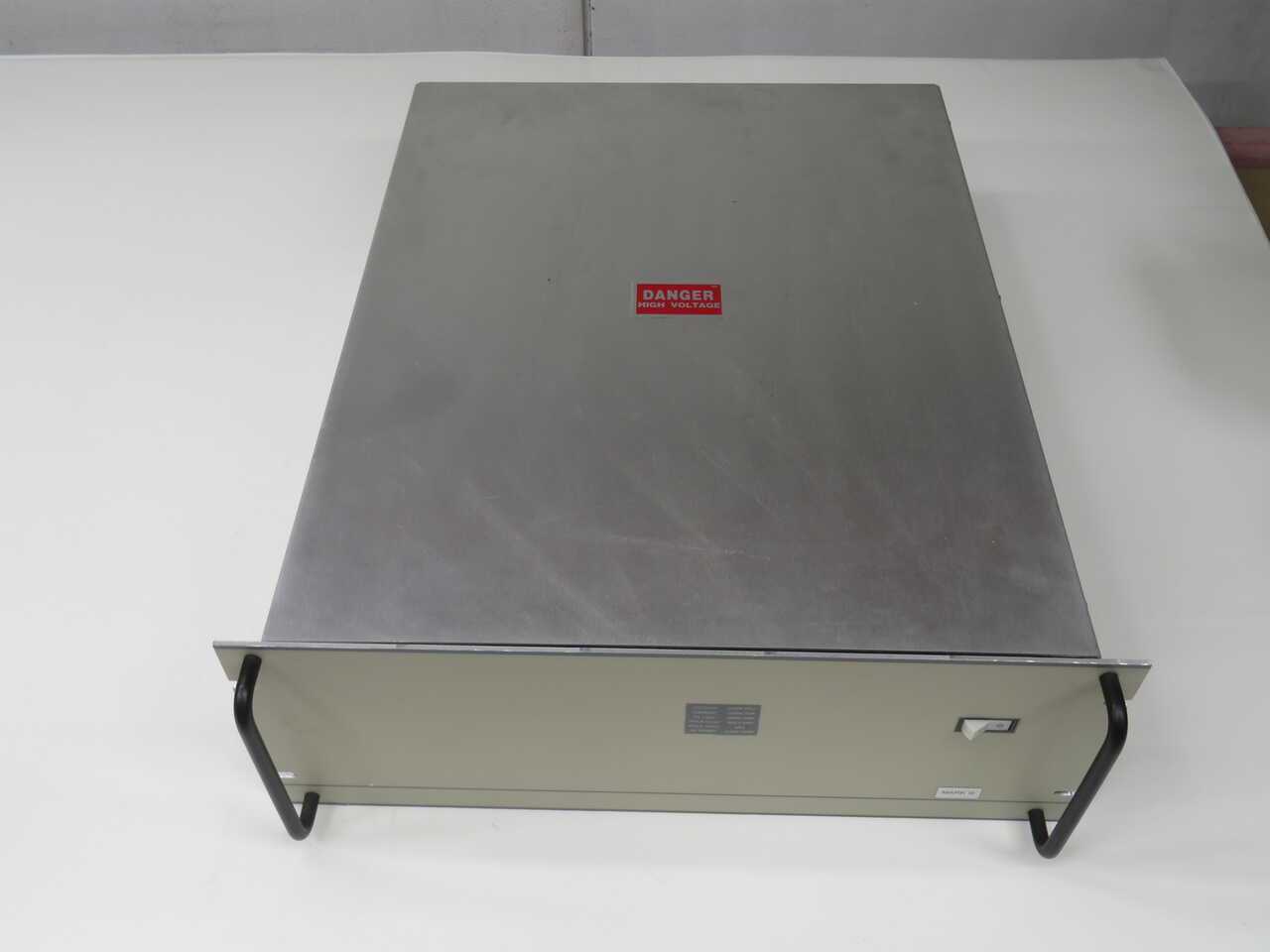

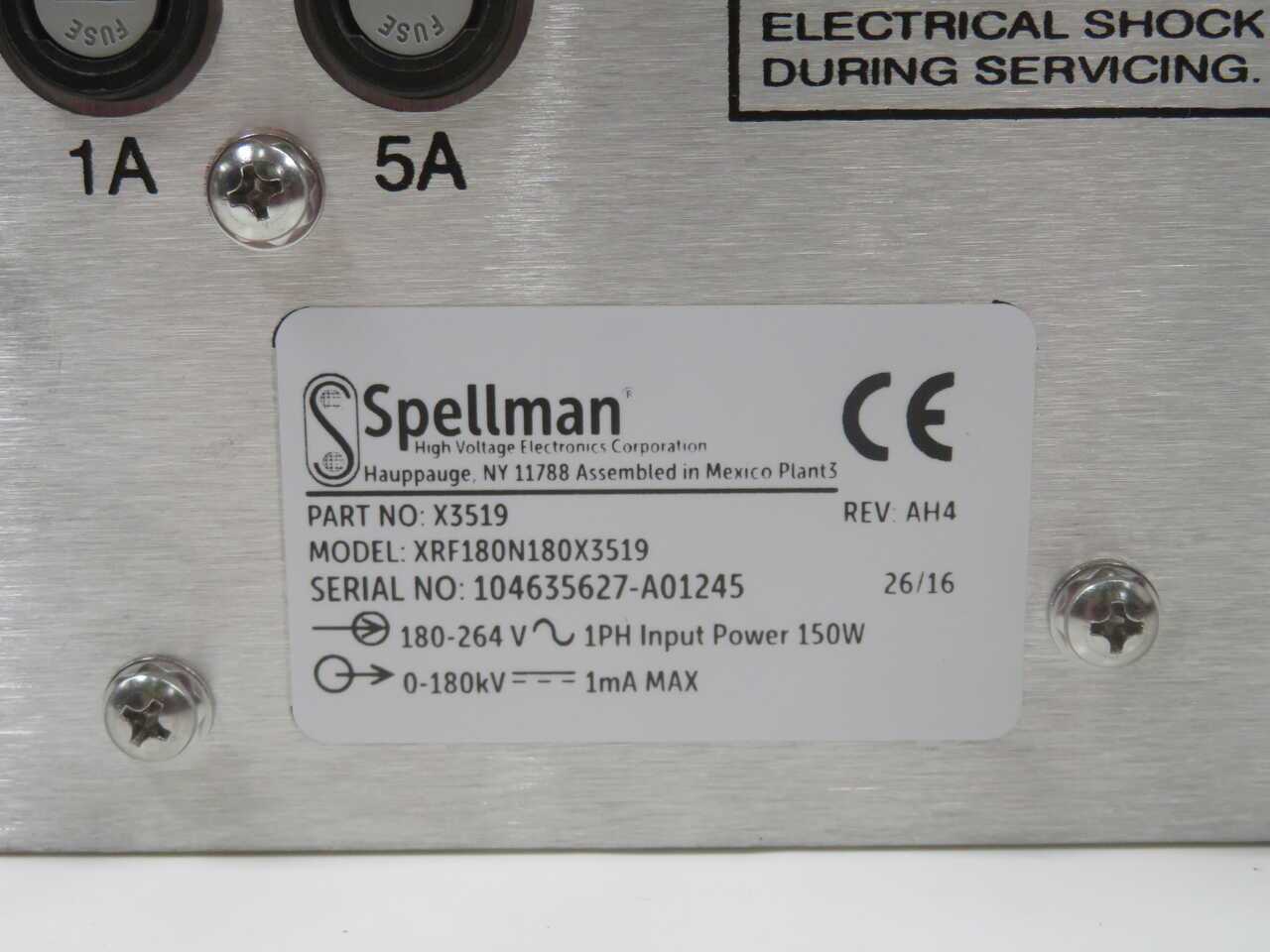

SPELLMAN XRF180N180X3519 POWER SUPPLY 180-264V 1PH 150W

THE SPELLMAN XRF180N180X3519 (X3519) IS AN X-RAY HIGH-VOLTAGE POWER SUPPLY AND GENERATOR PLATFORM DESIGNED FOR X-RAY FLUORESCENCE AND X-RAY TUBE TESTING APPLICATIONS. OPERATING ON A SINGLE-PHASE INPUT VOLTAGE OF 180–264 VAC AT 48–62 HZ, IT DELIVERS A POWER OUTPUT OF UP TO 150W. THE UNIT FEATURES AN ENCAPSULATED, OIL-FREE HIGH-VOLTAGE SYSTEM HOUSED IN A RACK-MOUNTABLE CHASSIS. IT UTILIZES A POWER FACTOR CORRECTED INPUT CIRCUIT TO MINIMIZE HARMONIC EMISSIONS AND ELECTRICAL NOISE. FOR PRECISE REGULATION OF EMISSION CURRENT, THE SYSTEM INCORPORATES AN INTERNAL FLOATING FILAMENT AND A CLOSED-LOOP EMISSION CONTROL CIRCUIT, PROVIDING CONSTANT CURRENT DC FILAMENT SUPPLY WITH CLOSED-LOOP FEEDBACK. THE POWER SUPPLY SUPPORTS REMOTE MONITORING AND ANALOG OR DIGITAL CONTROL OF VOLTAGE, CURRENT, AND FILAMENT SETTINGS. STANDARD CONNECTIVITY INCLUDES A 25-PIN D-TYPE CONTROL CONNECTOR AND A TERMINAL BLOCK INTERFACE PROVIDING DEDICATED PINS FOR KV MONITORING, MA MONITORING, AND SAFETY INTERLOCK CONTROLS. DESIGNED FOR SYSTEM INTEGRATION AS AN ELECTRONIC COMPONENT, THE UNIT OPERATES EFFICIENTLY BETWEEN 0 TO +50°C IN NON-CONDENSING ENVIRONMENTS UP TO 95% RELATIVE HUMIDITY, UTILIZING FORCED CONVECTION COOLING.
