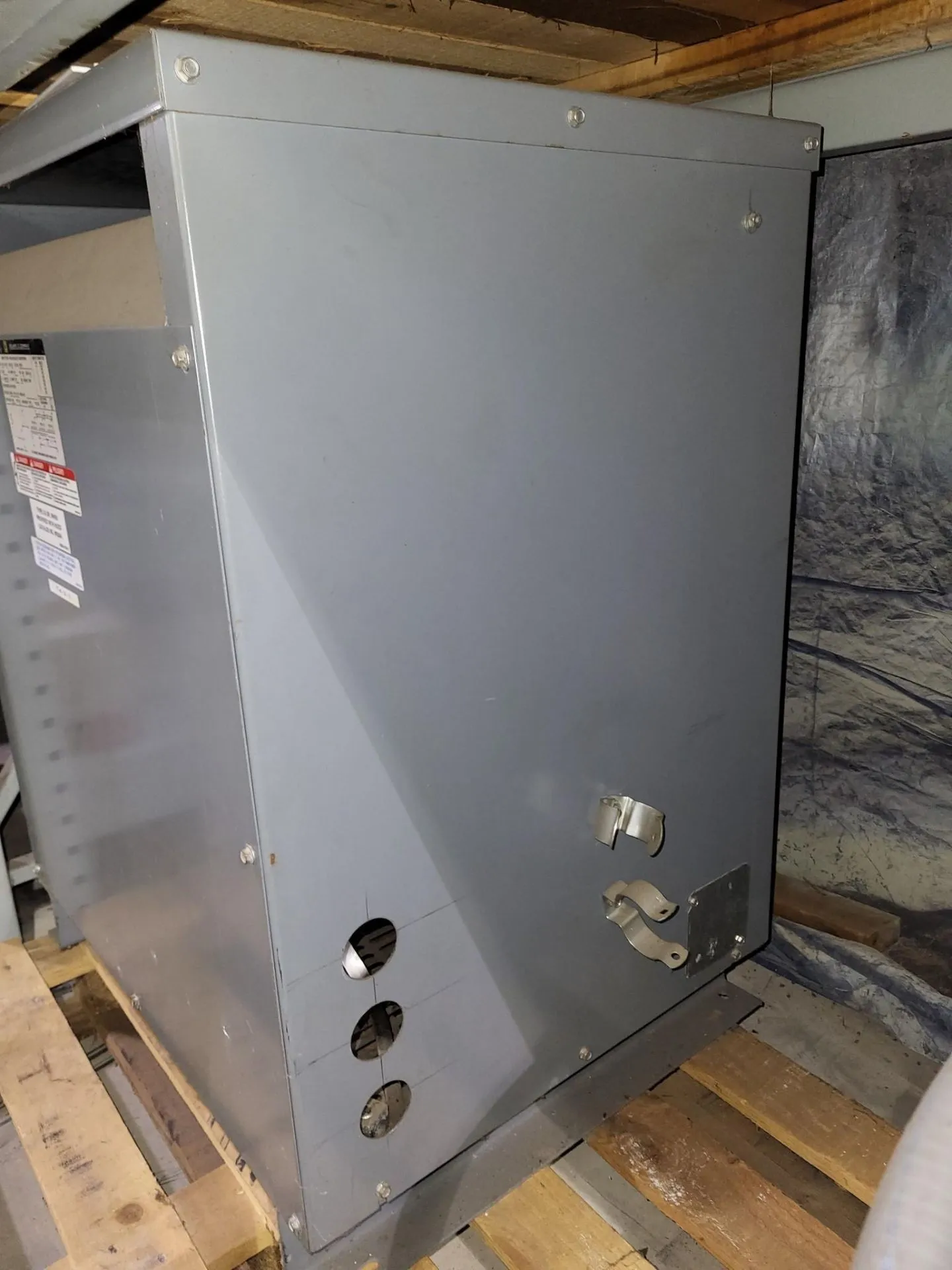

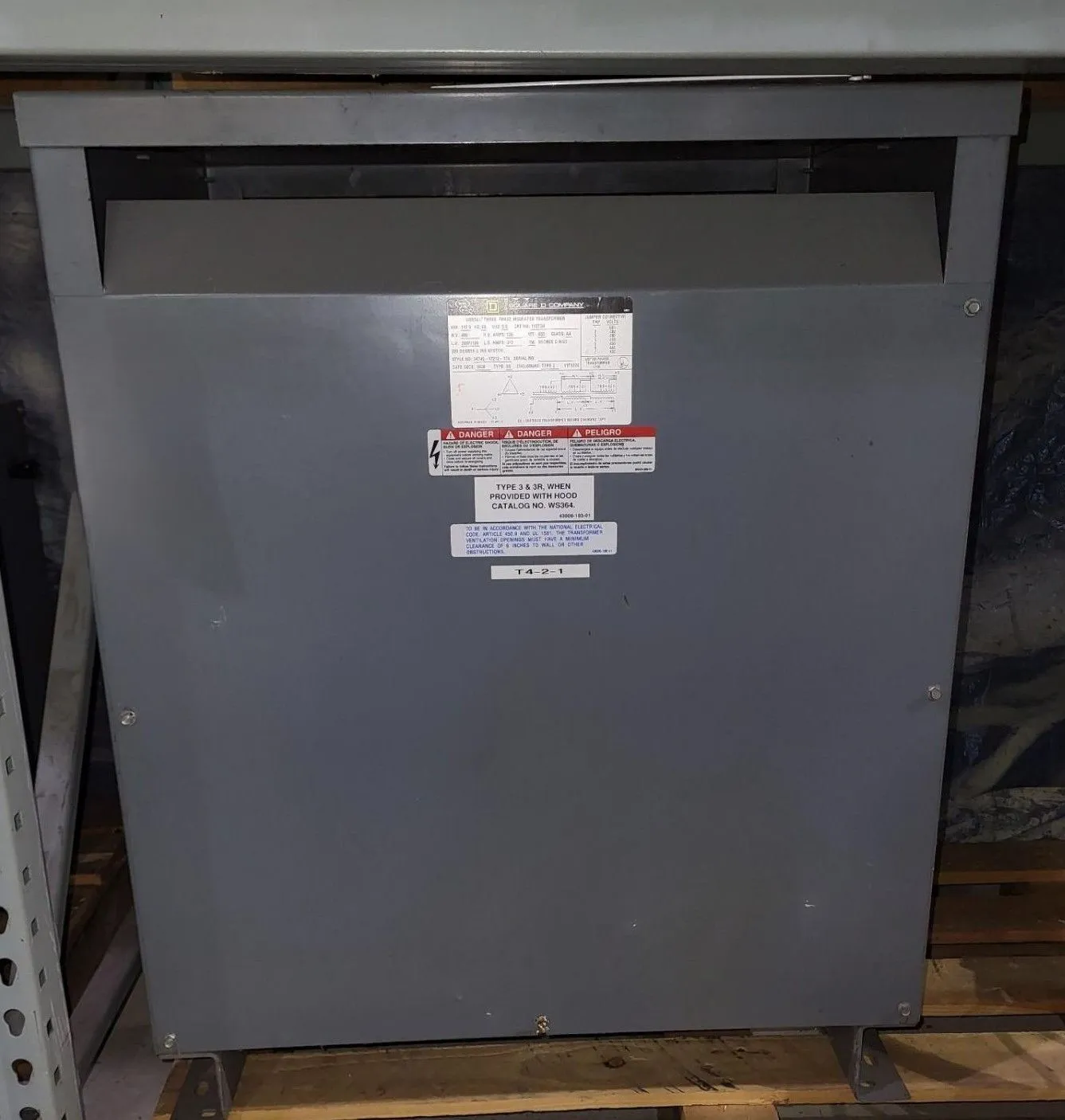

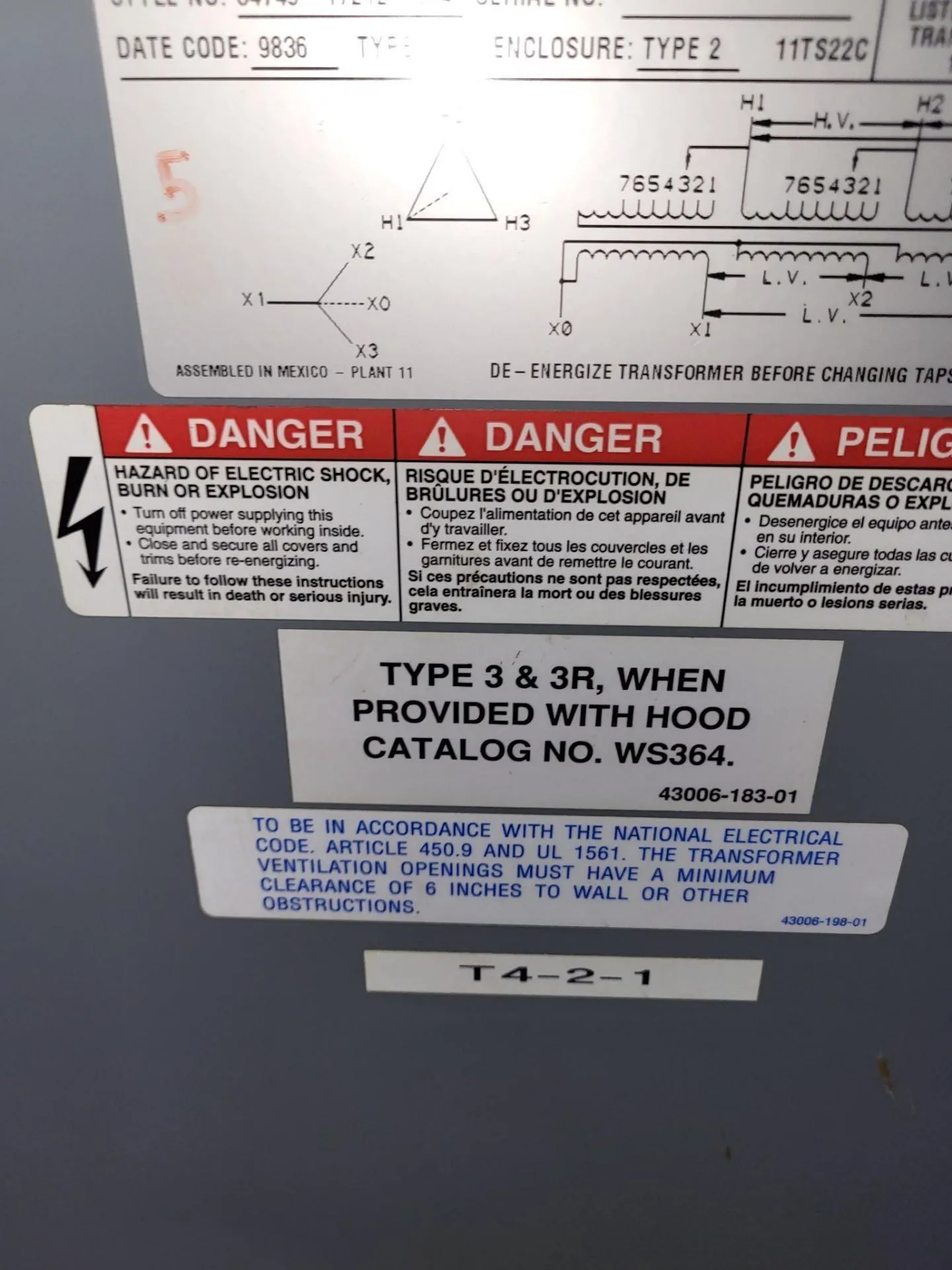

SQUARE D 112T3H SORGEL 112.5 KVA 480V TO 208Y/120V 3 PHASE DRY-TYPE TRANSFORMER

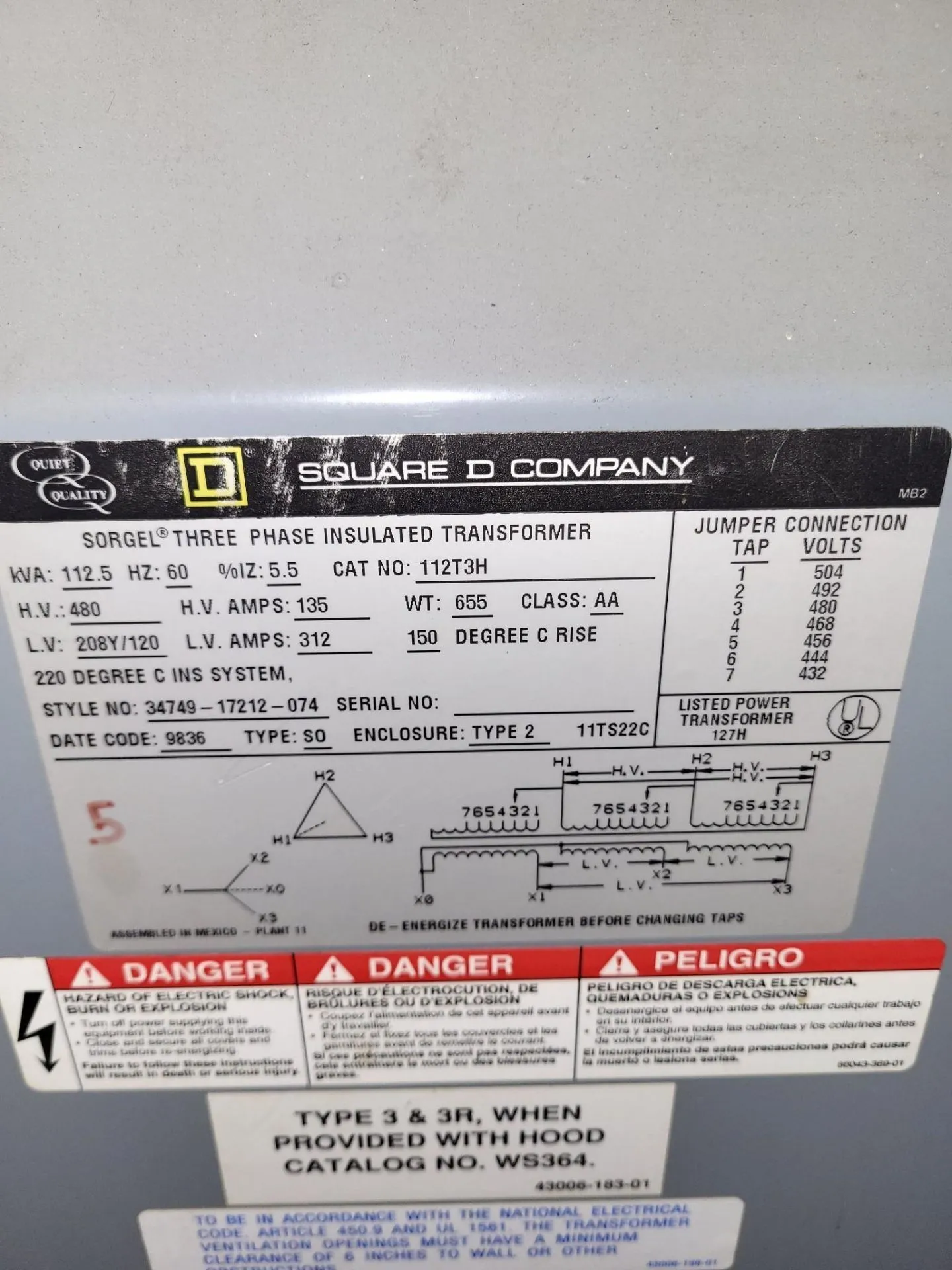

THE SQUARE D SORGEL TRANSFORMER, MODEL 112T3H, IS A 112.5 KVA, 3-PHASE TRANSFORMER DESIGNED FOR EFFICIENT POWER DISTRIBUTION. IT OPERATES WITH A PRIMARY VOLTAGE OF 480V DELTA AND A SECONDARY VOLTAGE OF 208Y/120V, SUITABLE FOR VARIOUS INDUSTRIAL APPLICATIONS. THE TRANSFORMER FEATURES NATURAL CONVECTION COOLING AND IS CONSTRUCTED WITH COPPER COILS, ENSURING DURABILITY AND OPTIMAL PERFORMANCE. IT OPERATES AT A FREQUENCY OF 60 HZ AND HAS A SOUND LEVEL OF 47 DB, ADHERING TO NEMA ST-20 STANDARDS. THE UNIT HAS A BASIC IMPULSE LEVEL (BIL) OF 10 KV AND A TEMPERATURE RISE OF 150°C, WITH INSULATION RATED AT 220°C. IT OFFERS A DOE EFFICIENCY OF 98.80% AT A 35% LOAD FACTOR. THE TRANSFORMER HAS A %IZ OF 3.27%, %IX OF 2.67%, AND AN X/R RATIO OF 1.39. IT CAN HANDLE AN INRUSH CURRENT OF 1563 A AND A LET-THROUGH CURRENT OF 9.55 KA. TRANSFORMER LOSSES ARE 238 W FOR NO-LOAD (CORE LOSS) AND 2389 W FOR LOAD LOSS (COIL LOSS). THE BTU/HR OUTPUT VARIES WITH LOAD, REACHING UP TO 8964 BTU/HR AT FULL CAPACITY. THE UNIT MEASURES 37.5 INCHES IN HEIGHT, 28.4 INCHES IN DEPTH, AND 31.3 INCHES IN WIDTH, WITH A NET WEIGHT OF 665 LBS. IT IS FLOOR-MOUNTED AND OFFERS UL TYPE 2 PROTECTION, WITH AN OPTION FOR UL TYPE 3R WITH 7400WS21M. ELECTRICAL CONNECTIONS INCLUDE 4-HOLE AND 6-HOLE NEMA PADS FOR BOTH PRIMARY AND SECONDARY CONNECTIONS.
