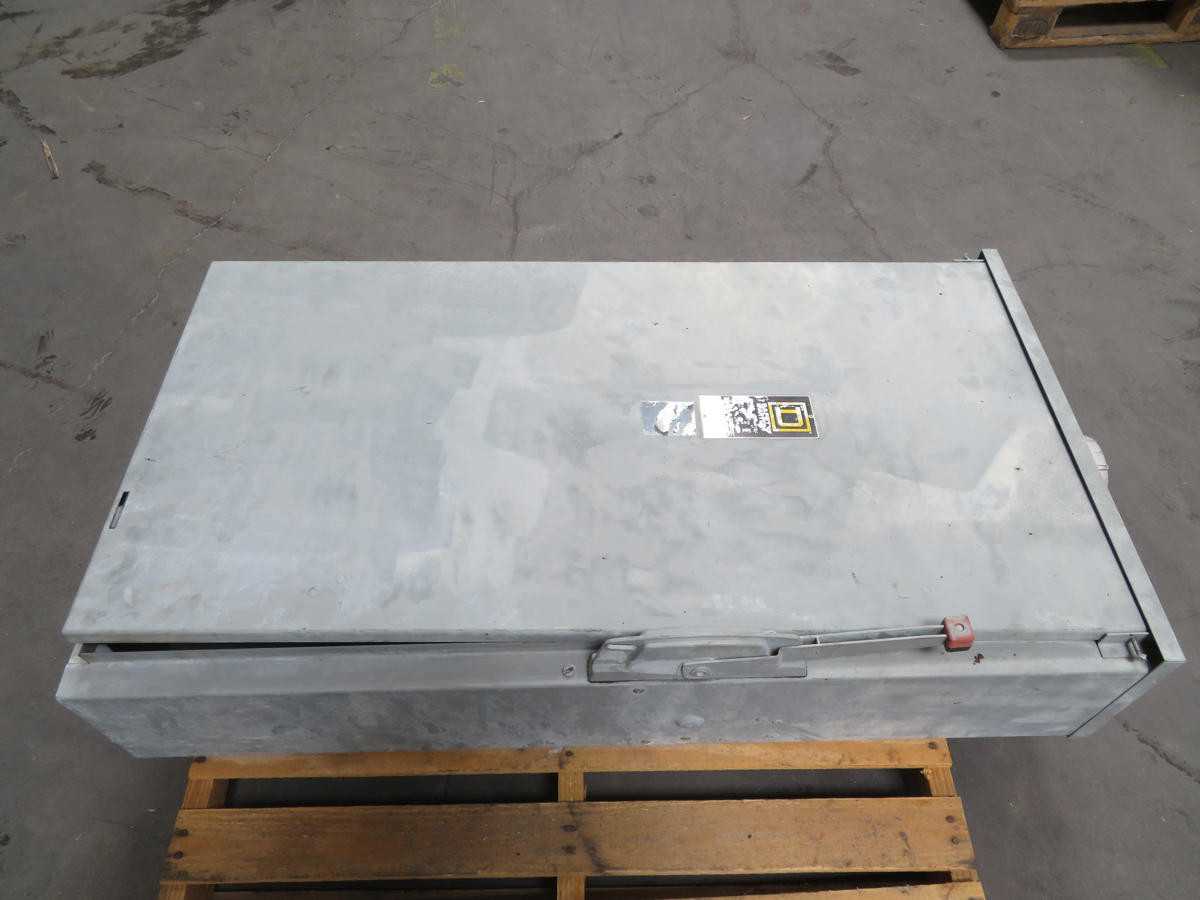

Square D H365NR Disconnect Switch, 400A Current, 600V AC Voltage, 250 HP Power

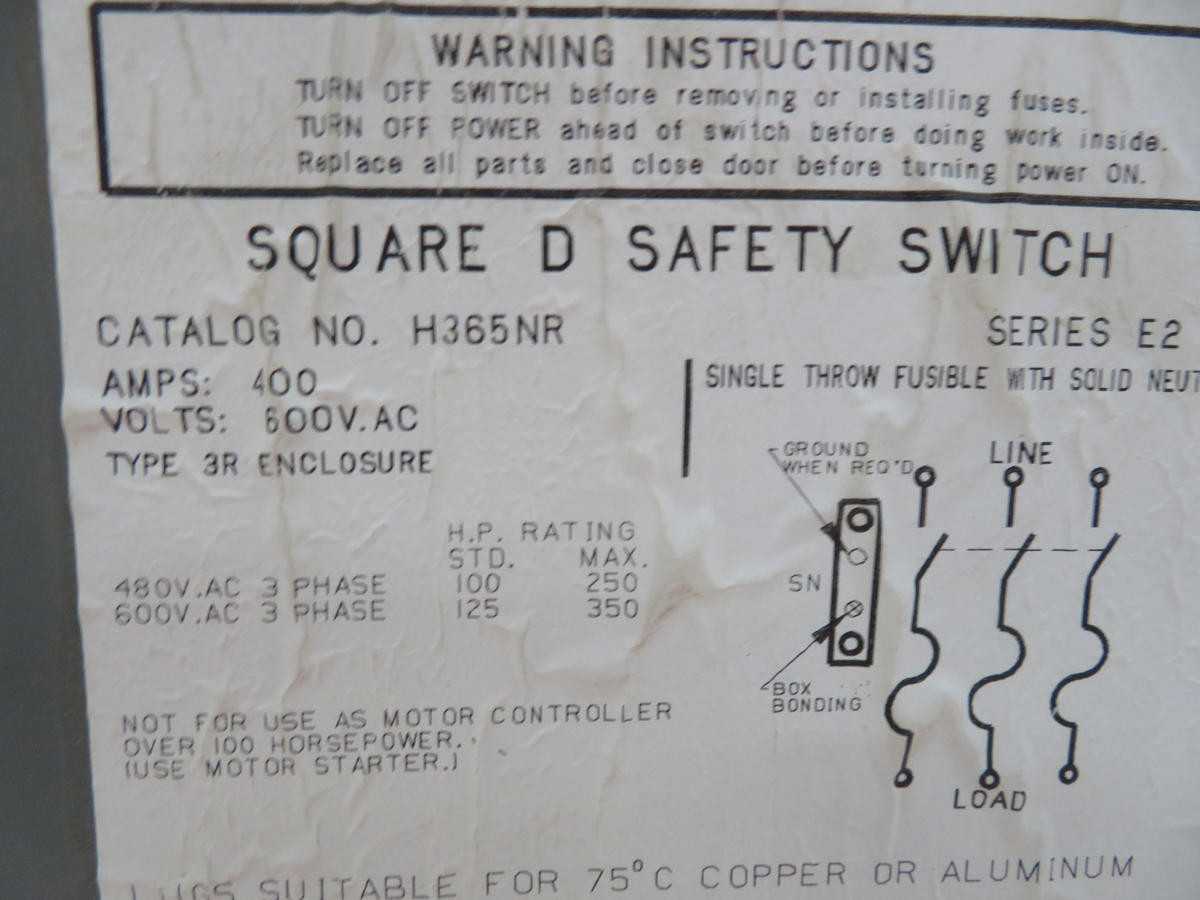

THE SQUARE D H365NR IS A HEAVY-DUTY, 3-POLE, NON-FUSIBLE SAFETY SWITCH. IT IS RATED FOR 400 AMPS AND 600 VOLTS AC. THIS DISCONNECT SWITCH FEATURES A TYPE 3R ENCLOSURE, PROVIDING PROTECTION AGAINST INGRESS OF RAIN, SLEET, AND EXTERNAL ICE FORMATION FOR OUTDOOR APPLICATIONS. IT SUPPORTS A MAXIMUM HORSEPOWER RATING OF 200 HP AT 480V AC AND 250 HP AT 600V AC. KEY OPERATIONAL FEATURES INCLUDE VISIBLE BLADE CONSTRUCTION FOR CLEAR SWITCH STATUS INDICATION AND A QUICK-MAKE, QUICK-BREAK MECHANISM TO ENSURE RELIABLE CONTACT OPERATION AND ARC SUPPRESSION.
