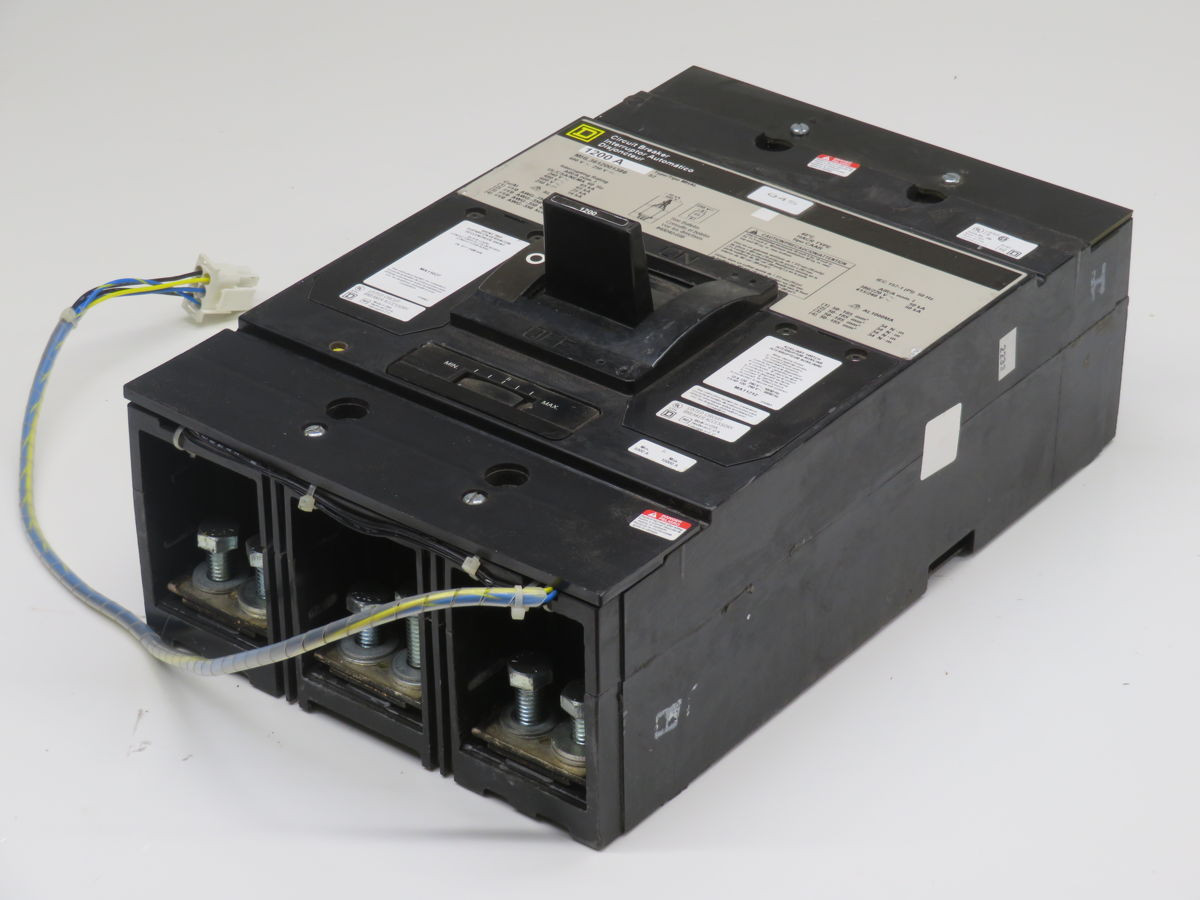

SQUARE D MHL3612001386 MA11212 MOLDED CASE CIRCUIT BREAKER

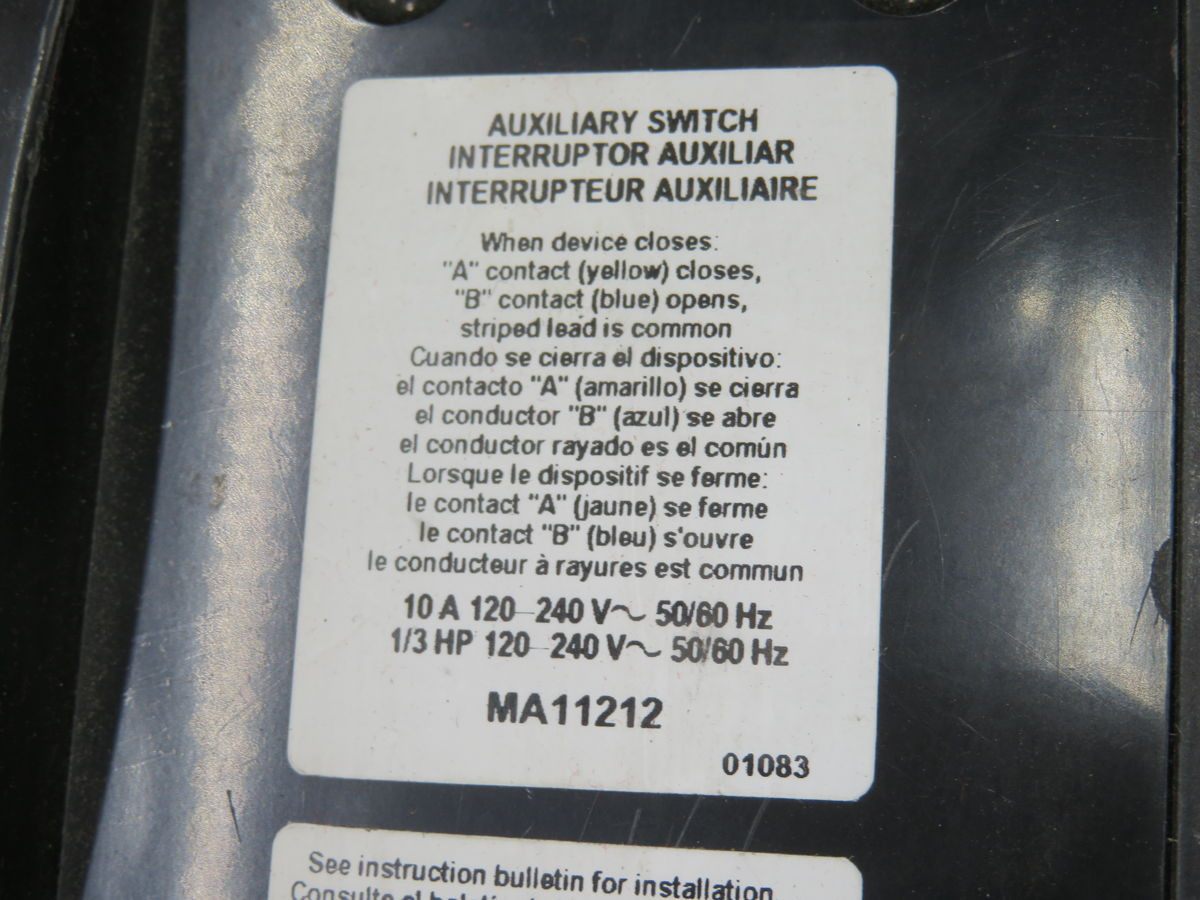

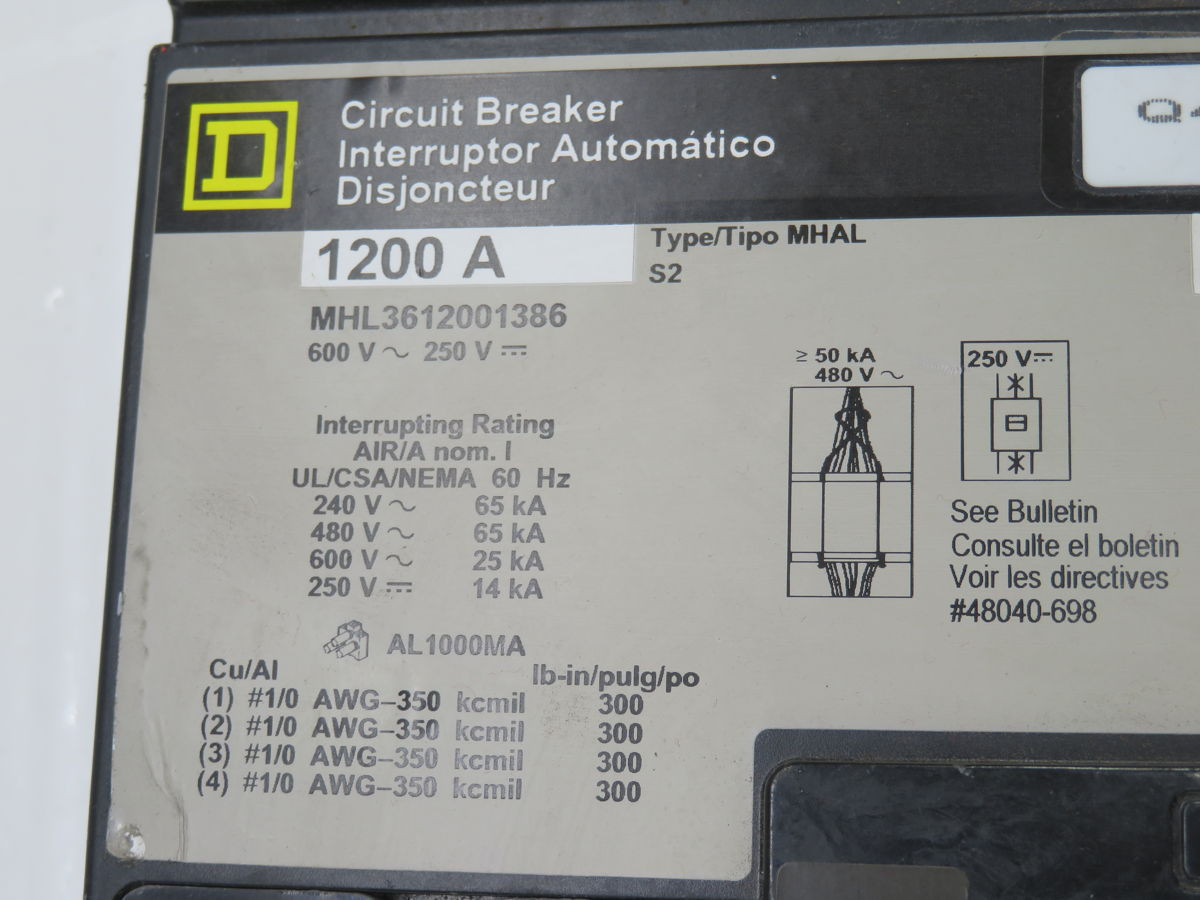

THIS SQUARE D MHL3612001386 MOLDED CASE CIRCUIT BREAKER, ALSO DESIGNATED MA11212, IS A 3-POLE DEVICE ENGINEERED FOR CIRCUIT PROTECTION APPLICATIONS. IT PROVIDES A CONTINUOUS CURRENT RATING OF 1200 AMPERES AND IS DESIGNED FOR OPERATION AT A MAXIMUM VOLTAGE OF 600 VAC AND 250 VDC. THE BREAKER FEATURES AN INTERRUPTING RATING OF 35 KA AT 600 VAC. INTEGRATED AUXILIARY CONTACTS OR ASSOCIATED CONTROL CIRCUIT ELEMENTS ARE RATED FOR 10 AMPERES AT 120/240 VAC, 50/60 HZ, AND ARE ALSO SUITABLE FOR CONTROLLING 1/3 HP MOTOR LOADS AT 120/240 VAC, 50/60 HZ.
