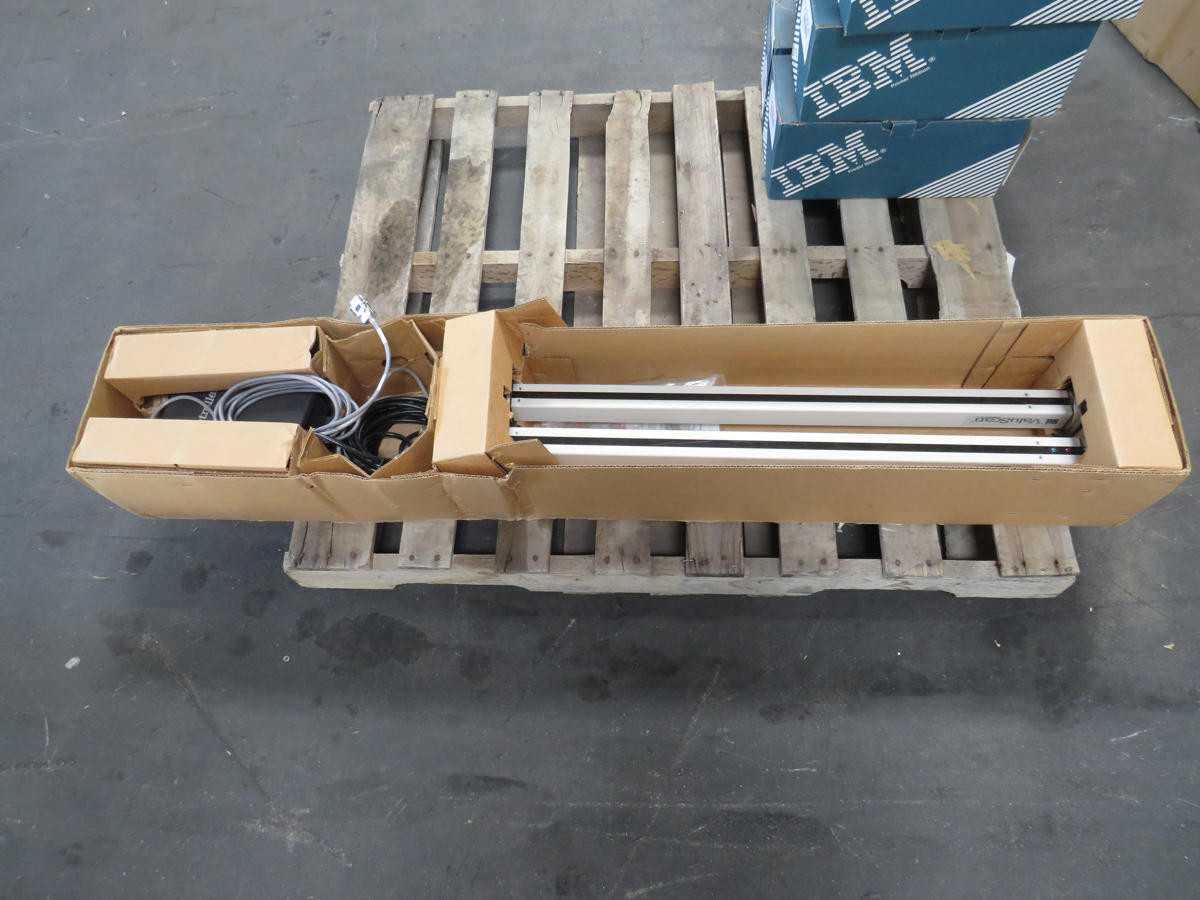

STI VS650030-0 SAFETY LIGHT CURTAIN, 300MM HEIGHT, 30MM RESOLUTION, 8MS RESPONSE

THE STI VS650030-0 IS A TYPE 4 SAFETY LIGHT CURTAIN KIT DESIGNED FOR INDUSTRIAL SAFETY APPLICATIONS, CONFORMING TO IEC/EN 61496-1/-2 AND EN ISO 13849-1 CATEGORY 4, PL E STANDARDS. IT FEATURES A PROTECTED HEIGHT OF 300 MM AND AN OBJECT SENSITIVITY (RESOLUTION) OF 30 MM, SUITABLE FOR HAND AND ARM PROTECTION. THE SYSTEM OPERATES WITHIN A SENSING RANGE OF 0 TO 300 MM AND REQUIRES A 24 VDC ±15% SUPPLY VOLTAGE. IT PROVIDES TWO SOLID-STATE OSSD (OUTPUT SIGNAL SWITCHING DEVICE) PNP SAFETY OUTPUTS. THE TYPICAL RESPONSE TIME IS 8 MS. HOUSED IN AN ALUMINUM ALLOY ENCLOSURE, THE UNIT OFFERS AN IP65 PROTECTION RATING AND OPERATES WITHIN A TEMPERATURE RANGE OF 0°C TO 55°C.
