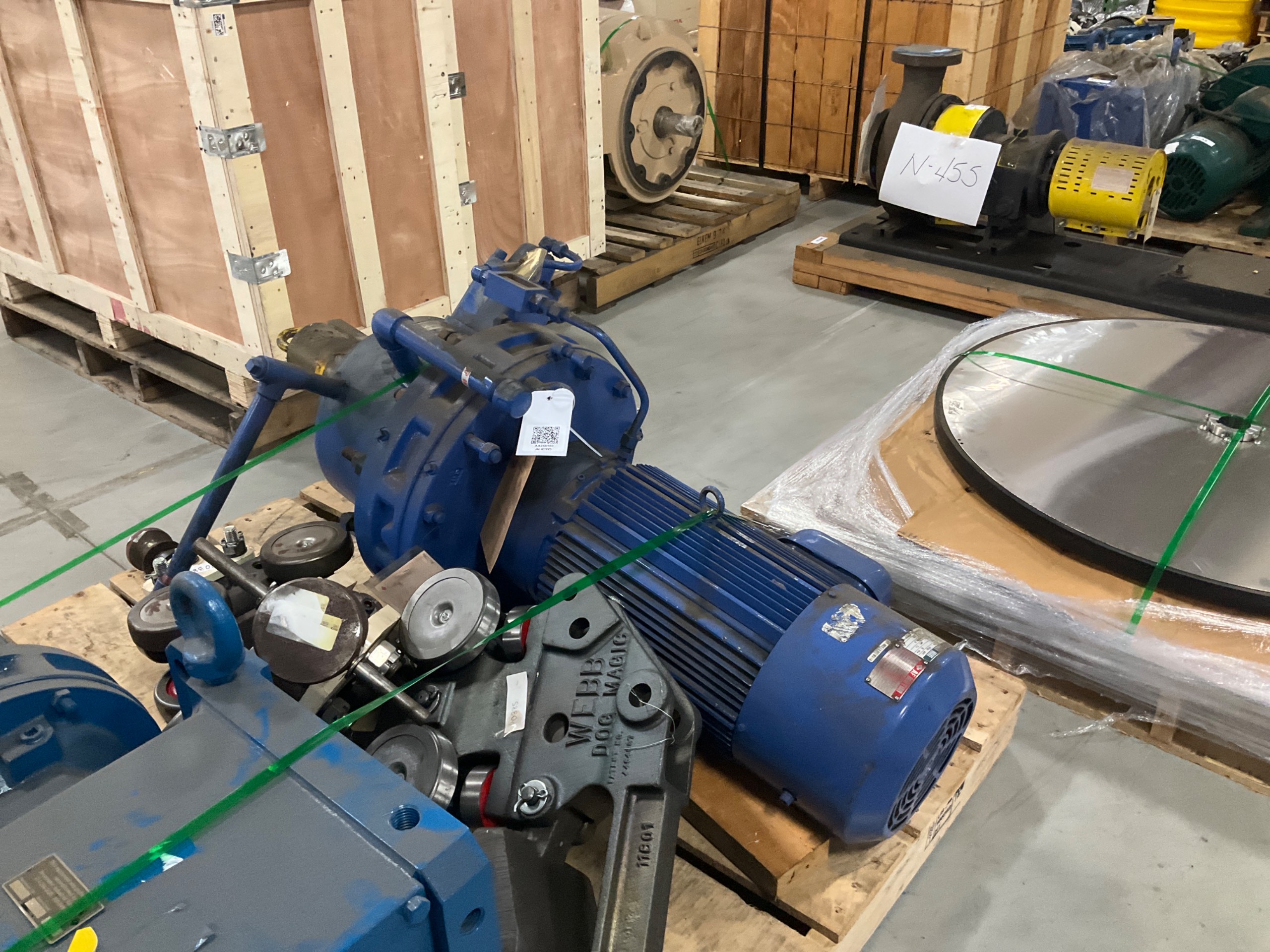

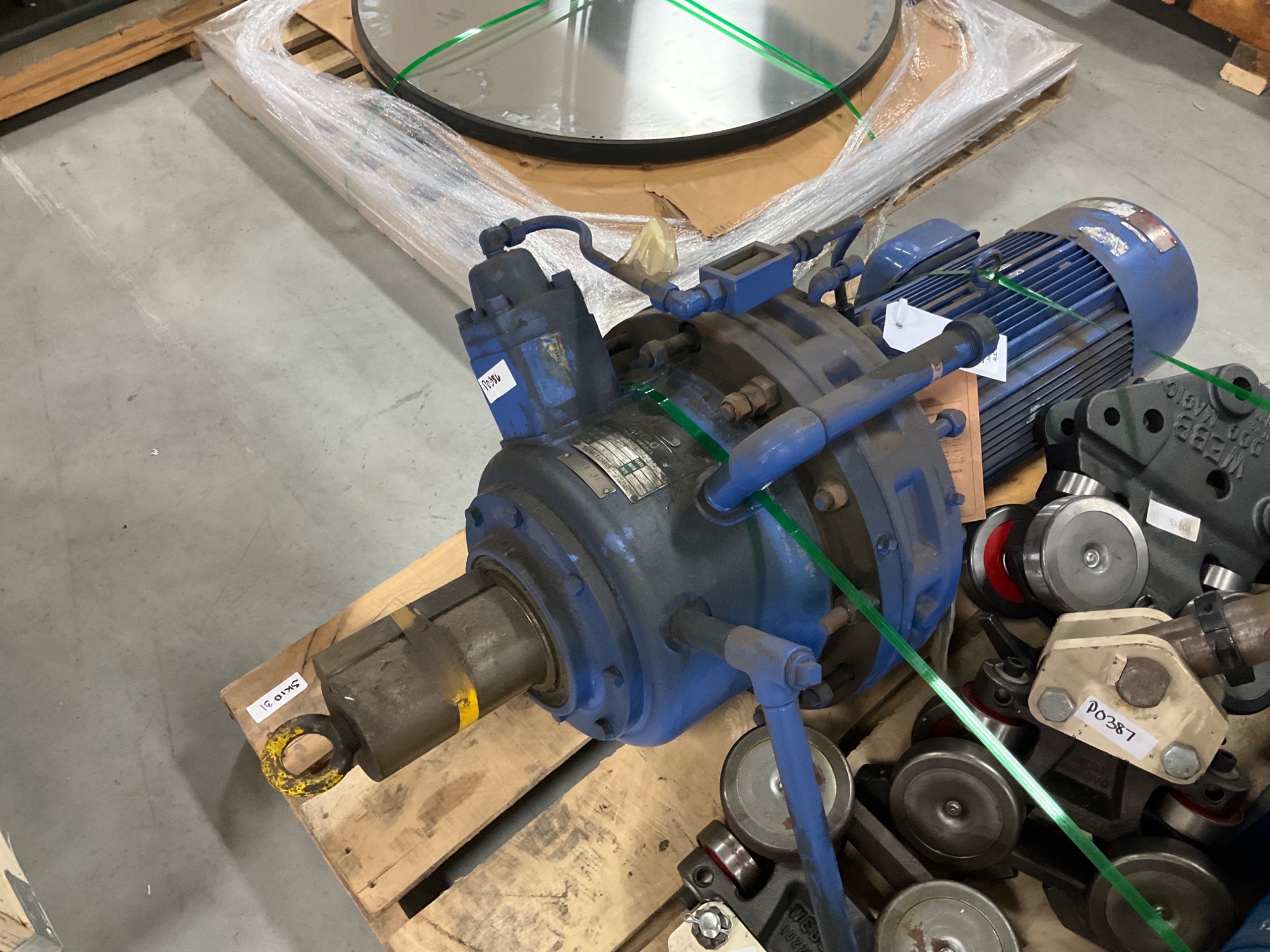

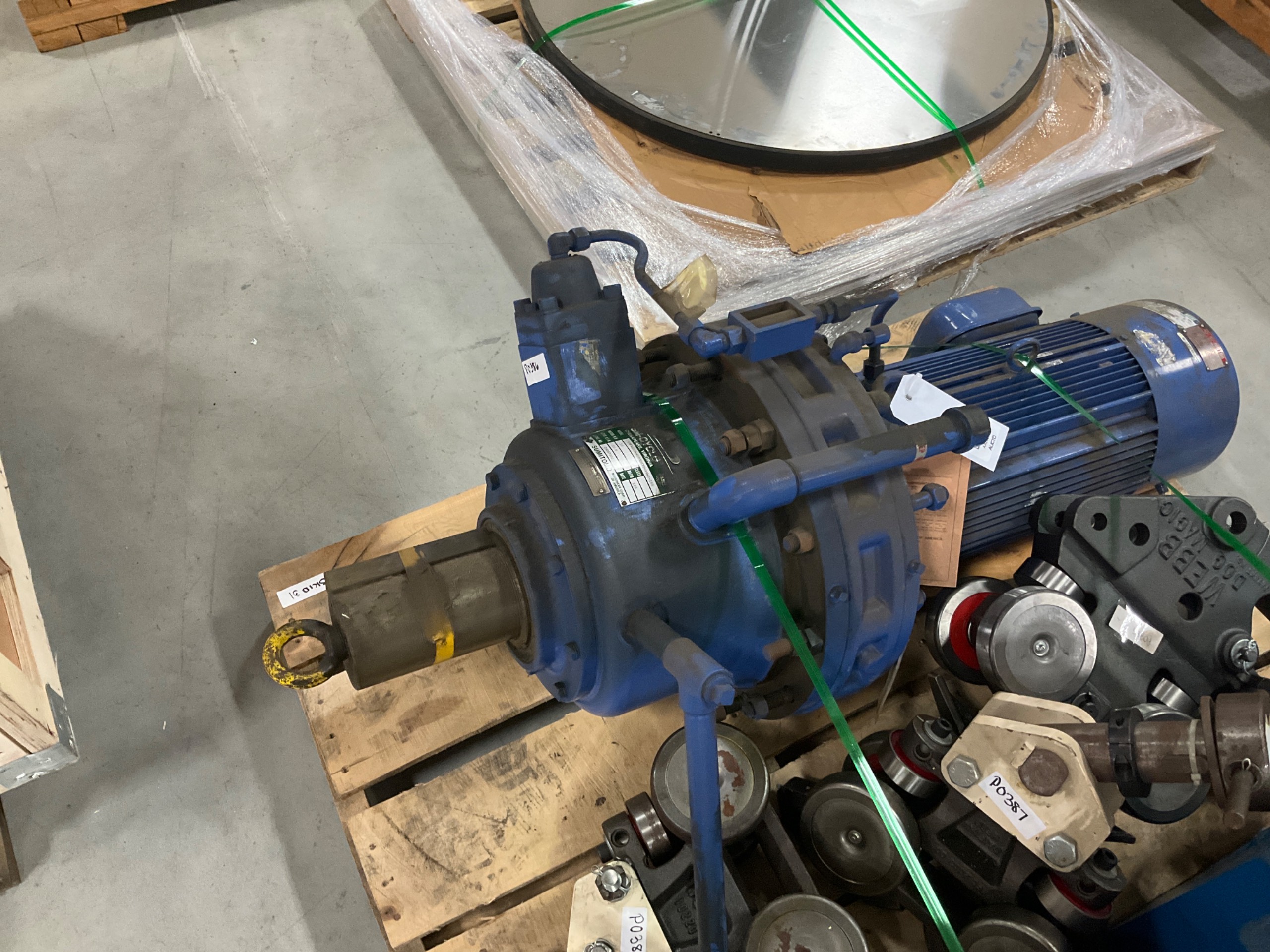

SUMITOMO MOTOR & GEARBOX ASSEMBLY

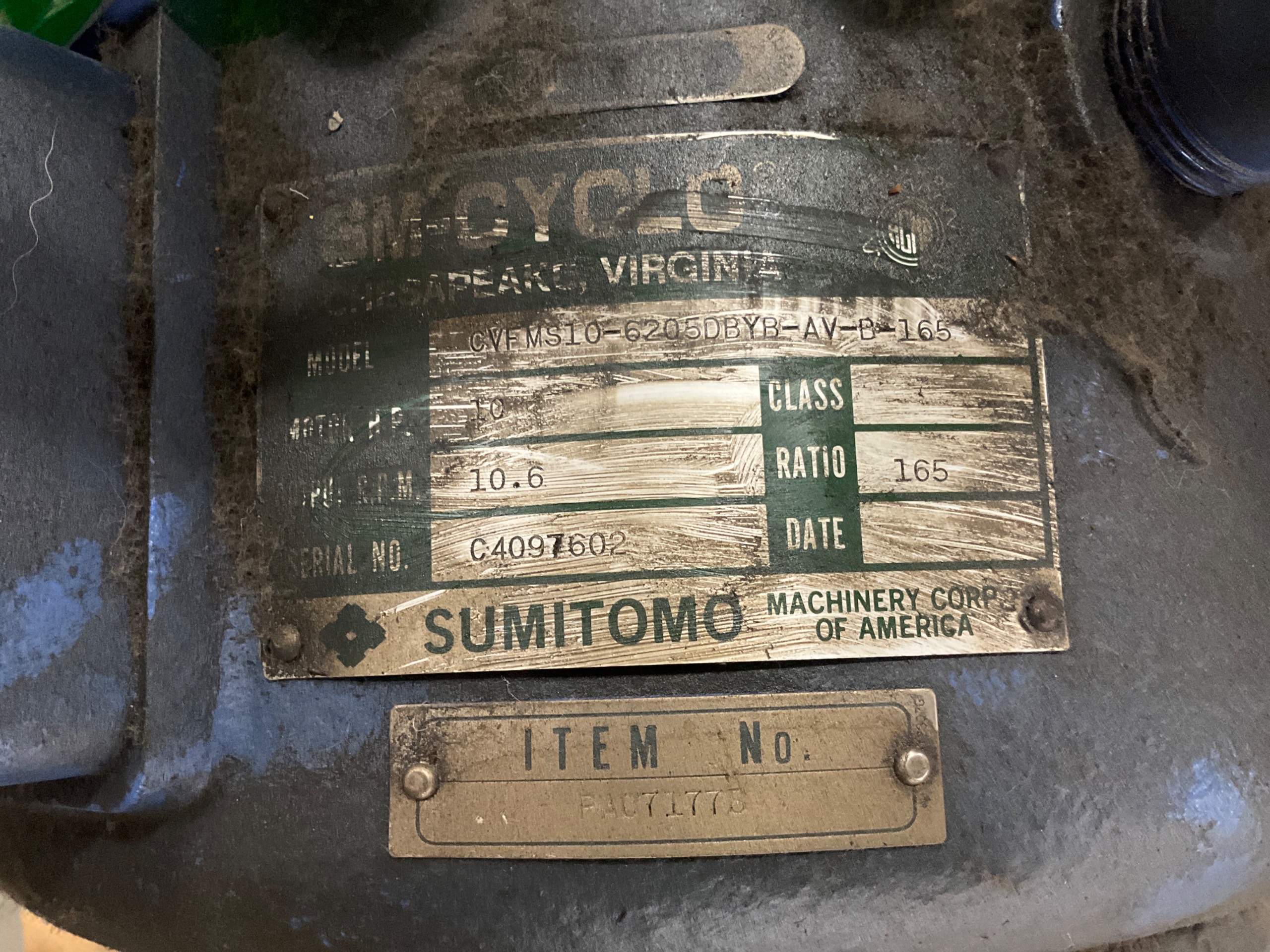

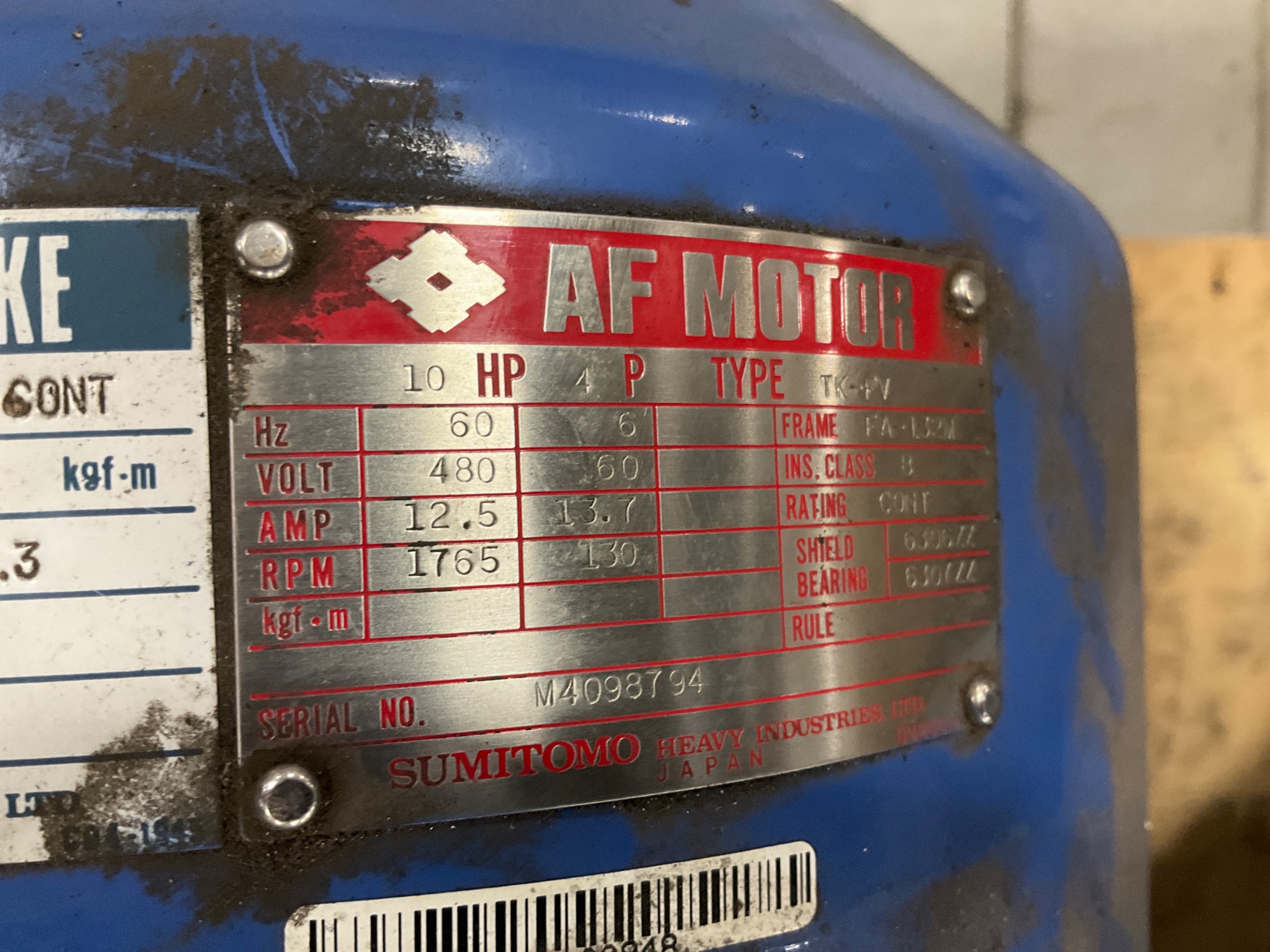

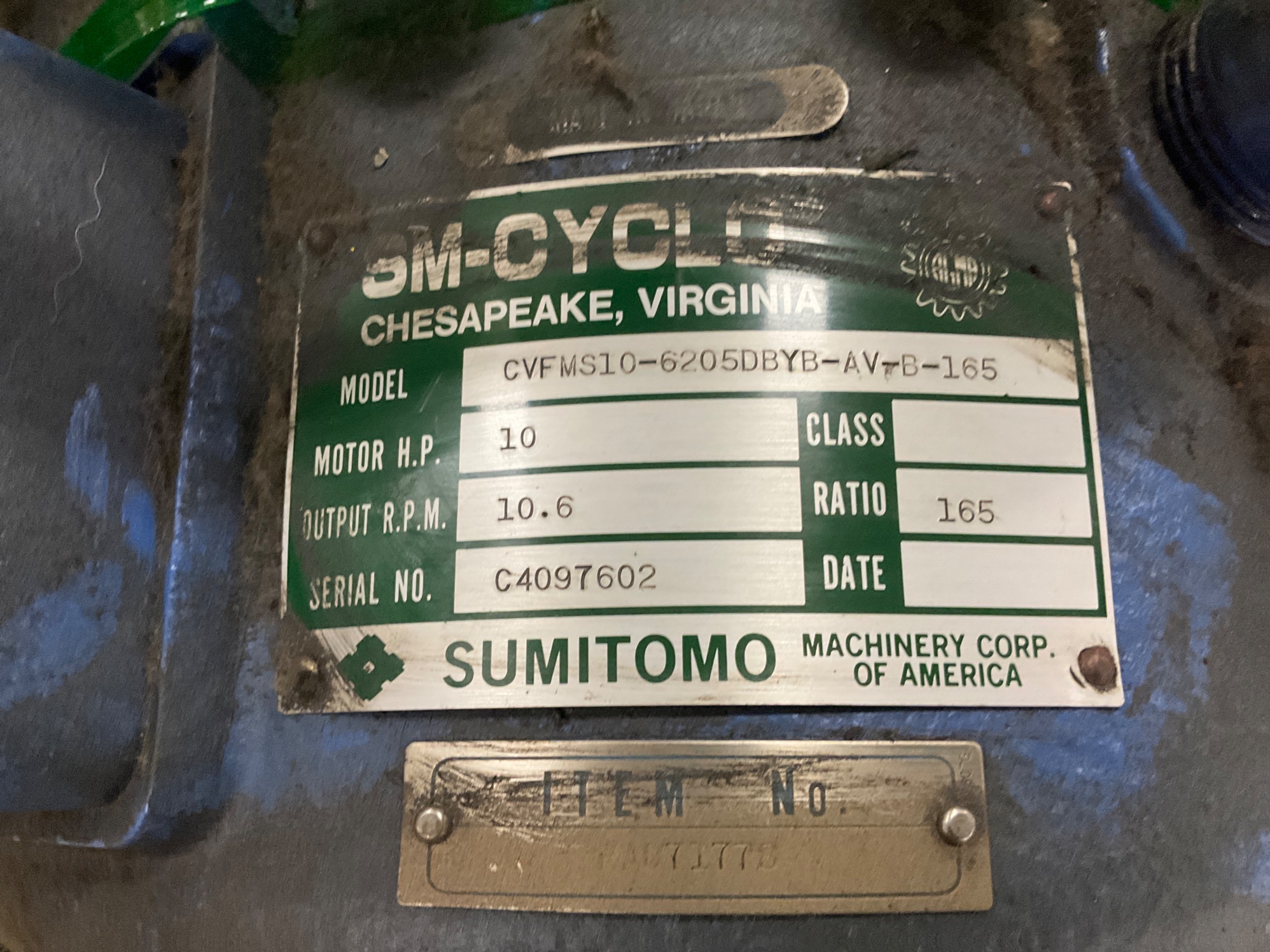

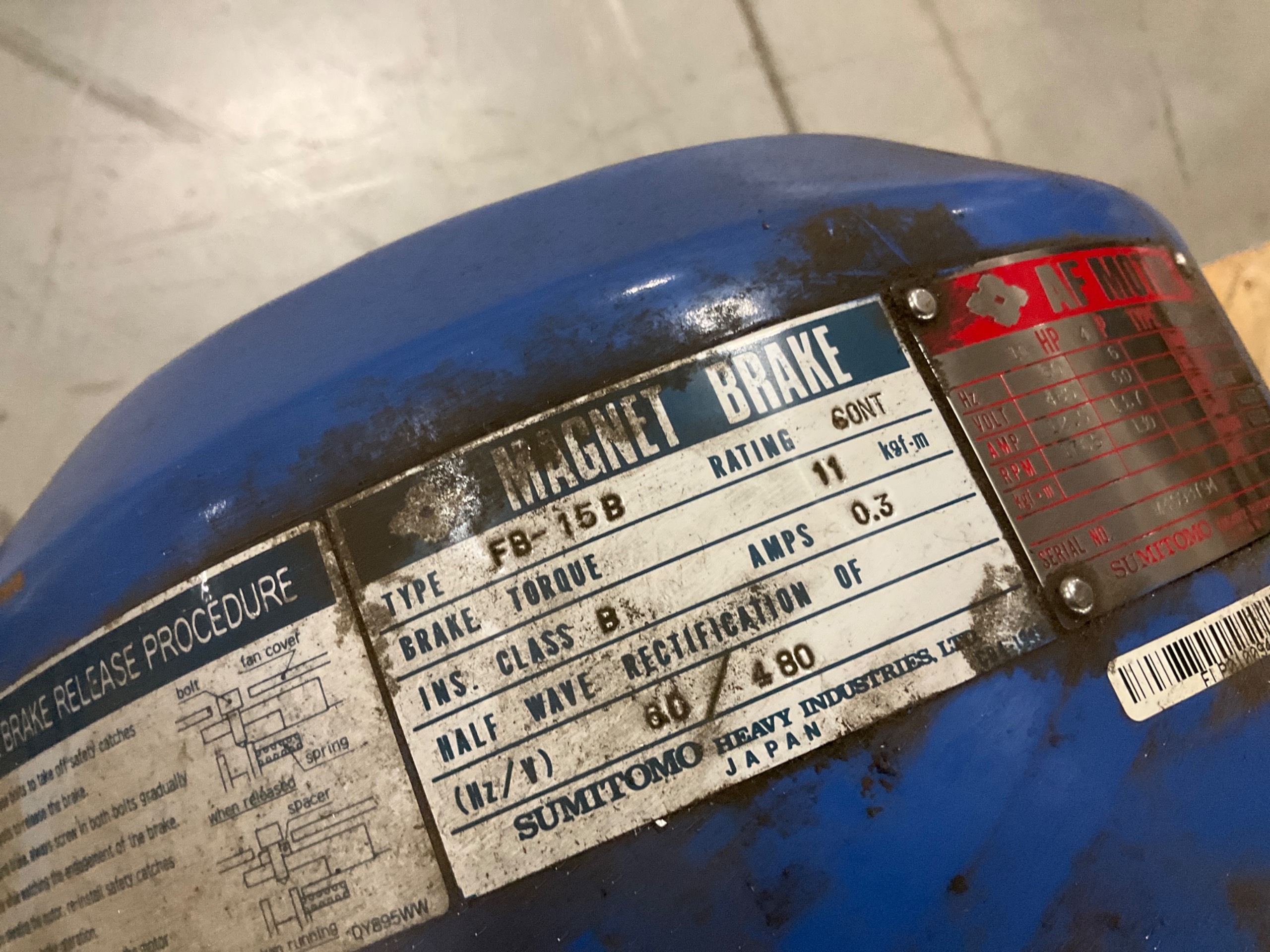

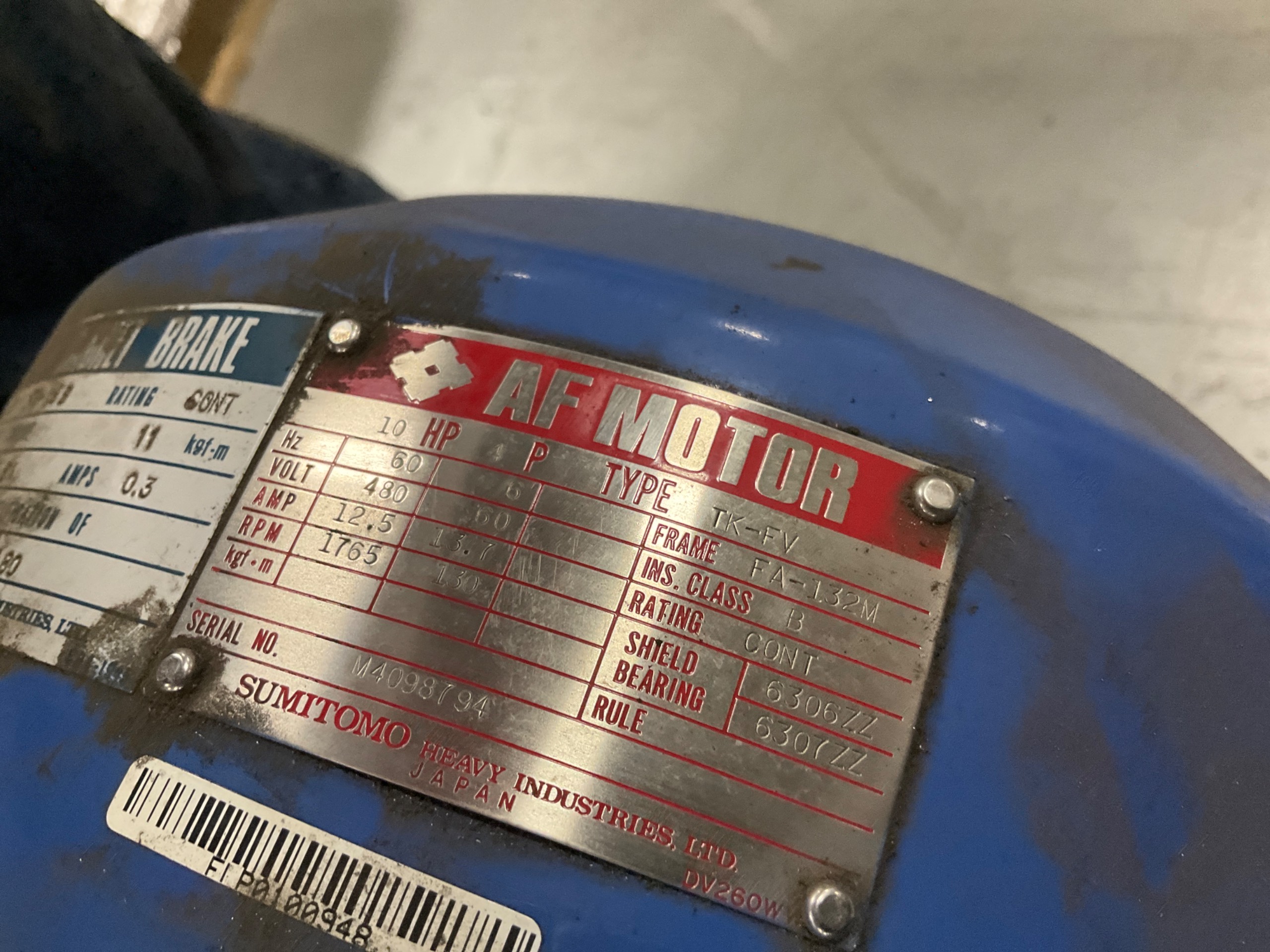

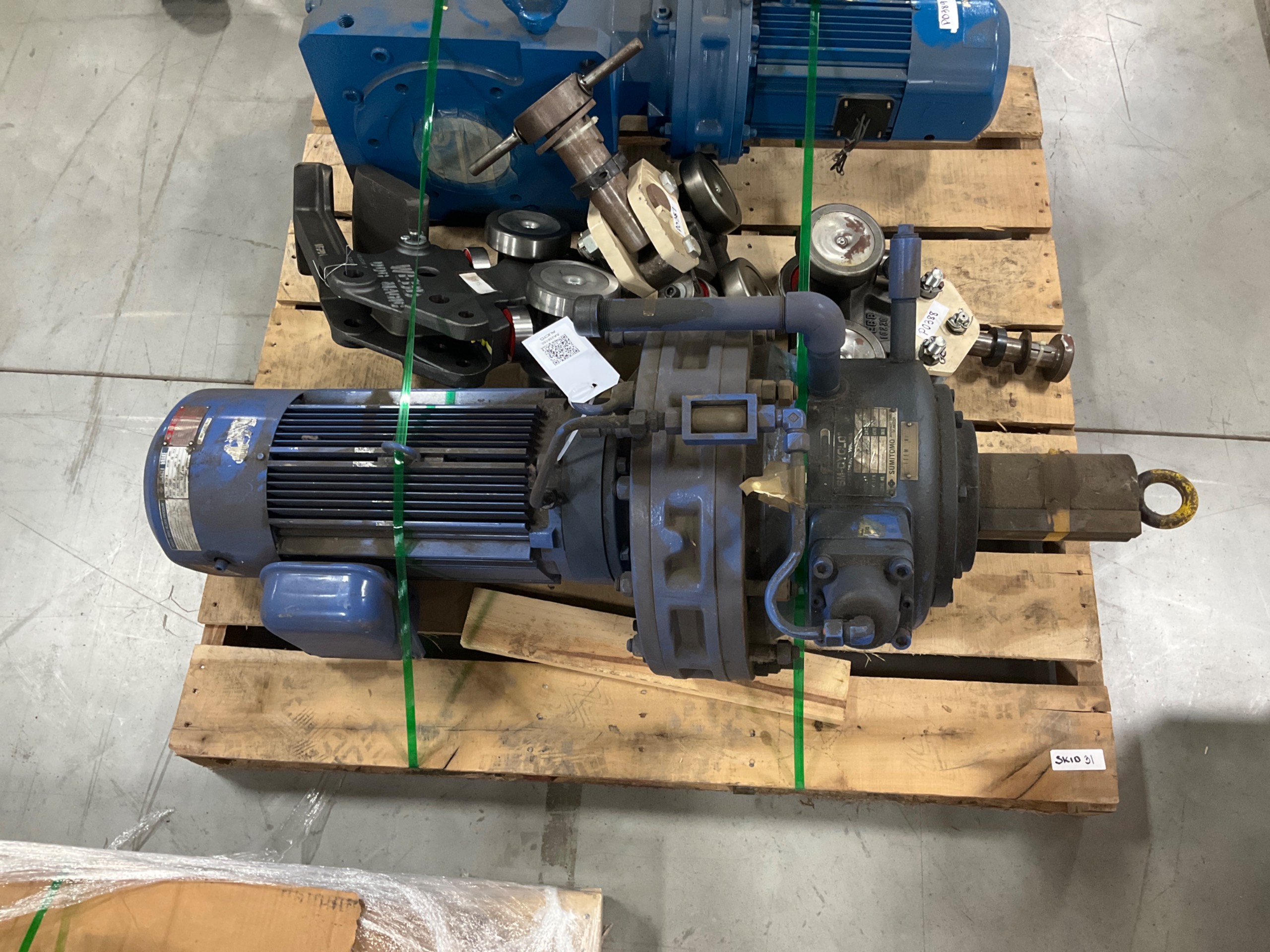

THIS UNIT CONSISTS OF AN AF MOTOR COUPLED WITH AN SM-CYCLO GEARBOX. THE MOTOR IS RATED AT 10 HP, 480V, THREE-PHASE, 60 HZ, AND OPERATES AT 1765 RPM. IT IS INVERTER DUTY RATED AND INCLUDES A MAGNETIC BRAKE (TYPE FB-15B) FOR CONTROLLED STOPPING DURING OPERATION. THE GEARBOX IS A SUMITOMO SM-CYCLO, MODEL CVFMS10-6205DBYB-AV-B-165, WITH A 165:1 RATIO AND FLANGE MOUNT DESIGN. SM-CYCLO GEARBOXES USE CYCLOIDAL GEARING TECHNOLOGY, DESIGNED TO REDUCE WEAR AND DELIVER HIGH TORQUE AT LOW OUTPUT SPEEDS. THE OUTPUT SPEED FOR THIS ASSEMBLY IS 10.6 RPM.
