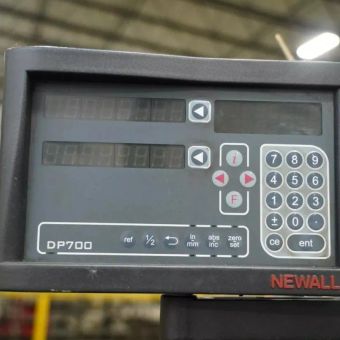

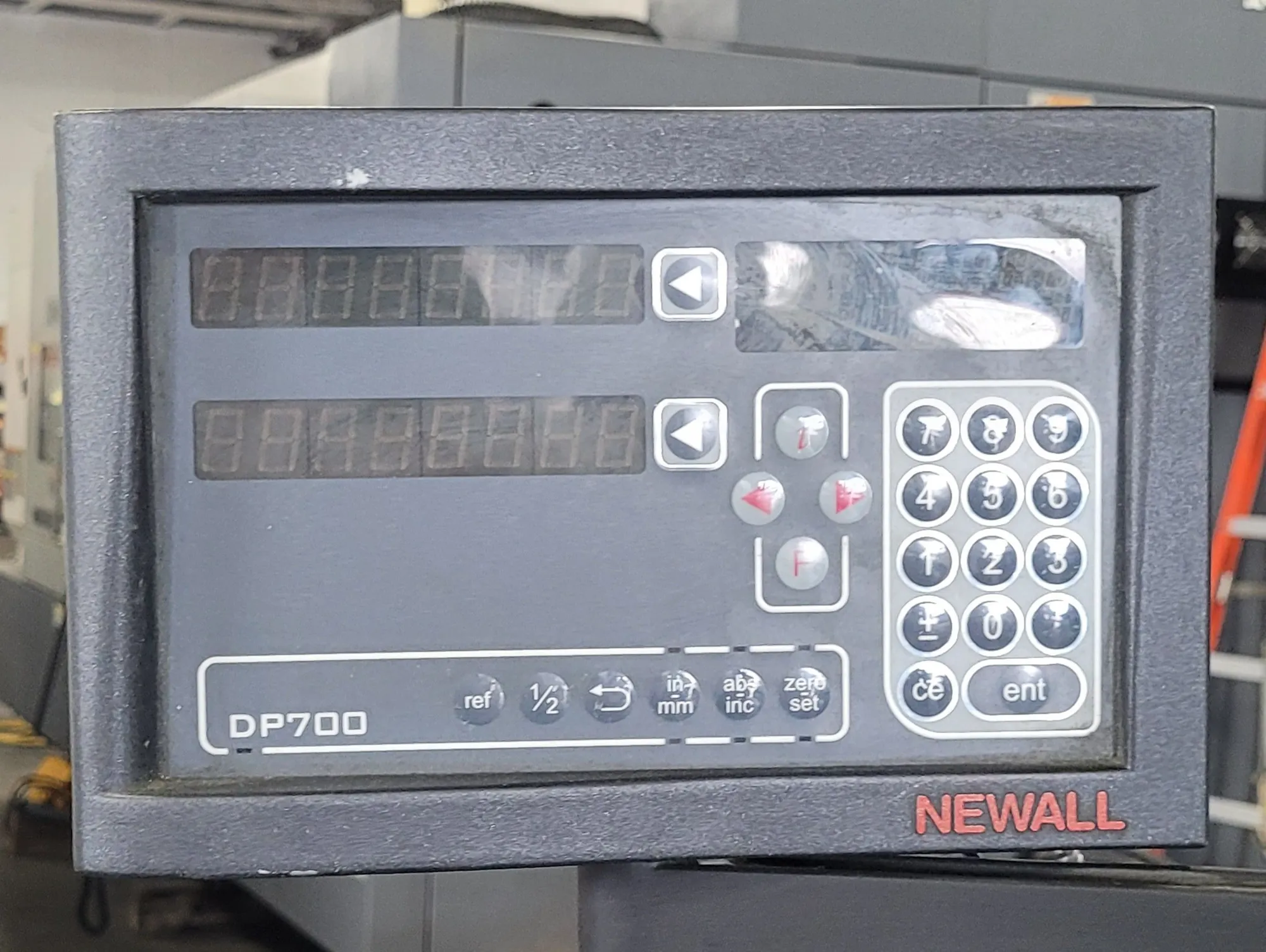

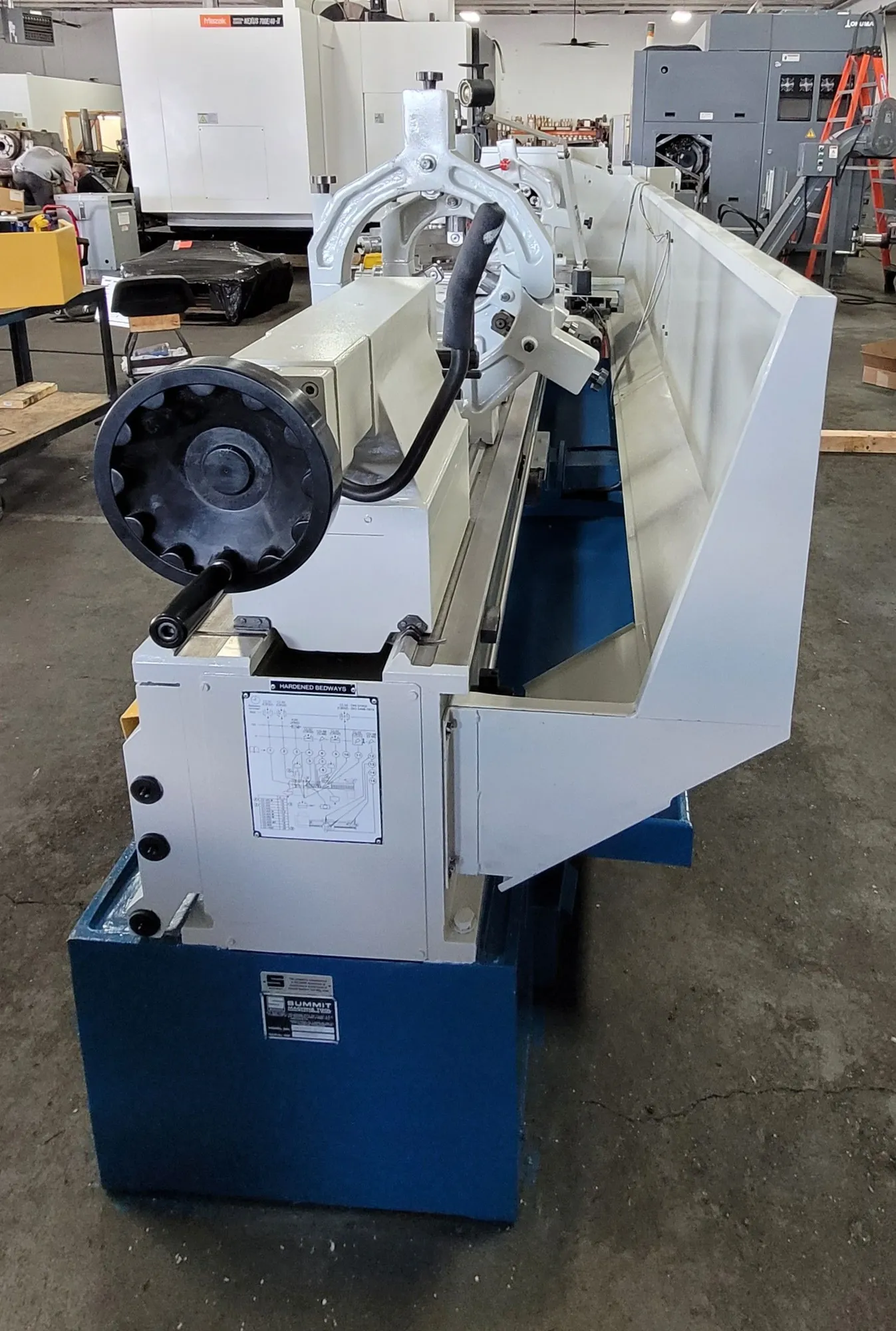

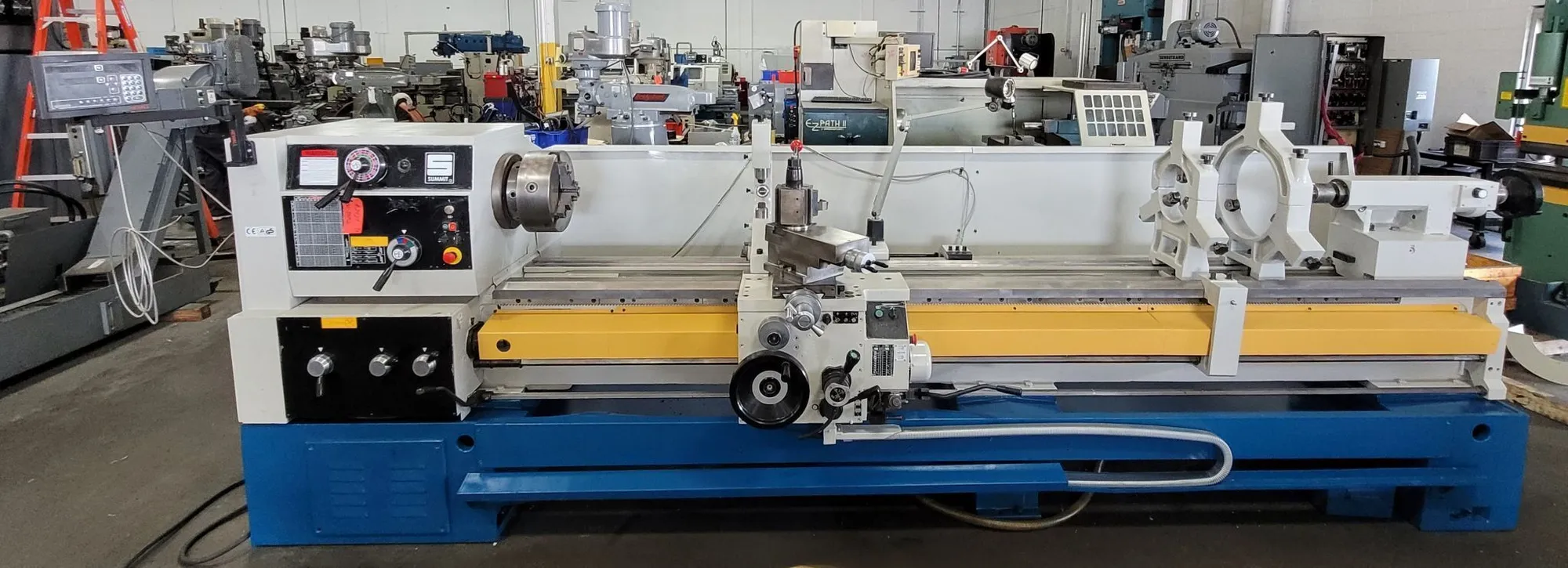

SUMMIT 24120B 24"/33" GAP BED LATHE, 120" CENTERS, 15 HP, NEWALL DRO, 220V 3-PHASE

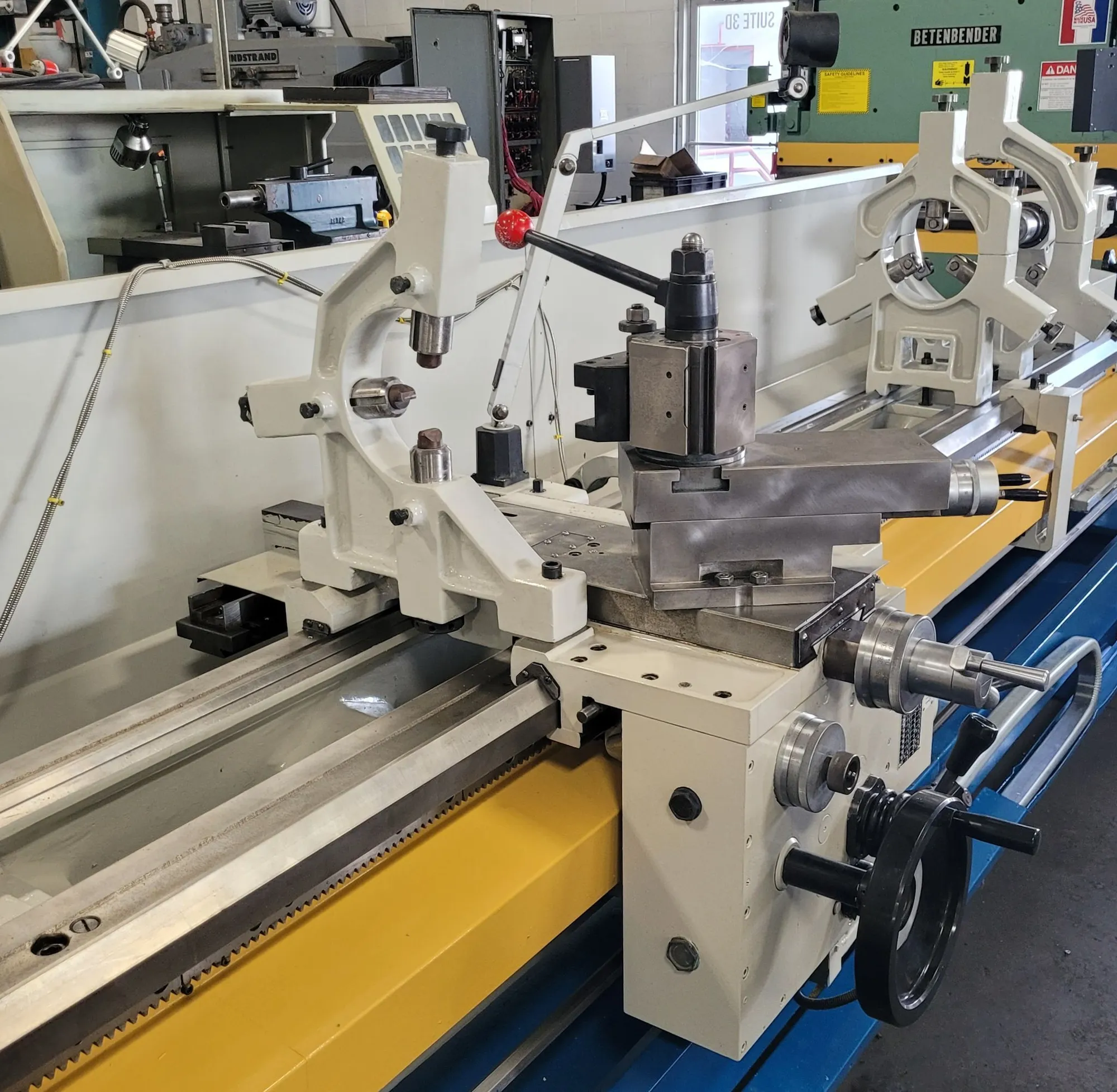

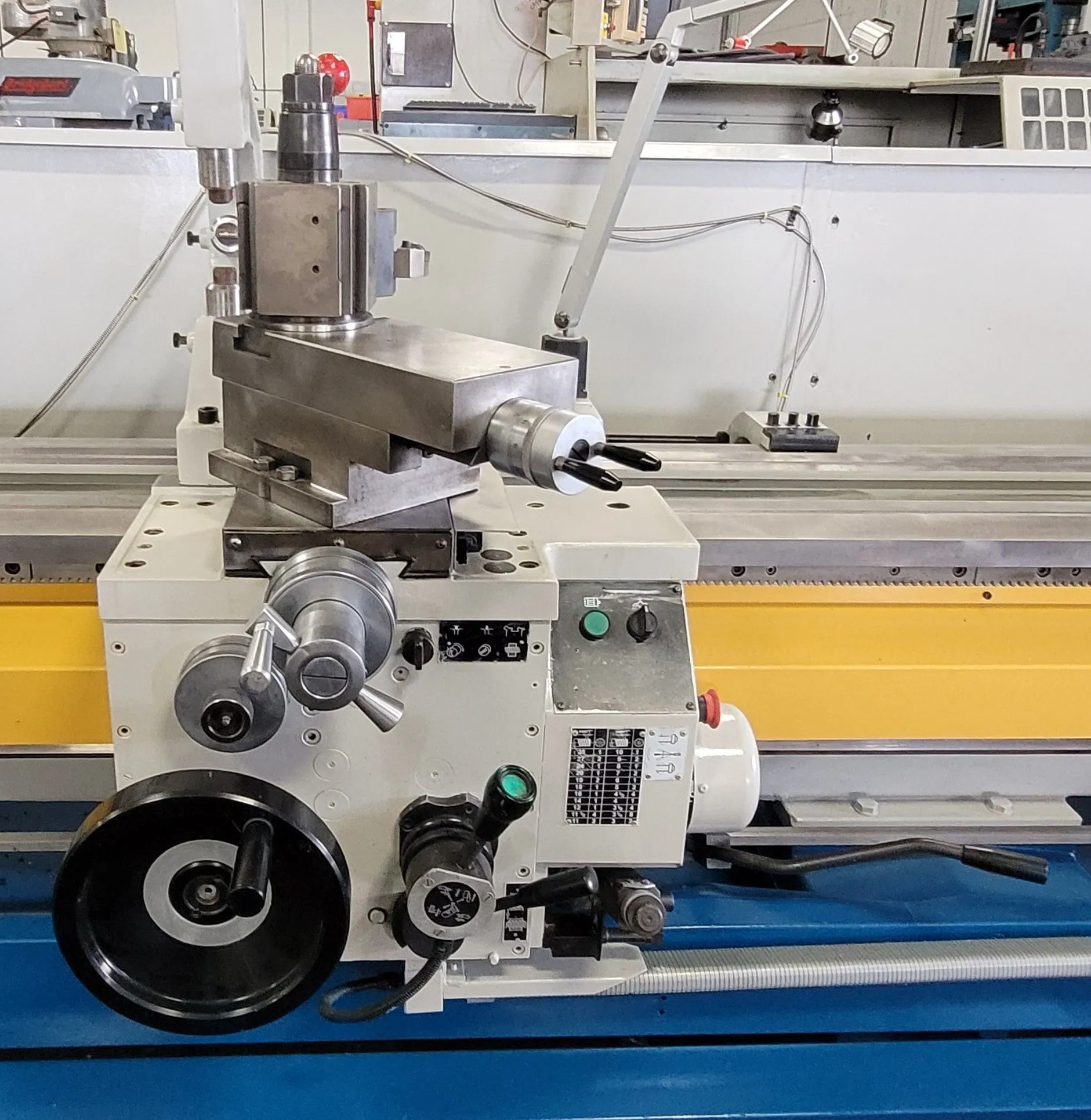

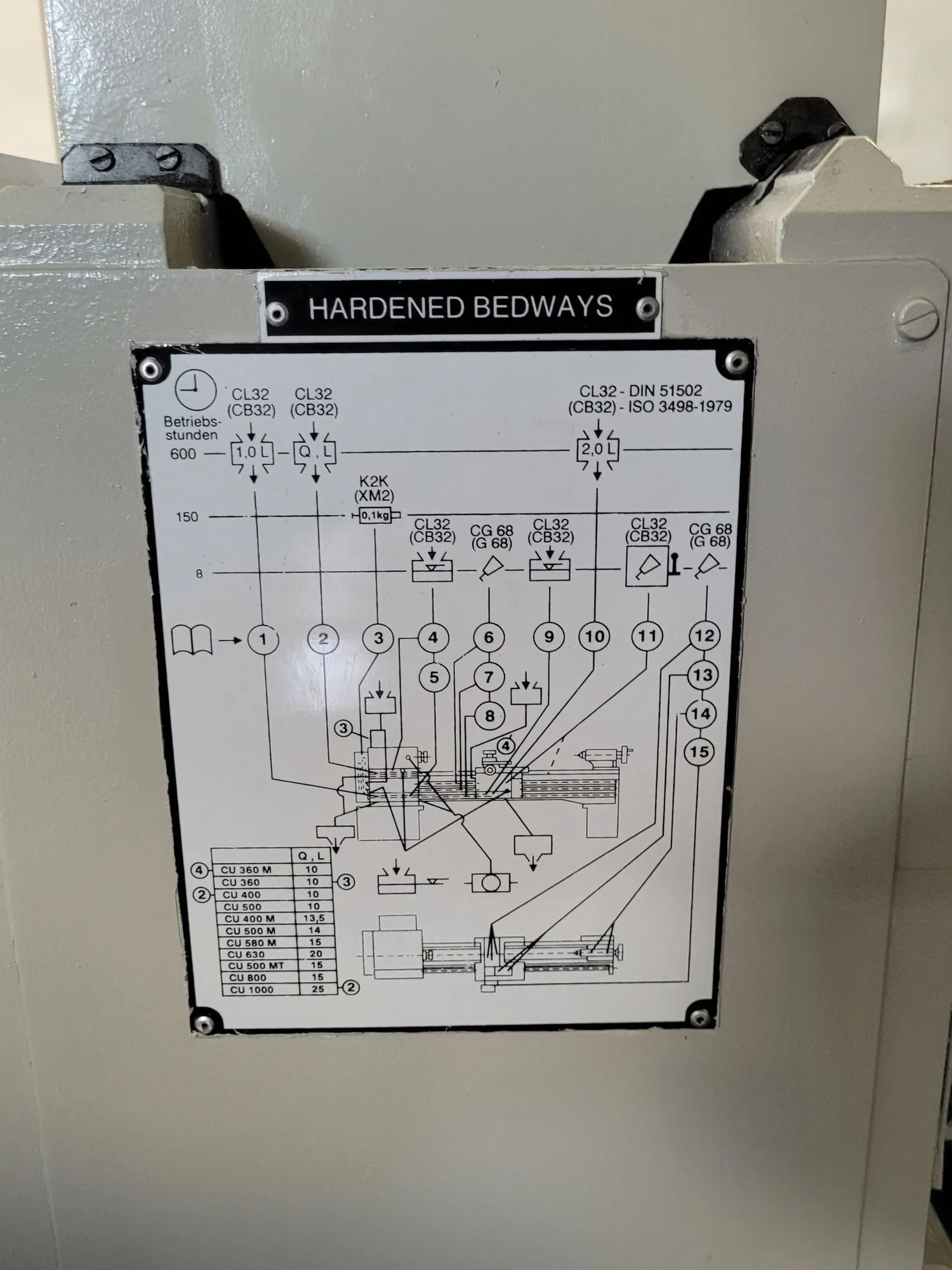

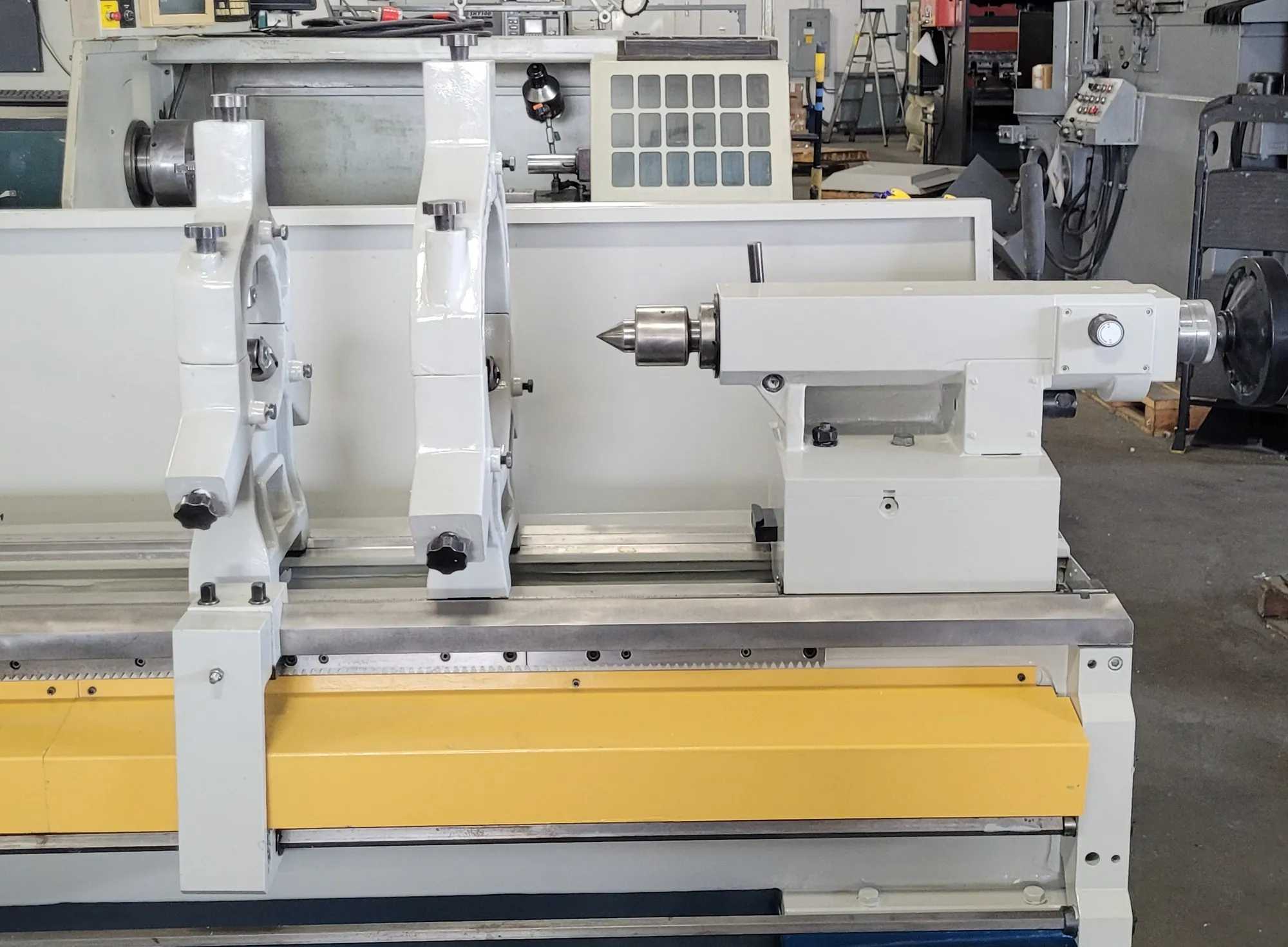

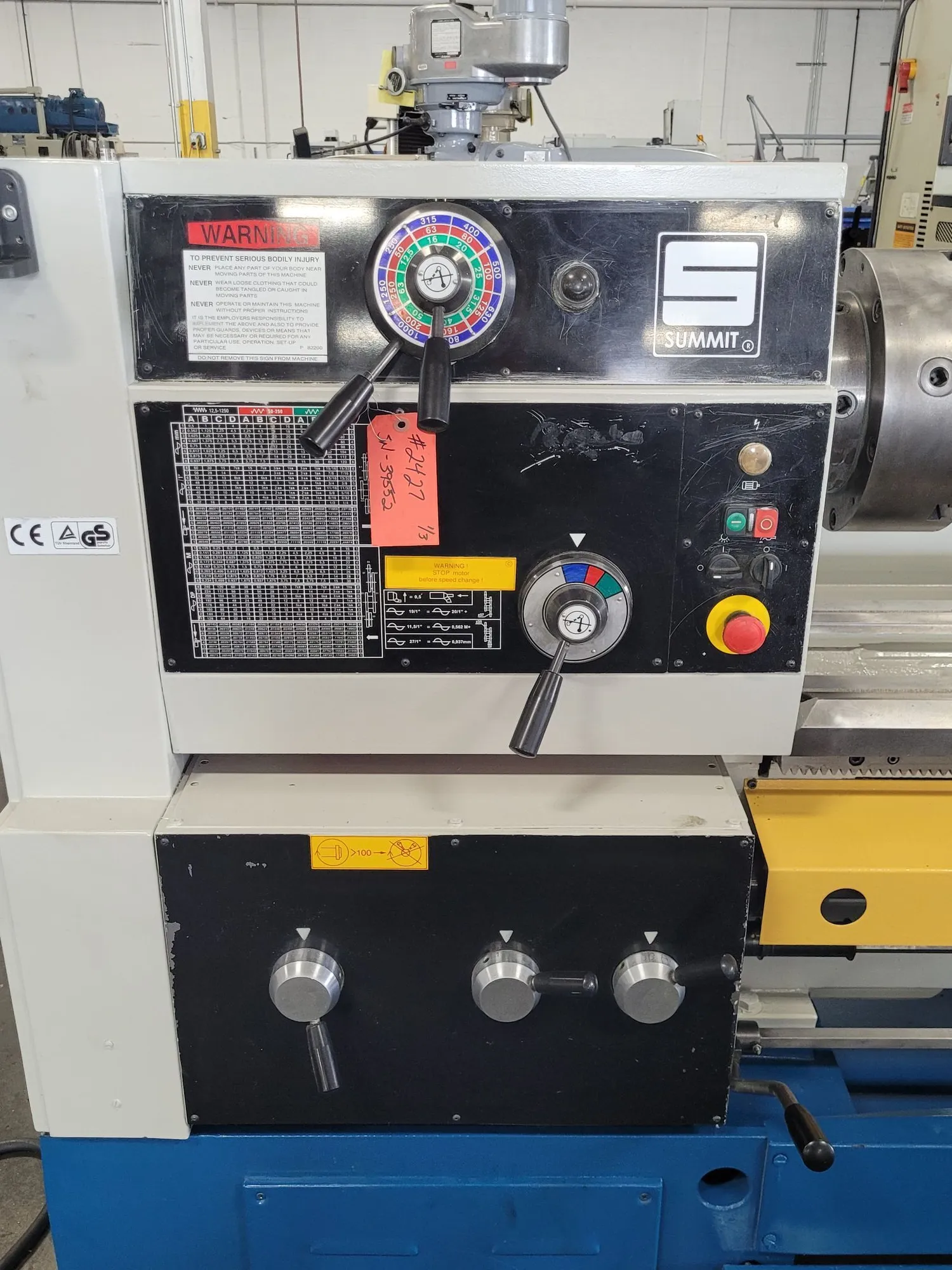

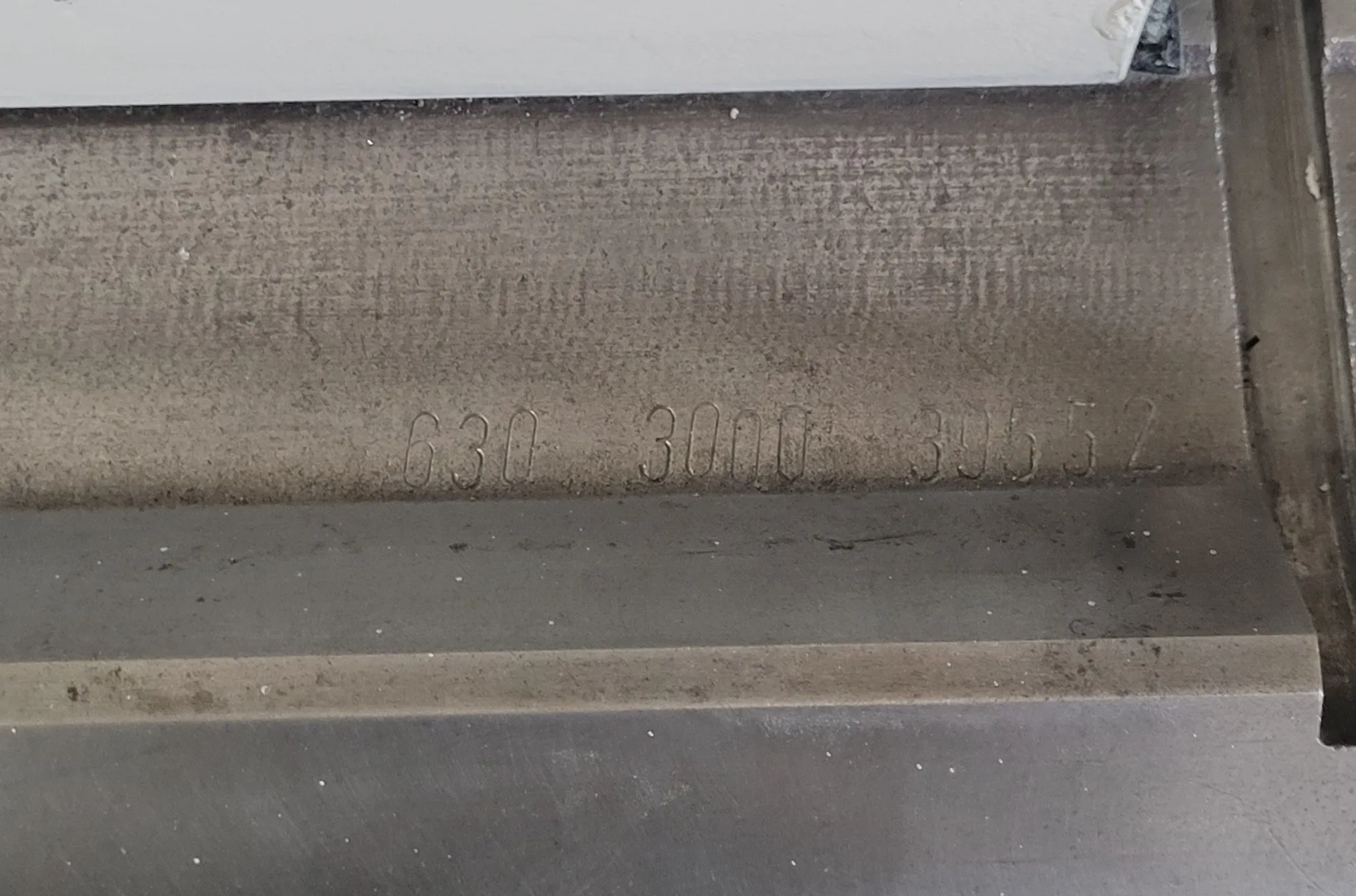

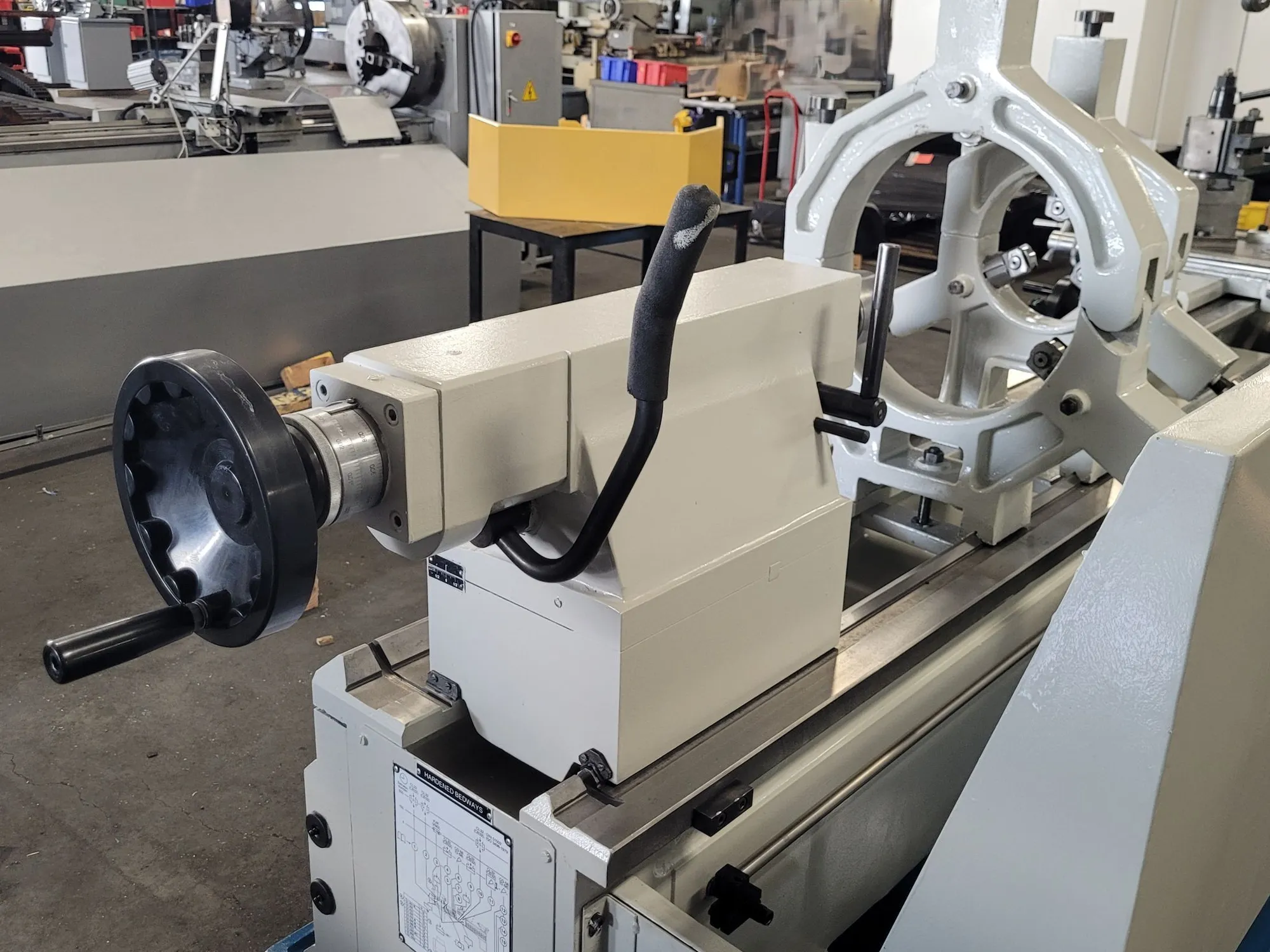

THE SUMMIT 24×120B HEAVY-DUTY PRECISION ENGINE LATHE IS A RUGGED, ISO-COMPLIANT MANUAL ENGINE LATHE CONSTRUCTED FROM 100% CAST IRON FOR MAXIMUM RIGIDITY, VIBRATION ABSORPTION, LONG-TERM DURABILITY, AND CONSISTENT PERFORMANCE IN DEMANDING MACHINING APPLICATIONS. THE MACHINE FEATURES A CLUTCHED HEADSTOCK WITH A REMOVABLE GAP FOR OVERSIZED WORKPIECES, A 25-INCH SWING OVER BED, 17-INCH SWING OVER CROSS SLIDE, 33-INCH SWING OVER GAP, AND 120 INCHES BETWEEN CENTERS. IT IS EQUIPPED WITH A PRECISION CHROME ALLOY SPINDLE FEATURING A 4-INCH SPINDLE BORE, D1-8 SPINDLE NOSE, #5 MORSE TAPER TAILSTOCK CENTER, 3-1/2-INCH SPINDLE BARREL DIAMETER, 9-1/2-INCH SPINDLE BARREL TRAVEL, AND A SPINDLE SPEED RANGE OF 20 TO 1,250 RPM ACROSS 21 SPEED STEPS, POWERED BY A 15 HP MOTOR. THE LATHE INCLUDES A 15-3/4-INCH BED WIDTH, HARDENED AND PRECISION-GROUND BEDWAYS, CROSS-RIBBED HEADSTOCK FOR ADDED STRENGTH AND STABILITY, ANTI-FRICTION MOUNTED SHAFTS, DYNAMICALLY BALANCED ROTATING COMPONENTS, AND HARDENED ALLOY STEEL GEARS, SHAFTS, AND SPLINES FOR LONG-LASTING ACCURACY. THE QUICK-CHANGE GEARBOX SUPPORTS AMERICAN (INCH), METRIC, MODULE, AND DIAMETRAL PITCH THREADING, PROVIDING 64 THREAD SELECTIONS FROM 1/4 TO 60 TPI AND 64 METRIC THREAD SELECTIONS FROM 0.5 TO 120 MM. ADDITIONAL OPERATING FEATURES INCLUDE RAPID CARRIAGE TRAVERSE WITH A 4-WAY JOYSTICK AND A TWO-SPEED TAILSTOCK FOR FASTER SETUPS. INSTALLED ACCESSORIES INCLUDE A NEWALL DP700 DIGITAL READOUT (DRO), TAPER ATTACHMENT, THREAD DIAL, STANDARD STEADY REST, FOLLOW REST, COOLANT SYSTEM, CARRIAGE STOP, WORK LIGHT, FULL-LENGTH SPLASH GUARD, AND A 3-JAW CHUCK. THE MACHINE MEASURES APPROXIMATELY 196 INCHES LONG BY 60 INCHES WIDE BY 60 INCHES HIGH AND WEIGHS APPROXIMATELY 12,000 LBS (SHIPPING WEIGHT APPROXIMATELY 9,200 LBS). STANDARD SAFETY AND RELIABILITY FEATURES, COMBINED WITH THE MACHINE'S HEAVY-DUTY CAST IRON CONSTRUCTION AND EXTENSIVE THREADING CAPABILITIES, MAKE IT SUITABLE FOR PRECISION TURNING OPERATIONS AND LONG-TERM INDUSTRIAL USE.
