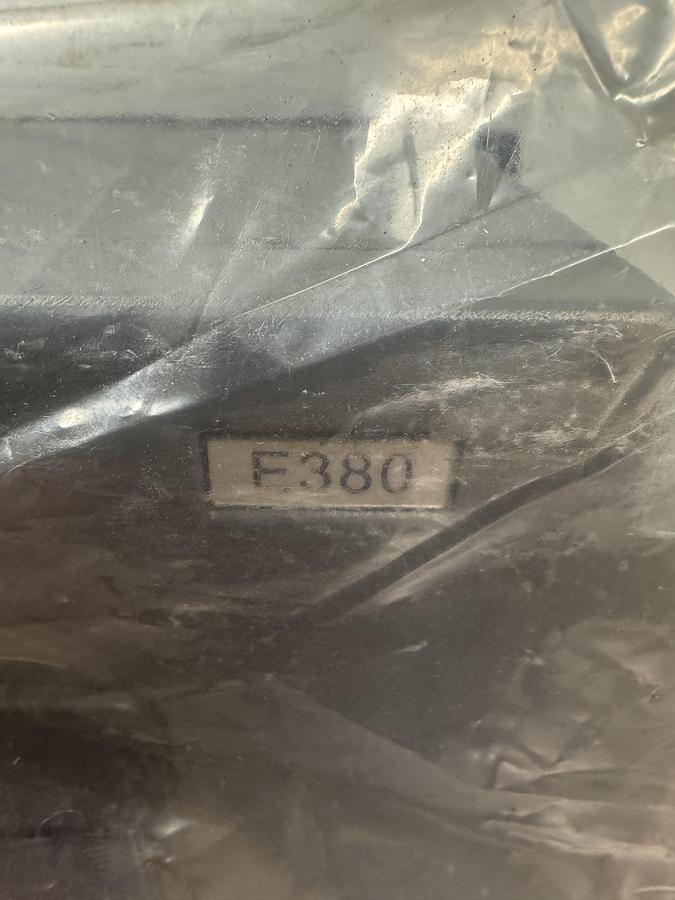

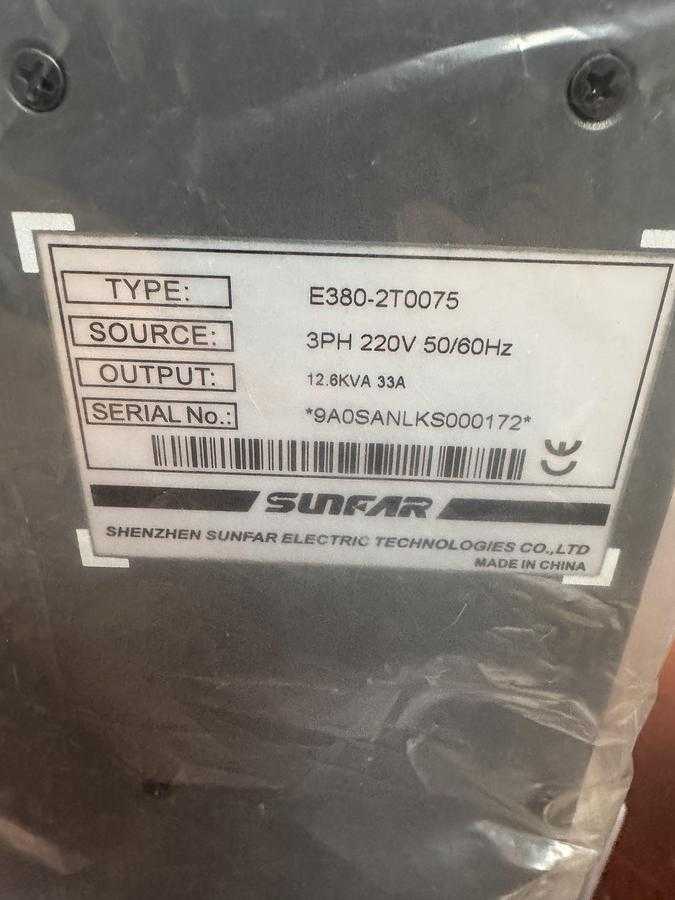

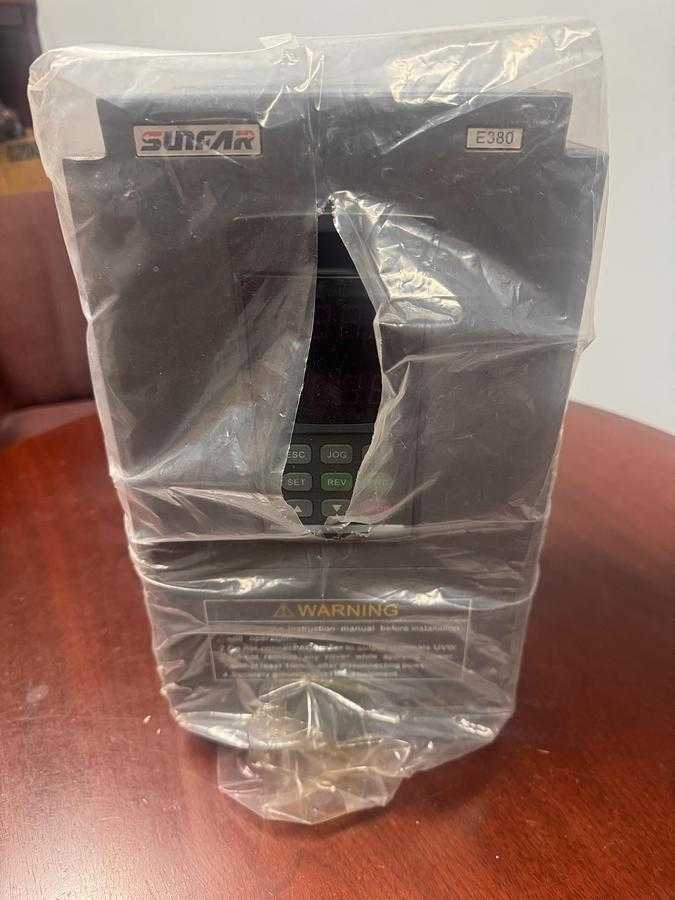

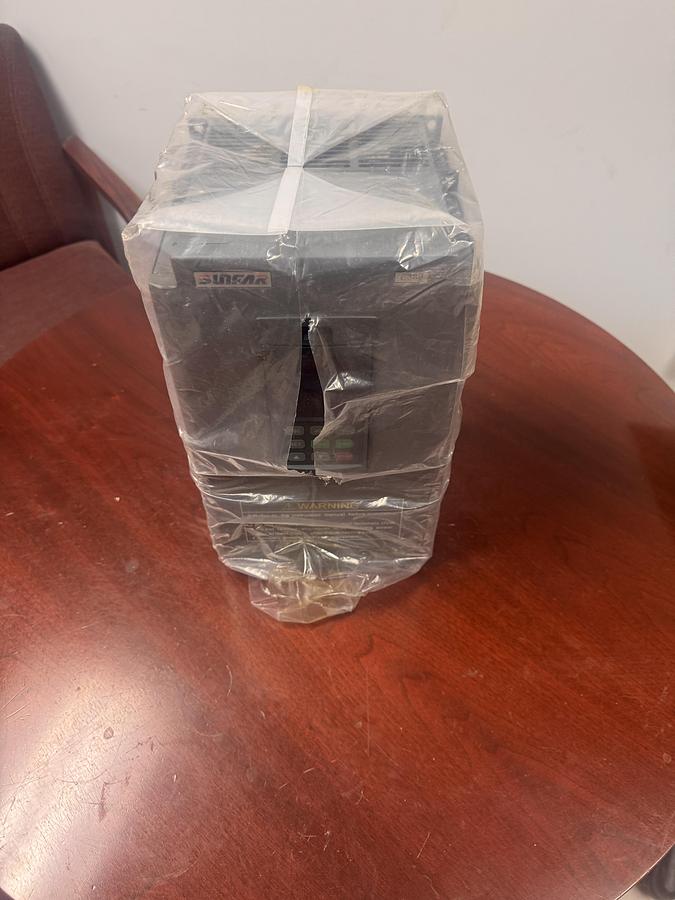

Sunfar E380-2T0075 Vector Control Inverter, 3PH 220V, 50/60Hz, 7.5kW, Pid, Modbus-Rtu

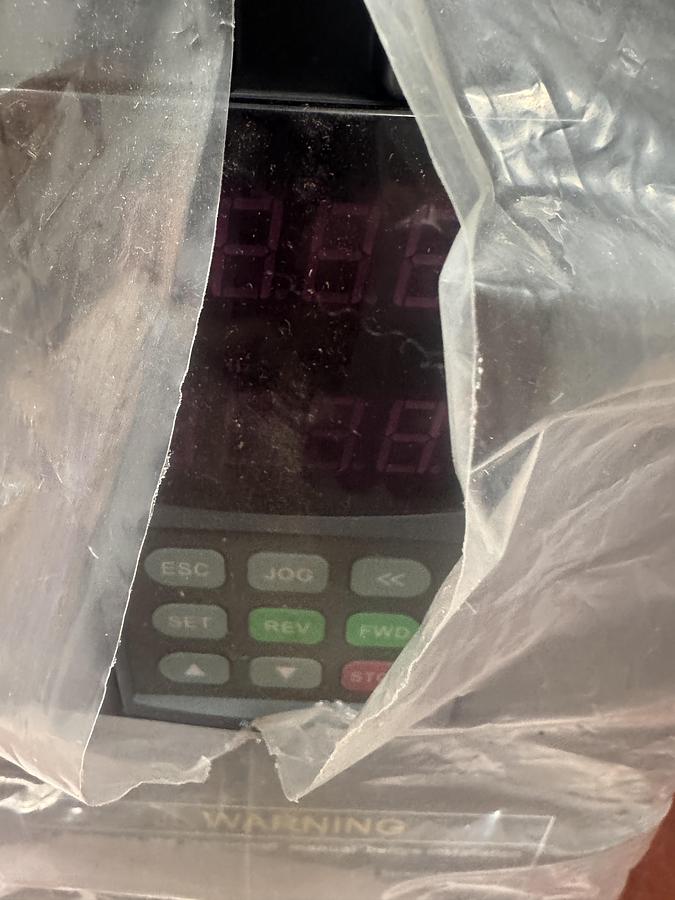

The Sunfar E380-2T0075 is a high-performance, general-purpose vector control inverter designed for three-phase 220V power supplies with a 50/60 Hz frequency. Part of the E380 series, this control unit features a compact, multifunctional design utilizing an advanced sensorless vector control algorithm for enhanced low-speed stability and low-frequency loading capacity. Technical specifications include high-performance V/F control with 150% output torque at 0.5Hz, while vector control supports both speed and torque management. The unit includes a standard five-digit LED panel display with an optional LCD keypad for real-time monitoring of parameters such as input/output voltage, current, and running time. Functional features include a built-in PID controller, programmable 16-segment speed running, and support for multiple field buses including MODBUS-RTU, PROFIBUS-DP, and CANOPEN. It is engineered with an independent cooling duct design and modular functional modules to reduce failure rates in complex environments. Typical applications range from pumps and fans to extruders and automatic production lines. The unit supports remote operation up to 1000m and includes comprehensive protection functions against overvoltage, overcurrent, and electromagnetic interference. Year of manufacture is not specified in the provided data.
