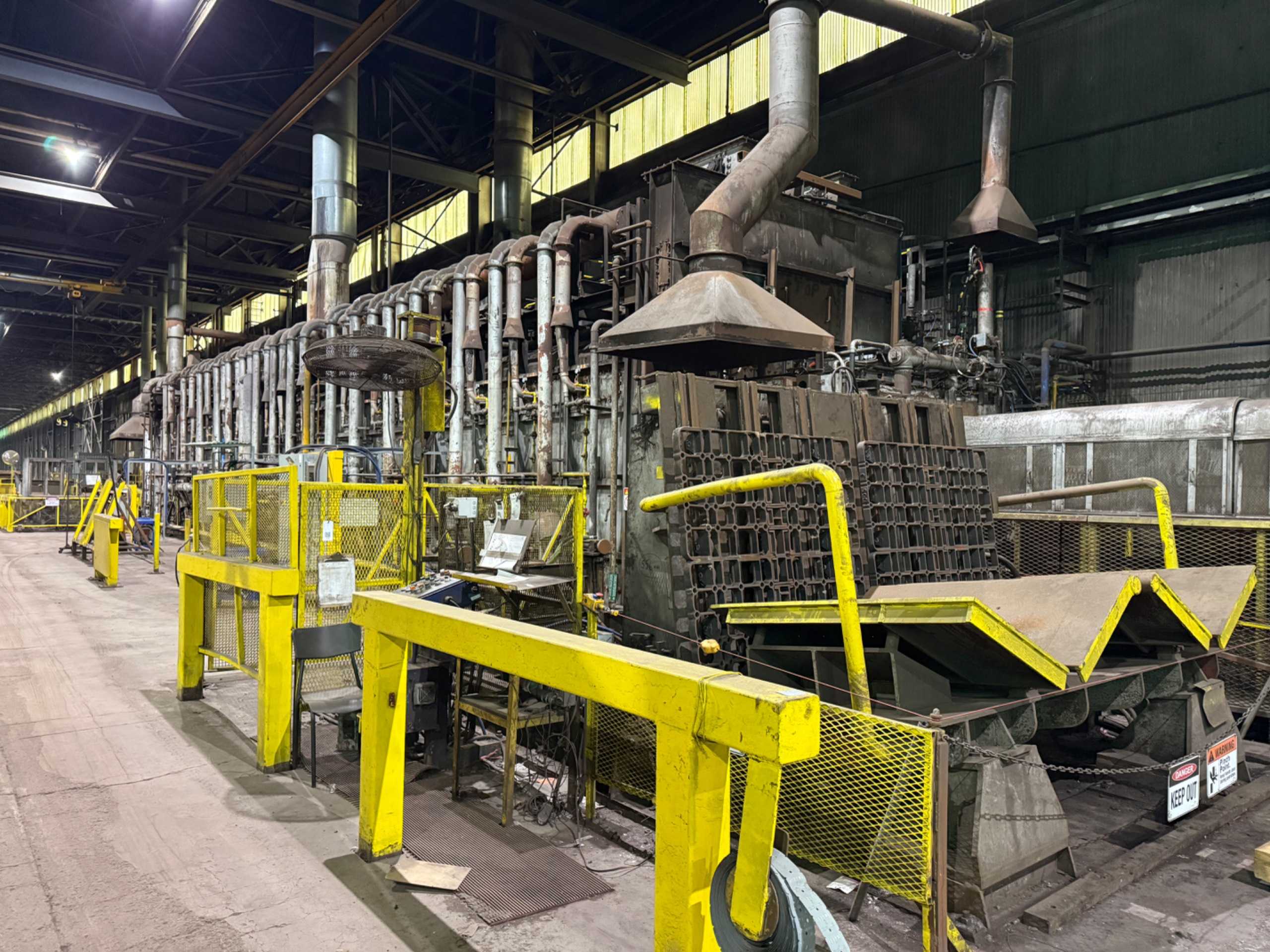

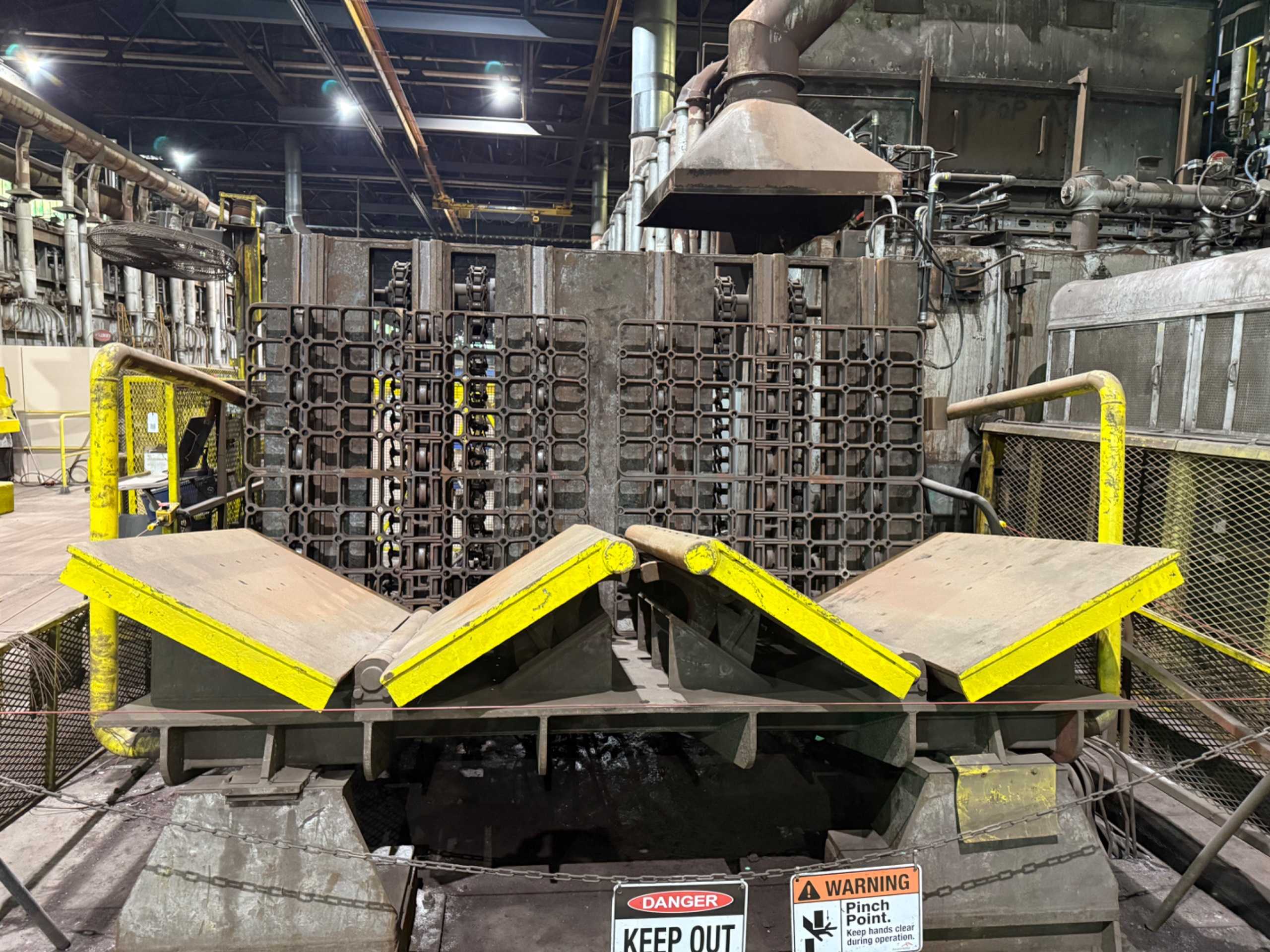

SURFACE COMBUSTION RADIANT TUBE COIL ANNEALING FURNACE, 23M BTU/H, NATURAL GAS, 575V, 100KVA

THE SURFACE COMBUSTION RADIANT TUBE COIL ANNEALING FURNACE IS AN INDUSTRIAL HEATING SYSTEM DESIGNED FOR HIGH-CAPACITY THERMAL PROCESSING. IT OPERATES ON NATURAL GAS WITH A MAXIMUM FUEL DEMAND OF 23,000,000 BTU/H. THE FUEL SYSTEM REQUIRES AN INLET PRESSURE OF 25 PSI AT THE POINT OF CONNECTION, WITH A MAXIMUM BURNER MANIFOLD FUEL PRESSURE OF 2 PSI AND A MINIMUM PURGE TIME OF 60 SECONDS. THE BURNER INVENTORY CONSISTS OF 66 MAIN BURNERS, 12 PILOT BURNERS, AND 2 FLAME CURTAIN BURNERS. ELECTRICAL REQUIREMENTS FOR THE UNIT INCLUDE A 575 VAC, THREE-PHASE POWER SUPPLY AT 60 HZ, WITH A POWER RATING OF 100 KVA AND A FULL LOAD AMPERAGE (FLA) OF 100 A. THE EQUIPMENT COMPLIES WITH THE TSSA-FA-2020 APPROVAL STANDARD, SPECIFICALLY FOR FUEL FEATURES, UNDER TSSA FIELD APPROVAL NUMBER FSD 21970.
