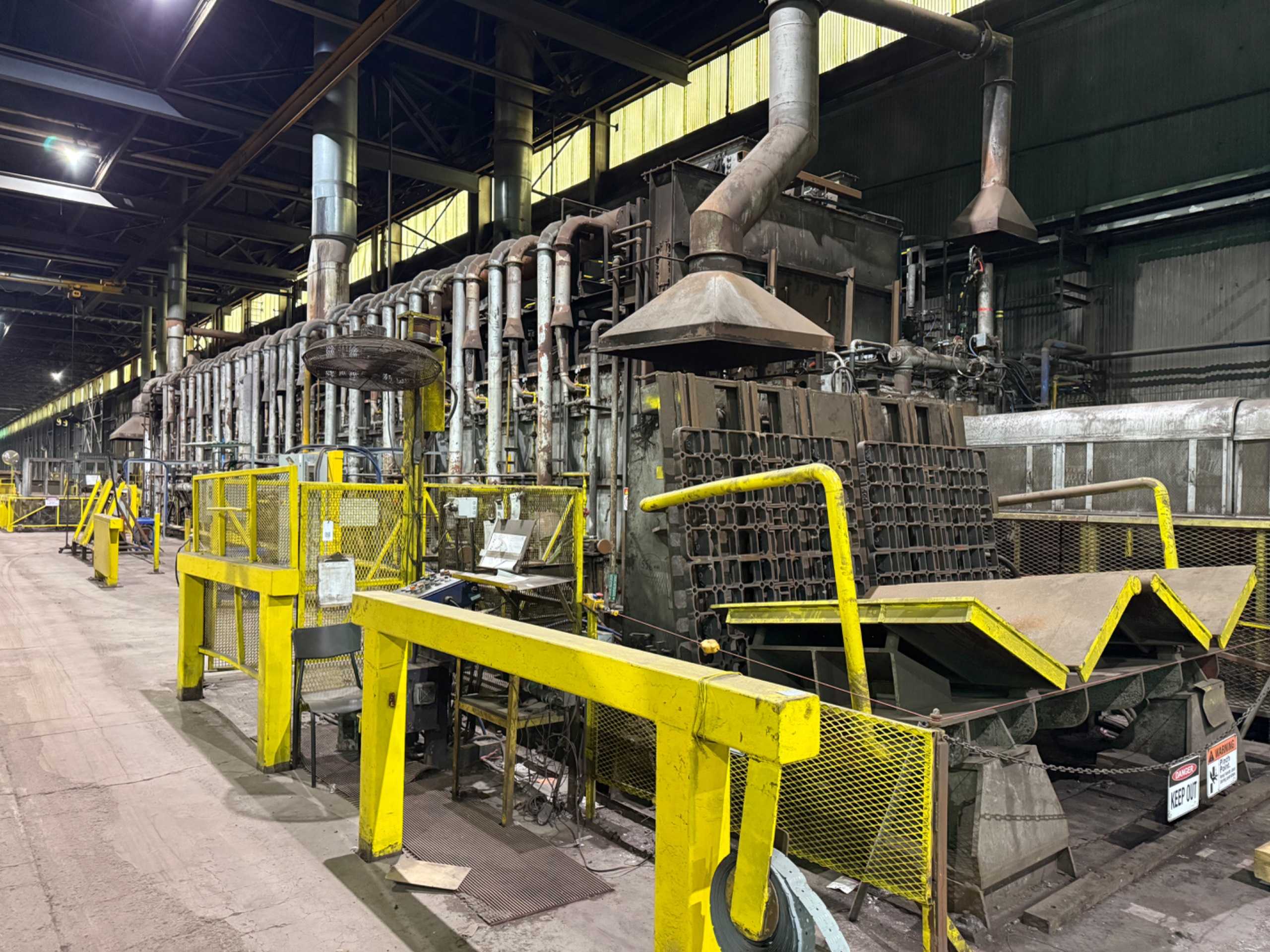

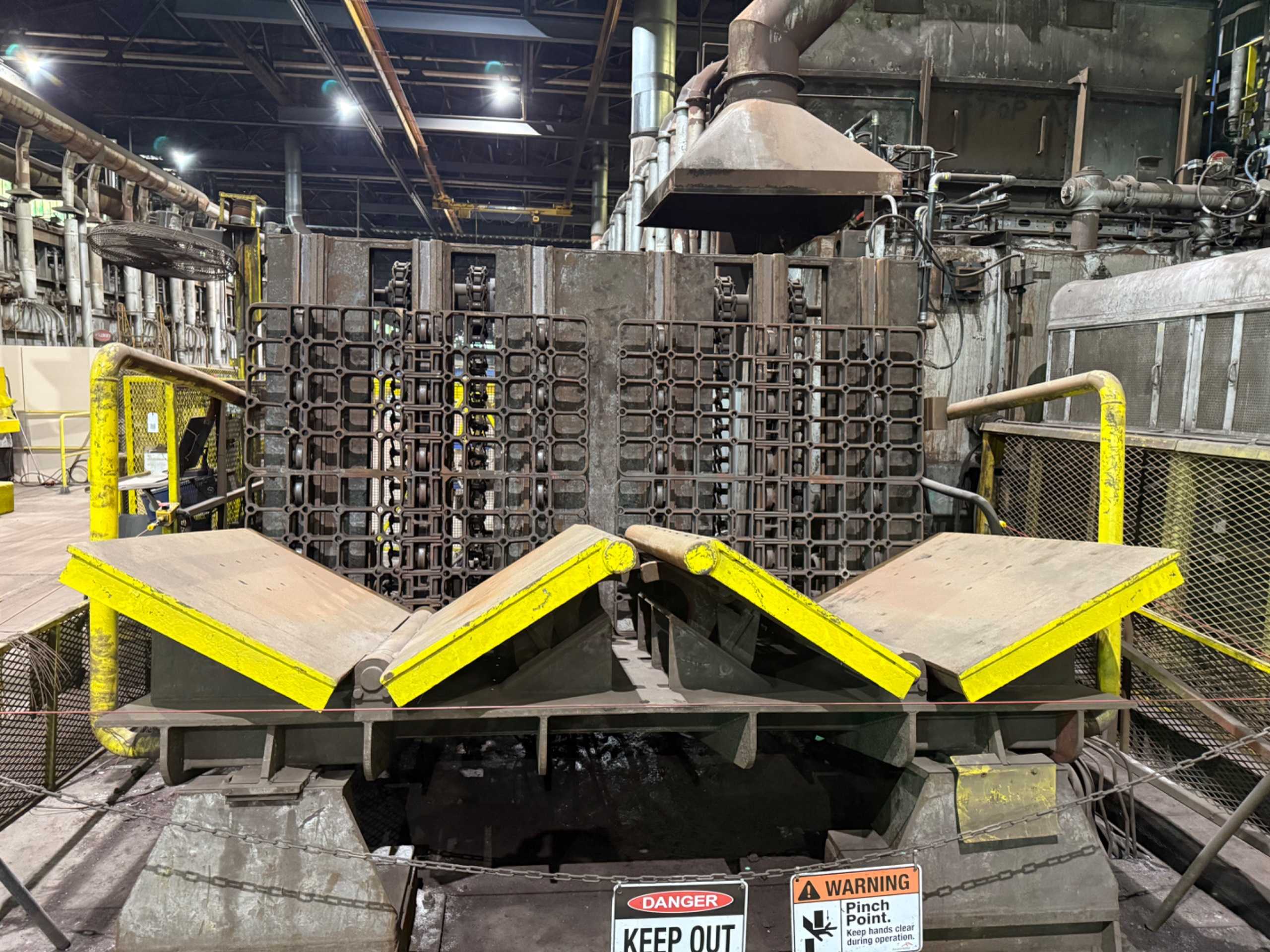

Surface Combustion Radiant Tube Coil Annealing Furnace, 23M Btu/H, Natural Gas, 575V, 100kVA

The Surface Combustion Radiant Tube Coil Annealing Furnace is an industrial heating system designed for high-capacity thermal processing. It operates on natural gas with a maximum fuel demand of 23,000,000 BTU/H. The fuel system requires an inlet pressure of 25 PSI at the point of connection, with a maximum burner manifold fuel pressure of 2 PSI and a minimum purge time of 60 seconds. The burner inventory consists of 66 main burners, 12 pilot burners, and 2 flame curtain burners. Electrical requirements for the unit include a 575 VAC, three-phase power supply at 60 Hz, with a power rating of 100 kVA and a full load amperage (FLA) of 100 A. The equipment complies with the TSSA-FA-2020 approval standard, specifically for fuel features, under TSSA field approval number FSD 21970.
