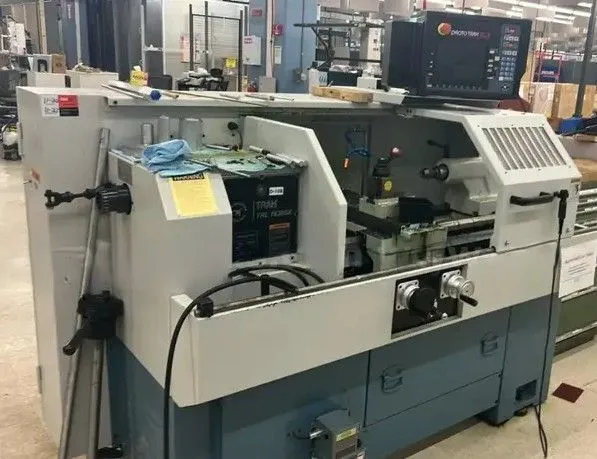

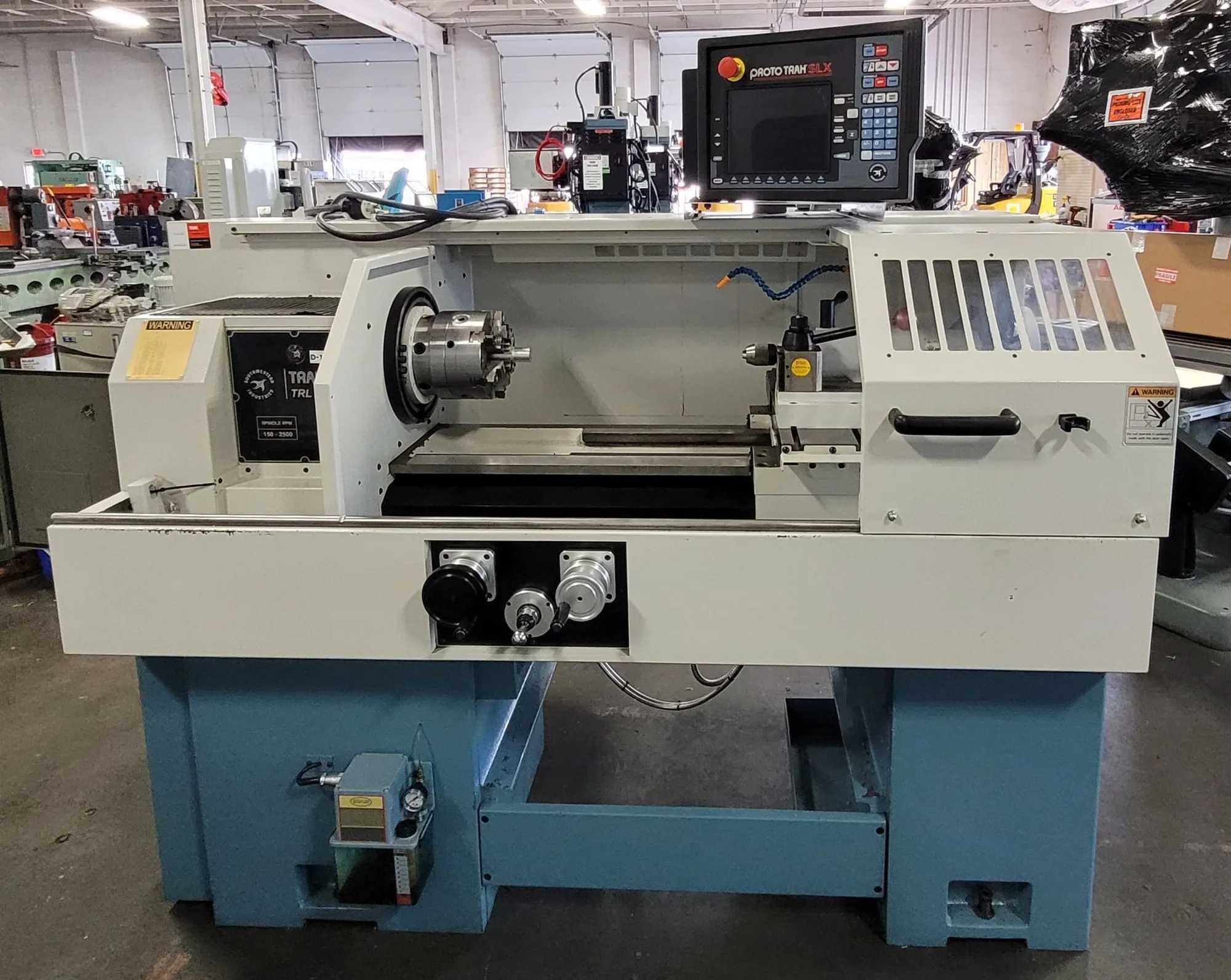

SWI TRAK TRL 1630 SX CNC/Manual Lathe With ProtoTRAK SLX Control, 2500 RPM

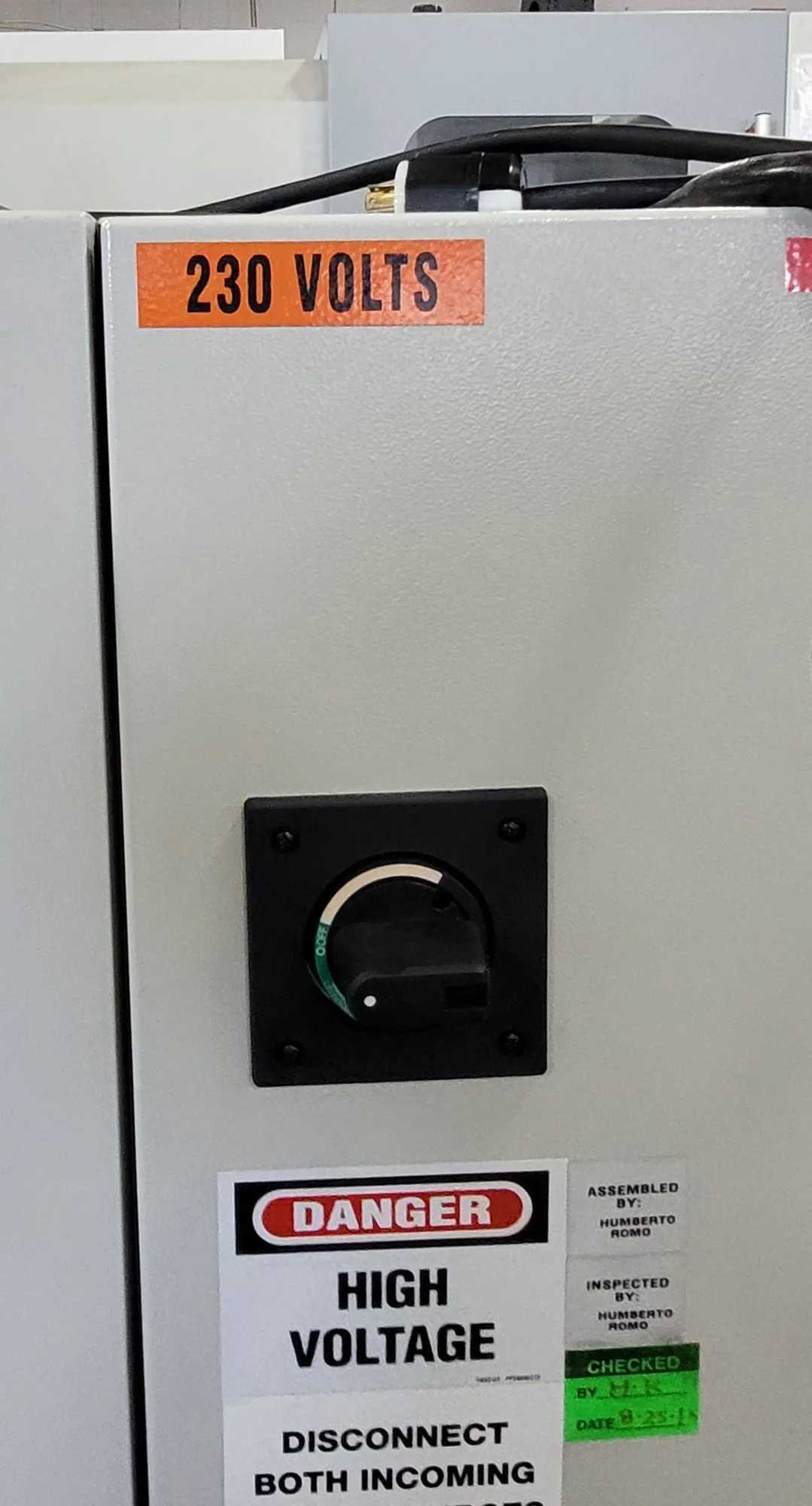

SWING - 16" MACHINING LENGTH - 30" # AXIS - 2 CHUCK SIZE - 10" BAR CAPACITY - 2.12" POWER - 7.5 HP MAX RPM - 2,500 RPM TURNING DIA - 16" TAILSTOCK - YES LIVE TOOLING - NO SUB SPINDLE - NO CONTROL - CNC (PROTOTRAK SLX) DIMENSIONS - 79 × 38 × 54 IN WEIGHT - 2200 LBS SOUTHWESTERN INDUSTRIES TRAK TRL1630SX CNC LATHE NEW: 2016 SPECIFICATIONS: AXIS CONFIGURATION:  2-AXIS CHUCK SIZE:  10 IN 6-JAW SWING OVER BED:  16 IN SWING OVER SADDLE WINGS:  16 IN SWING OVER CROSS SLIDE:  8.6 IN DISTANCE BETWEEN CENTERS:  30 IN CROSS SLIDE TRAVEL:  9.6 IN MAXIMUM TOOL SECTION:  3/4 IN SPINDLE THROUGH HOLE:  2.12 IN SPINDLE NOSE:  D1-6 CAMLOCK SPINDLE TAPER:  MT #6 SPINDLE SPEED RANGE:  150 – 2500 RPM SPINDLE MOTOR:  7.5 HP TAILSTOCK QUILL TRAVEL:  5 IN TAILSTOCK QUILL DIAMETER:  2.36 IN TAILSTOCK TAPER:  MT #4 MAXIMUM RAPID FEED (X / Z):  100 / 150 IPM COOLANT TANK CAPACITY:  11 GALLONS COOLANT PUMP MOTOR:  1/8 HP ELECTRICAL REQUIREMENTS (MACHINE):  220V / 3 PHASE / 60 HZ ELECTRICAL REQUIREMENTS (CONTROL):  110V / 1 PHASE / 8 AMP MACHINE DIMENSIONS (NET):  79 IN × 38 IN × 54 IN SHIPPING DIMENSIONS:  87 IN × 45 IN × 67 IN MACHINE WEIGHT (NET):  2,200 LBS SHIPPING WEIGHT:  2,750 LBS EQUIPPED WITH: PROTOTRAK SLX CNC CONTROL COLLET CLOSURE ATTACHMENT 4-WAY QUICK CHANGE TOOL POST 10 IN 6-JAW CHUCK TAILSTOCK FEATURES: MANUAL OR CNC OPERATION ELECTRONIC HANDWHEELS AND JOGSTICK BRUSHLESS SERVO MOTORS INVERTER-DUTY SPINDLE DRIVE PROGRAMMABLE SPINDLE SPEEDS SLIDING DOOR FOR EASY SETUPS BEDWAYS HARDENED AND GROUND TURCITE-COATED SLIDING SURFACES DOVETAILS ON CROSS SLIDE V-WAYS ON SADDLE ADJUSTABLE SADDLE GIBS DYNAMIC SPINDLE BRAKING OIL BATH HEADSTOCK LUBRICATION SOUTHWESTERN INDUSTRIES TRAK TRL1630SX CNC LATHE NEW: 2016 SPECIFICATIONS: AXIS CONFIGURATION:  2-AXIS CHUCK SIZE:  10 IN 6-JAW SWING OVER BED:  16 IN SWING OVER SADDLE WINGS:  16 IN SWING OVER CROSS SLIDE:  8.6 IN DISTANCE BETWEEN CENTERS:  30 IN CROSS SLIDE TRAVEL:  9.6 IN MAXIMUM TOOL SECTION:  3/4 IN SPINDLE THROUGH HOLE:  2.12 IN SPINDLE NOSE:  D1-6 CAMLOCK SPINDLE TAPER:  MT #6 SPINDLE SPEED RANGE:  150 – 2500 RPM SPINDLE MOTOR:  7.5 HP TAILSTOCK QUILL TRAVEL:  5 IN TAILSTOCK QUILL DIAMETER:  2.36 IN TAILSTOCK TAPER:  MT #4 MAXIMUM RAPID FEED (X / Z):  100 / 150 IPM COOLANT TANK CAPACITY:  11 GALLONS COOLANT PUMP MOTOR:  1/8 HP ELECTRICAL REQUIREMENTS (MACHINE):  220V / 3 PHASE / 60 HZ ELECTRICAL REQUIREMENTS (CONTROL):  110V / 1 PHASE / 8 AMP MACHINE DIMENSIONS (NET):  79 IN × 38 IN × 54 IN SHIPPING DIMENSIONS:  87 IN × 45 IN × 67 IN MACHINE WEIGHT (NET):  2,200 LBS SHIPPING WEIGHT:  2,750 LBS EQUIPPED WITH: PROTOTRAK SLX CNC CONTROL COLLET CLOSURE ATTACHMENT 4-WAY QUICK CHANGE TOOL POST 10 IN 6-JAW CHUCK TAILSTOCK FEATURES: MANUAL OR CNC OPERATION ELECTRONIC HANDWHEELS AND JOGSTICK BRUSHLESS SERVO MOTORS INVERTER-DUTY SPINDLE DRIVE PROGRAMMABLE SPINDLE SPEEDS SLIDING DOOR FOR EASY SETUPS BEDWAYS HARDENED AND GROUND TURCITE-COATED SLIDING SURFACES DOVETAILS ON CROSS SLIDE V-WAYS ON SADDLE ADJUSTABLE SADDLE GIBS DYNAMIC SPINDLE BRAKING OIL BATH HEADSTOCK LUBRICATION SOUTHWESTERN INDUSTRIES TRAK TRL1630SX CNC LATHE NEW: 2016 SPECIFICATIONS: AXIS CONFIGURATION:  2-AXIS CHUCK SIZE:  10 IN 6-JAW SWING OVER BED:  16 IN SWING OVER SADDLE WINGS:  16 IN SWING OVER CROSS SLIDE:  8.6 IN DISTANCE BETWEEN CENTERS:  30 IN CROSS SLIDE TRAVEL:  9.6 IN MAXIMUM TOOL SECTION:  3/4 IN SPINDLE THROUGH HOLE:  2.12 IN SPINDLE NOSE:  D1-6 CAMLOCK SPINDLE TAPER:  MT #6 SPINDLE SPEED RANGE:  150 – 2500 RPM SPINDLE MOTOR:  7.5 HP TAILSTOCK QUILL TRAVEL:  5 IN TAILSTOCK QUILL DIAMETER:  2.36 IN TAILSTOCK TAPER:  MT #4 MAXIMUM RAPID FEED (X / Z):  100 / 150 IPM COOLANT TANK CAPACITY:  11 GALLONS COOLANT PUMP MOTOR:  1/8 HP ELECTRICAL REQUIREMENTS (MACHINE):  220V / 3 PHASE / 60 HZ ELECTRICAL REQUIREMENTS (CONTROL):  110V / 1 PHASE / 8 AMP MACHINE DIMENSIONS (NET):  79 IN × 38 IN × 54 IN SHIPPING DIMENSIONS:  87 IN × 45 IN × 67 IN MACHINE WEIGHT (NET):  2,200 LBS SHIPPING WEIGHT:  2,750 LBS EQUIPPED WITH: PROTOTRAK SLX CNC CONTROL COLLET CLOSURE ATTACHMENT 4-WAY QUICK CHANGE TOOL POST 10 IN 6-JAW CHUCK TAILSTOCK FEATURES: MANUAL OR CNC OPERATION ELECTRONIC HANDWHEELS AND JOGSTICK BRUSHLESS SERVO MOTORS INVERTER-DUTY SPINDLE DRIVE PROGRAMMABLE SPINDLE SPEEDS SLIDING DOOR FOR EASY SETUPS BEDWAYS HARDENED AND GROUND TURCITE-COATED SLIDING SURFACES DOVETAILS ON CROSS SLIDE V-WAYS ON SADDLE ADJUSTABLE SADDLE GIBS DYNAMIC SPINDLE BRAKING OIL BATH HEADSTOCK LUBRICATION
