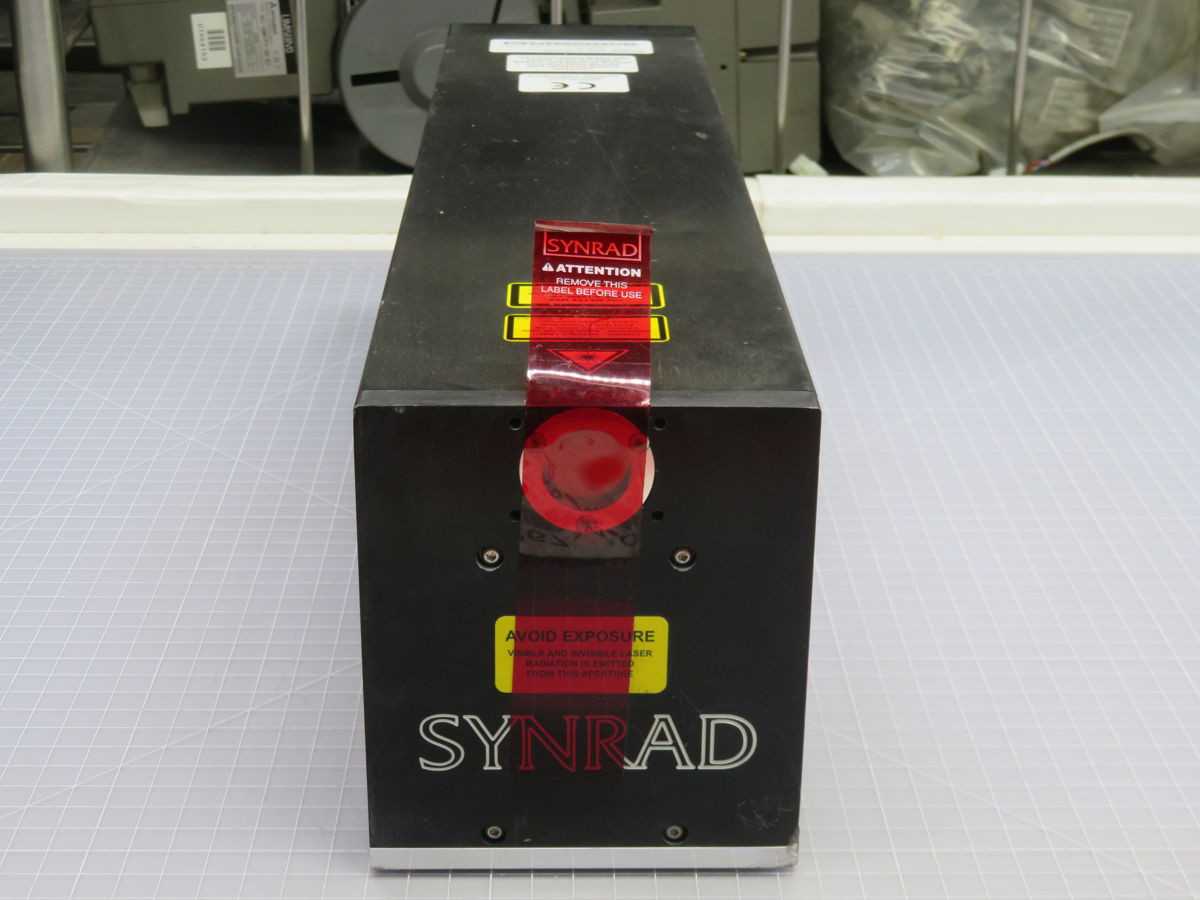

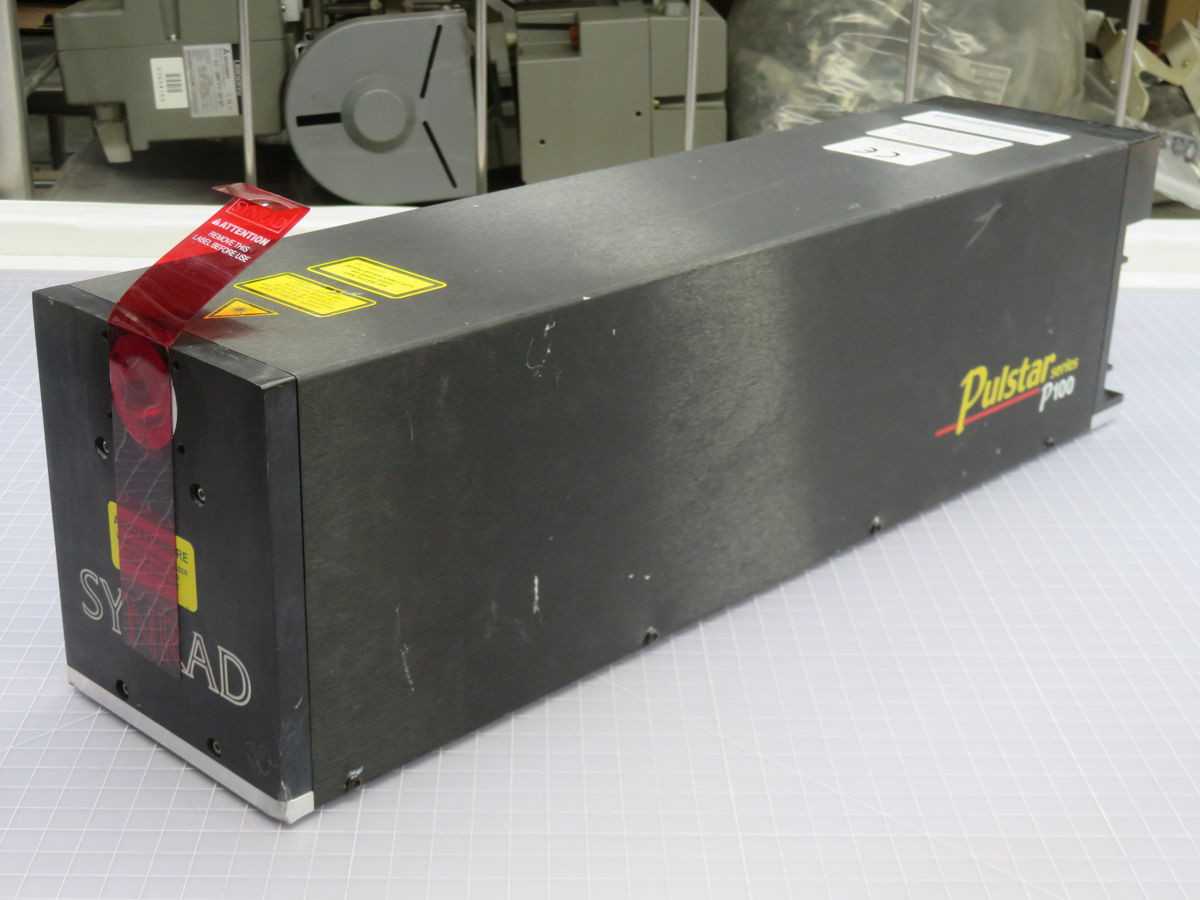

Synrad PSP100SB CO2 Laser, 100W Avg, 390W Peak, 10.6ΜM Wl, 100KHZ Rate, 2.5mm Beam Dia

THE SYNRAD PSP100SB PULSTAR P100 IS A COMPACT 100-WATT PULSED CO2 LASER SYSTEM ENGINEERED FOR PRECISION CUTTING, DRILLING, AND MARKING APPLICATIONS. IT OPERATES AT A WAVELENGTH OF 10.6 ΜM, PROVIDING AN AVERAGE OUTPUT POWER OF 100 W AND A PEAK POWER EXCEEDING 390 W. THE SYSTEM INCORPORATES AN INTEGRATED RF POWER SUPPLY, WHICH SIMPLIFIES CONNECTIVITY BY ELIMINATING EXTERNAL CABLING. IT IS CHARACTERIZED BY FAST RISE TIMES, CONTRIBUTING TO MINIMIZED HEAT-AFFECTED ZONES (HAZ) ON SENSITIVE MATERIALS. THE LASER FEATURES A PULSE REPETITION RATE OF UP TO 100 KHZ, A BEAM DIAMETER OF 2.5 ± 0.5 MM (1/E2), AND A FULL-ANGLE BEAM DIVERGENCE OF LESS THAN 5 MRAD. THERMAL MANAGEMENT FOR THE LASER HEAD IS ACHIEVED THROUGH WATER COOLING.
