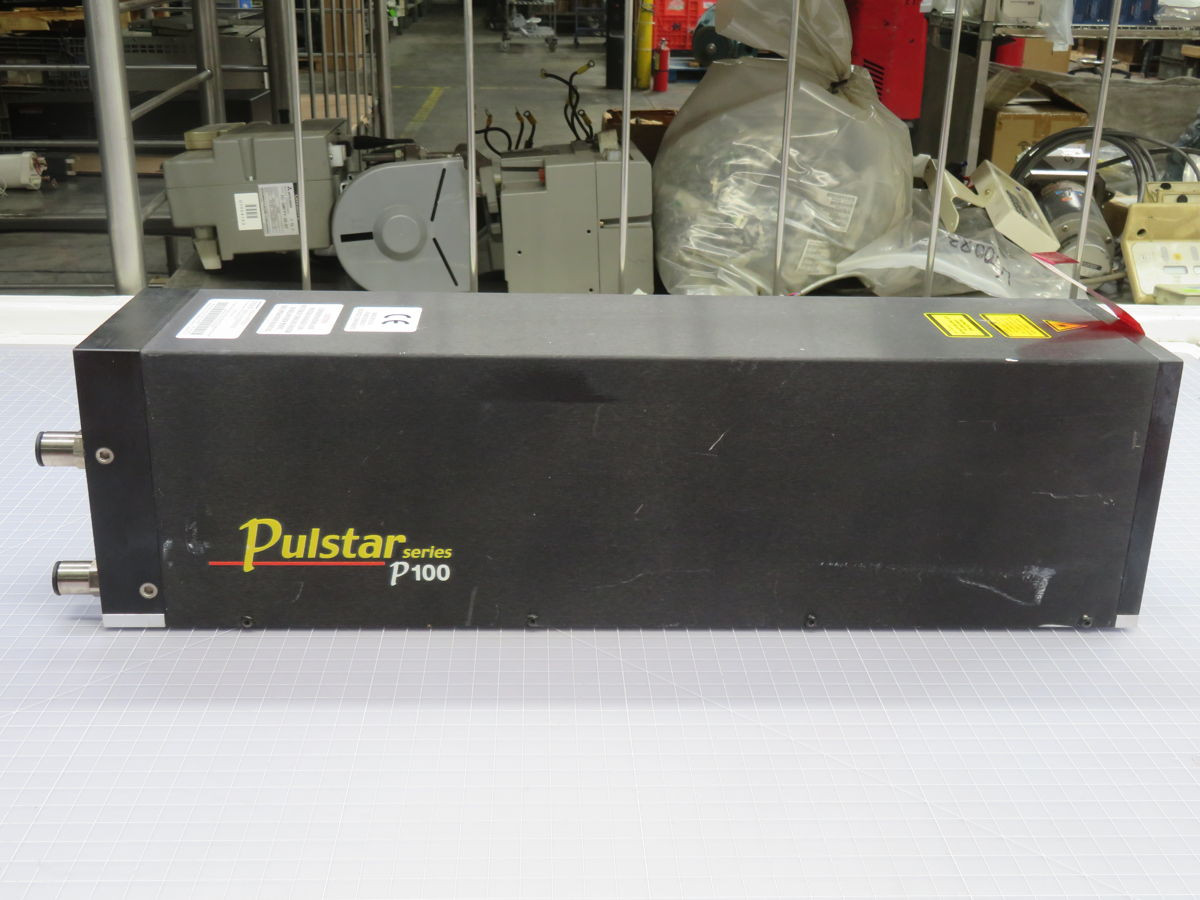

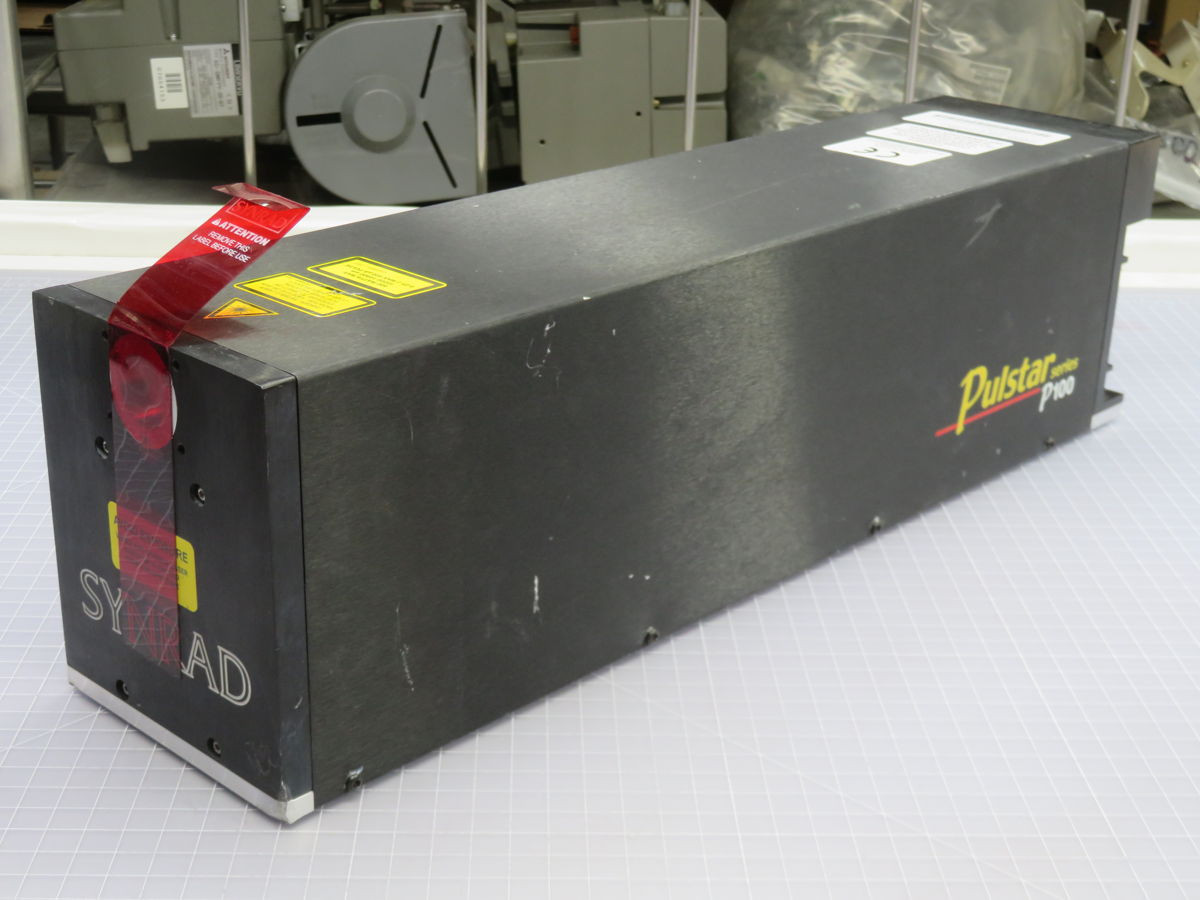

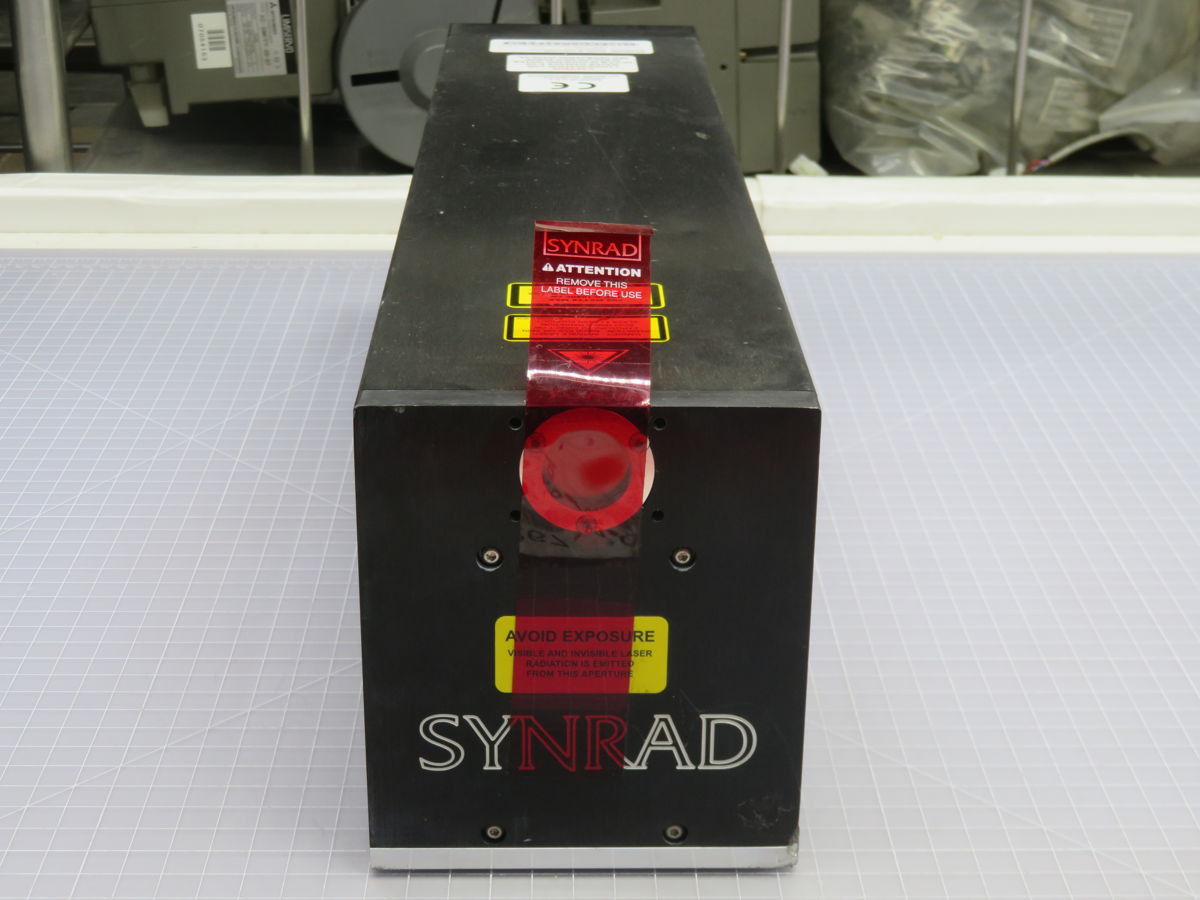

SYNRAD PSP100SB PULSTAR P100 LASER MARKING SYSTEM

THE SYNRAD PSP100SB PULSTAR P100 IS A COMPACT, HIGH-PERFORMANCE PULSED CO2 LASER SYSTEM DELIVERING 100 WATTS OF NOMINAL OUTPUT POWER AND OVER 390 WATTS OF PEAK POWER. OPERATING AT A WAVELENGTH OF 10.6 ΜM, IT FEATURES FAST RISE TIMES DESIGNED TO MINIMIZE HEAT-AFFECTED ZONES DURING PRECISION CUTTING, DRILLING, AND MARKING APPLICATIONS. THE SYSTEM INCORPORATES AN INTEGRATED RF POWER SUPPLY. IT OFFERS A BEAM QUALITY (M^2) OF LESS THAN 1.3 AND A BEAM DIVERGENCE OF LESS THAN 4.0 MRAD (FULL ANGLE). THE LASER SUPPORTS REPETITION RATES UP TO 100 KHZ, WITH USER-SELECTABLE PULSE WIDTHS, AND IS DESIGNED FOR FORCED AIR COOLING, PROVIDING A BEAM DIAMETER OF APPROXIMATELY 3.0 MM AT THE APERTURE.
