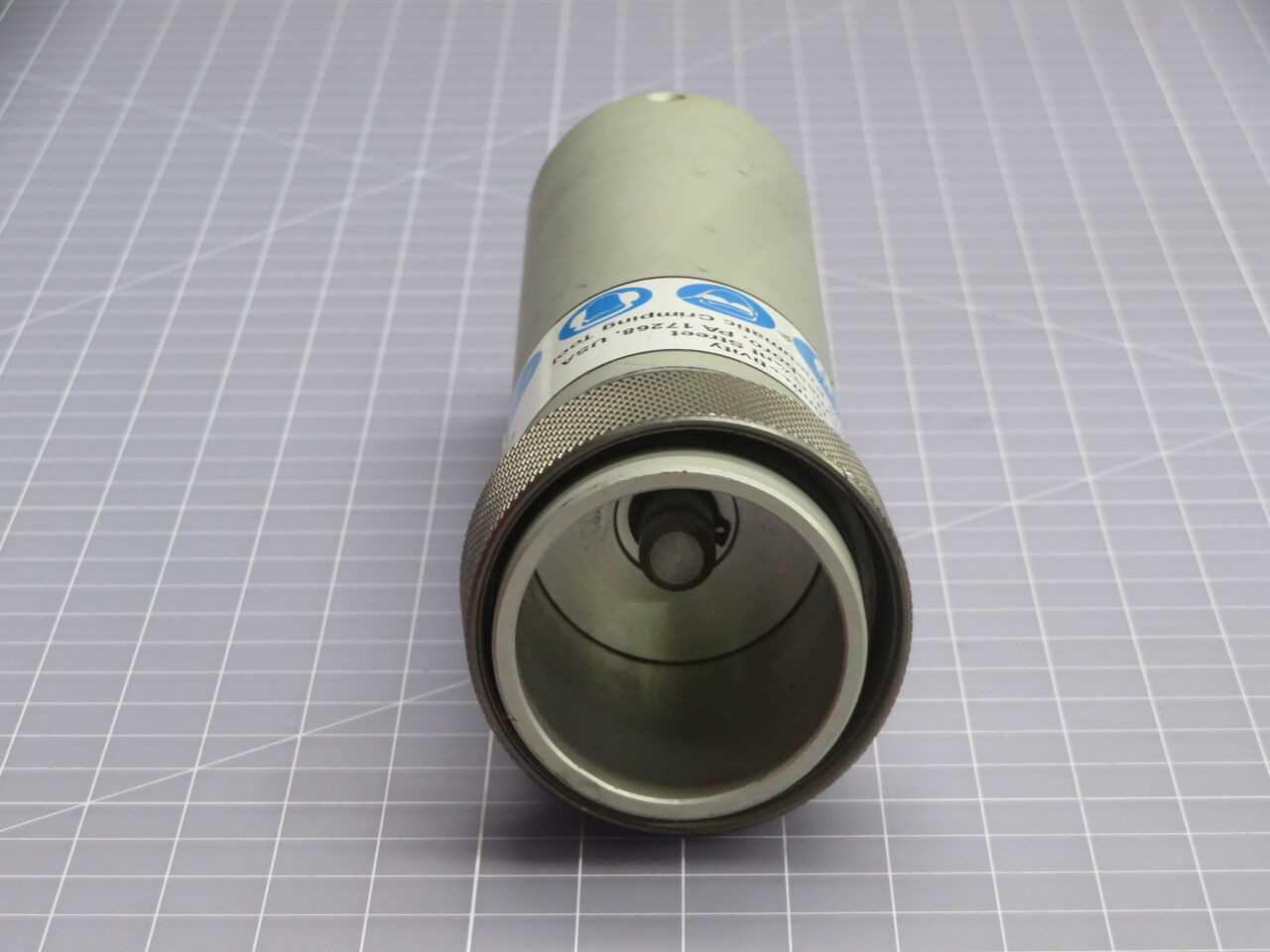

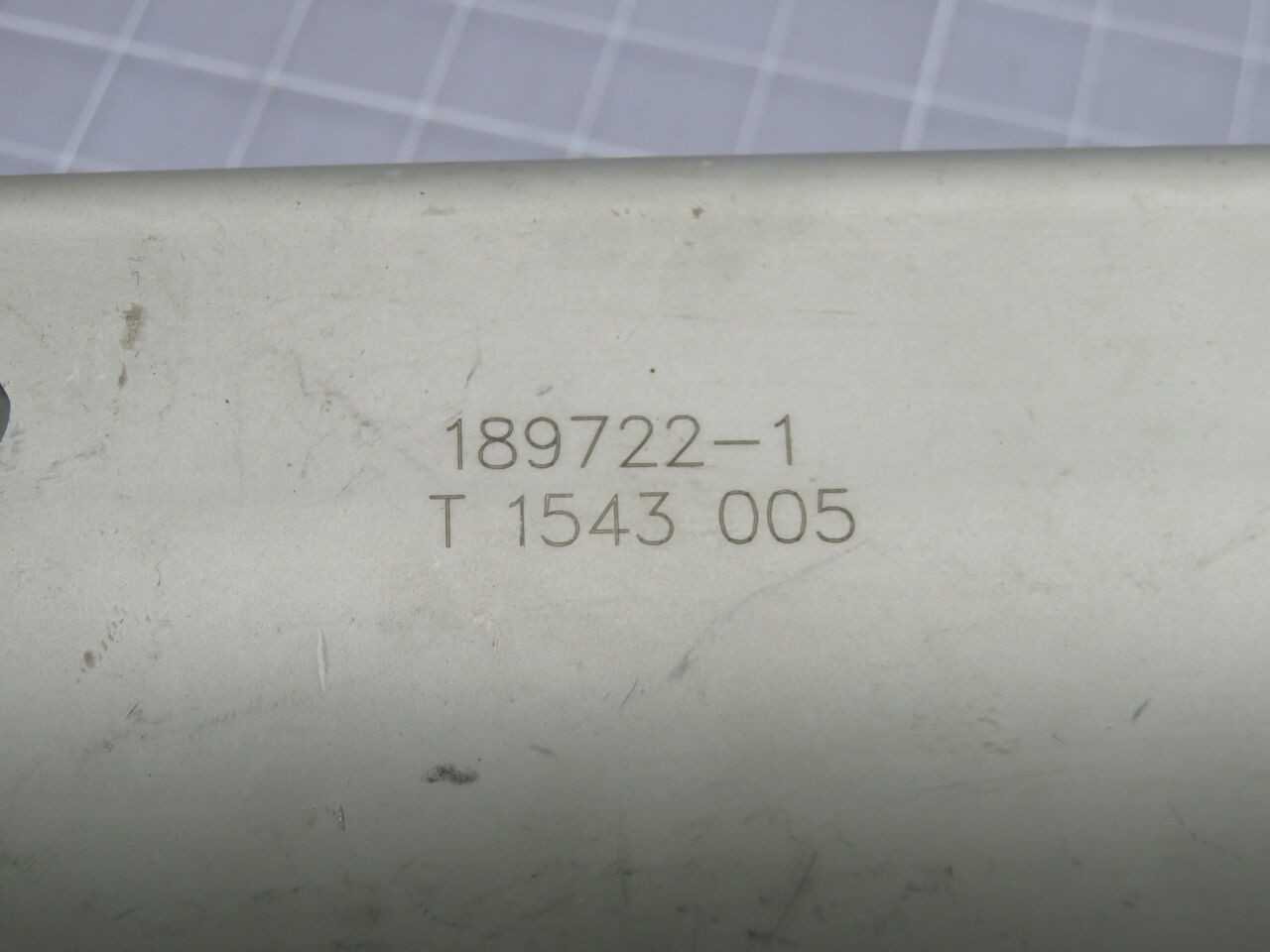

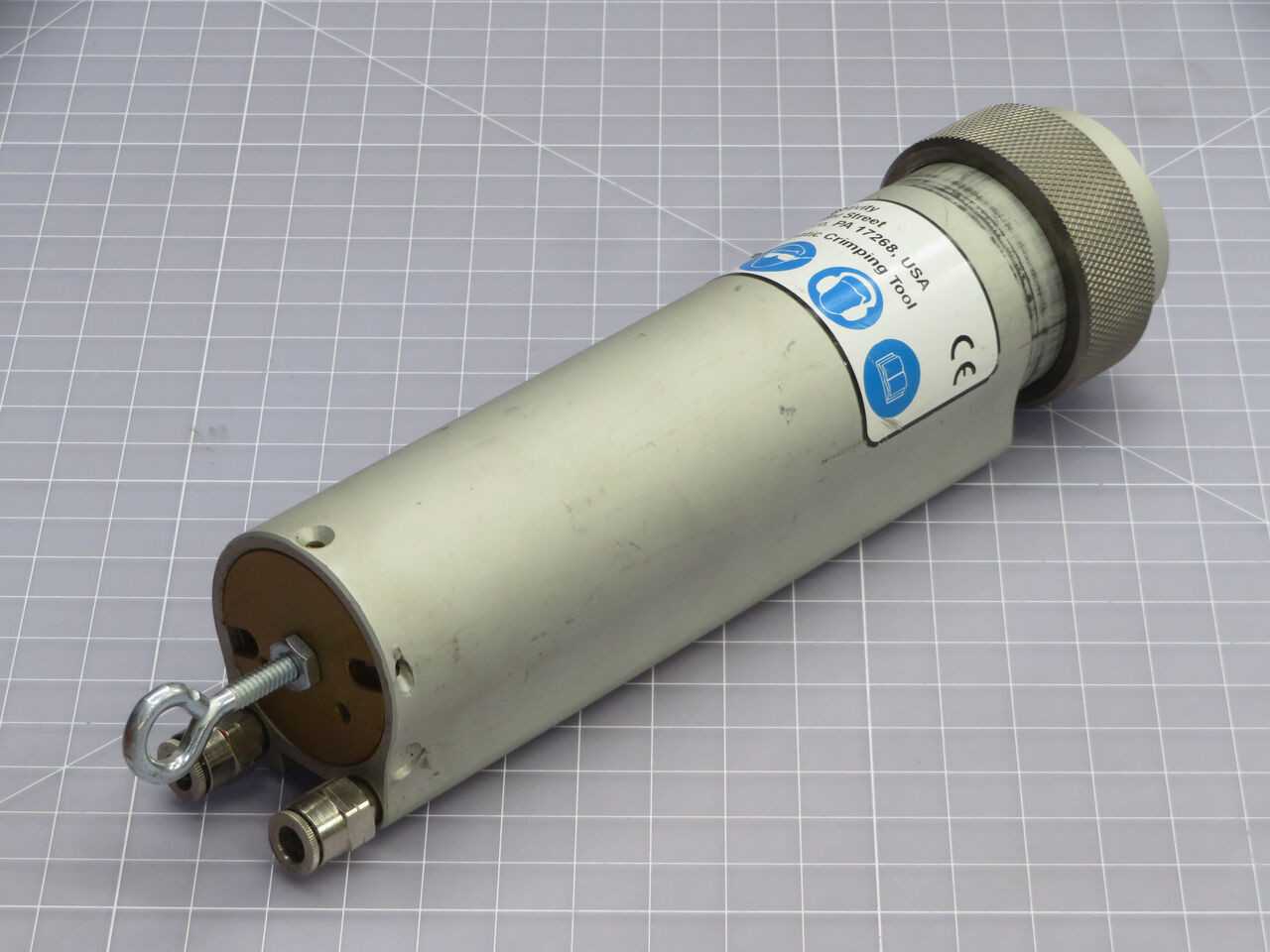

TE CONNECTIVITY 189722-1 POWER UNIT, 6.2-8.3 BAR INPUT, 5.5 BAR OUTPUT, 3.6 KG WEIGHT

THE TE CONNECTIVITY MODEL 189722-1 IS A FOOT-ACTUATED POWER UNIT SPECIFICALLY DESIGNED FOR USE WITH THE AMP 6-26 SERIES AND THE 626 PNEUMATIC TOOL SYSTEM. THIS UNIT PROVIDES FOOT-OPERATED CONTROL AND PNEUMATIC SUPPLY FOR COMPATIBLE TOOLING. IT INTEGRATES A BUILT-IN AIR FILTER, A PRESSURE REGULATOR, AND A PRESSURE GAUGE. THE POWER UNIT REQUIRES AN INPUT AIR SUPPLY RANGING FROM 6.2 TO 8.3 BAR (90 TO 120 PSI) AND DELIVERS A REGULATED OUTPUT PRESSURE OF 5.5 BAR (80 PSI). IT FEATURES A 1/4 NPT FEMALE FITTING FOR CONNECTION TO THE EXTERNAL AIR SUPPLY. THE APPROXIMATE DIMENSIONS OF THE UNIT ARE 203 MM (8 IN) IN LENGTH, 152 MM (6 IN) IN WIDTH, AND 102 MM (4 IN) IN HEIGHT, WITH AN APPROXIMATE WEIGHT OF 3.6 KG (8 LB).
