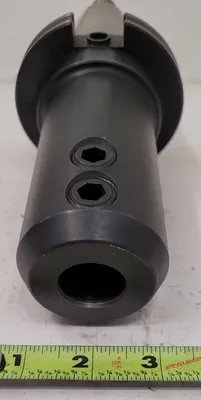

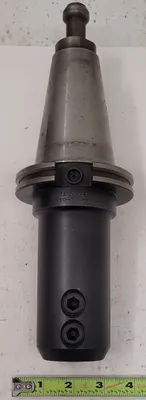

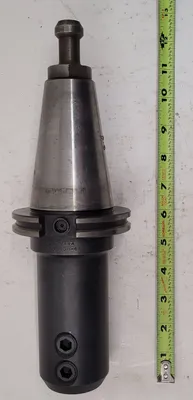

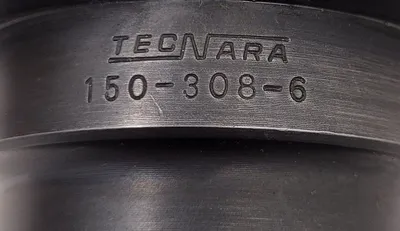

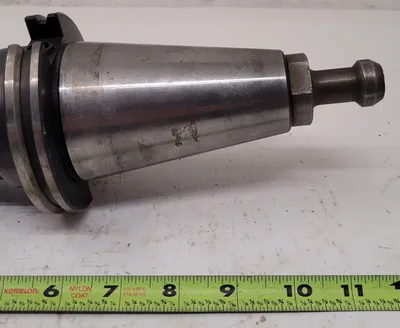

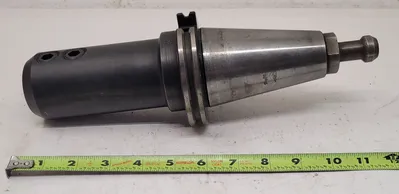

TECNARA 150-308-6 END MILL HOLDER – CAT 50 SHANK

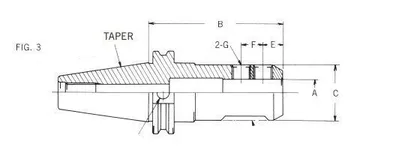

THE TECNARA 150-308-6 IS AN END MILL HOLDER DESIGNED FOR PRECISION TOOLING APPLICATIONS, FEATURING A CAT 50 SHANK. THIS HOLDER IS ENGINEERED TO PROVIDE RELIABLE PERFORMANCE ACROSS VARIOUS MACHINING TASKS. THE DIMENSIONS OF THE HOLDER ARE AS FOLLOWS: A DIMENSION IS 1.00 INCHES, B DIMENSION IS 6.00 INCHES, C DIMENSION IS 2.36 INCHES, E DIMENSION IS 0.83 INCHES, F DIMENSION IS 0.91 INCHES, AND IT INCLUDES A G DIMENSION OF 3/4-10. THESE SPECIFICATIONS ENSURE COMPATIBILITY WITH A RANGE OF END MILLS AND FACILITATE SECURE AND STABLE TOOL HOLDING, MAKING IT SUITABLE FOR DEMANDING MACHINING ENVIRONMENTS.
