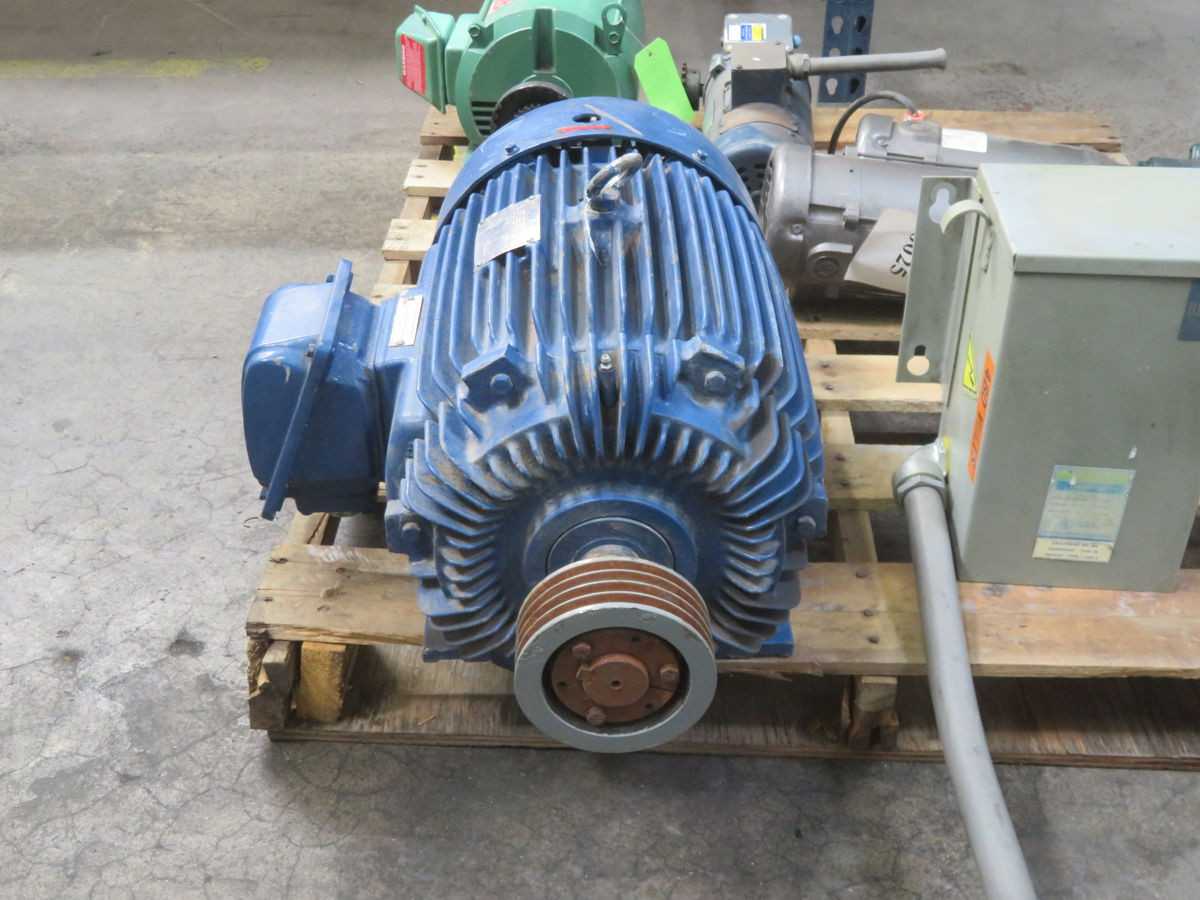

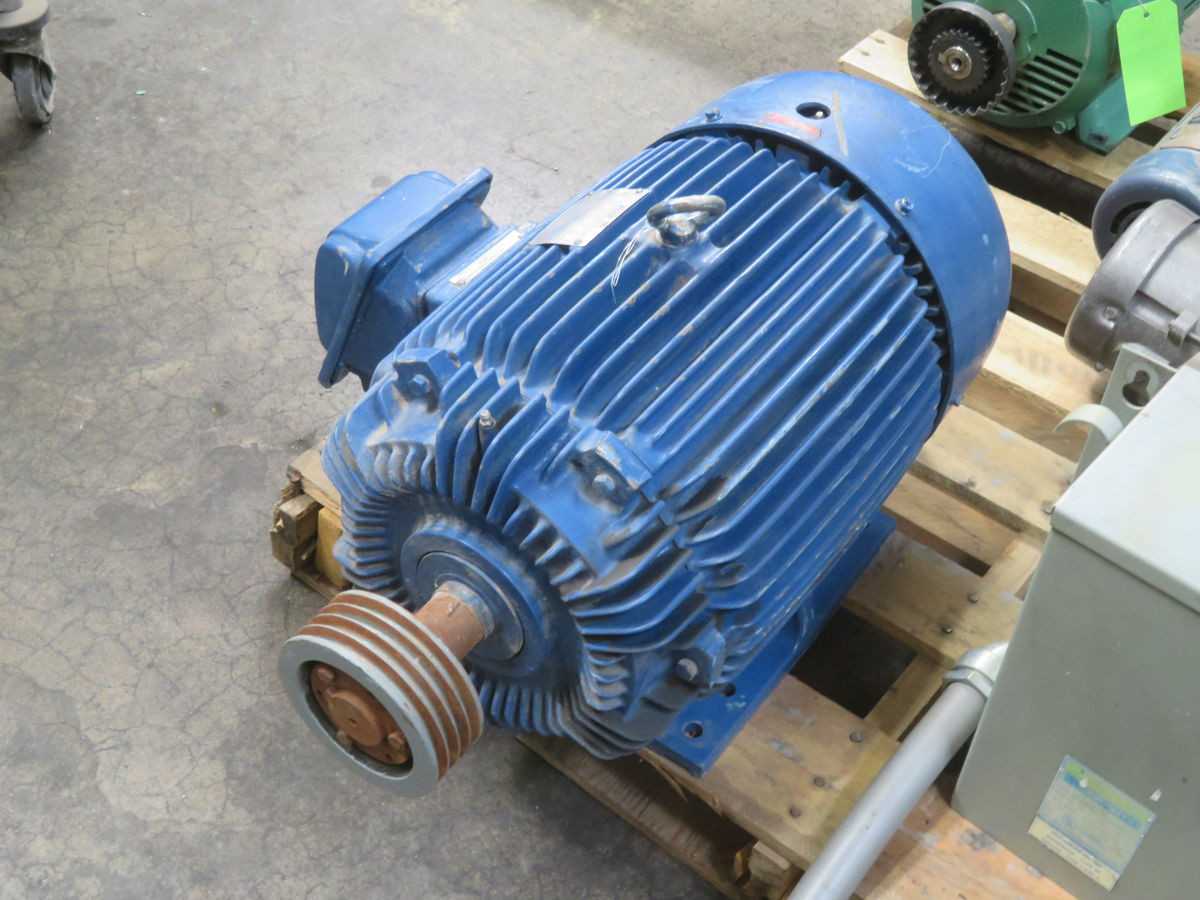

Teco-Westinghouse AEHH-8N AC Motor, 20 HP Power, 460V Voltage, 1775 RPM Speed

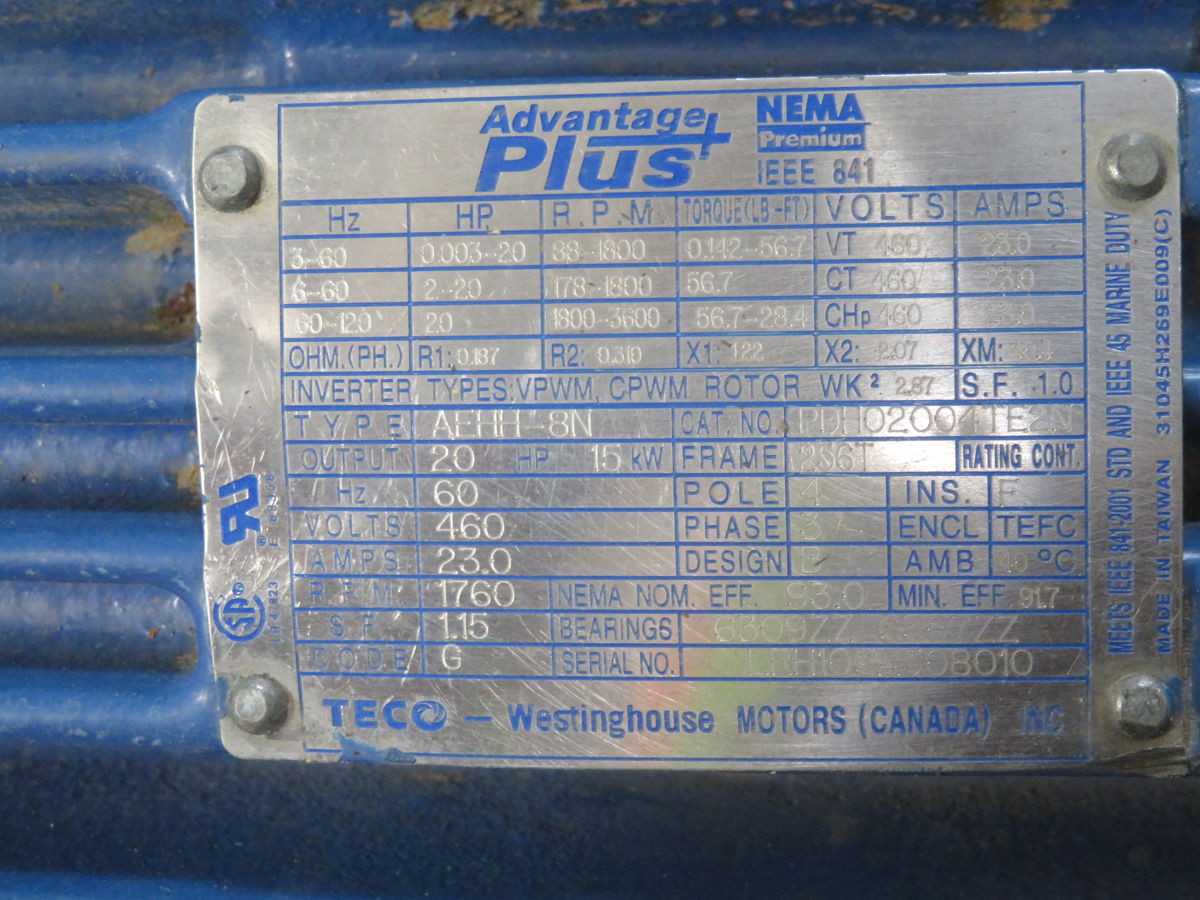

The Teco-Westinghouse Max-E1 series AEHH-8N is a severe duty, Totally Enclosed Fan Cooled (TEFC) AC motor with a cast iron frame. It is rated for 20 horsepower and operates on a 460 VAC, 3-phase, 60 Hz power supply, drawing 23 amperes. This premium efficiency motor features a nominal speed of 1775 RPM and an efficiency rating of 93.6%. It adheres to NEMA design B specifications and incorporates a 256T frame. Key technical attributes include a 1.25 service factor and class F insulation. The motor is equipped with regreaseable ball bearings, supporting industrial applications.
