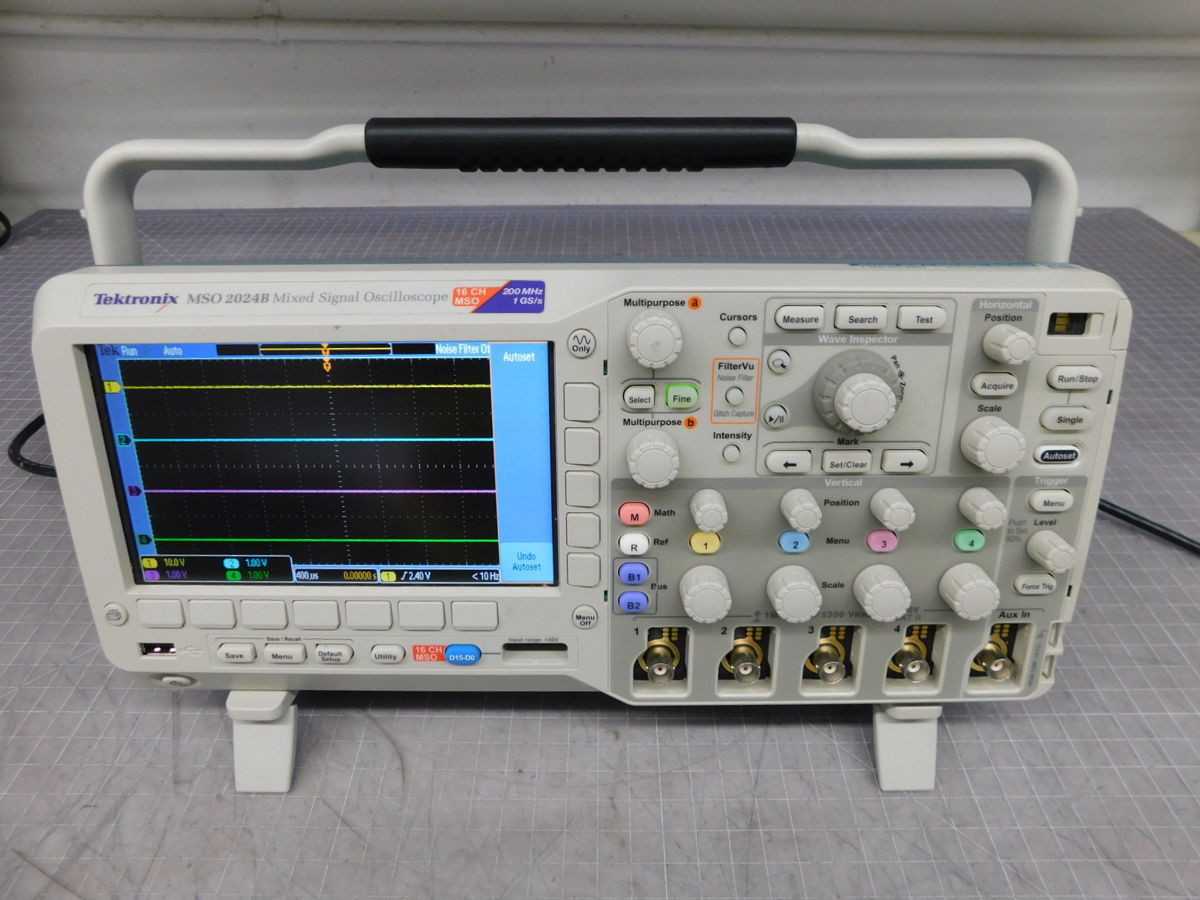

Tektronix MSO2024B, 200 MHz Bw, 1 Gs/S Sr, 4A/16D Ch, 8-Bit Vert Res, 1 Mpoint Rec Length

The Tektronix MSO2024B is a mixed signal oscilloscope featuring a 200 MHZ analog bandwidth and a maximum real-time sample rate of 1 GS/S. It is equipped with four analog channels and sixteen digital channels, providing integrated mixed-signal analysis capabilities. The instrument includes a standard record length of 1 MPOINT on all channels and an 8-bit vertical resolution. Display is provided by a 7-inch TFT-LCD color display. Connectivity options include USB 2.0 host and device ports, and an Ethernet (RJ-45) port. The input impedance is selectable between 1 MΩ in parallel with 11.5 PF and 50 Ω. Power requirements are 120/240 VAC, 1 phase.
