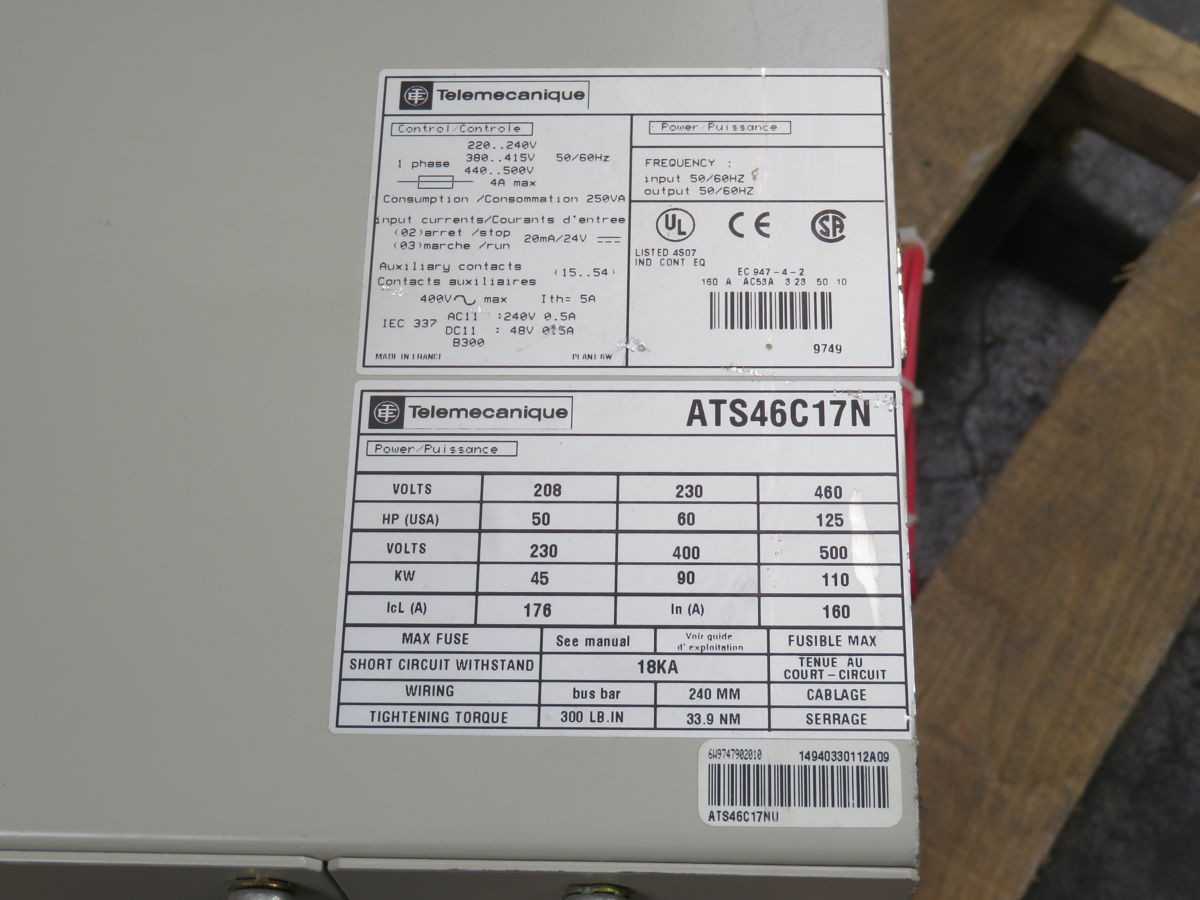

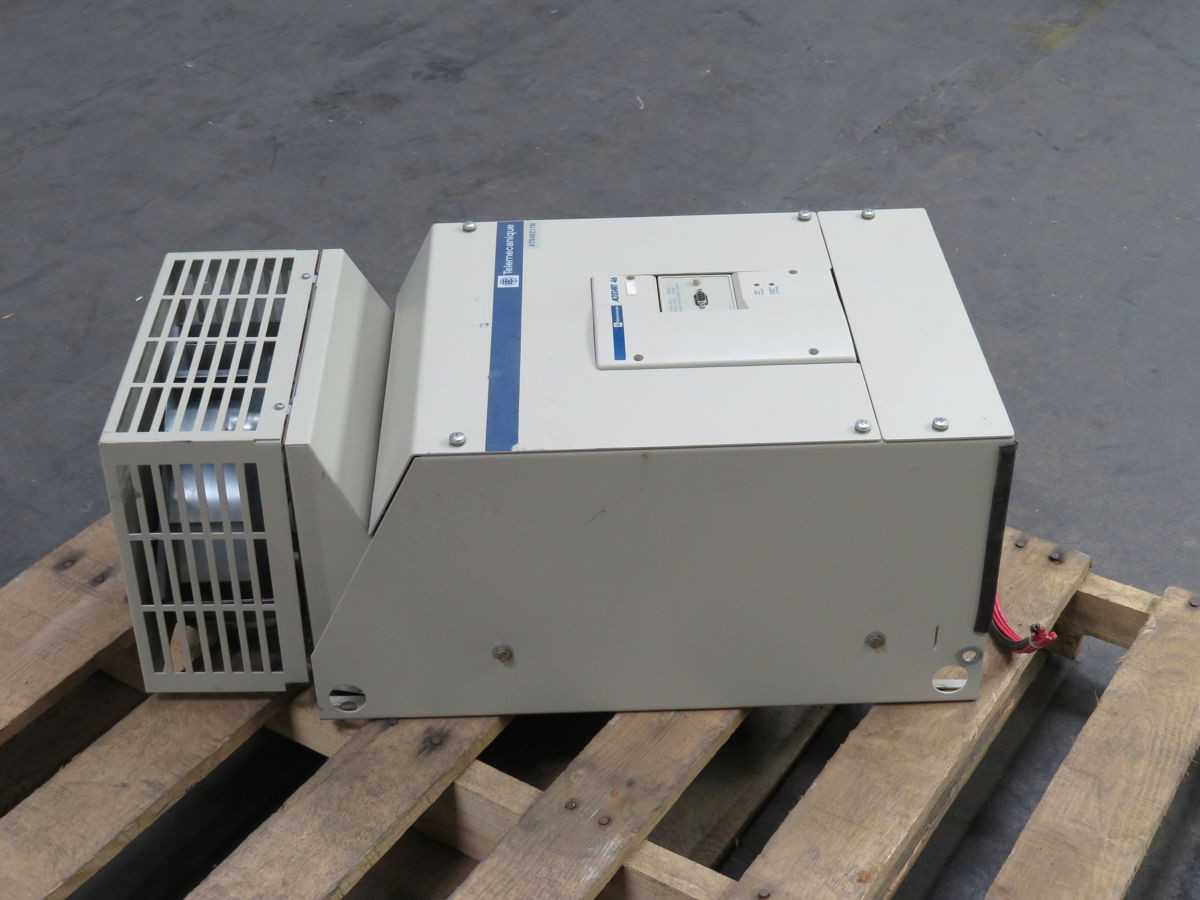

TELEMECANIQUE ATS46C17N SOFT STARTER, 17 A RATED CURRENT, 208-500V LINE VOLTAGE

THE TELEMECANIQUE ALTISTART 46 SOFT STARTER, MODEL ATS46C17N, IS ENGINEERED FOR CONTROLLED STARTING AND STOPPING OF THREE-PHASE ASYNCHRONOUS MOTORS. IT FEATURES A RATED CURRENT OF 17 A AND ACCOMMODATES LINE VOLTAGES OF 208-230 VAC, 380-400 VAC, AND 460-500 VAC AT 50/60 HZ. THIS UNIT TYPICALLY SUPPORTS MOTOR POWER RATINGS OF 3 KW (4 HP) AT 230 VAC, 5.5 KW (7.5 HP) AT 400 VAC, AND 7.5 KW (10 HP) AT 480 VAC, DEPENDING ON THE APPLICATION AND DUTY CYCLE. THE ALTISTART 46 SERIES IS DESIGNED WITH INTEGRATED PROTECTION FUNCTIONS, INCLUDING THERMAL OVERLOAD PROTECTION FOR BOTH THE MOTOR AND THE STARTER, PHASE FAILURE DETECTION, AND LOCKED ROTOR PROTECTION. IT PROVIDES ADJUSTABLE ACCELERATION AND DECELERATION RAMPS TO MINIMIZE MECHANICAL STRESS AND ELECTRICAL SURGES DURING MOTOR STARTUP AND SHUTDOWN. CONTROL CIRCUIT VOLTAGE IS TYPICALLY 110-230 VAC.
