TEMPERING FURNACE
Aucto ID: AA254241
Premium Listing
81b95a63-34f7-4e5c-8675-1083cfdb939e
Sold!
sold
Location: Troutman, North Carolina, United States
Logistics:
Rigging:
Buyer
Loading:
Buyer
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller: Keystone Powdered Metal Company
3026Selling since 2025.
Item Description

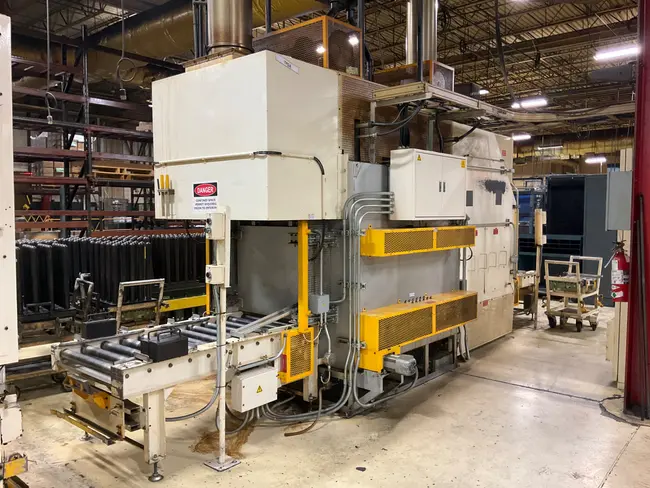

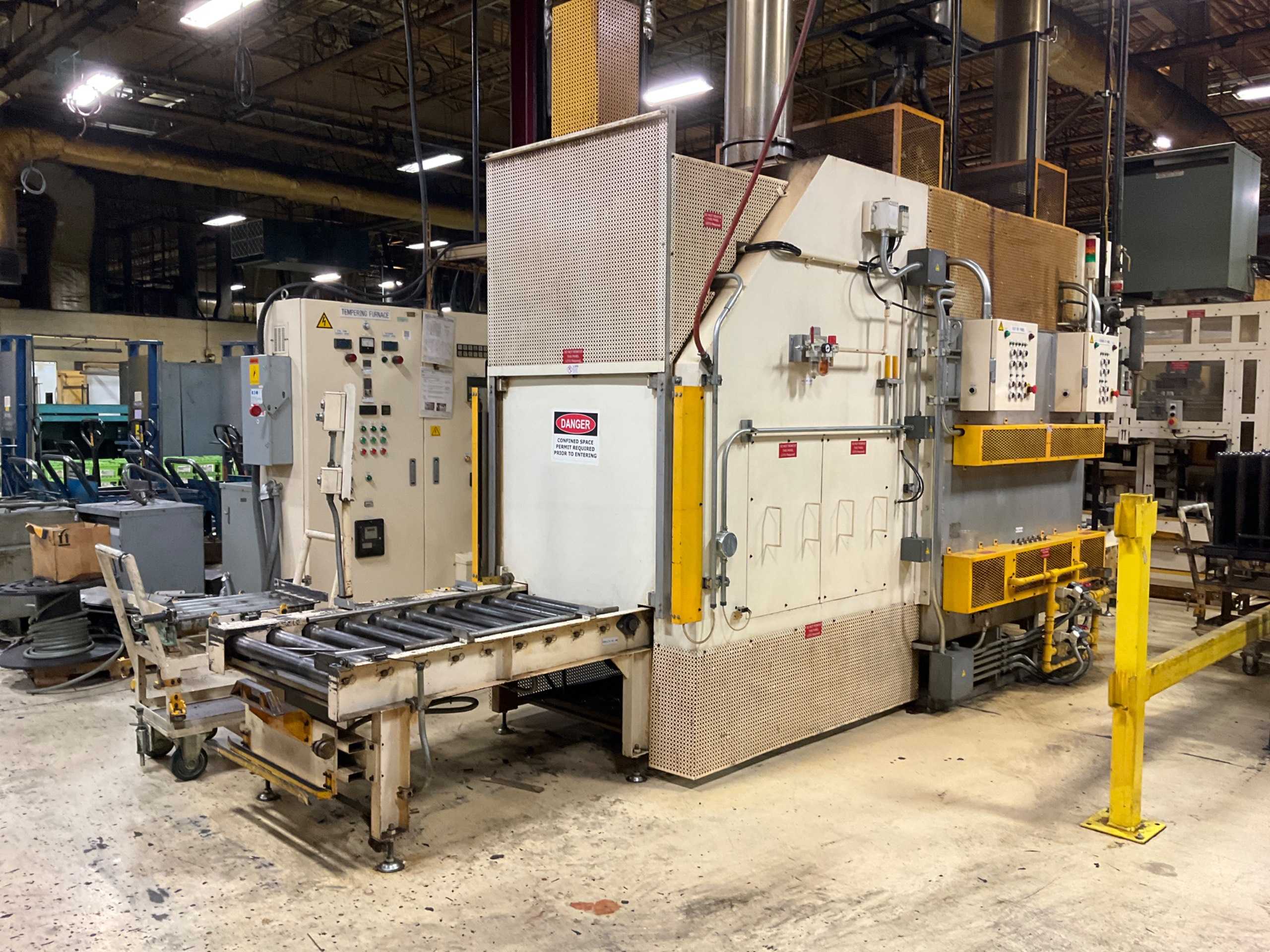

Neturen batch-type electric resistance tempering furnace
Application: Sintered steel parts (hub wheel, outer wheel)
Working temperature: 150–200°C, max 250°C
Temperature precision: ±5°C
Power: 50KVA, 3-phase, AC220V 60Hz
Air: 0.5MPa PT10A
Nitrogen: 25m³/h PT25A
Capacity: 200kg × 2 trays per batch
Heater: 34.5kW total, 30× SS U-sheath, 220V
Fan: φ400, 2.2kW motor, 3-phase 220V
Furnace dimensions: 2020W × 2120L × 2710H mm
Effective heating area: 550W × 1000L × 500H mm

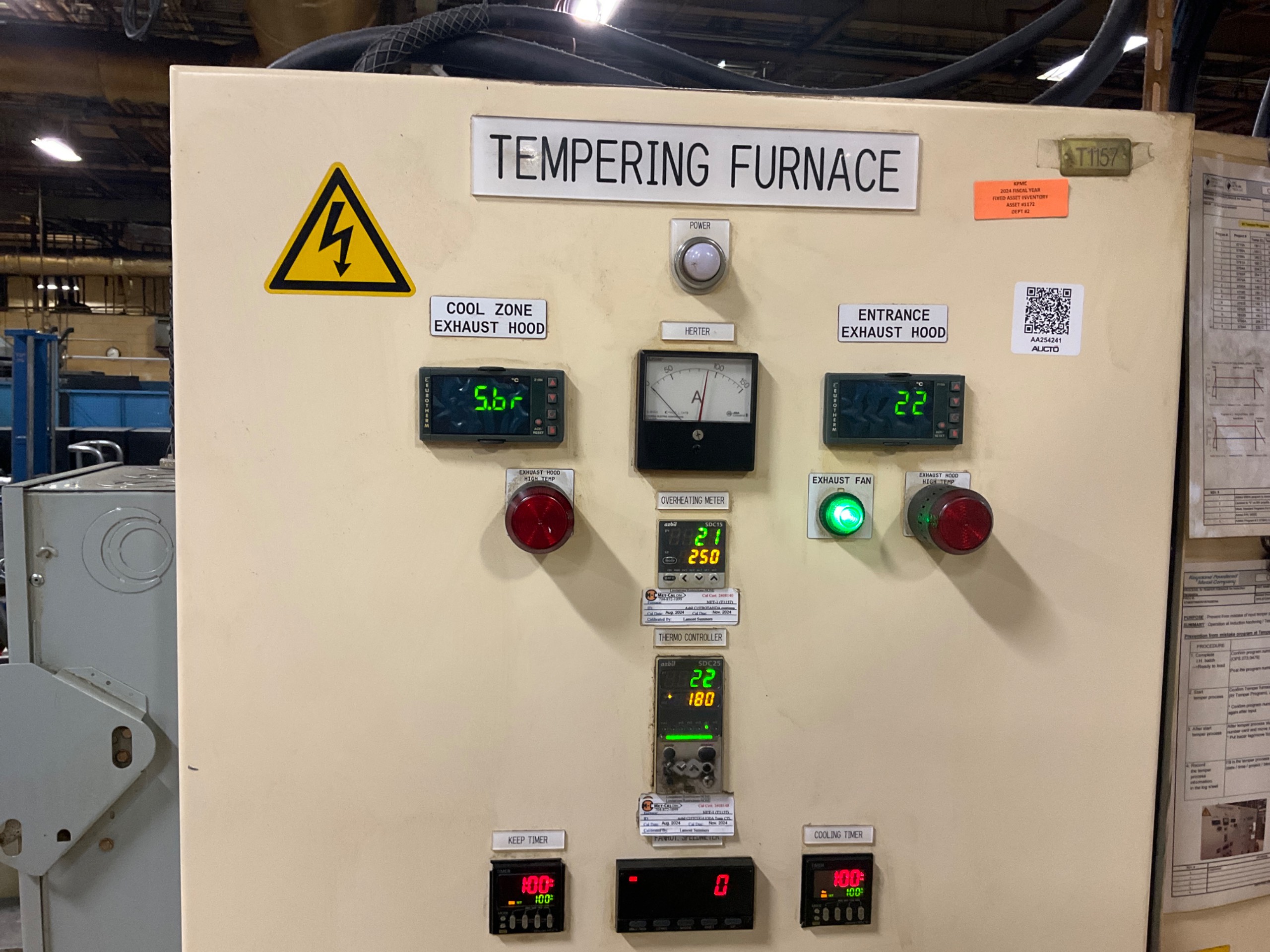

Control: SDC25 controller, Fuji APR-N thyristor, Mitsubishi Q00CPU
Installation size: 5940L × 2020W × 2905H mm
Carry-in/carry-out beds: Chain drive, load max 400kg
Cooling: φ500 ventilator, 0.4kW motor
Door: Vertical, gear motor 0.4kW, 4 pneumatic clamps
Sensors: K-type thermocouples, N2 flow meters, rotation detector
OPENING: 26 X 28 IN
Technical Specifications
Dimensions: 19 foot L x 5 foot W x 9 foot H
Weight: -
Condition: Fair
- Item functions as originally intended, shows signs of normal wear.Condition Detail:
 OPERATING TIME METER: 16336.6 HOURSCategory
 PROCESS EQUIPMENT -> FURNACES -> TEMPERING FURNACETechnical Documents
