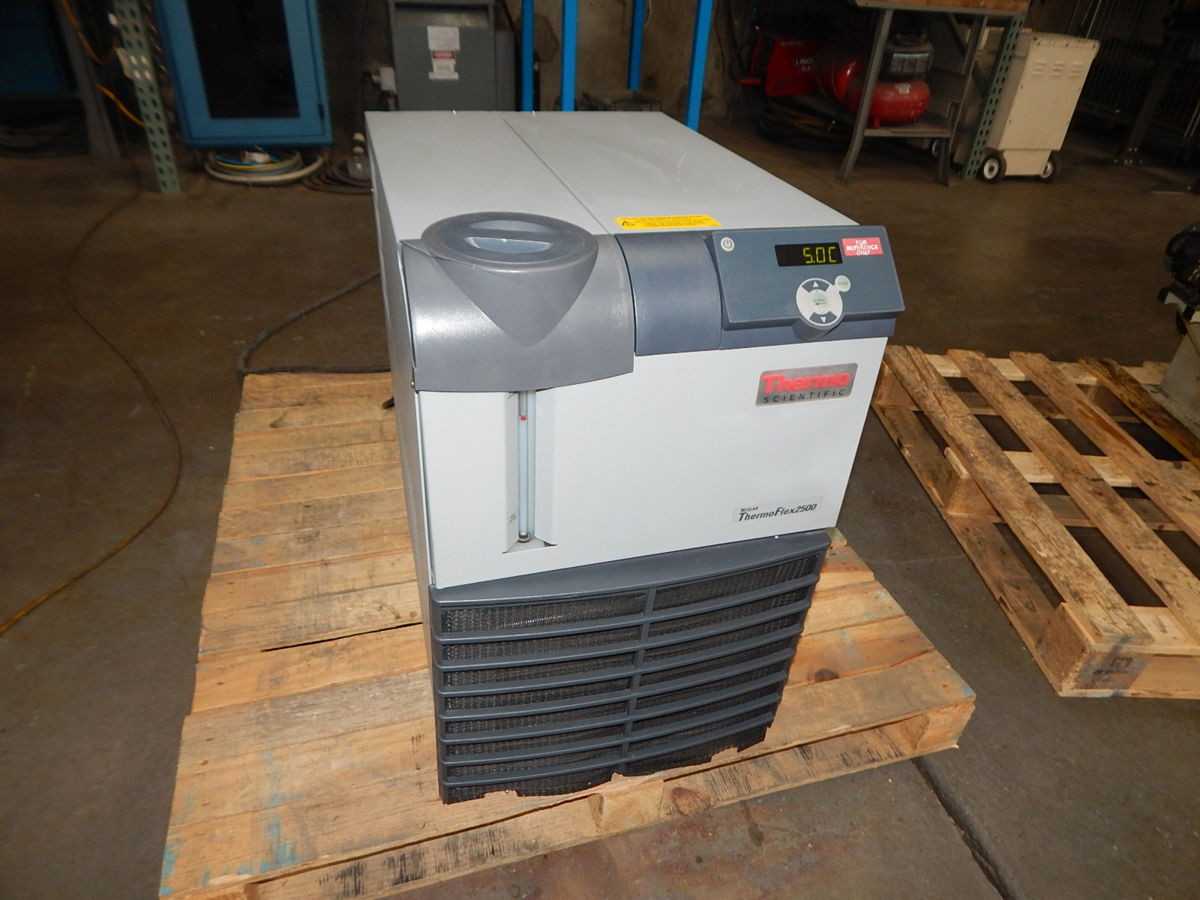

THERMO FISHER 2500 CHILLERS, 2500W COOLING, -10C TO +40C OP TEMP, ±0.1C STAB, 20.1 LPM FLOW

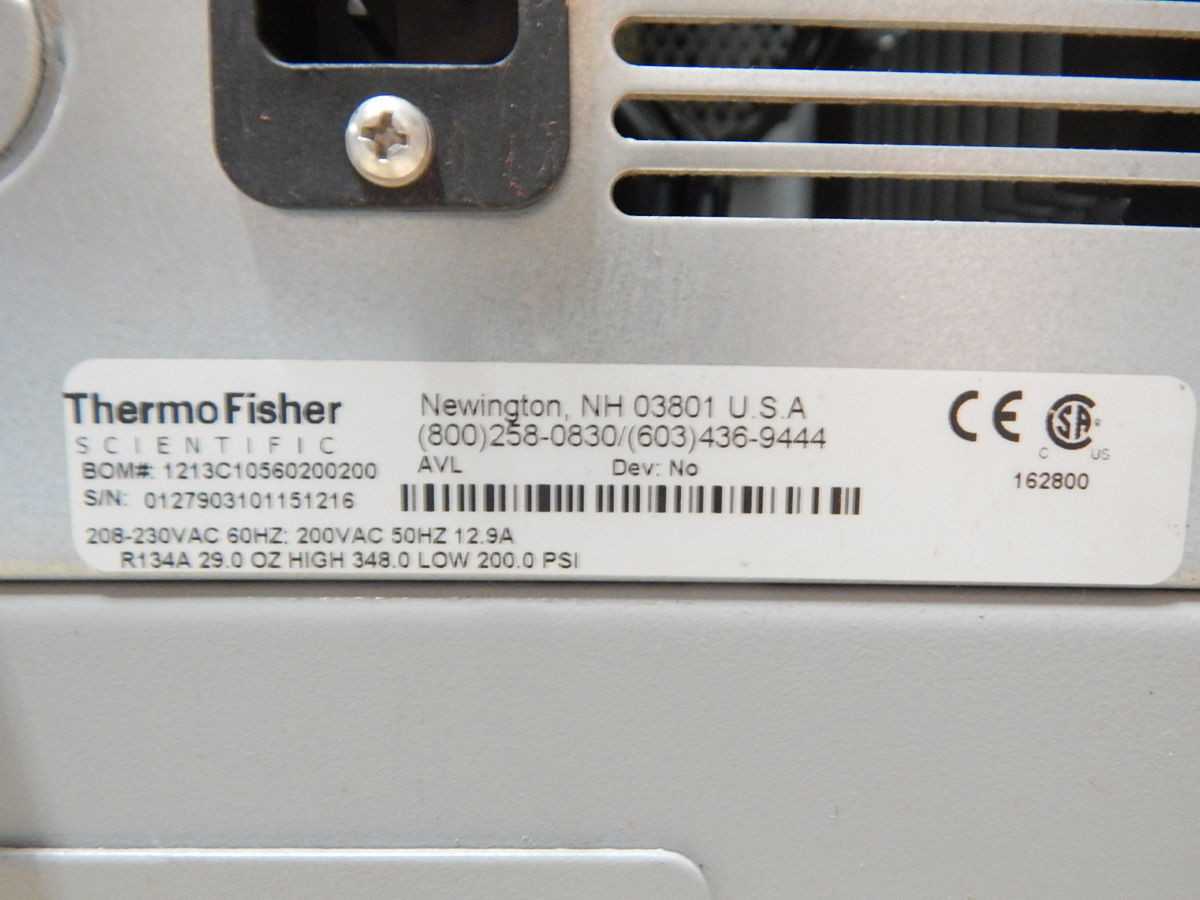

THE THERMO FISHER THERMO FLEX 2500 CHILLER IS A SINGLE-PHASE RECIRCULATING UNIT DESIGNED FOR PRECISE TEMPERATURE CONTROL, OPERATING ON A 220 VAC POWER SUPPLY. IT PROVIDES A COOLING CAPACITY OF 2500 WATTS (8530 BTU/HR) AT AN AMBIENT TEMPERATURE OF 20°C AND BATH FLUID TEMPERATURE OF 20°C. THE CHILLER OFFERS AN OPERATIONAL TEMPERATURE RANGE FROM -10°C TO +40°C, MAINTAINING A TEMPERATURE STABILITY OF ±0.1°C. IT INTEGRATES A TURBINE PUMP CAPABLE OF DELIVERING A FLOW RATE OF 20.1 LITERS PER MINUTE (5.3 GPM) AND A PRESSURE OF 4.1 BAR (60 PSI). THE SYSTEM FEATURES AN INTERNAL RESERVOIR WITH A VOLUME OF 6.8 LITERS (1.8 GALLONS) AND UTILIZES R134A AS ITS REFRIGERANT. THE UNIT HAS NOMINAL DIMENSIONS OF 72.4 CM (28.5 IN) HEIGHT, 36.8 CM (14.5 IN) WIDTH, AND 67.3 CM (26.5 IN) DEPTH, WITH A DRY WEIGHT OF APPROXIMATELY 73 KG (160 LBS).
