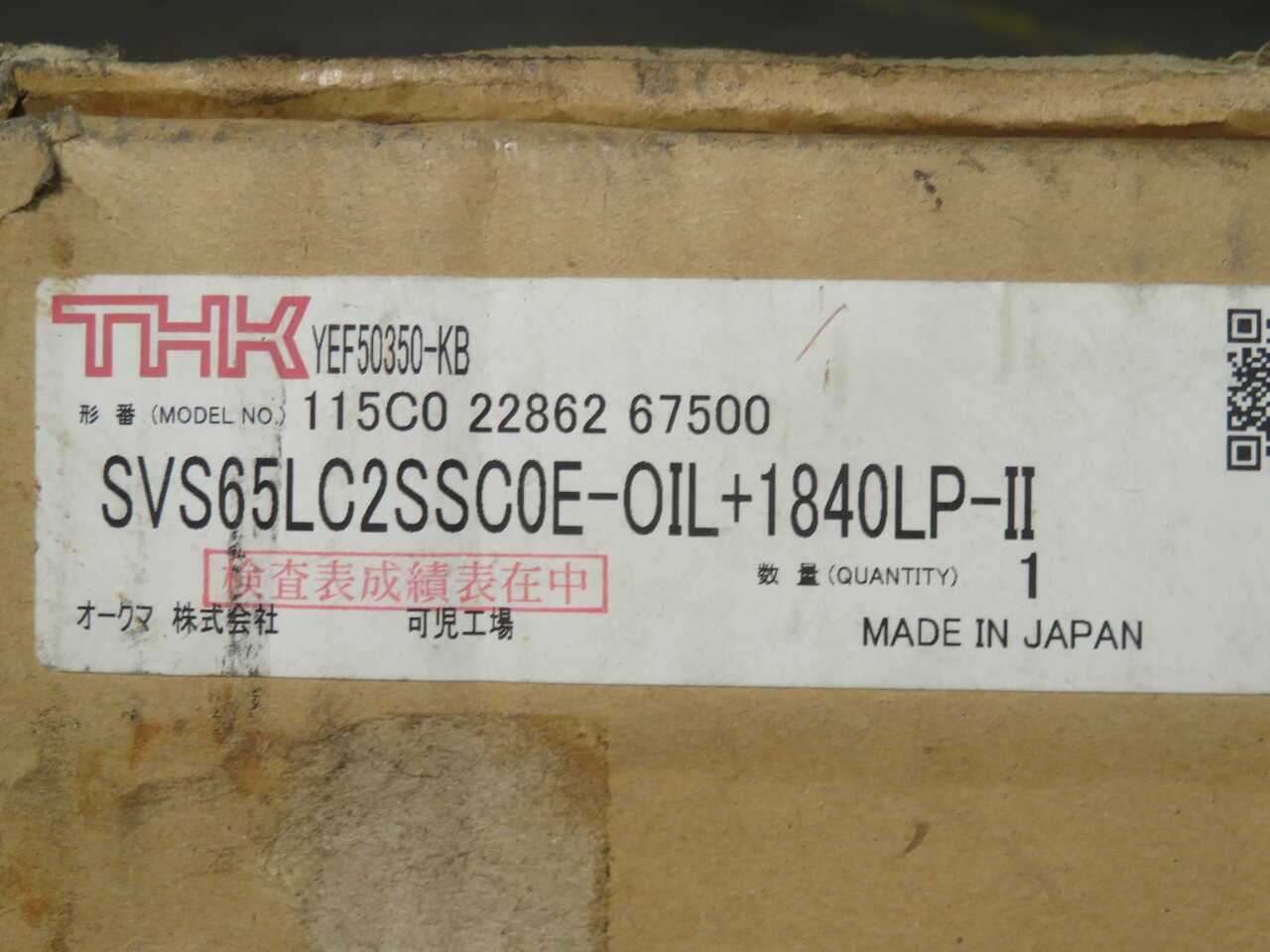

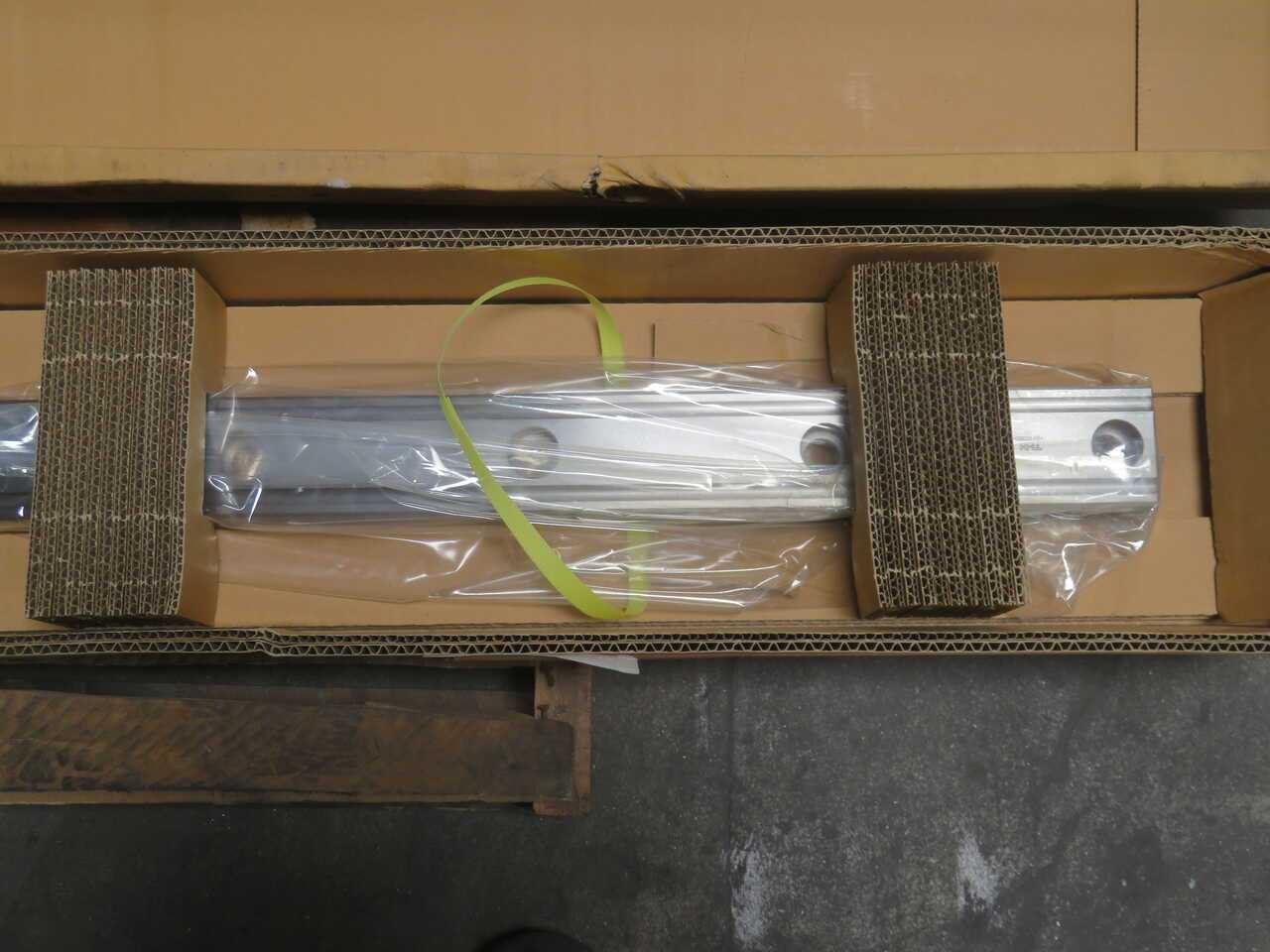

THK SVS65LC2SSC0E-OIL+1840LP-II LINEAR GUIDE, C0 PRELOAD, SS SEAL, 1840MM RAIL, OIL LUB

THE THK SVS65LC2SSC0E-OIL+1840LP-II IS A HIGH-RIGIDITY, CAGED BALL LINEAR MOTION GUIDE DESIGNED FOR SUPER-HEAVY LOAD APPLICATIONS IN MACHINE TOOLS AND HIGH-PRECISION MACHINERY. THIS MODEL FEATURES A SIZE 65 LONG BLOCK CONFIGURATION, WHICH SHARES THE SAME CROSS-SECTIONAL SHAPE AS THE SVR AND SVS-C MODELS BUT INCORPORATES A LONGER OVERALL BLOCK LENGTH AND A GREATER LOAD RATING. IT UTILIZES A 4-WAY EQUAL LOAD DESIGN WITH A 45-DEGREE CONTACT ANGLE, ALLOWING UNIFORM LOAD DISTRIBUTION IN RADIAL, REVERSE-RADIAL, AND LATERAL DIRECTIONS TO ENABLE VERSATILE INSTALLATION IN ANY ORIENTATION. THE FLANGE-TYPE BLOCK INCLUDES TAPPED HOLES, SUPPORTING MOUNTING FROM BOTH THE TOP AND THE BOTTOM TO ACCOMMODATE DIVERSE MOUNTING SPACES. EQUIPPED WITH A MEDIUM PRELOAD (C0 GRADE) AND AN SS SEAL CONFIGURATION, IT ENSURES HIGH SYSTEM RIGIDITY, MINIMAL FRICTION, AND OPTIMAL CONTAMINATION PROTECTION IN DEMANDING ENVIRONMENTS. THIS SPECIFIC ASSEMBLY IS CONFIGURED FOR OIL LUBRICATION, FEATURES AN 1840 MM RAIL LENGTH, AND IS DESIGNED FOR HIGH-PRECISION ALIGNMENTS.
