TIMES MICROWAVE SYSTEMS TCOM-400 ELECTRICAL WIRE ROLL SURPLUS, 50 OHM IMPEDANCE, -153 DBC PIM

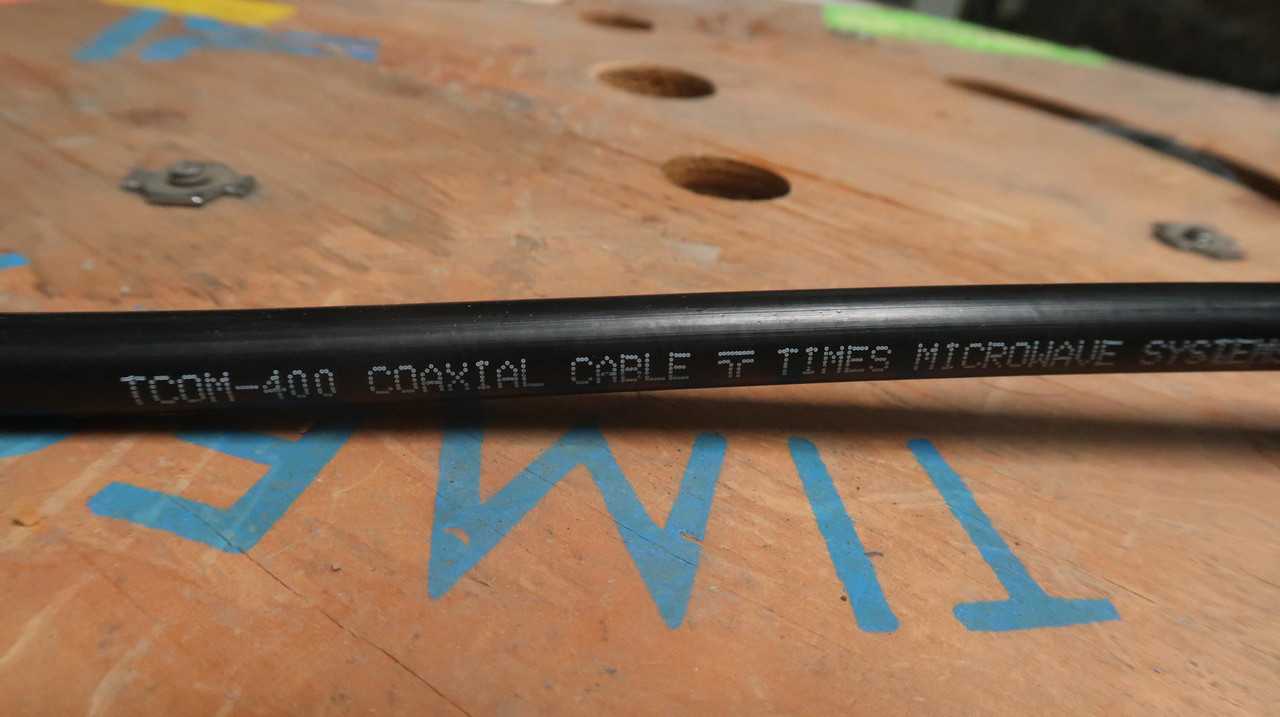

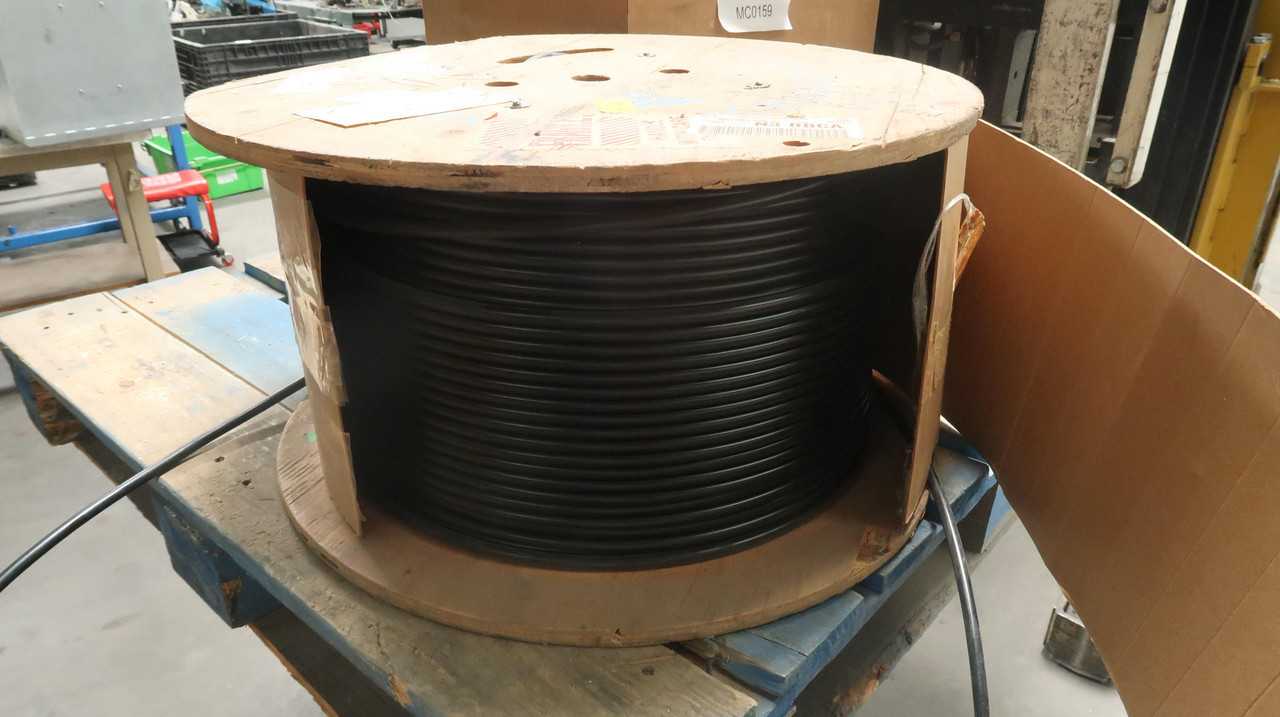

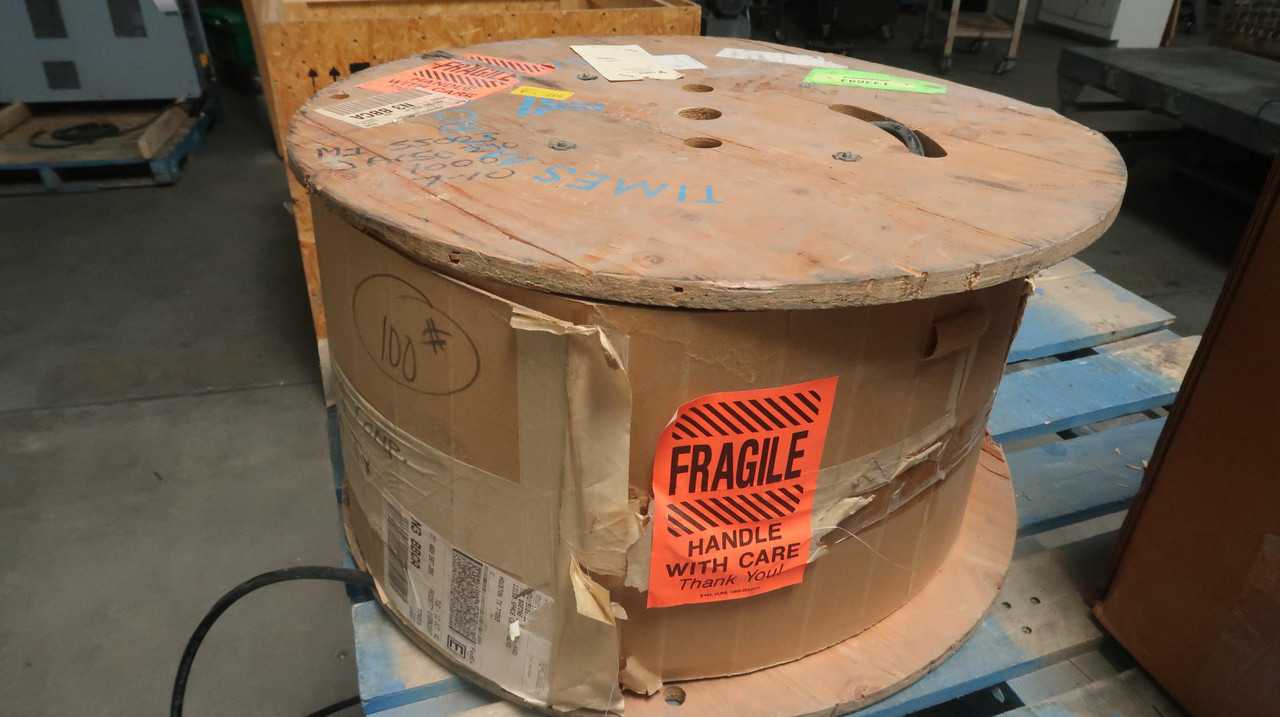

THE TIMES MICROWAVE SYSTEMS TCOM-400 IS A 50 OHM LOW LOSS, LOW PASSIVE INTERMODULATION (PIM) COAXIAL CABLE WITH AN OUTER DIAMETER OF 0.400 INCHES (10.16 MM). IT FEATURES A SOLID BARE COPPER INNER CONDUCTOR, A LOW-DENSITY FOAMED POLYETHYLENE DIELECTRIC, AND A MULTI-LAYER OUTER SHIELD COMPRISING A BONDED ALUMINUM TAPE AND A TINNED COPPER BRAID FOR ENHANCED RF SHIELDING EFFECTIVENESS. THE CABLE IS ENGINEERED FOR HIGH-FREQUENCY APPLICATIONS, PROVIDING LOW ATTENUATION ACROSS ITS OPERATIONAL BANDWIDTH, TYPICALLY UP TO 6 GHZ. ITS CONSTRUCTION ENSURES EXCELLENT PASSIVE INTERMODULATION PERFORMANCE, WITH TYPICAL PIM LEVELS BETTER THAN -153 DBC. THE TCOM-400 UTILIZES A BLACK POLYETHYLENE JACKET, OFFERING UV RESISTANCE AND A BROAD OPERATING TEMPERATURE RANGE OF -40°C TO +85°C. THIS SPECIFIC ITEM COMPRISES AN 860-FOOT LENGTH.
