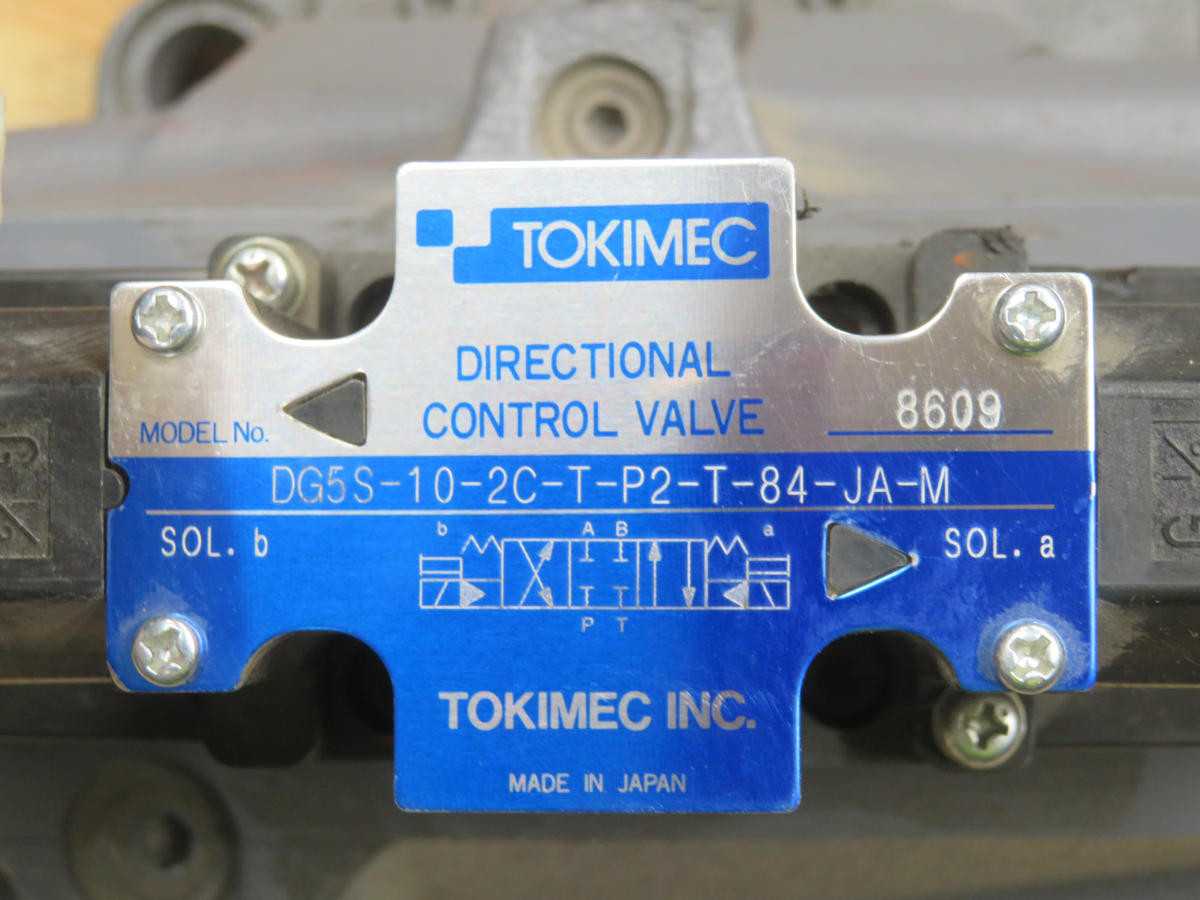

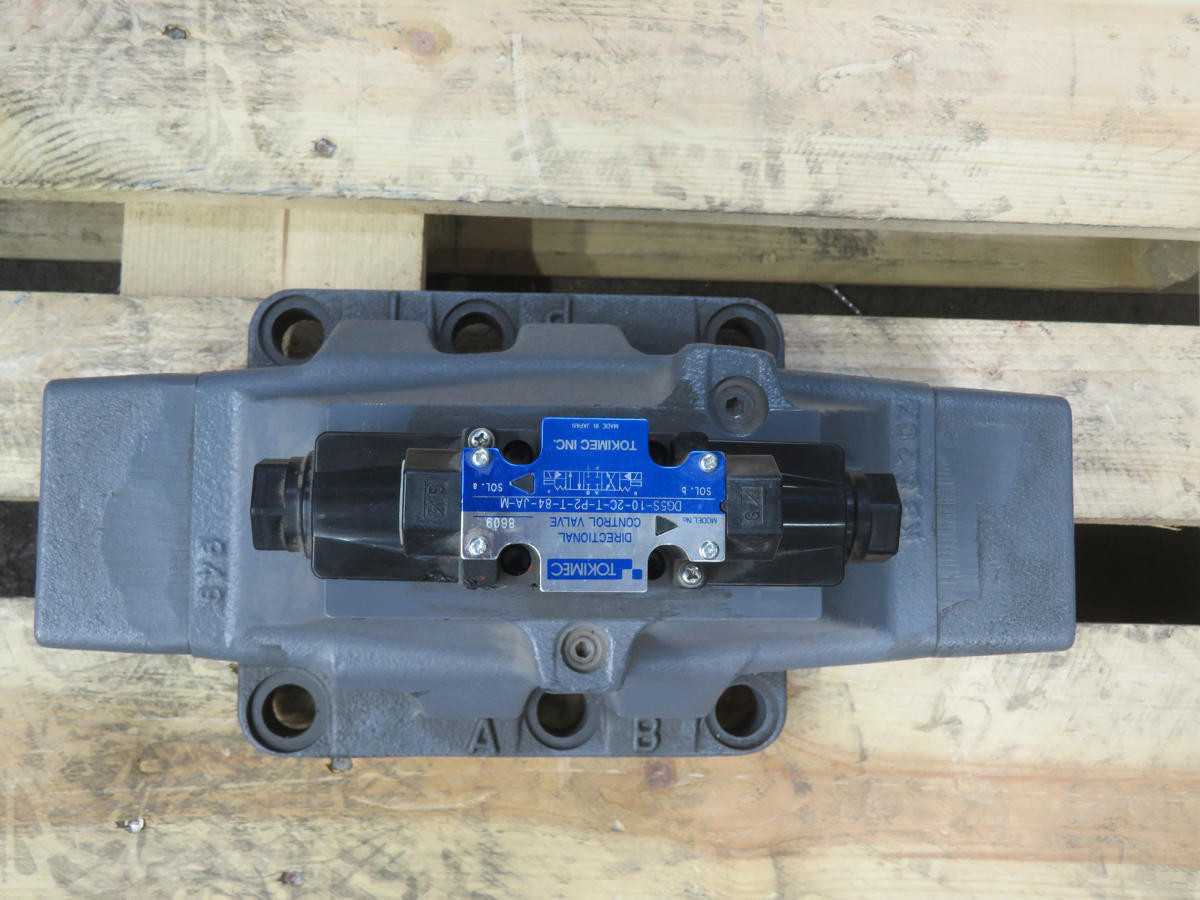

TOKIMEC DG5S-10-2C-T-P2-T-84-JA-M, DIRECTIONAL VALVE, CETOP 05 SIZE

THE TOKIMEC DG5S-10-2C-T-P2-T-84-JA-M IS A SOLENOID-OPERATED, PILOT-CONTROLLED DIRECTIONAL CONTROL VALVE DESIGNED FOR HYDRAULIC SYSTEMS. THIS CETOP 05 (NFPA D05) SIZE VALVE HAS A MAXIMUM OPERATING FLOW RATE OF 120 L/MIN (31.7 US GPM). IT SUPPORTS A MAXIMUM OPERATING PRESSURE OF 315 BAR (4500 PSI) AT PORTS P, A, AND B, AND 160 BAR (2320 PSI) AT PORT T. THE VALVE FEATURES A 3-POSITION, SPRING-CENTERED SPOOL WITH ALL PORTS CLOSED IN THE CENTER POSITION, IDENTIFIED AS SPOOL TYPE 2C. ITS PILOT OPERATION IS INTERNAL, INCORPORATING A BUILT-IN PRESSURE REDUCER SET TO 84 BAR (1218 PSI). THE SOLENOIDS ARE DESIGNED FOR 200-220V AC, 50/60HZ ELECTRICAL SUPPLY, WITH CONNECTIONS PROVIDED VIA A TERMINAL BOX. THE DESIGN SERIES IS JA.
