TONE GS-111EZ ELECTRIC SHEAR WRENCH, 120VAC, 2000W POWER, 1400NM TORQUE

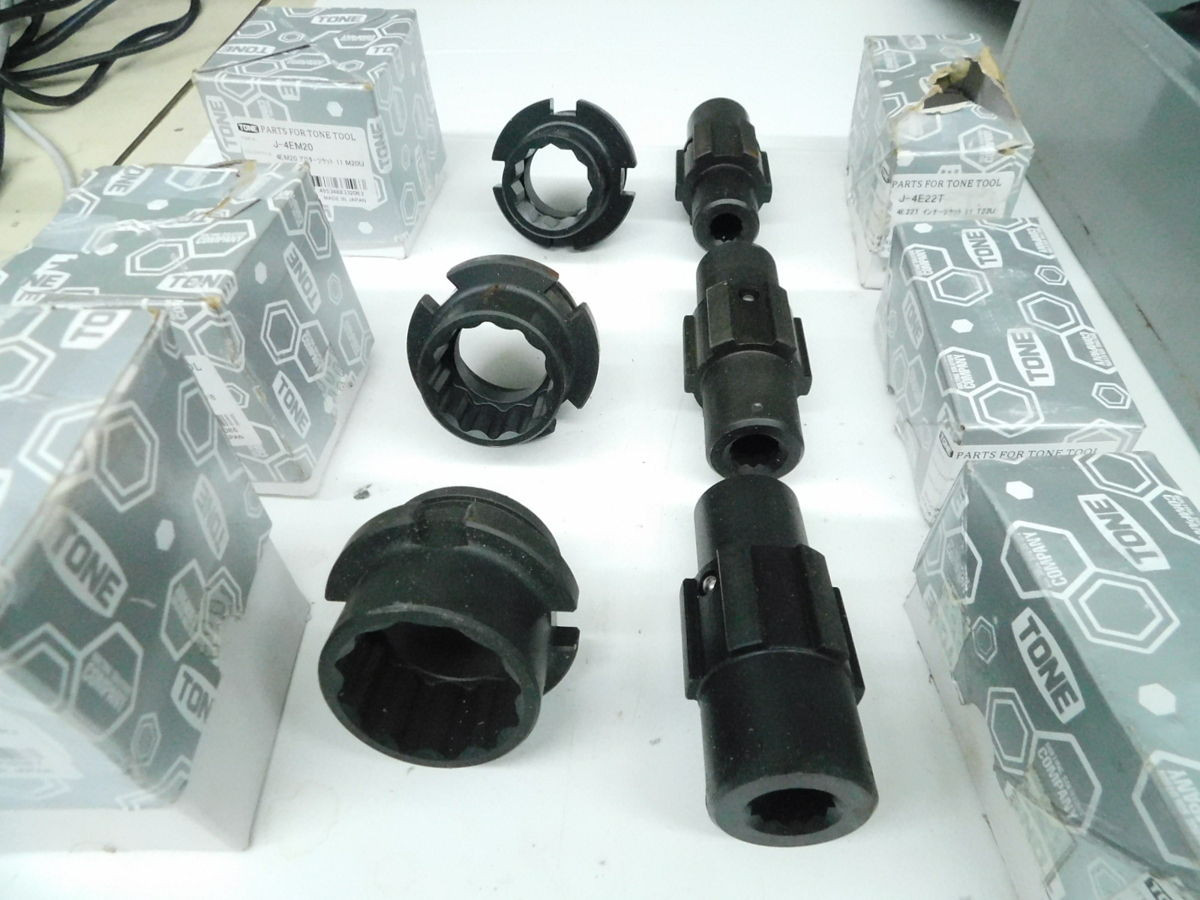

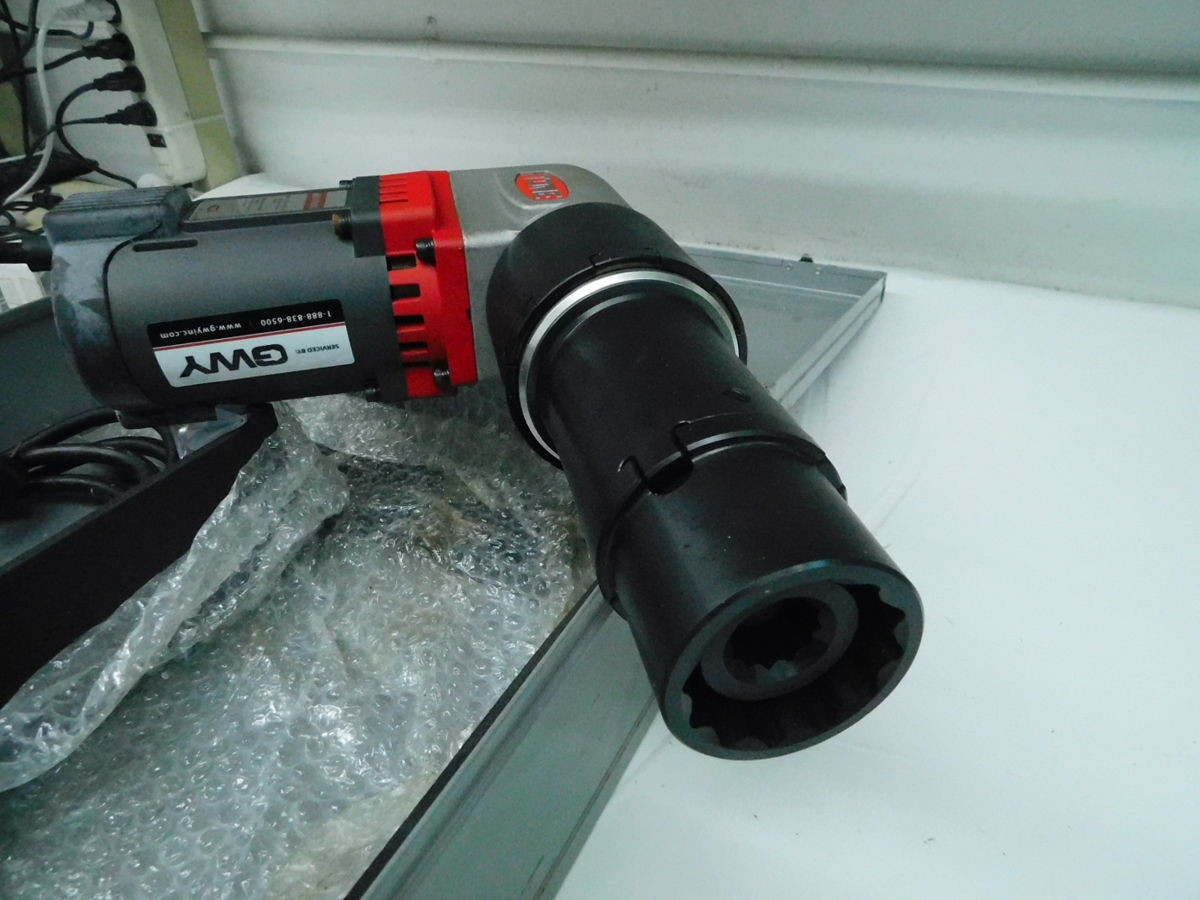

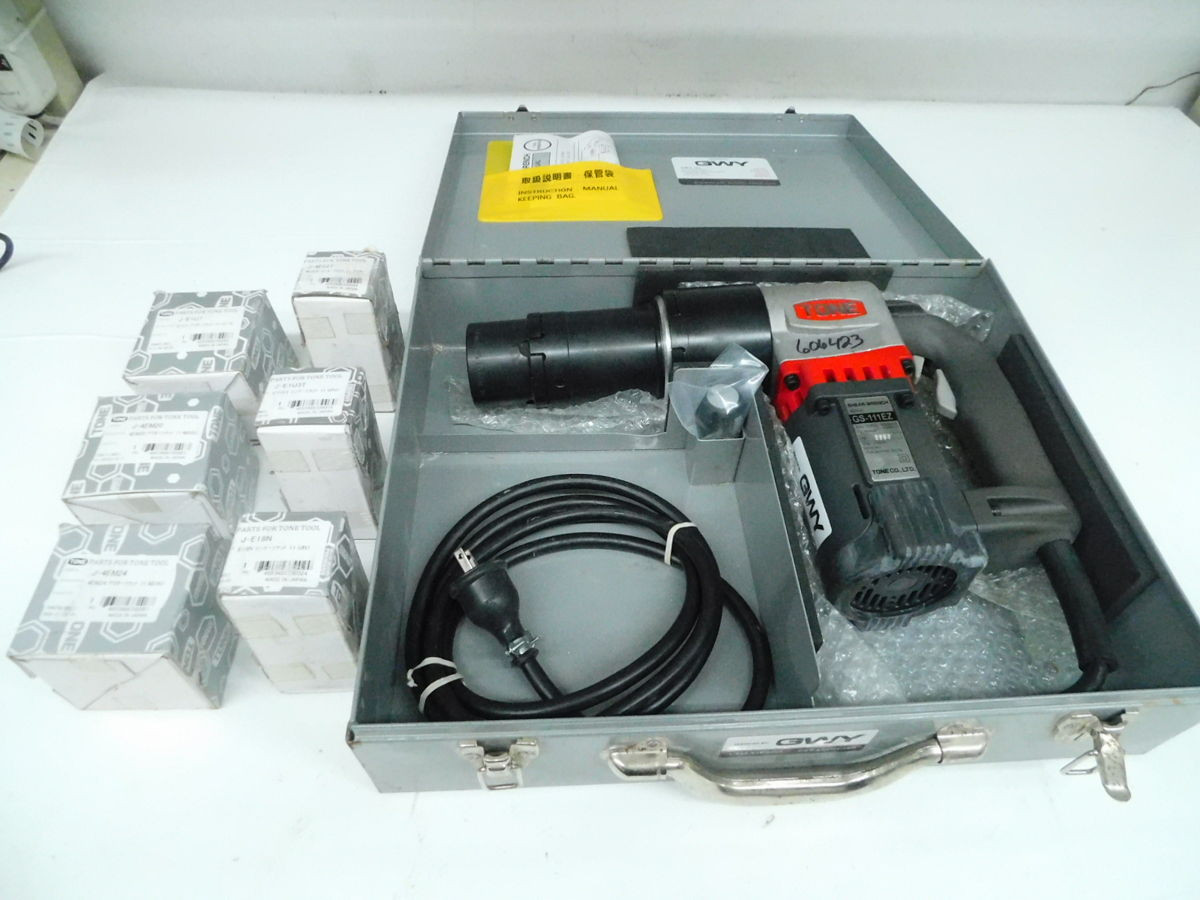

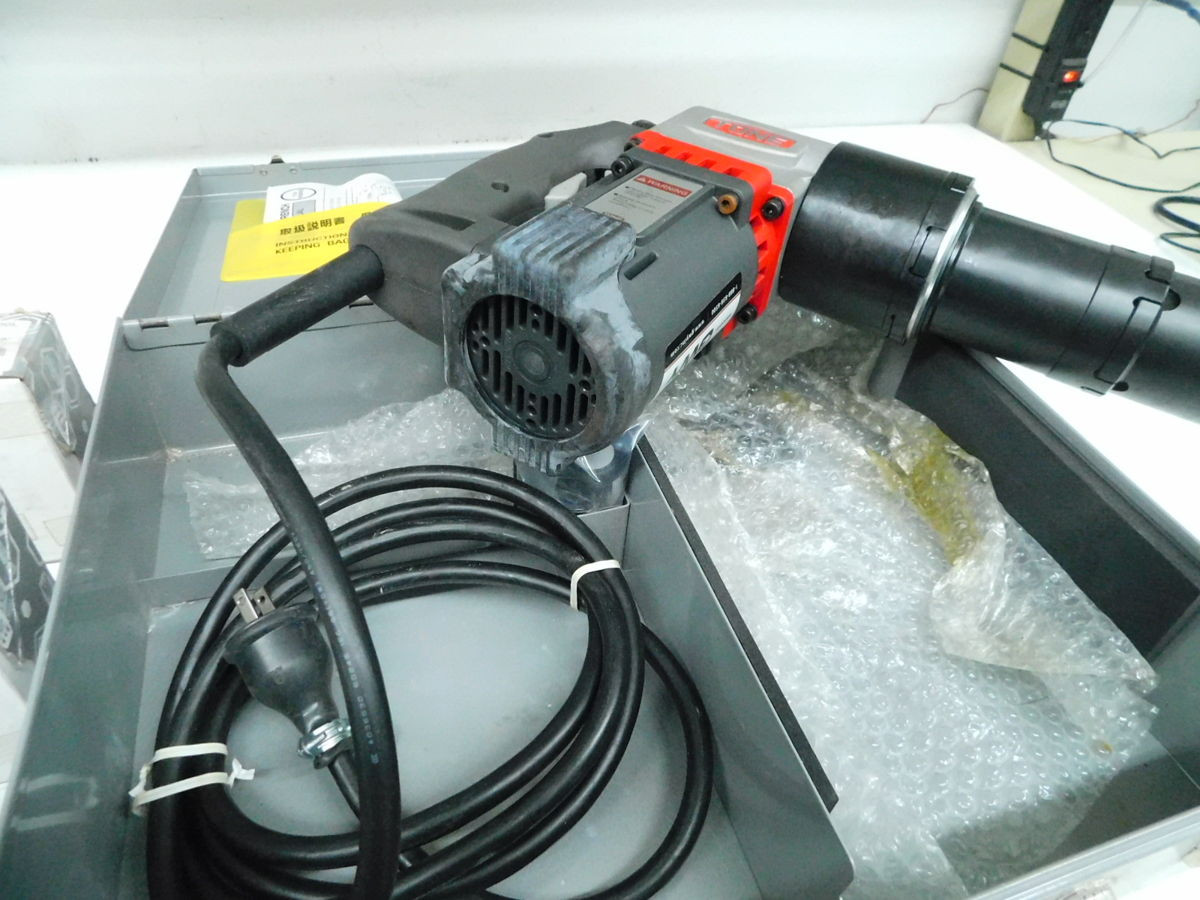

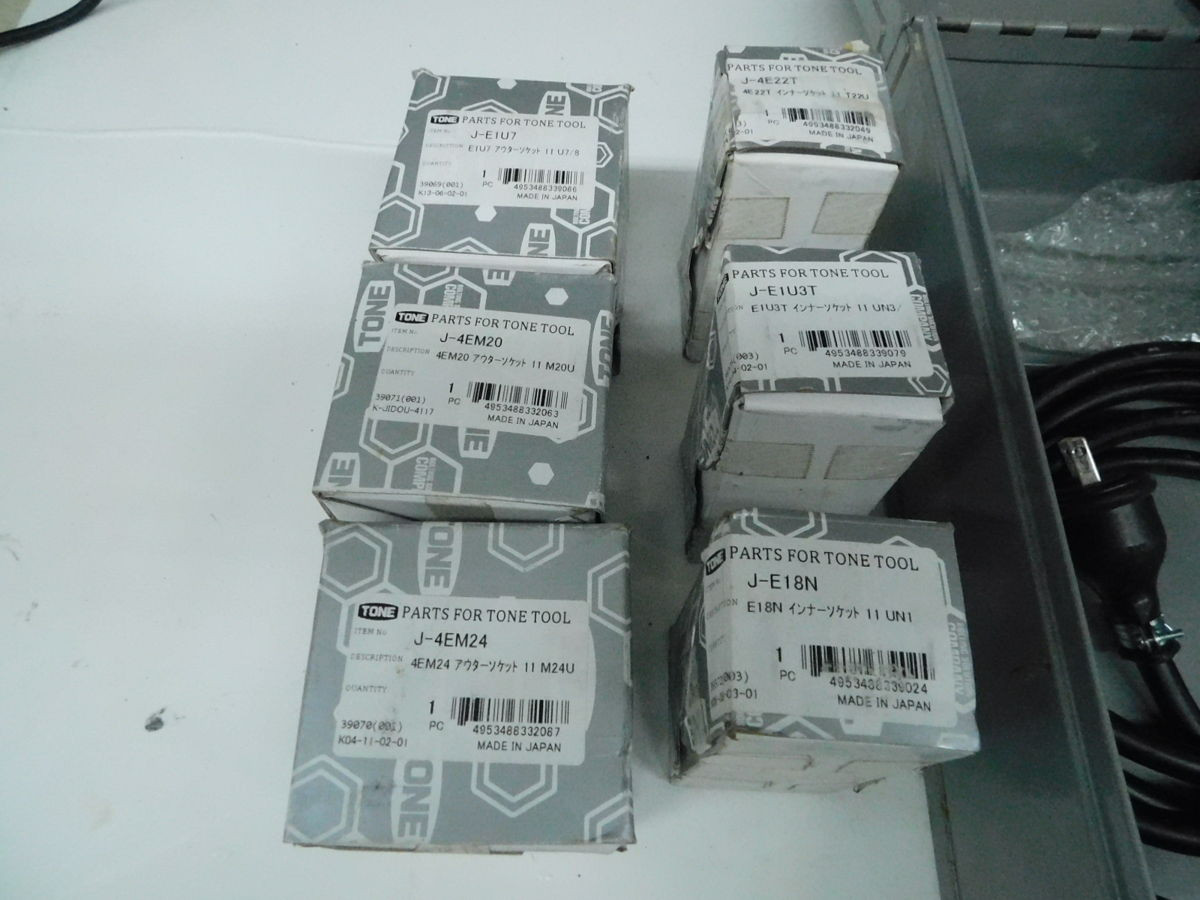

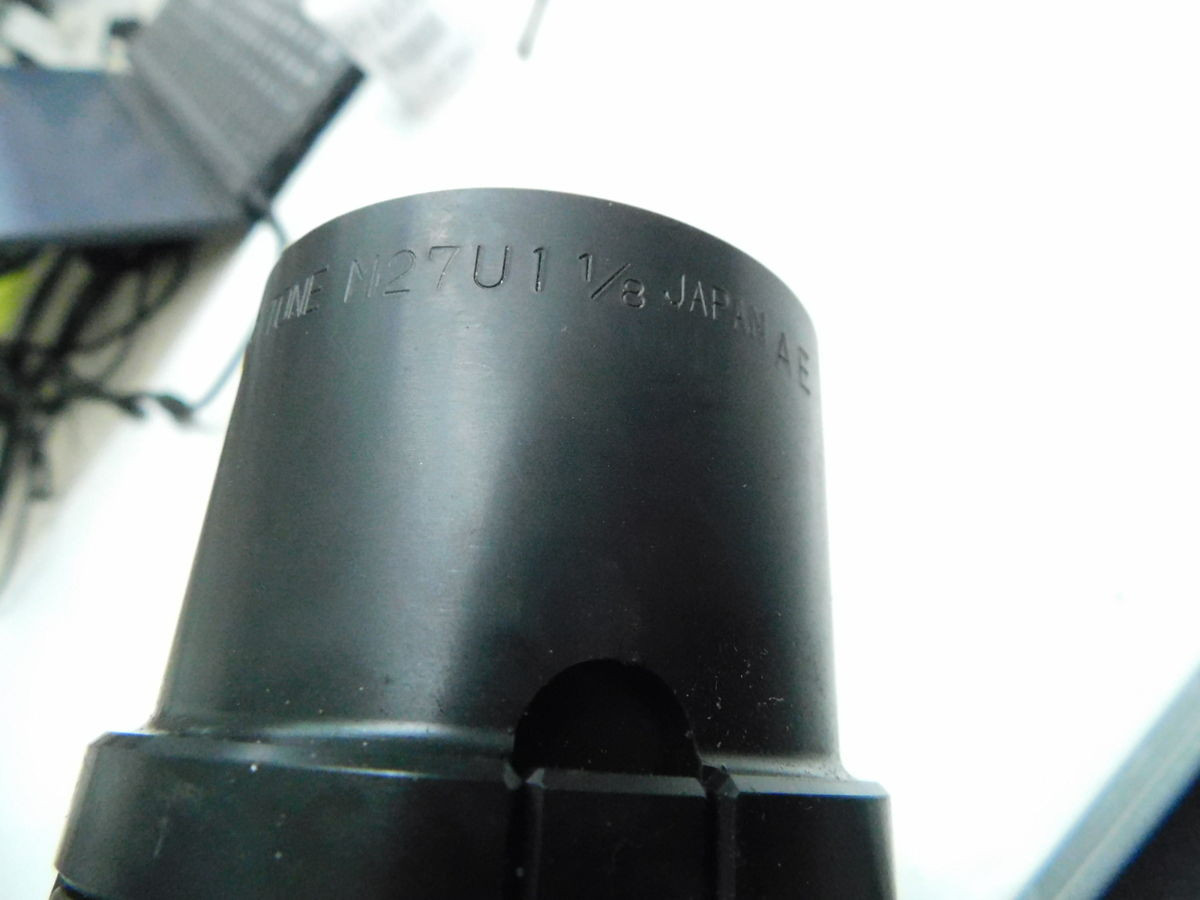

THE TONE GS-111EZ ELECTRIC SHEAR WRENCH IS A SPECIALIZED HAND TOOL DESIGNED FOR THE INSTALLATION OF SHEAR-TYPE BOLTS. IT OPERATES ON A 120 VAC, 1-PHASE ELECTRICAL SUPPLY, DRAWING 2000W OF POWER. THE TOOL DELIVERS A MAXIMUM TORQUE OUTPUT OF 1030 LB-FT (1400 N·M) WITH A NO-LOAD ROTATIONAL SPEED OF 16 RPM. THE GS-111EZ IS RATED FOR HIGH-STRENGTH SHEAR BOLTS, SPECIFICALLY ACCOMMODATING S10T GRADE M22, M24, AND M27, AND F10T GRADE M22 AND M24. FOR ASTM STANDARDS, IT HANDLES A325 BOLTS IN 7/8", 1", AND 1-1/8" DIAMETERS, AND A490 BOLTS IN 7/8" AND 1" DIAMETERS. THE WRENCH HAS A DRY WEIGHT OF 6.0 KG (13.2 LBS) AND MEASURES APPROXIMATELY 287 MM IN LENGTH, 85 MM IN WIDTH, AND 245 MM IN HEIGHT. FOUR SOCKET SETS ARE INCLUDED, PROVIDING 1-1/8", 1", 7/8", AND 3/4" BOLT SIZE OPTIONS.
