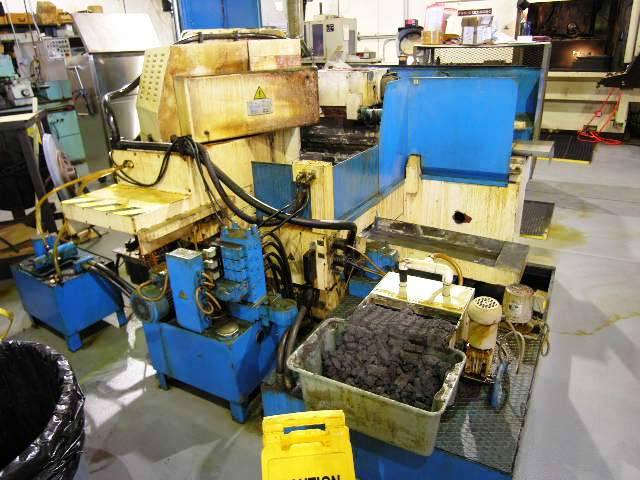

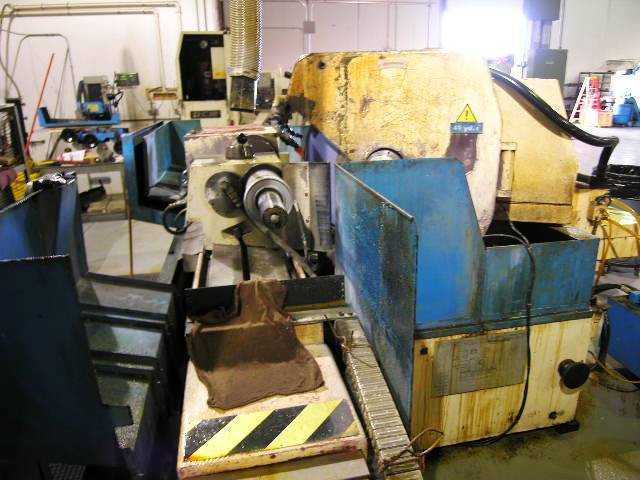

Name | Tos CNC Angle Head OD Grinder |
---|---|
Aucto ID | 3 |

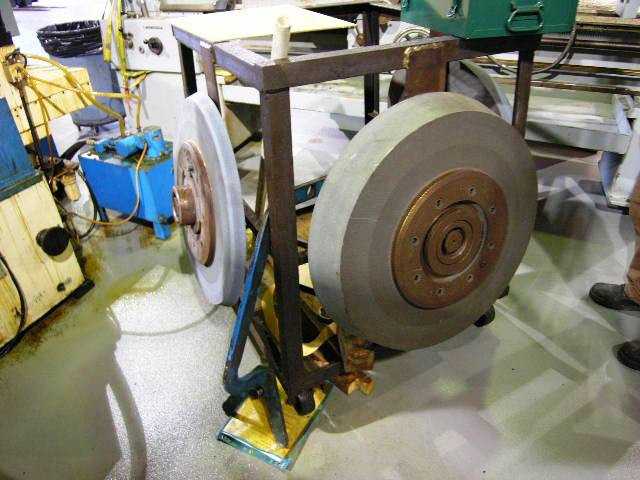

Additional Info | ONE USED TOS HOSTIVAR CNC ANGLE HEAD GRINDER Model: BHB 40 CNC Distance between centers: 1,000 mm Swing: 400 mm Grinding wheel diameter: 750 mm x 100 mm x 305 mm bore Max. part diameter: 15.748” Max. part weight between centers: 500 kg Wheel head speeds: 1,146 & 1,322 rpm Work head spindle speeds: 5-305 rpm Approach speeds: 2,000 mm/min. Max. traverse rate: 5,000 mm/min. Tail stock taper: #5 MT Floor space requirements: 177” x 164” F-B x 84.64” high Weight: 14,080 lbs. EQUIPPED WITH: Marposs E934 Conversational controls with: Graphics Plunge cycle Traverse cycle Multi Plunge cycle Taper traverse cycle Plunge cycle with Z oscillation Plunge cycle by K amount Z plunge cycle Interpolation cycle SBS Md. SB-4500 Automatic wheel balancing system Grinding wheels with one new SN: 0219689 Video link: https://youtu.be/9ch6458QSGo |
