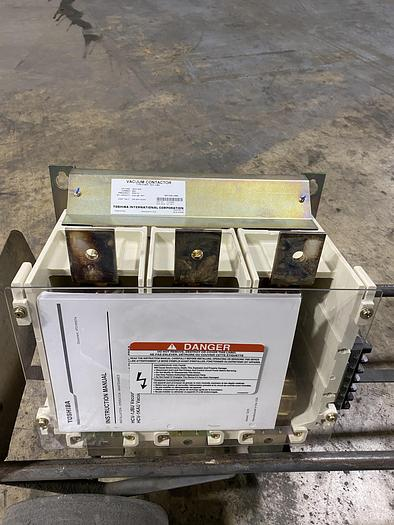

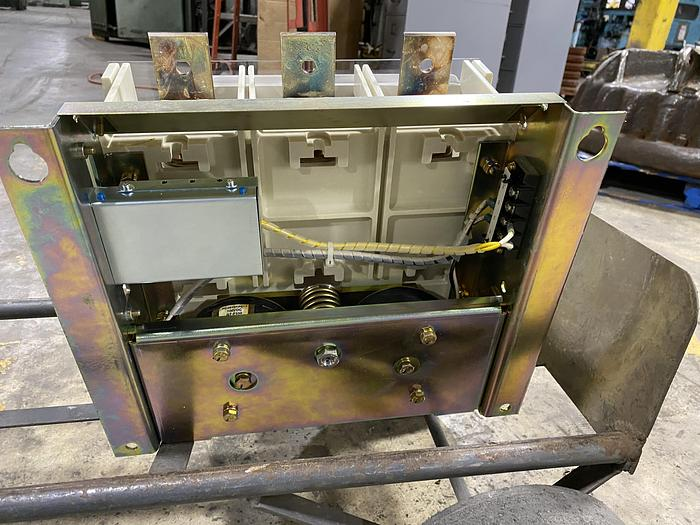

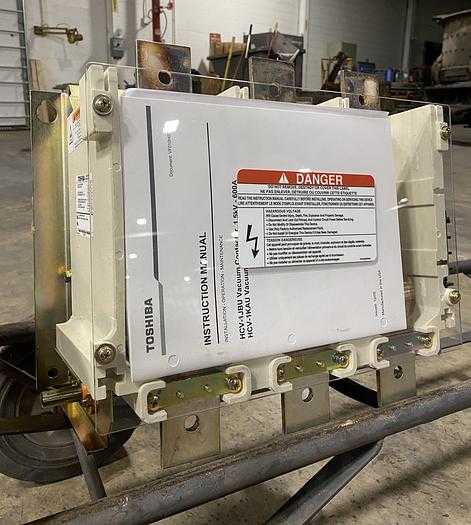

TOSHIBA HCV-1JBU LOW VOLTAGE VACUUM CONTACTOR 1500V 600A 42KA 100-240V AC/DC

THE TOSHIBA HCV-1JBU IS A LOW VOLTAGE VACUUM CONTACTOR DESIGNED AND BUILT IN ACCORDANCE WITH STANDARDS SUCH AS UL 508, CSA 22.2-14, AND IEC 60470. IT IS RATED FOR A VOLTAGE RANGE OF 208 TO 1500 V AND HAS A RATED OPERATIONAL CURRENT AND RATED THERMAL CURRENT OF 600 A. THE CONTACTOR BOASTS A HIGH INTERRUPTING CURRENT OF 42,000 A, A DIELECTRIC STRENGTH OF 5.5 KV FOR ONE MINUTE, AND A SWITCHING FREQUENCY OF 1200 OPERATIONS PER HOUR. ITS CONSTRUCTION USES AN ELECTRONIC-CONTROL DRIVE UNIT THAT OPERATES ON A WIDE CONTROL VOLTAGE OF 100 TO 240 VAC/VDC. THE UNIT IS HIGHLY DURABLE, FEATURING A MECHANICAL LIFE OF 2.5 MILLION OPERATIONS AND AN ELECTRICAL LIFE OF 500,000 OPERATIONS, AND IS EQUIPPED WITH A 3NO-3NC AUXILIARY CONTACT ARRANGEMENT. ITS DESIGN INCLUDES AN INSULATED BARRIER FOR TOTAL SEPARATION OF HIGH AND LOW VOLTAGE PARTS, MAKING IT ENVIRONMENT-RESISTANT AND SUITABLE FOR USE IN HIGH DUST AREAS. SPECIAL MAIN CONTACT MATERIALS MINIMIZE CHOPPING CURRENT, ELIMINATING THE NEED FOR EXTERNAL SURGE PROTECTION FOR MOST APPLICATIONS.
