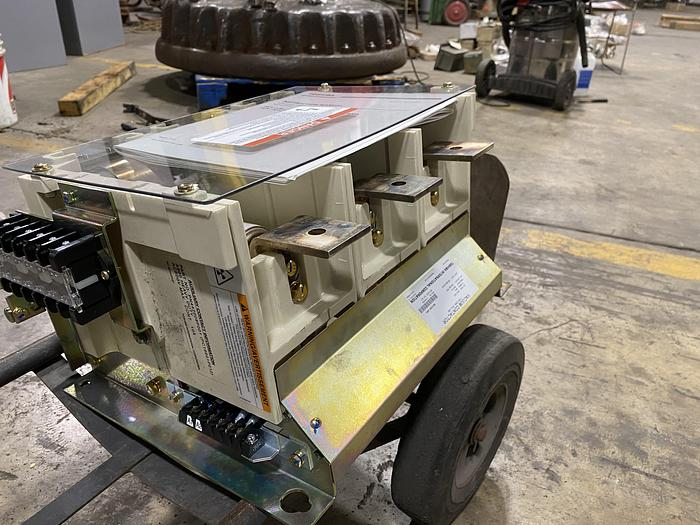

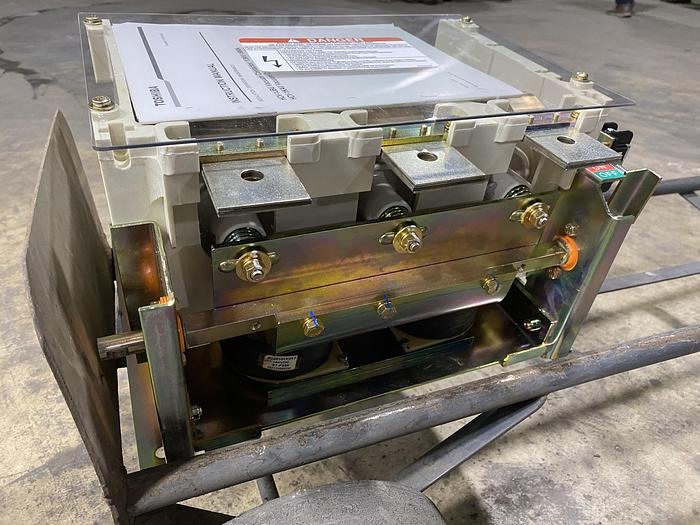

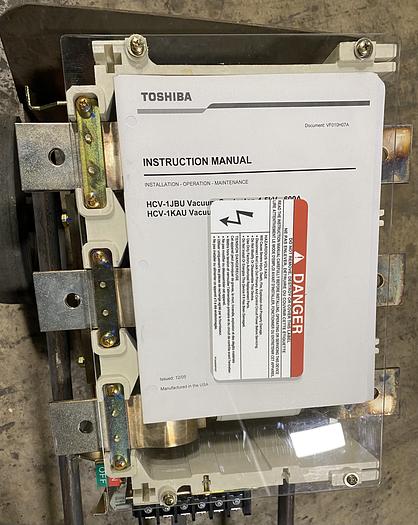

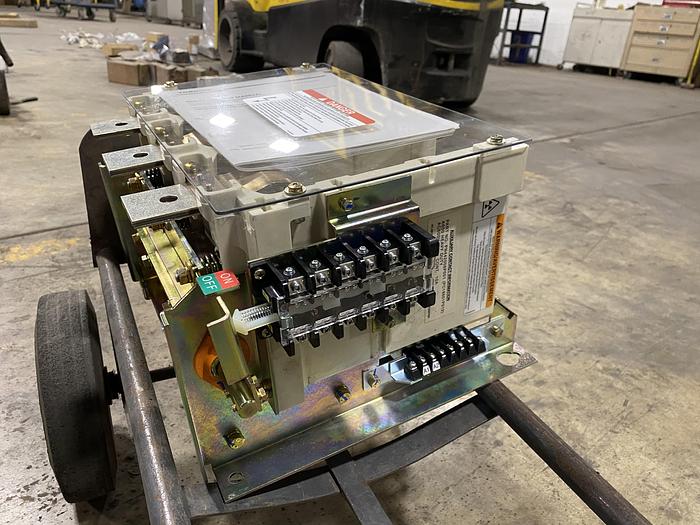

TOSHIBA HCV-1JBU LV VACUUM CONTACTOR 600A, 208-1500V, 42KA IC, 100-240V CONTROL

THE TOSHIBA HCV-1JBU IS A LOW VOLTAGE VACUUM CONTACTOR, CONFORMING TO INTERNATIONAL STANDARDS SUCH AS UL, CSA, NEMA, AND IEC 60470. THIS NON-REVERSING CONTACTOR IS RATED FOR A VOLTAGE RANGE OF 208 TO 1500 V. KEY SPECIFICATIONS INCLUDE A RATED OPERATIONAL CURRENT AND RATED THERMAL CURRENT OF 600 A. IT OFFERS A HIGH INTERRUPTING CURRENT OF 42,000 A AND A DIELECTRIC STRENGTH OF 5.5 KV FOR ONE MINUTE, WITH AN IMPULSE WITHSTAND OF 15 KV. ITS SOLID-STATE ELECTRONIC CONTROL DRIVE UNIT ACCOMMODATES A WIDE CONTROL VOLTAGE OF 100 TO 240 VAC/VDC. THE HCV-1JBU FEATURES A HIGH SWITCHING FREQUENCY OF 1200 OPERATIONS PER HOUR, A MECHANICAL LIFE OF 2.5 MILLION OPERATIONS, AND AN ELECTRICAL LIFE OF 500,000 OPERATIONS. OPERATING TIMES INCLUDE A CLOSING TIME OF 60 TO 80 MS AND AN OPENING TIME OF 50 TO 65 MS, WITH AN ARCING TIME OF 10 MS OR LESS. THE UNIT INCLUDES A 3NO-3NC AUXILIARY CONTACT ARRANGEMENT AND WEIGHS 59.5 LBS (27 KG).
