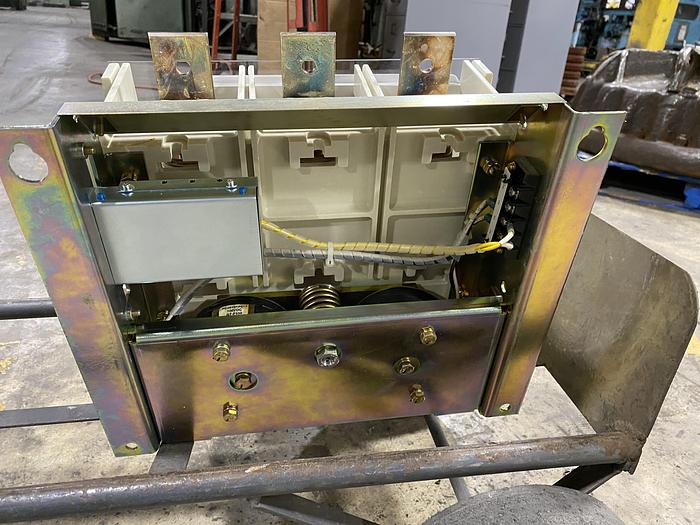

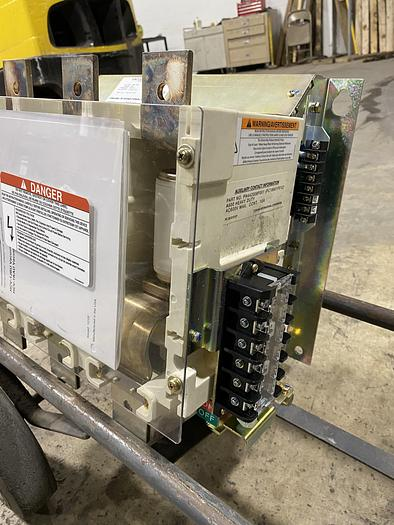

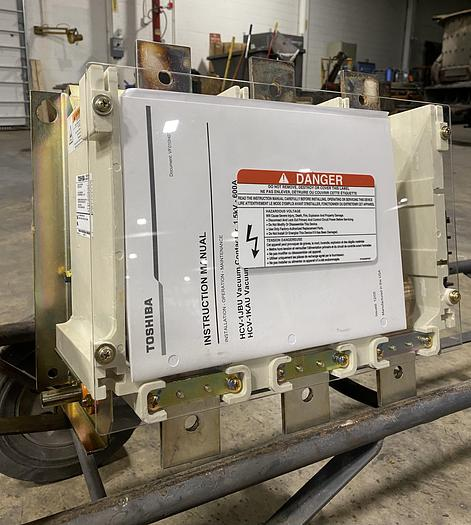

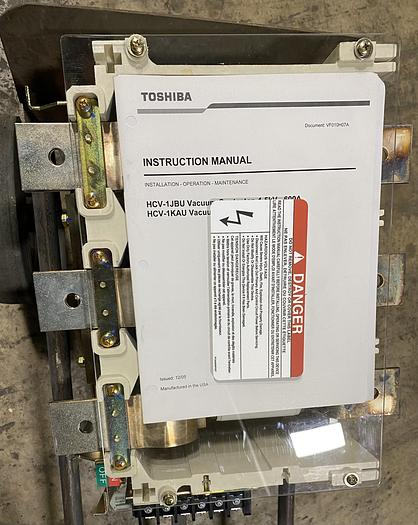

TOSHIBA HCV-1JBU VAC CONTACTOR 208-1500V 600A 42KA I.C. 15KV I.W.

THE TOSHIBA HCV-1JBU IS A VACUUM CONTACTOR WITH A RATED VOLTAGE OF 208 TO 1500 V AND A RATED OPERATIONAL CURRENT AND RATED THERMAL CURRENT OF 600 A AT A 50/60 HZ FREQUENCY. IT FEATURES AN INTERRUPTING CURRENT OF 42,000 A, AN IMPULSE WITHSTAND OF 15 KV, AND A DIELECTRIC STRENGTH OF 5.5 KV FOR ONE MINUTE. THE UNIT INCLUDES AN ELECTRONIC CONTROL DRIVE UNIT, OFFERING A STANDARD CONTROL VOLTAGE OF 100 TO 240 VAC/VDC. TYPICAL OPERATING TIMES ARE A CLOSING TIME (120 VAC) OF 60 TO 80 MS AND AN OPENING TIME (120 VAC) OF 50 TO 65 MS. IT HAS AN AUXILIARY CONTACT ARRANGEMENT OF 3NO-3NC, A MECHANICAL LIFE OF 2.5 MILLION OPERATIONS, AND A SWITCHING FREQUENCY OF 1200 PER HOUR. CONFORMING TO STANDARDS SUCH AS UL, CSA, NEMA, AND IEC 60470, THE CONTACTOR WEIGHS 59.5 LBS (27 KG) AND UTILIZES A VACUUM BOTTLE SYSTEM FOR ENVIRONMENT-RESISTANT OPERATION.
