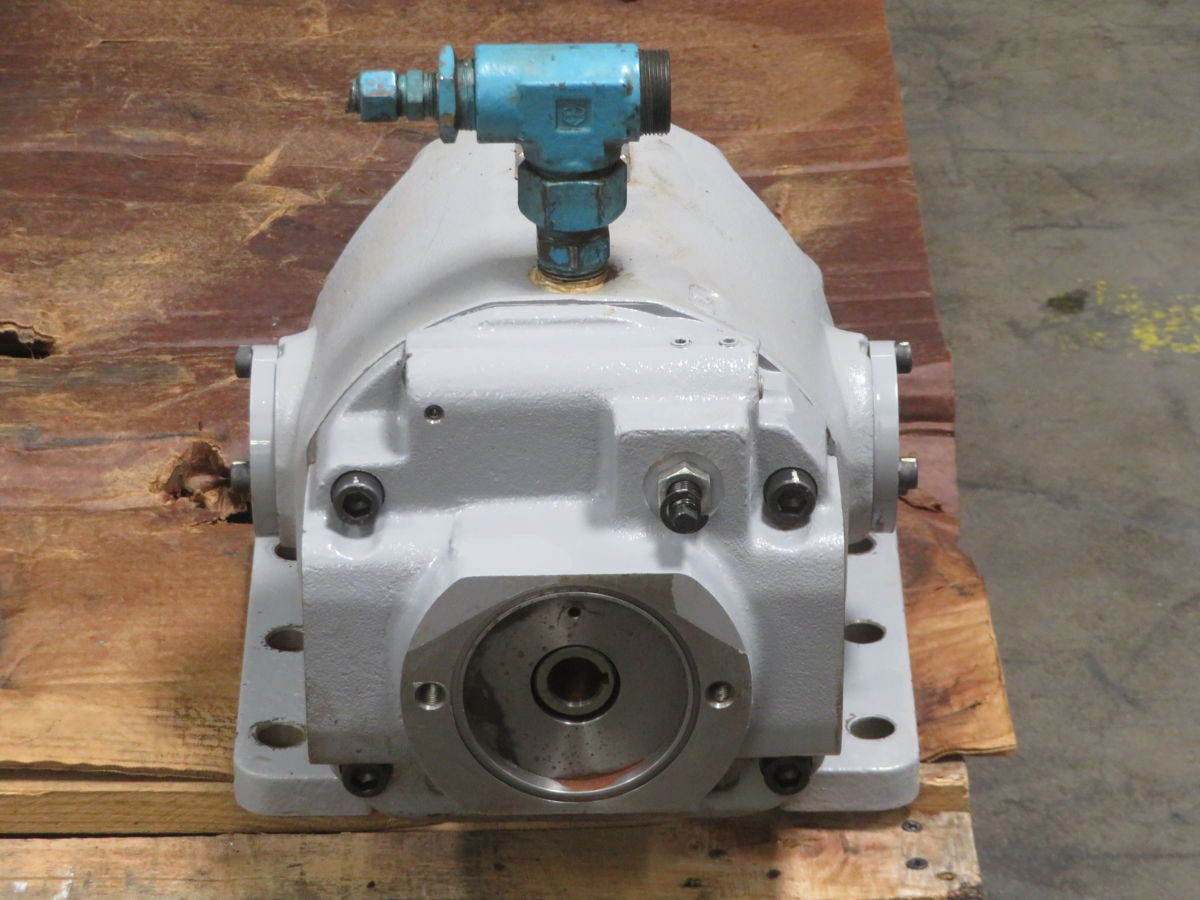

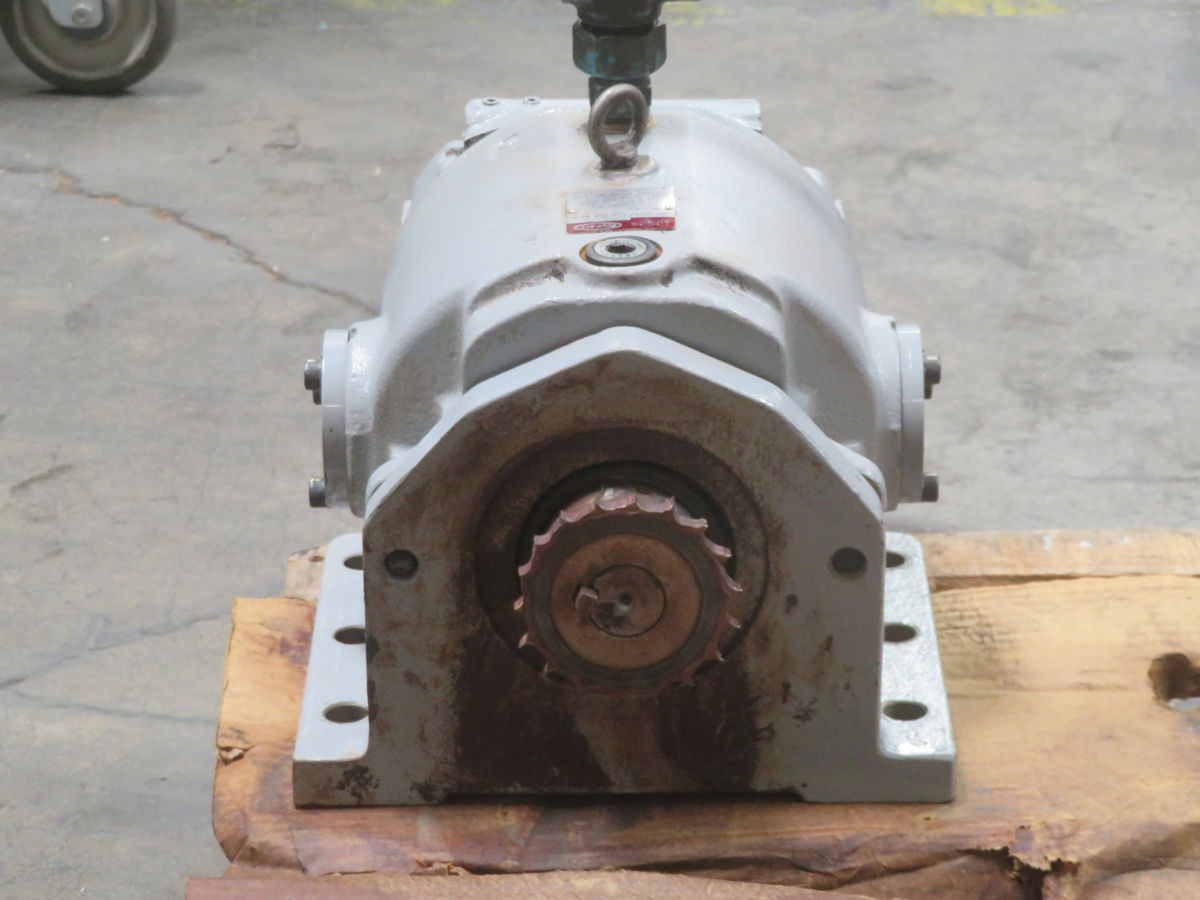

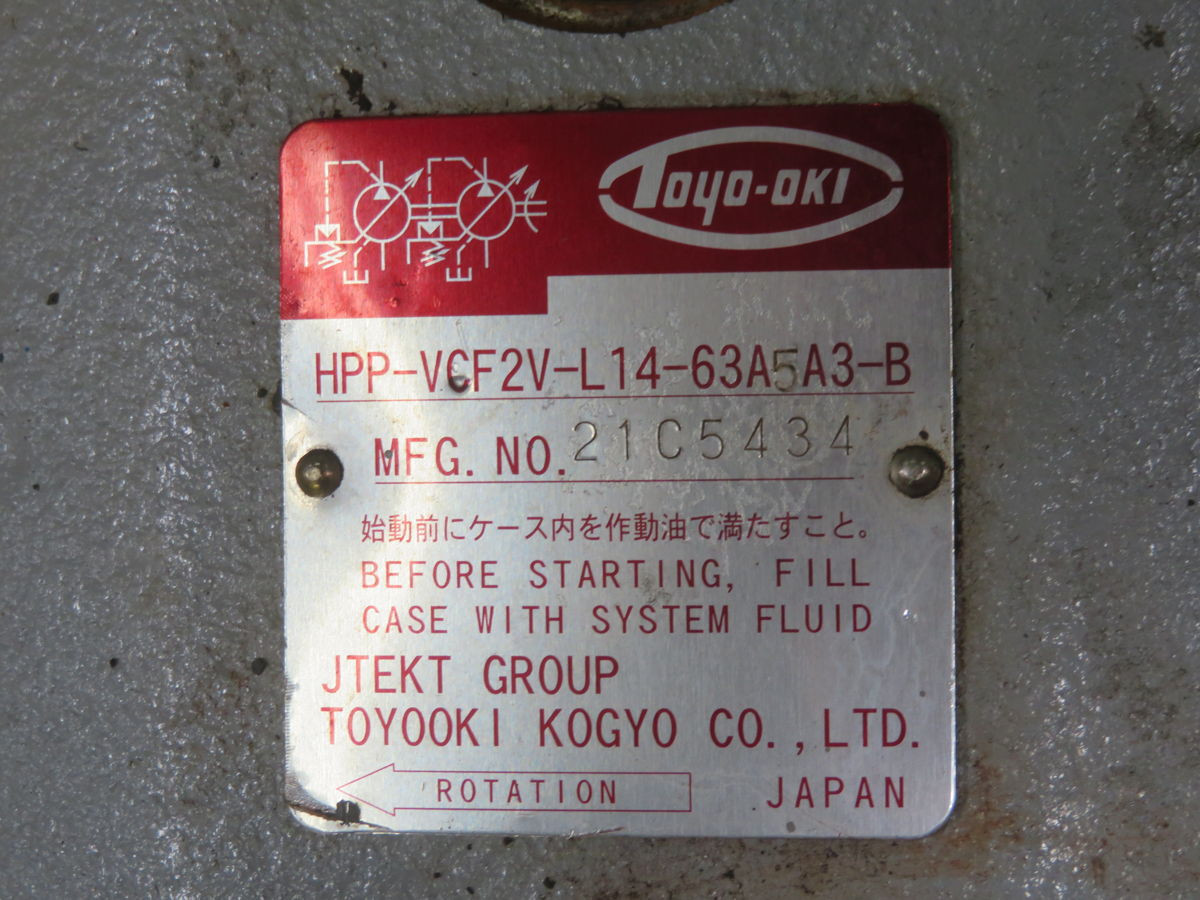

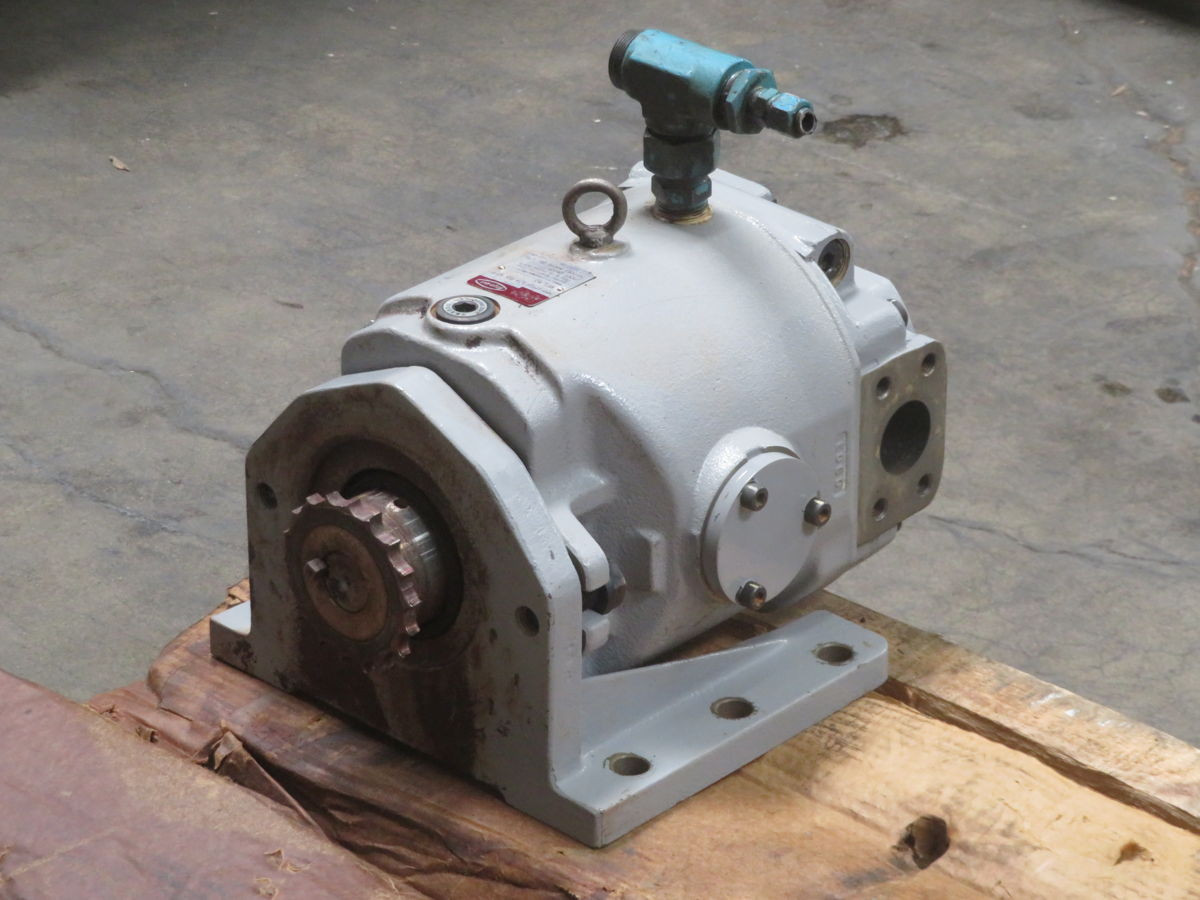

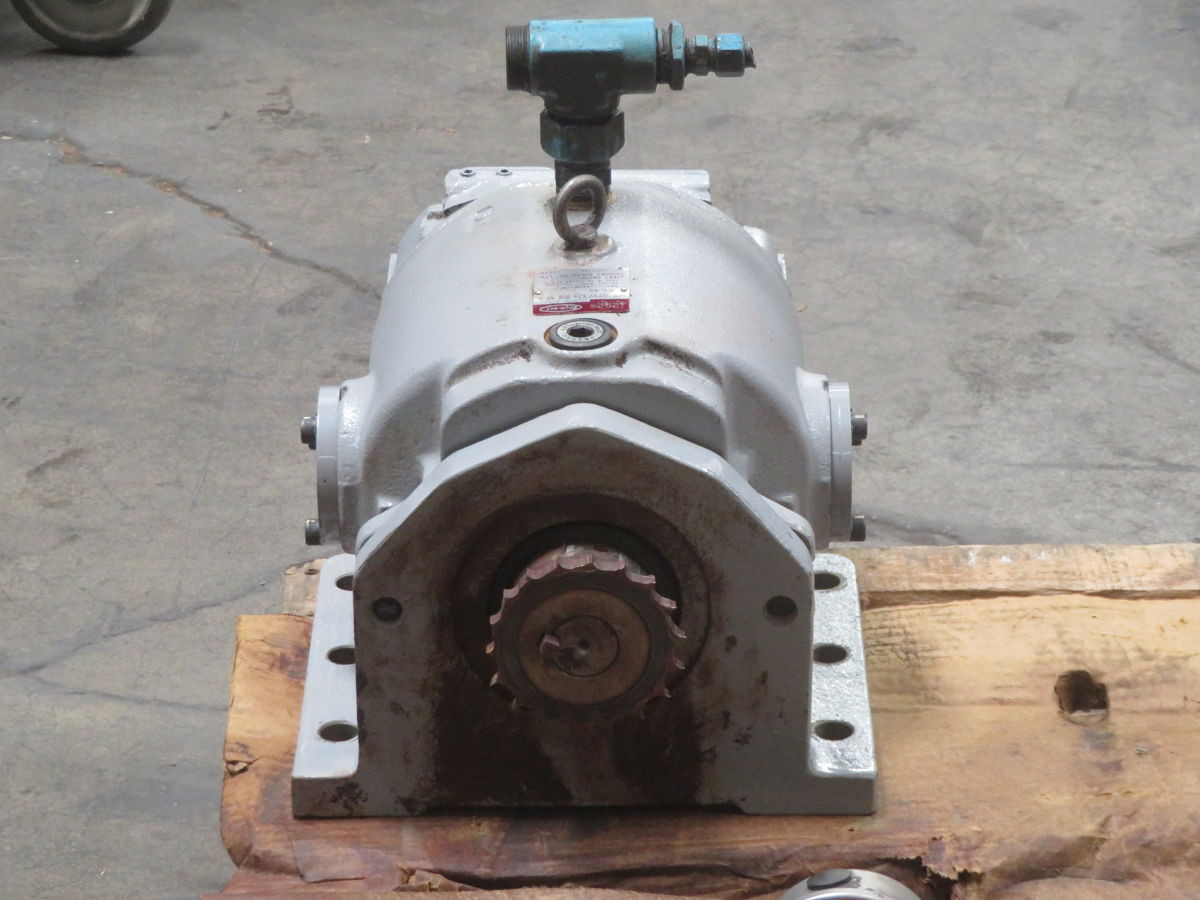

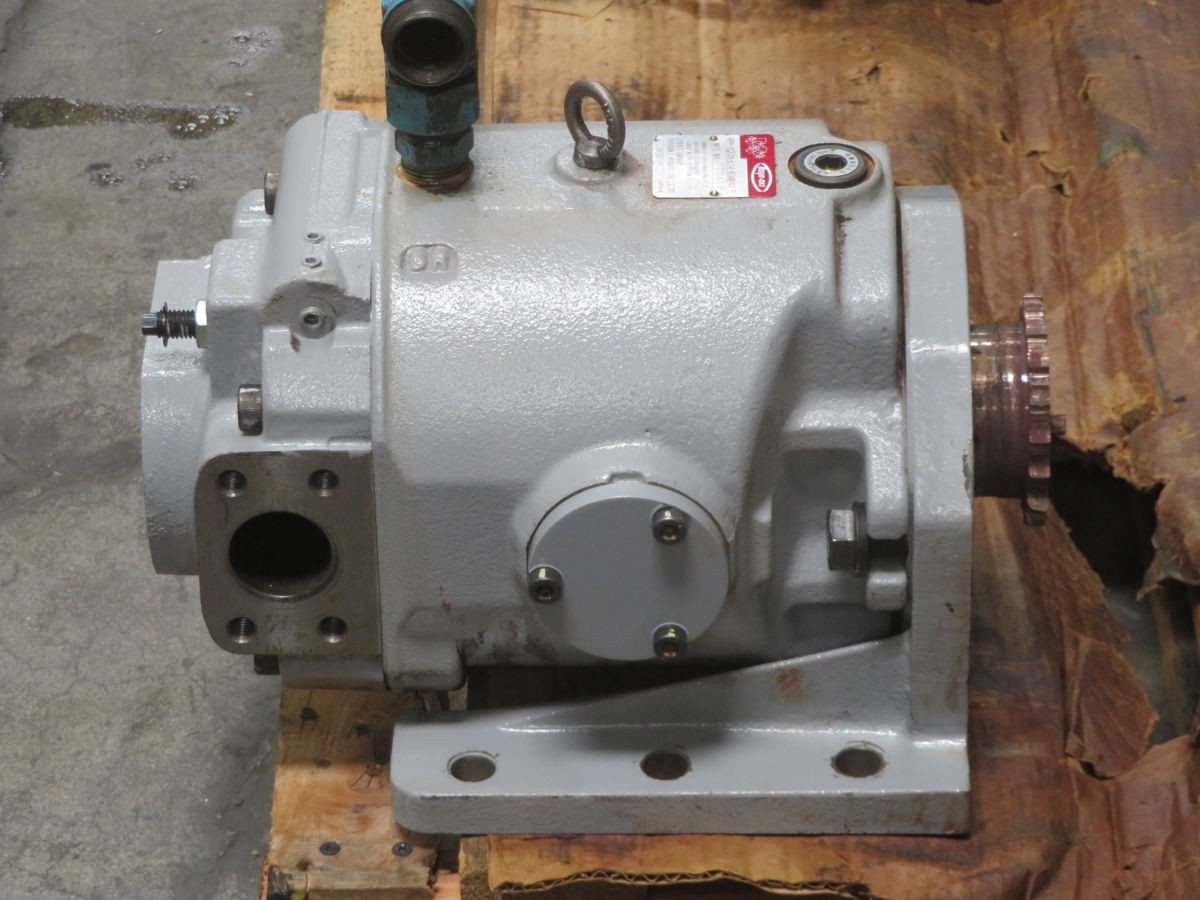

TOYO-OKI HPP-VCF2V-L14-63A5A3-B HYDRAULIC PISTON PUMP, DISPLACEMENT: 14CC/REV, PRESS: 21MPA

THE TOYO-OKI HPP-VCF2V-L14-63A5A3-B IS A VARIABLE DISPLACEMENT AXIAL PISTON PUMP. IT FEATURES A NOMINAL DISPLACEMENT OF 14 CM³/REV AND IS DESIGNED FOR HYDRAULIC SYSTEMS REQUIRING PRECISE FLOW REGULATION. THE PUMP OPERATES WITH A MAXIMUM PRESSURE RATING OF 21 MPA (210 BAR) AND SUPPORTS A MAXIMUM ROTATIONAL SPEED OF 1800 RPM. EQUIPPED WITH AN L-TYPE PRESSURE COMPENSATOR CONTROL, THIS PUMP AUTOMATICALLY ADJUSTS ITS OUTPUT FLOW TO MAINTAIN A SET SYSTEM PRESSURE, OPTIMIZING ENERGY EFFICIENCY AND PREVENTING OVER-PRESSURIZATION. THE SPECIFIC CONFIGURATION OF THE COMPENSATOR IS INDICATED BY THE 63A5A3-B SUFFIX.
