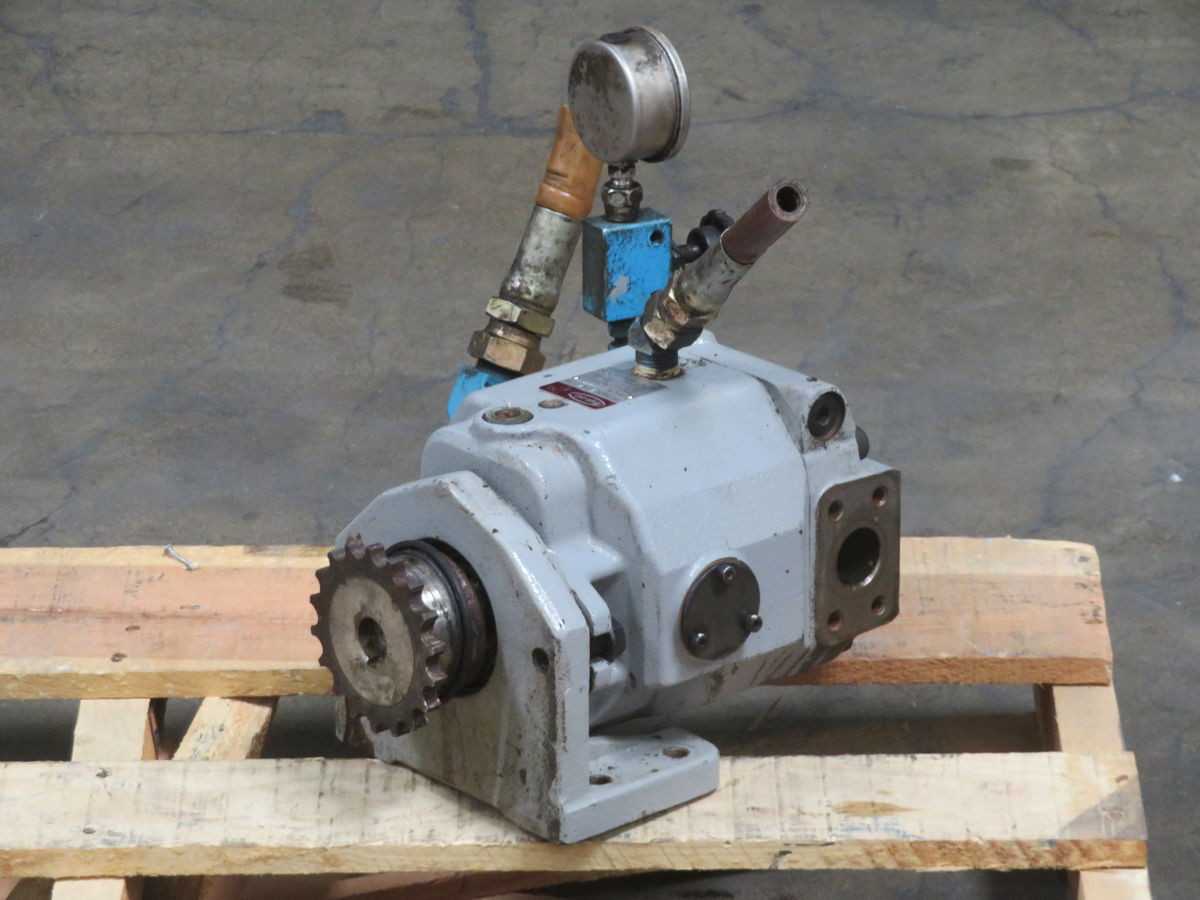

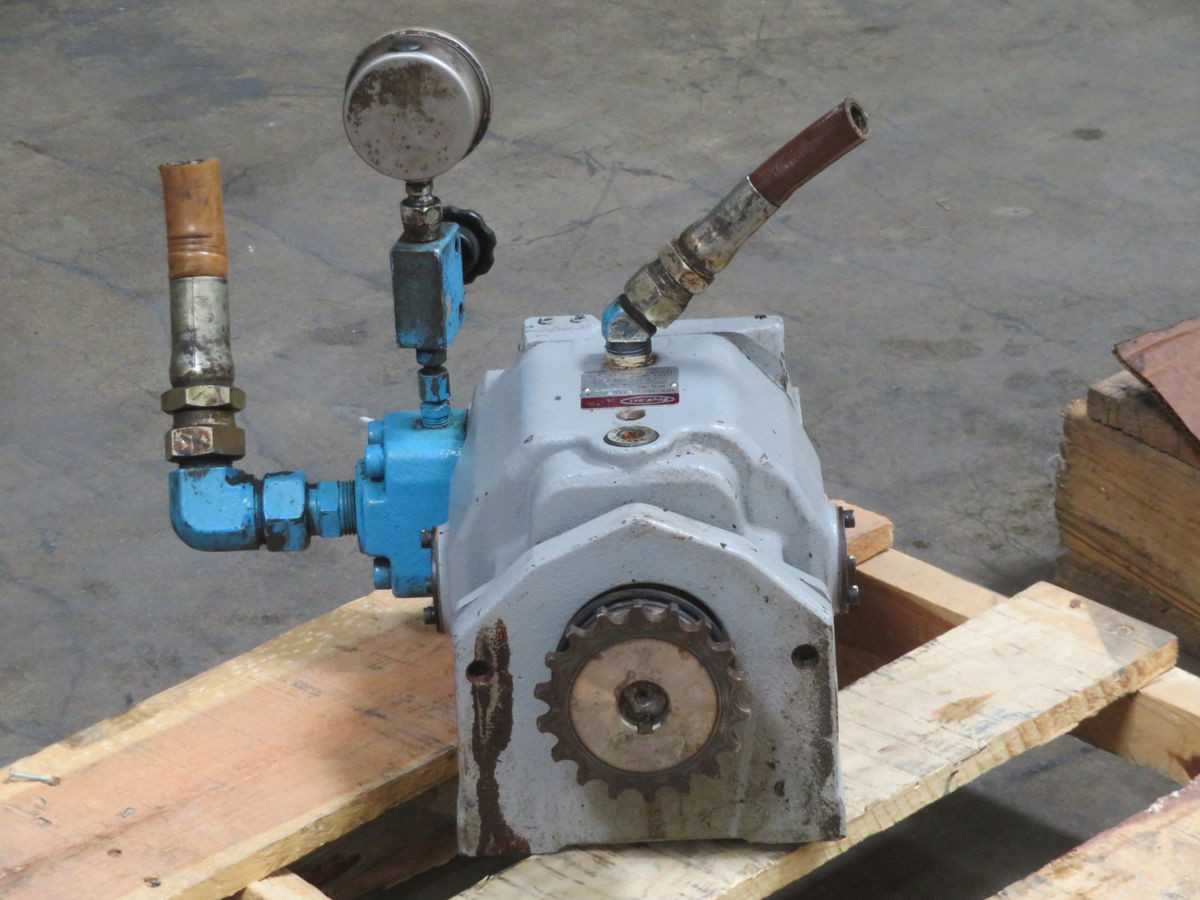

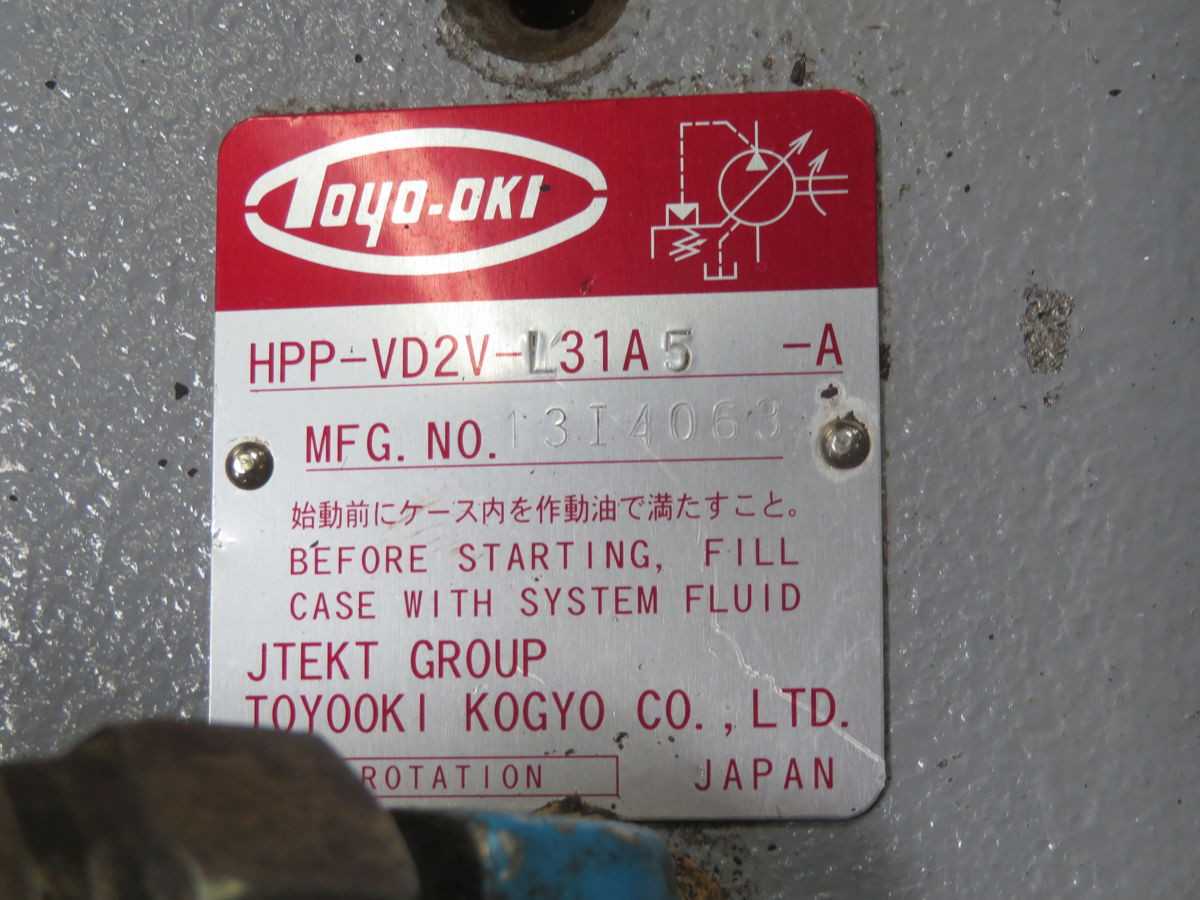

Toyo-Oki HPP-VD2V-L31A5-A Dbl Var Vane, 14 MPa Rated, 2500 RPM, 31.5/5.3 Cm³/Rev Disp

THE TOYO-OKI HPP-VD2V-L31A5-A IS A DOUBLE VARIABLE DISPLACEMENT VANE PUMP. IT OPERATES WITH A RATED PRESSURE OF 14 MPA AND PROVIDES A PRESSURE ADJUSTMENT RANGE OF 1 TO 7 MPA. THE MAXIMUM SPEED RATING FOR THIS UNIT IS 2500 MIN⁻¹. THIS PUMP IS DESIGNED WITH TWO DISTINCT PUMPING ELEMENTS; THE PRIMARY SECTION OFFERS A MAXIMUM DISPLACEMENT OF 31.5 CM³/REV, WHILE THE SECONDARY SECTION PROVIDES A MAXIMUM DISPLACEMENT OF 5.3 CM³/REV.
