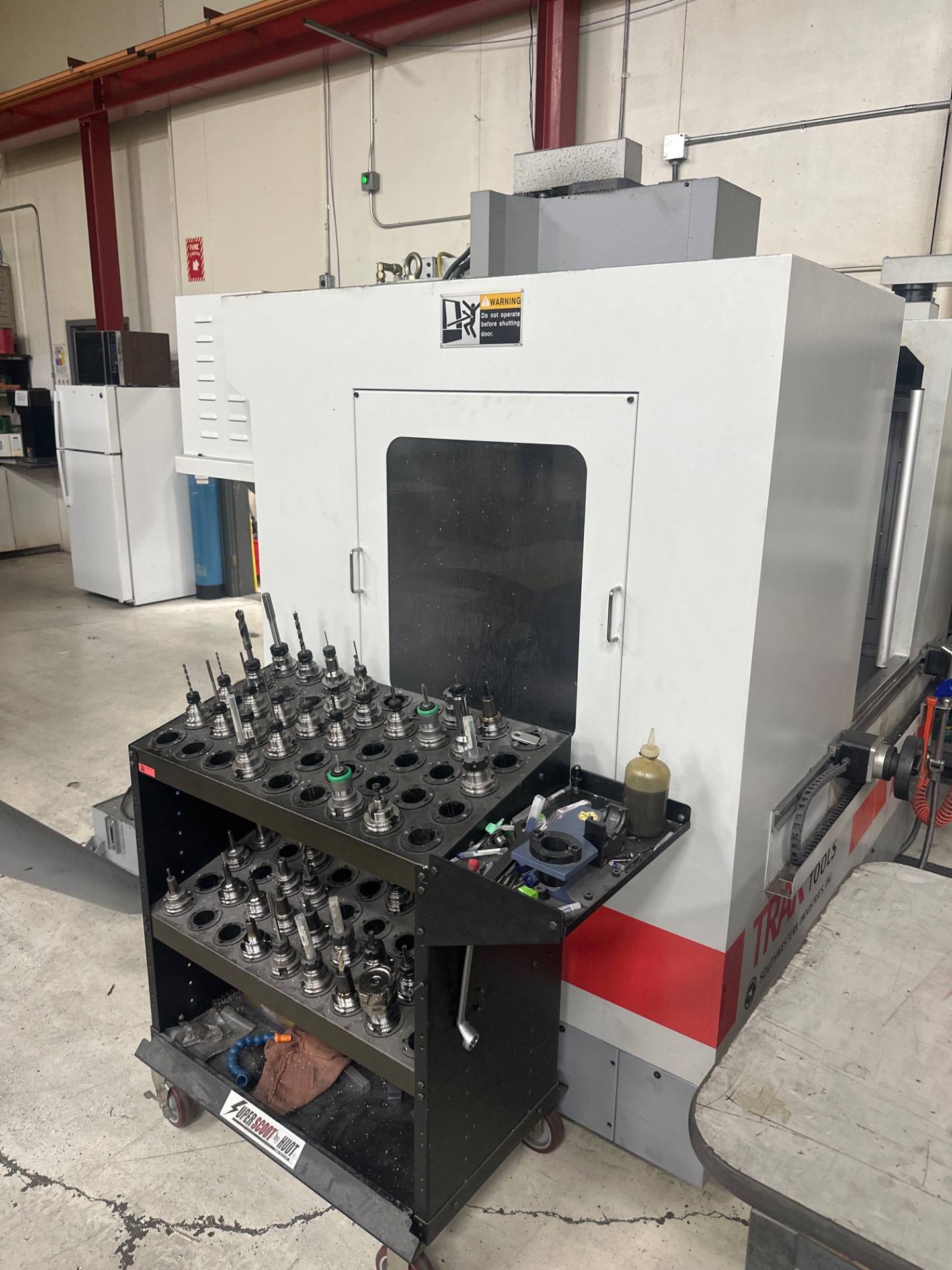

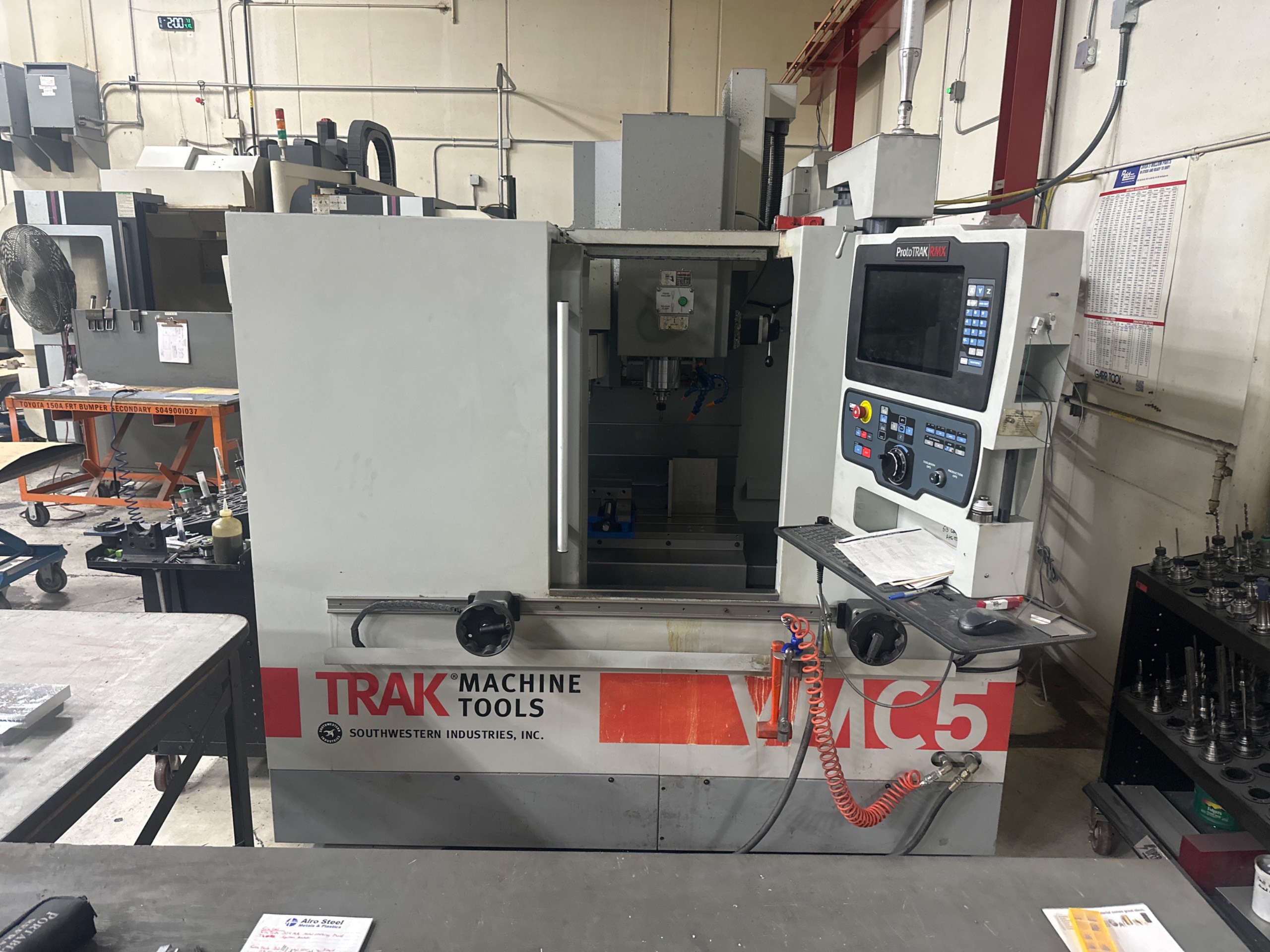

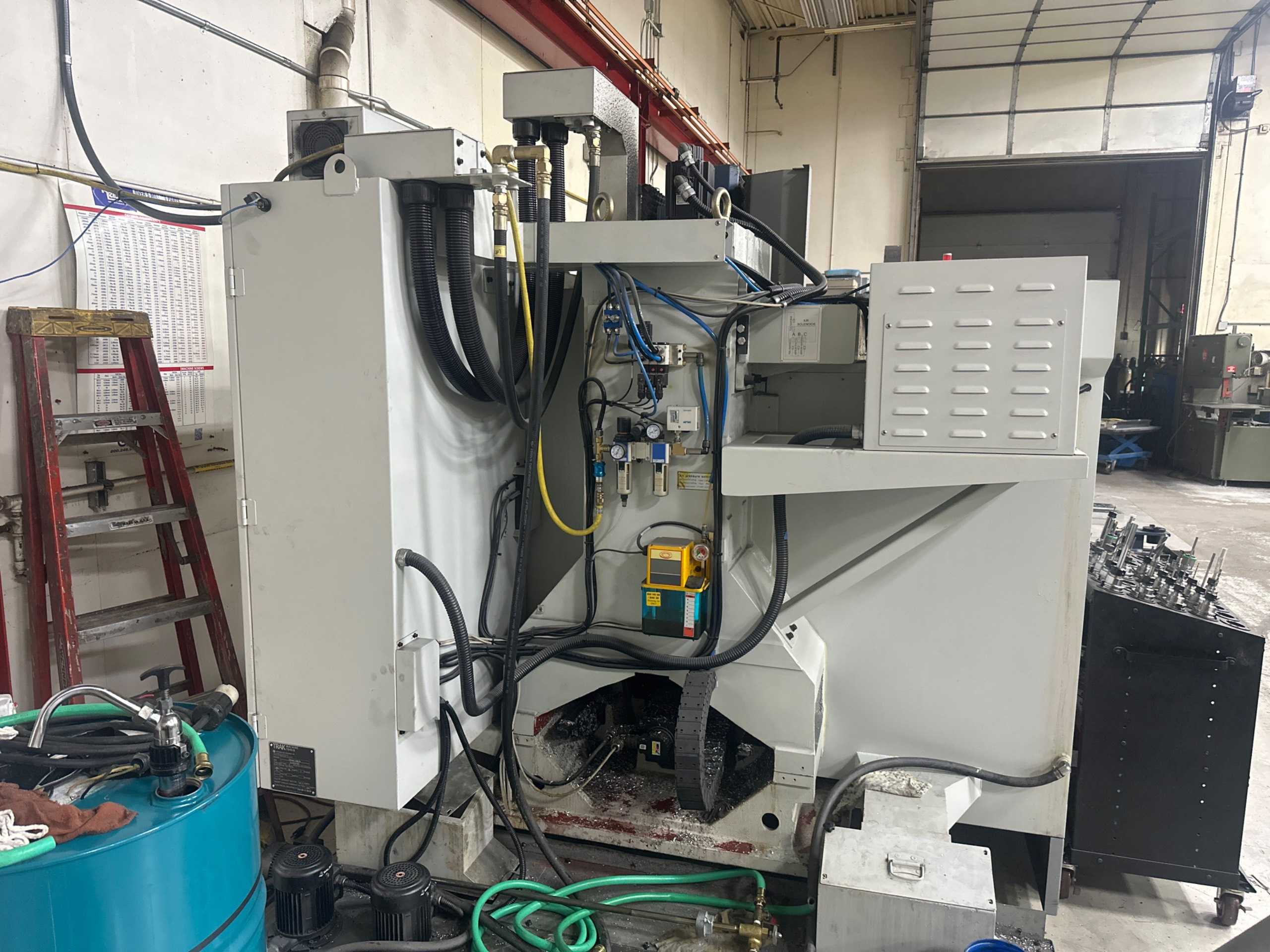

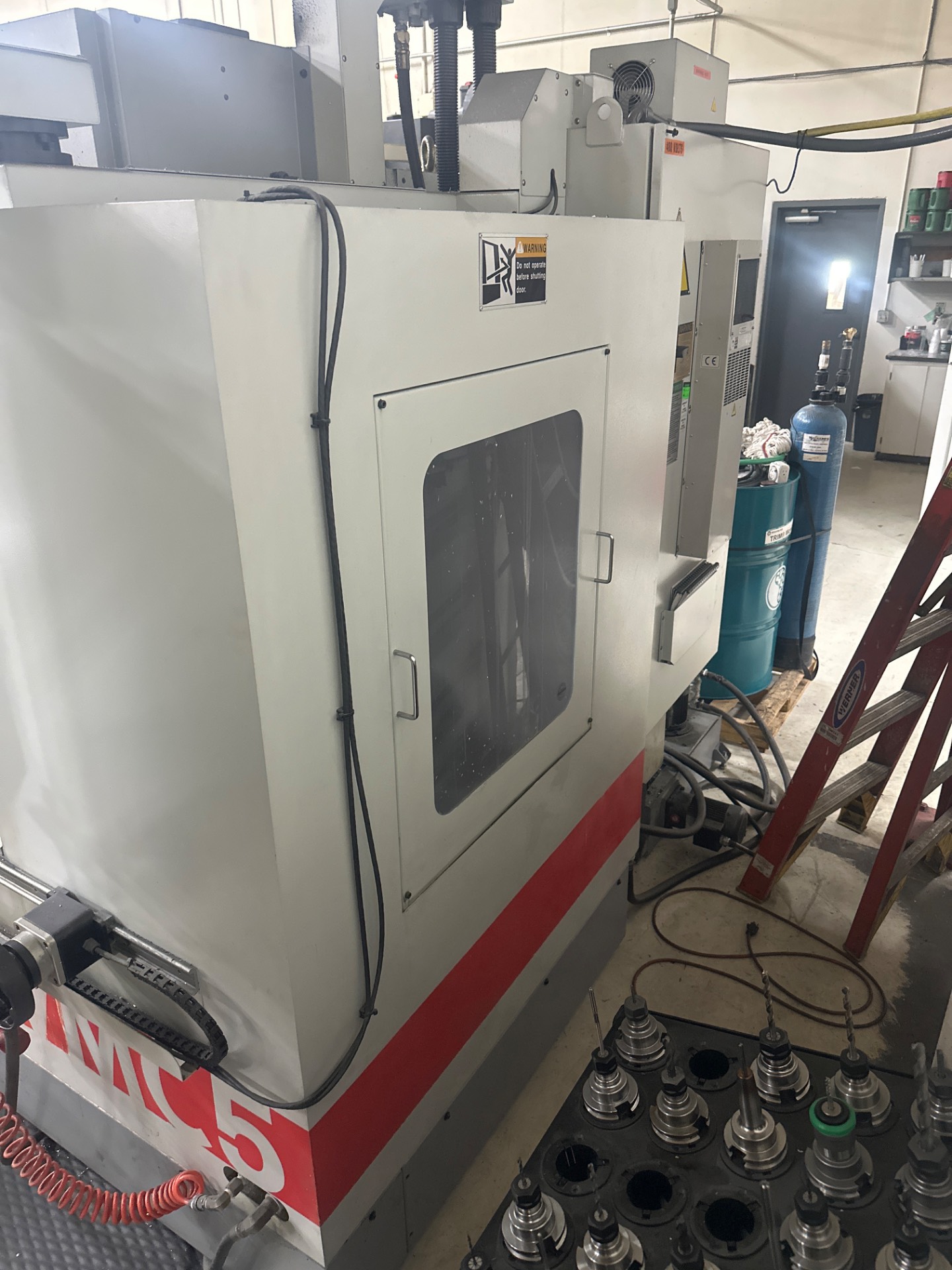

TRAK VMC5 VERTICAL MACHINING CENTER, 20X16X20IN, 8K RPM, CAT40, 16 ATC, PROTOTRAK RMX CNC

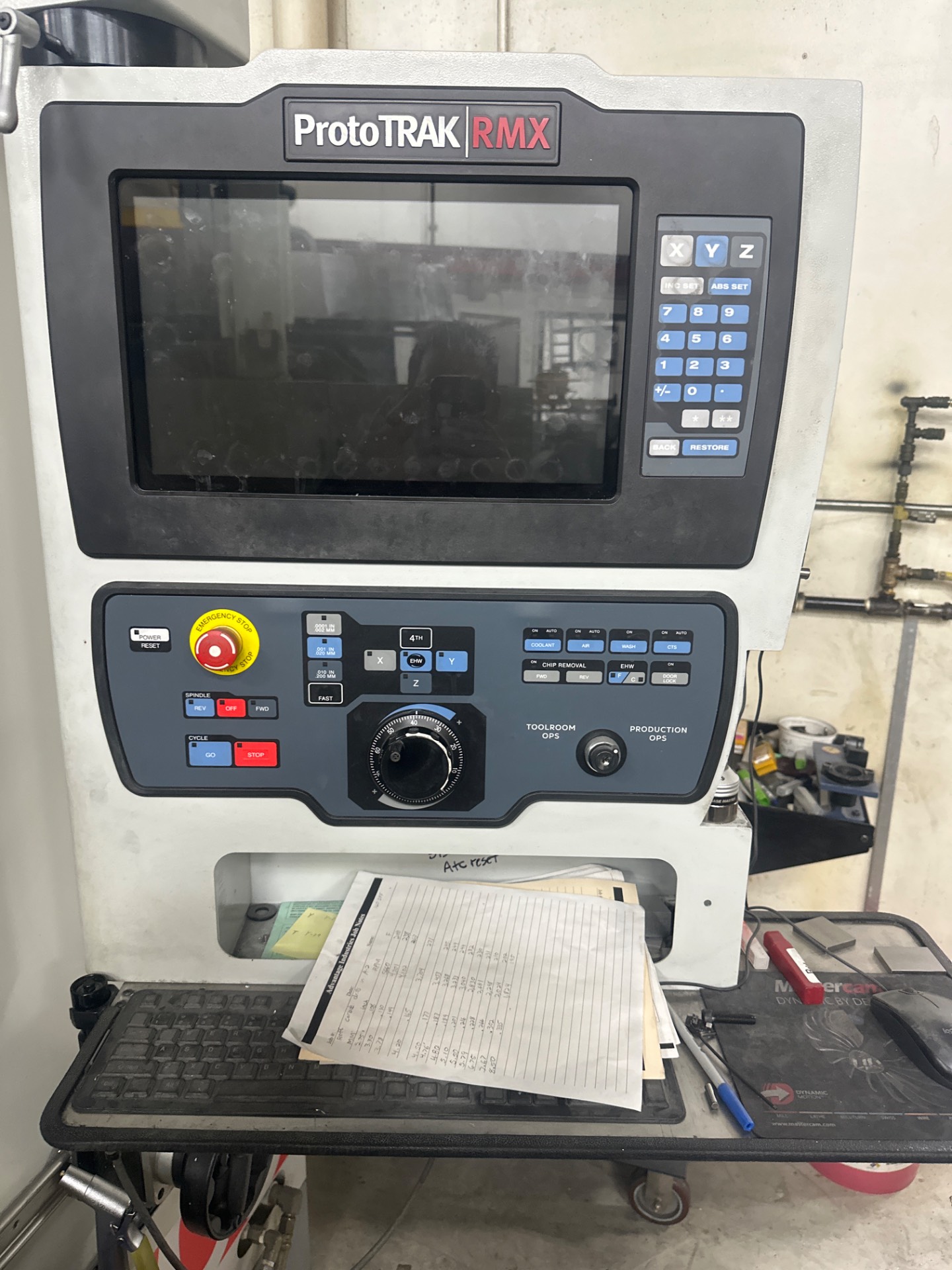

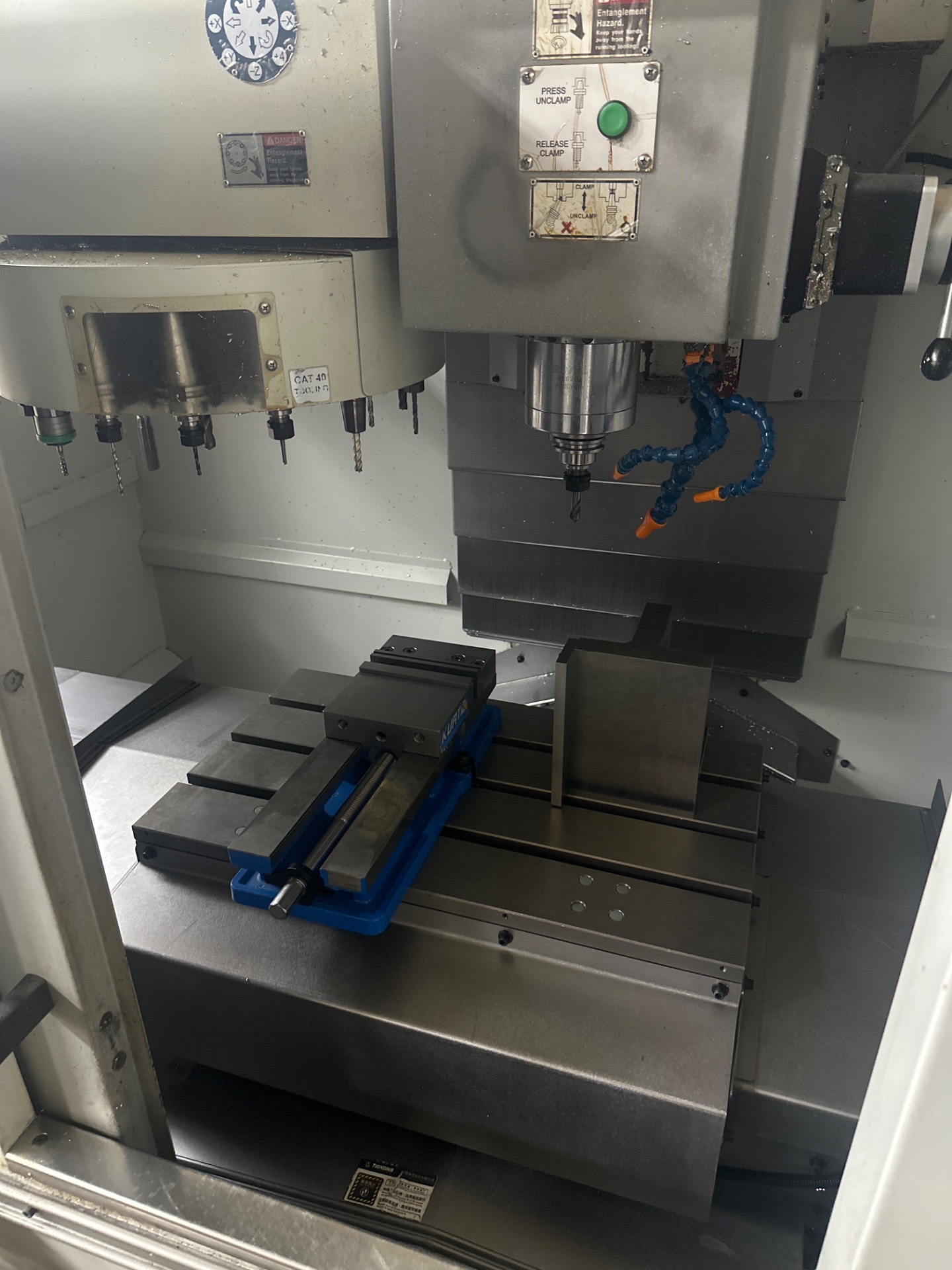

THE TRAK VMC5 IS A 3-AXIS VERTICAL MACHINING CENTER MANUFACTURED BY SOUTHWESTERN INDUSTRIES, FEATURING THE PROTOTRAK RMX CNC. DESIGNED FOR BOTH TOOLROOM AND LOW-VOLUME PRODUCTION OPERATIONS, THE MACHINE FEATURES A 27.56 INCH X 15.75 INCH TABLE WITH THREE T-SLOTS AND A MAXIMUM WORKPIECE WEIGHT CAPACITY OF 1,000 LBS. ITS TRAVEL DIMENSIONS ARE 20 INCHES ON THE X-AXIS, 16 INCHES ON THE Y-AXIS, AND 20 INCHES ON THE Z-AXIS. THE SPINDLE IS EQUIPPED WITH A 40-TAPER (CAT 40 OR BT 40) INTERFACE, DELIVERING A SPEED RANGE OF 50 TO 8,000 RPM, POWERED BY A MOTOR PROVIDING 10 HP CONTINUOUS AND 15 HP PEAK.
