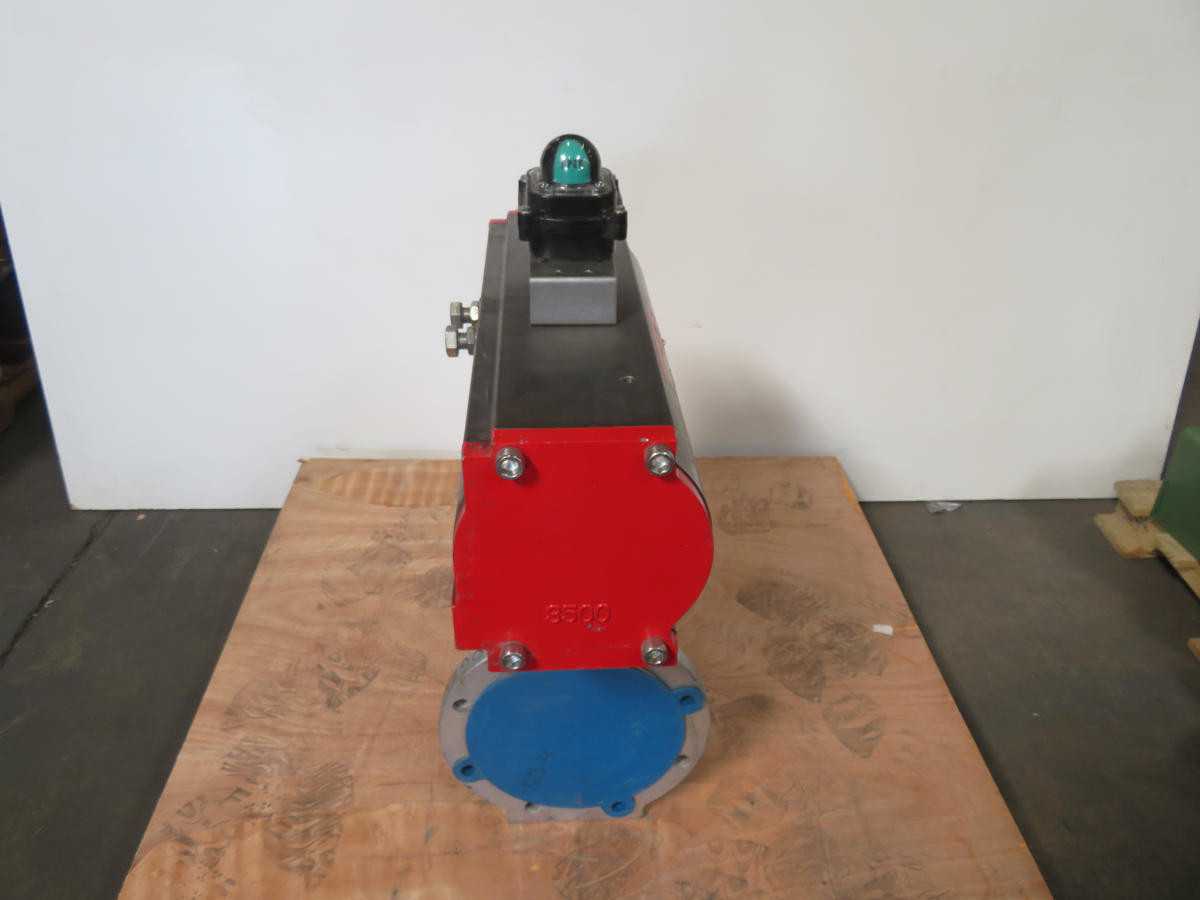

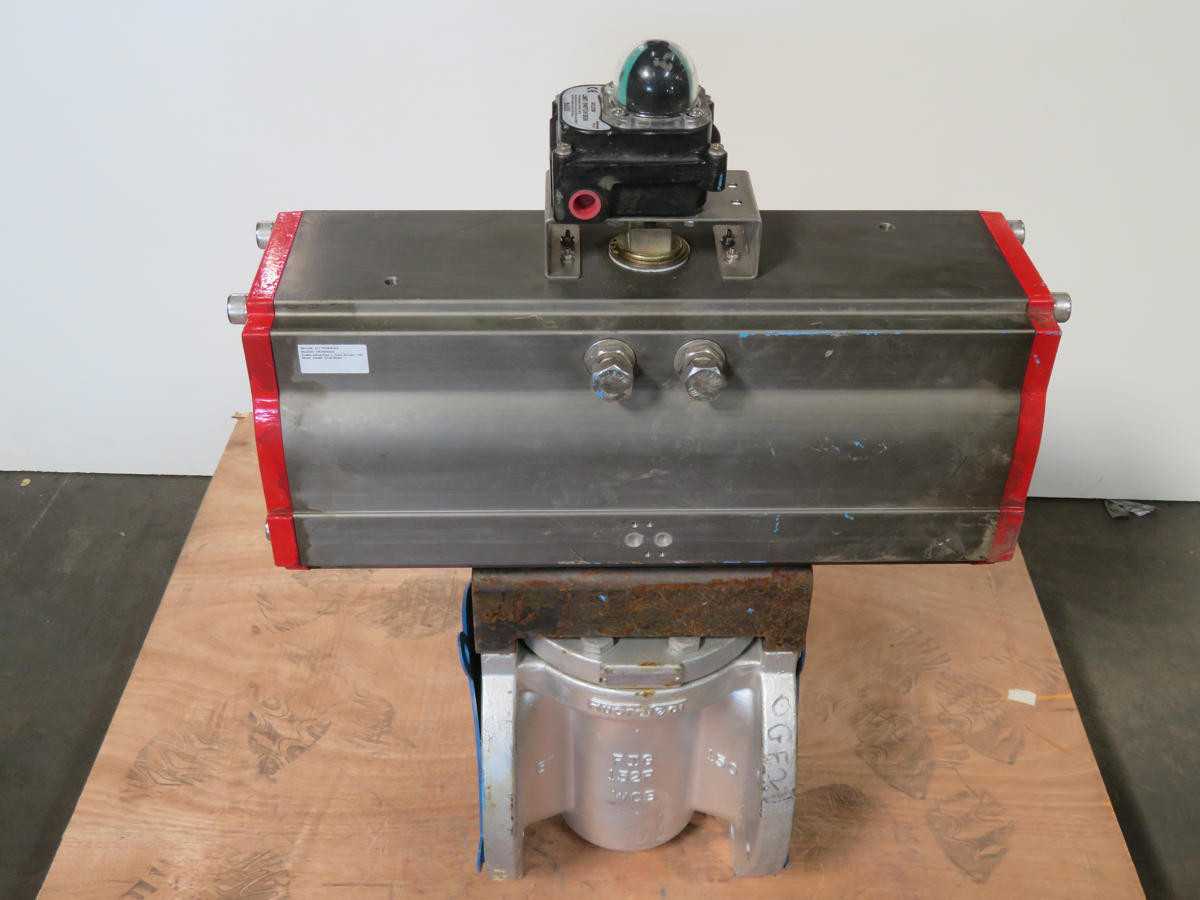

TRIAC CONTROLS APL312N ACTUATOR, 5.5 BAR SUPPLY, 312 NM TORQUE, -20/+80 C TEMP

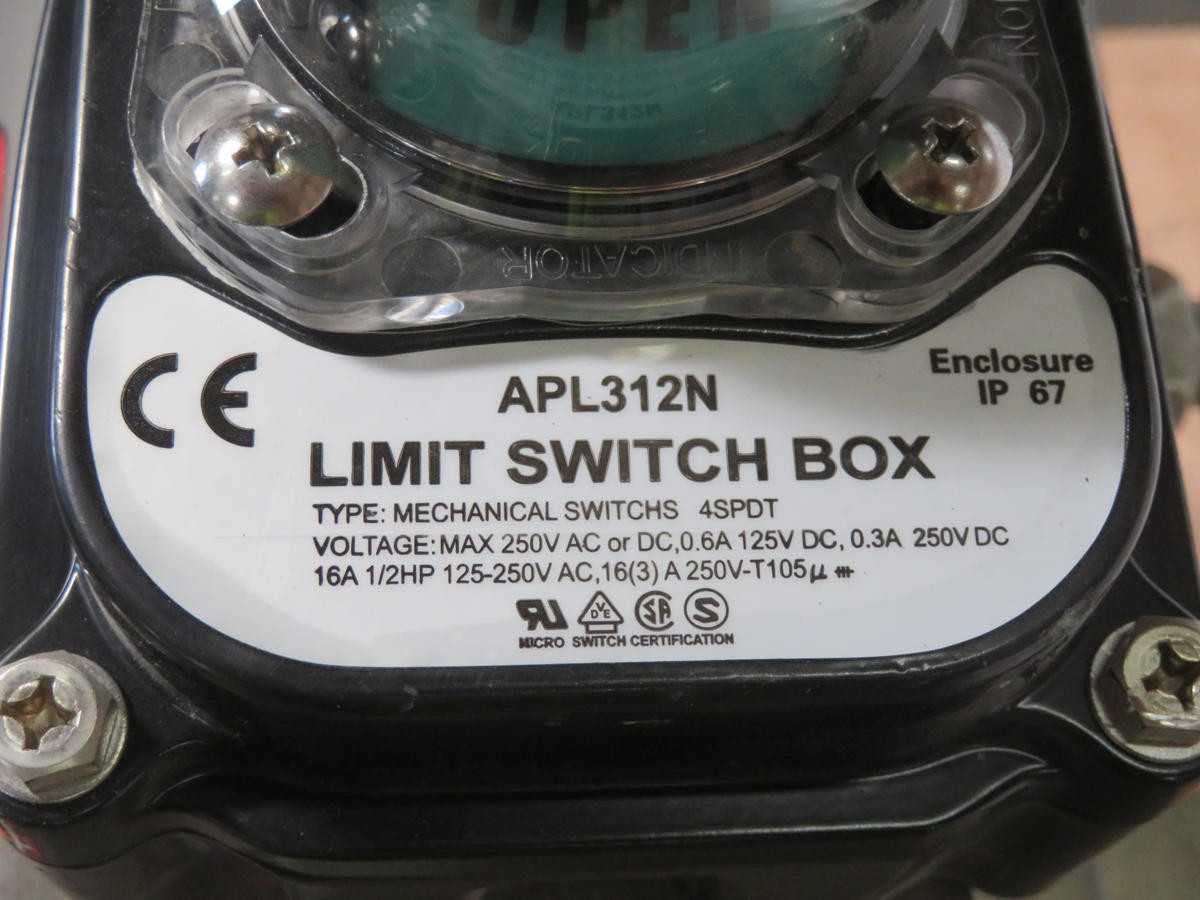

THE TRIAC CONTROLS APL312N IS A QUARTER-TURN, DOUBLE-ACTING PNEUMATIC ACTUATOR, FEATURING A THREE-PIECE RACK AND PINION DESIGN. CONSTRUCTED WITH A HARD-ANODIZED ALUMINUM ALLOY BODY AND PISTONS, IT INCORPORATES A NICKEL-PLATED ALLOY STEEL PINION AND NBR O-RINGS FOR SEALING. THIS MODEL DELIVERS A MINIMUM OUTPUT TORQUE OF 312 NM AT AN AIR SUPPLY PRESSURE OF 5.5 BAR (80 PSI). IT IS DESIGNED FOR OPERATION WITHIN A TEMPERATURE RANGE OF -20°C TO +80°C AND IS COMPATIBLE WITH AIR SUPPLY PRESSURES FROM 3 TO 8 BAR (40 TO 115 PSI). THE ACTUATOR CONFORMS TO ISO 5211 MOUNTING STANDARDS AND INCLUDES A VDI/VDE 3845 (NAMUR) INTERFACE FOR ACCESSORY INTEGRATION. IT IS SUPPLIED WITH A LIMIT SWITCH BOX FOR VALVE POSITION INDICATION.
