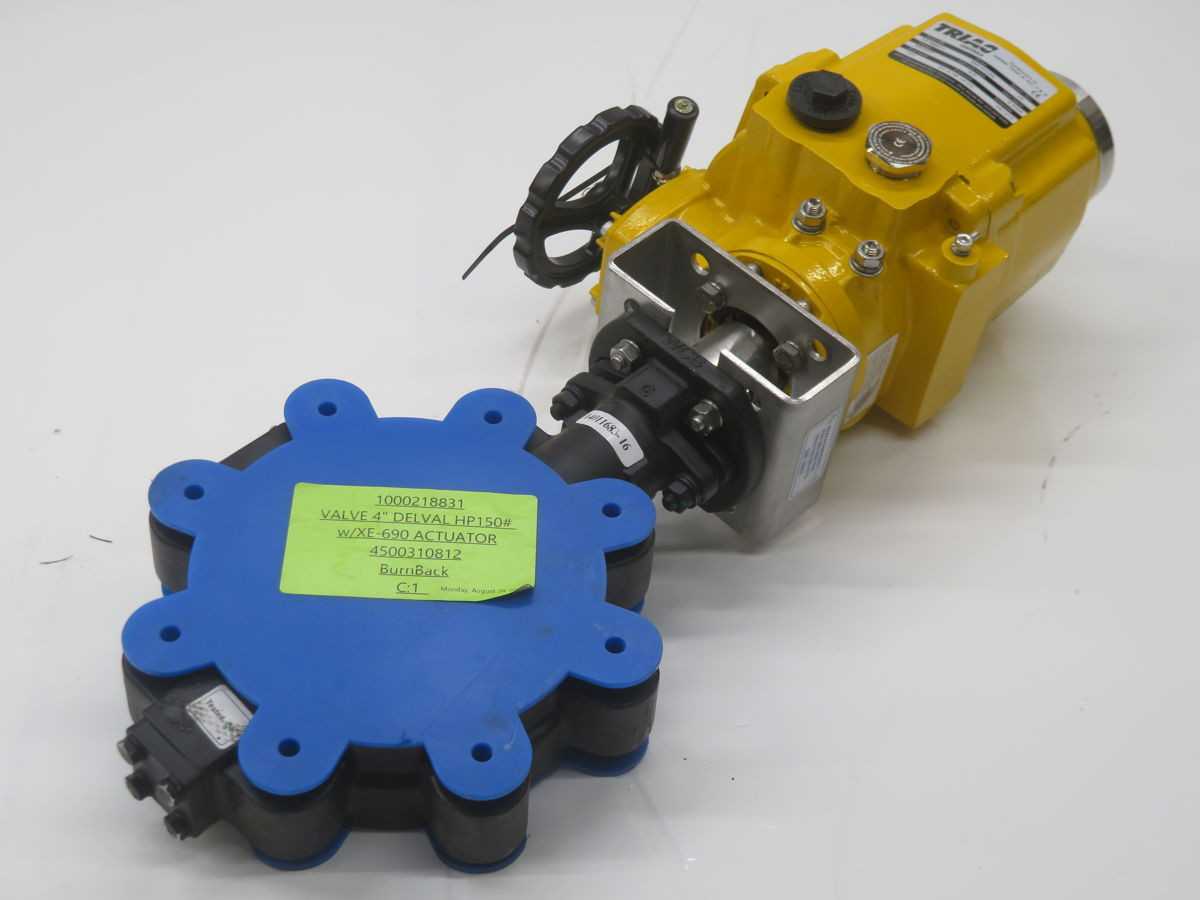

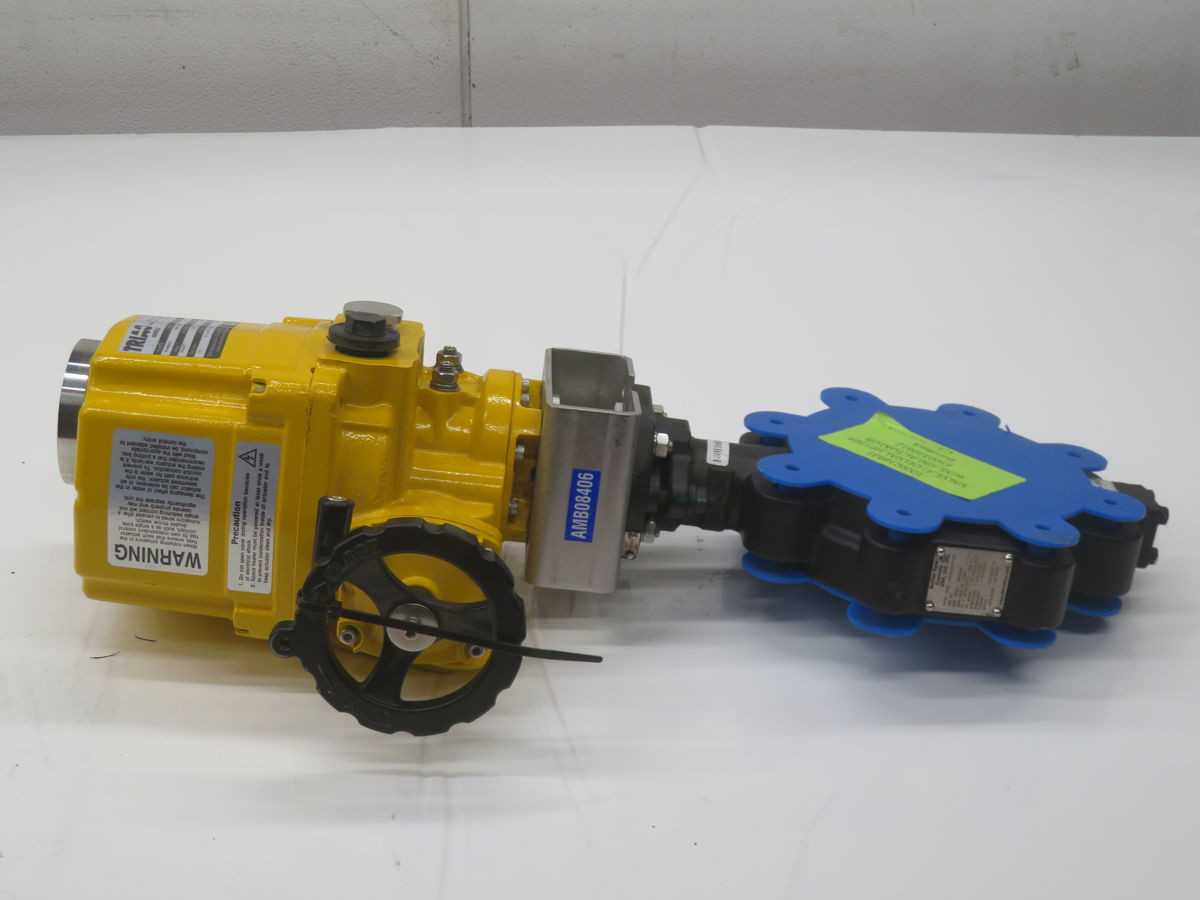

Triac XE-690AXL El. Actuator, 690 IN-LBS Torq, 24VDC, 11S 90D, NEMA 4X, IP67, ISO F07/10, 17mm Sq

THE TRIAC XE-690AXL ELECTRIC ACTUATOR PROVIDES 690 IN-LBS OF TORQUE, OPERATING ON 24VDC WITH A FULL LOAD CURRENT OF 5.0 AMPS. IT FEATURES A 90-DEGREE CYCLE TIME OF 11 SECONDS. THE UNIT'S ENCLOSURE IS RATED NEMA 4, 4X, AND IP67, SUITABLE FOR ROBUST ENVIRONMENTAL PROTECTION. THIS MODEL SUPPORTS A 75% DUTY CYCLE AND IS DESIGNED FOR AN OPERATING TEMPERATURE RANGE OF -4°F TO 150°F (-20°C TO 65°C). THE OUTPUT DRIVE INCLUDES AN ISO 5211 F07/F10 DIRECT MOUNT AND A 17MM DOUBLE SQUARE CONNECTION. INTEGRATED FUNCTIONALITIES CONSIST OF TWO SPDT AUXILIARY LIMIT SWITCHES RATED AT 5A @ 250VAC, INTERNAL THERMAL PROTECTION, AND AN ANTI-CONDENSATION HEATER. MANUAL OPERATION IS FACILITATED VIA A DECLUTCHABLE HANDWHEEL MECHANISM.
