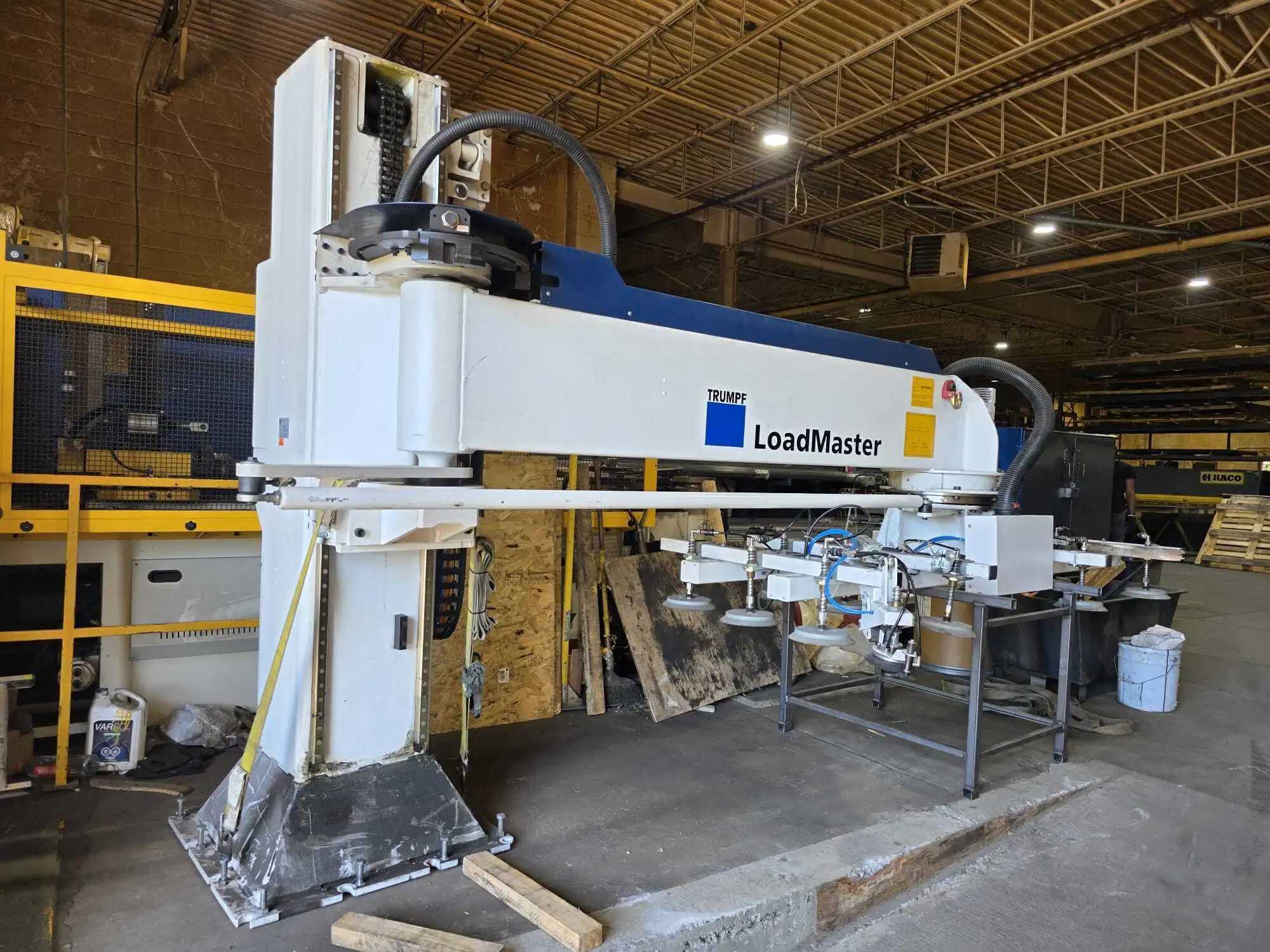

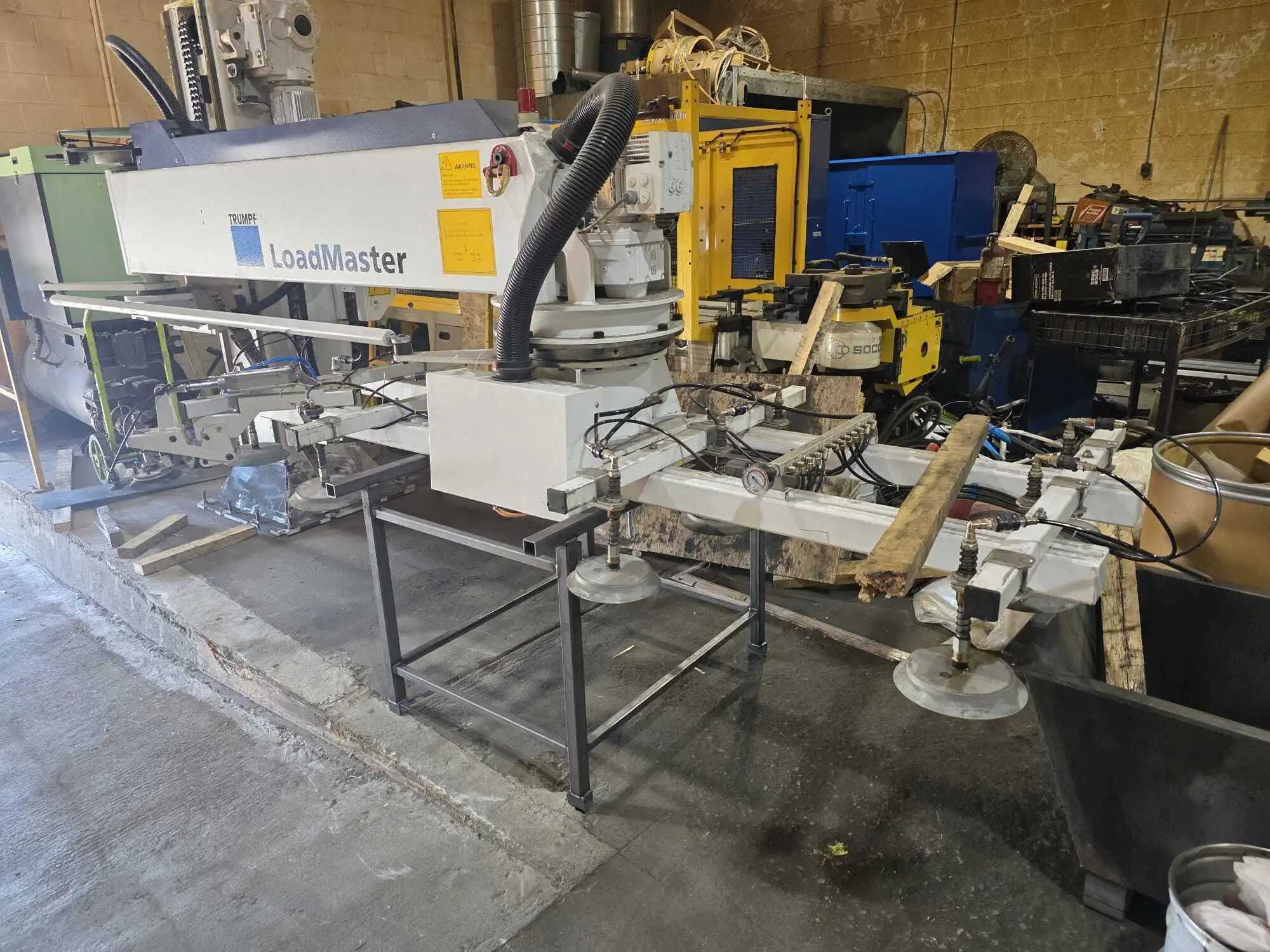

Trumpf Loadmaster Automatic Sheet Loader, 3000X1500MM, 25mm, 900kg, 103S

Trumpf Loadmaster is an automatic sheet loading system for laser cutting machines, manufactured in Germany. It accommodates sheet sizes from 1000 x 500 mm to 3000 x 1500 mm (39.4 x 19.7 in to 118 x 59 in), with a maximum sheet thickness of 25 mm (1.0 in) and maximum sheet weight of 900 kg (1,984 lb). The loader uses a vacuum suction cup system for sheet handling and a magnetic sheet separator for ferrous materials. Loading cycle time is approximately 103 seconds. Overall dimensions are 14 ft x 8 ft x 11 ft, and machine weight is 7,500 lb.
