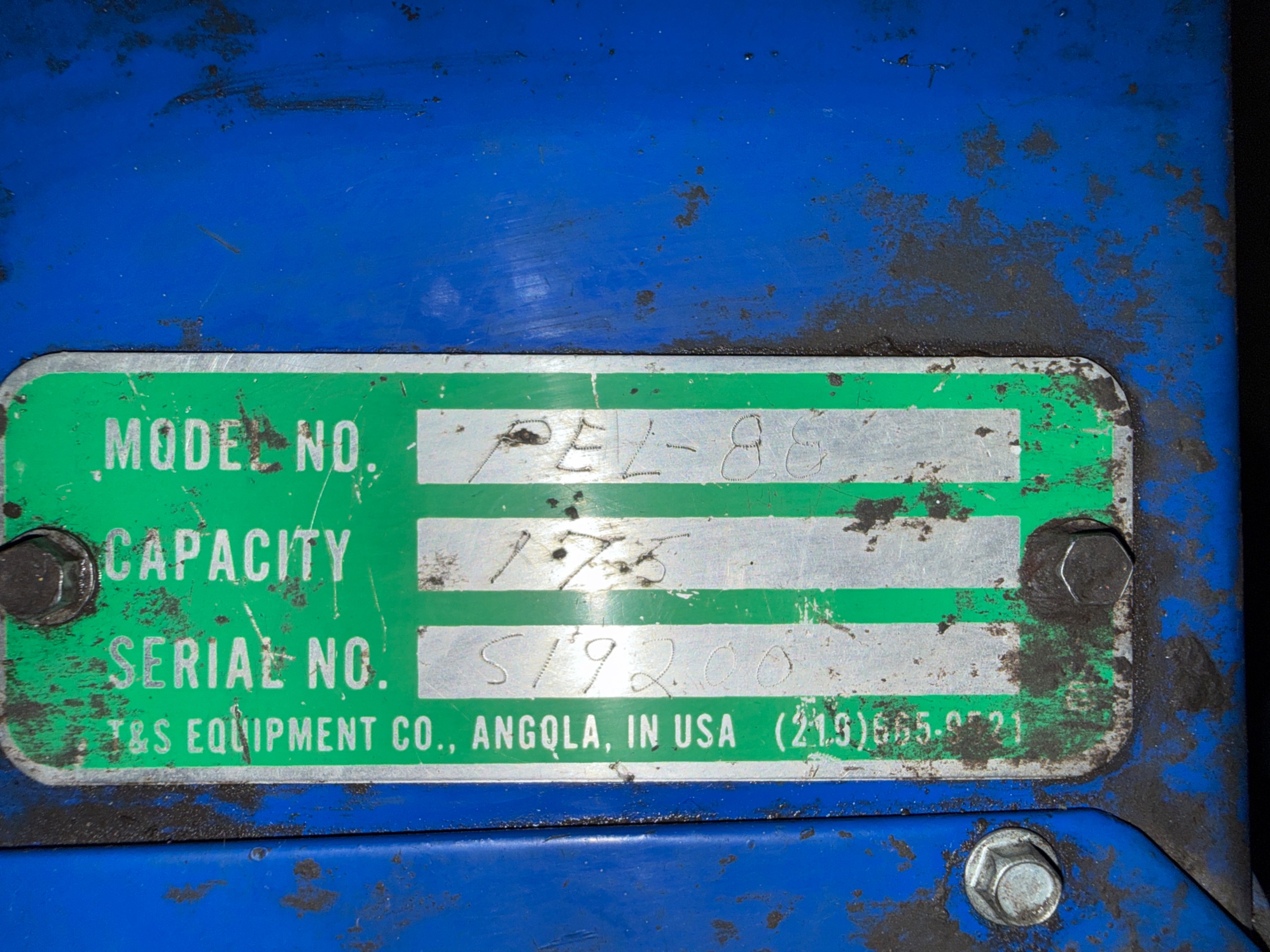

T&S EQUIPMENT CO. PEL-88 LIFT CART 175 LB CAPACITY

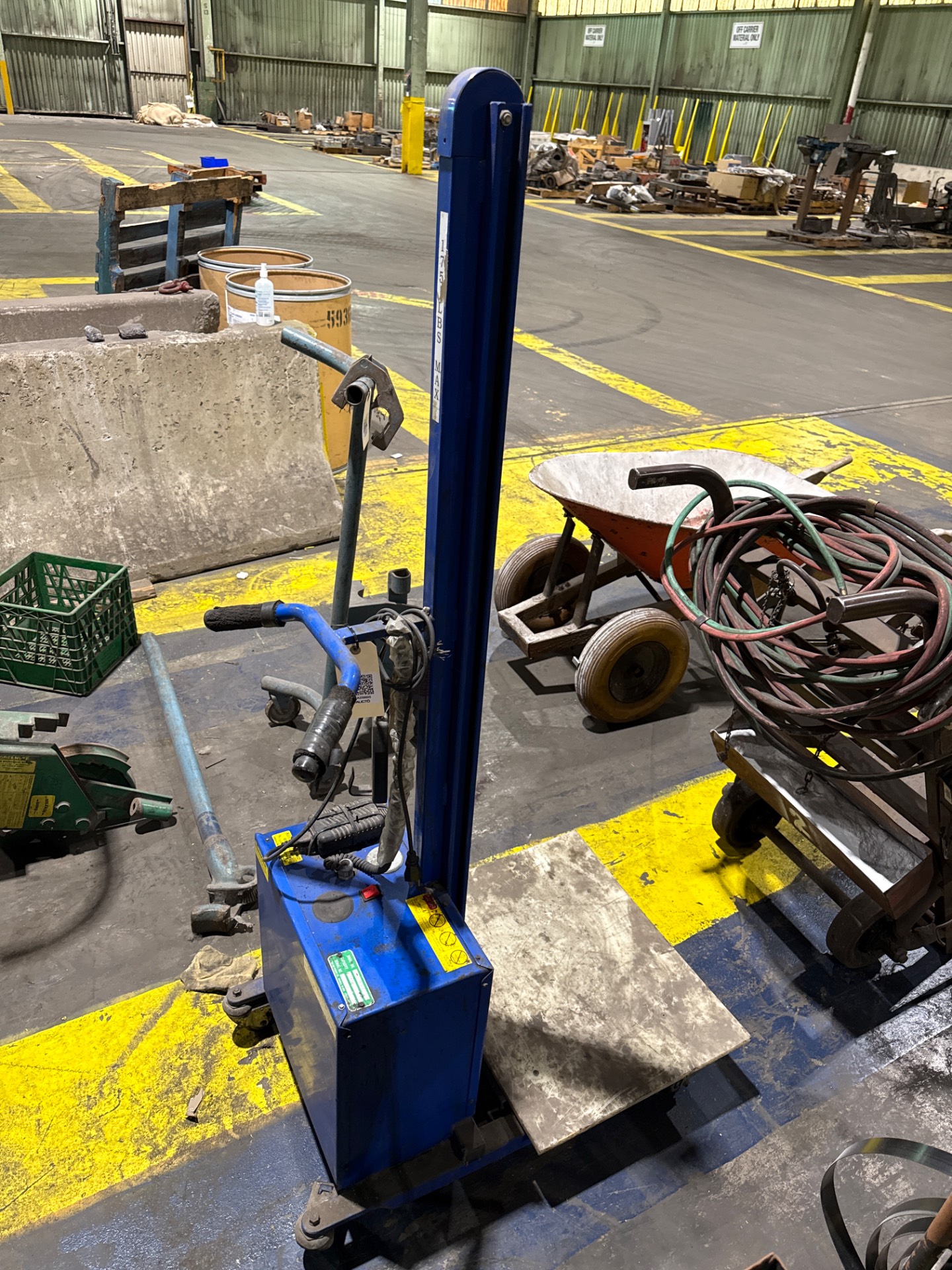

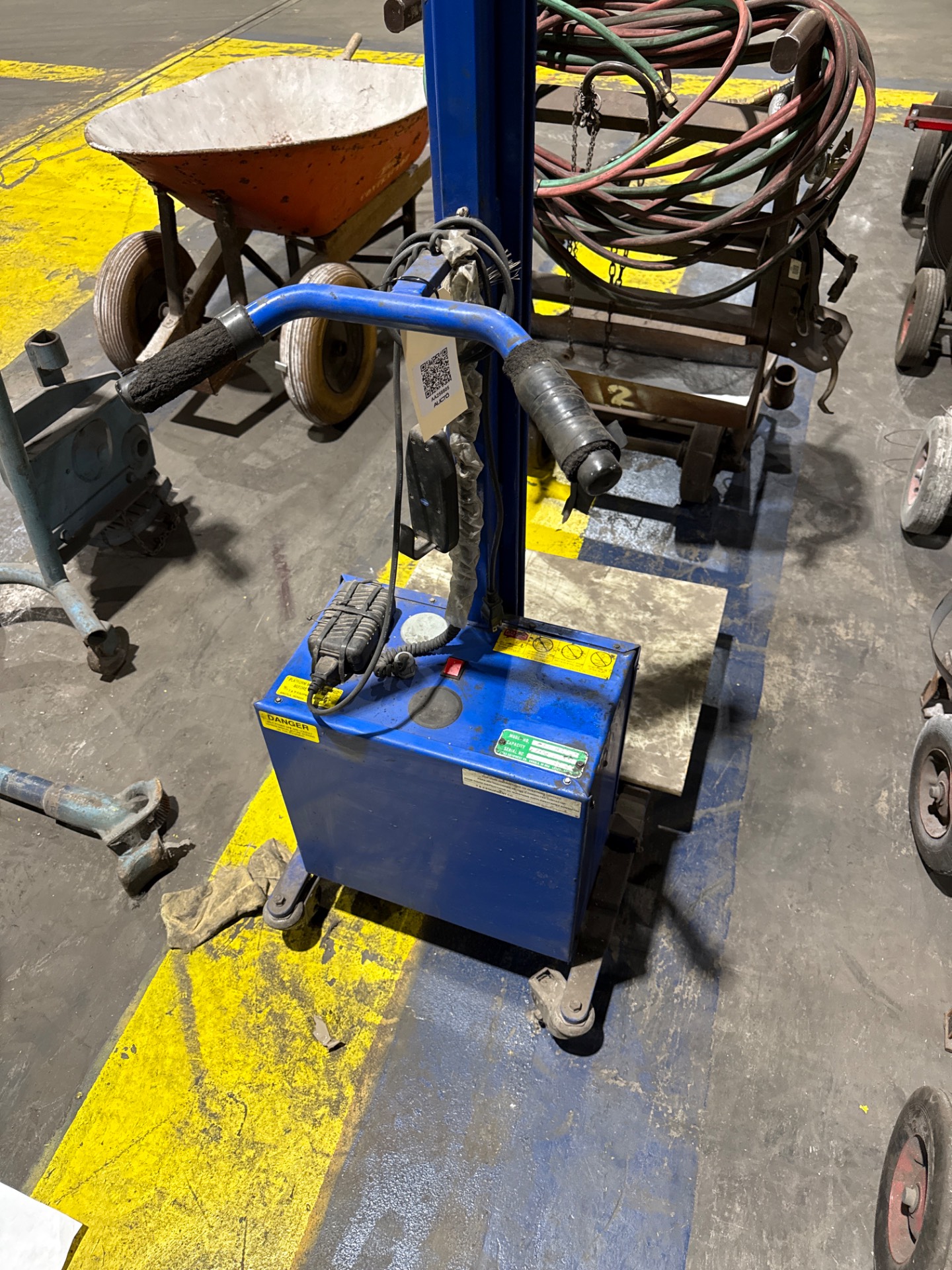

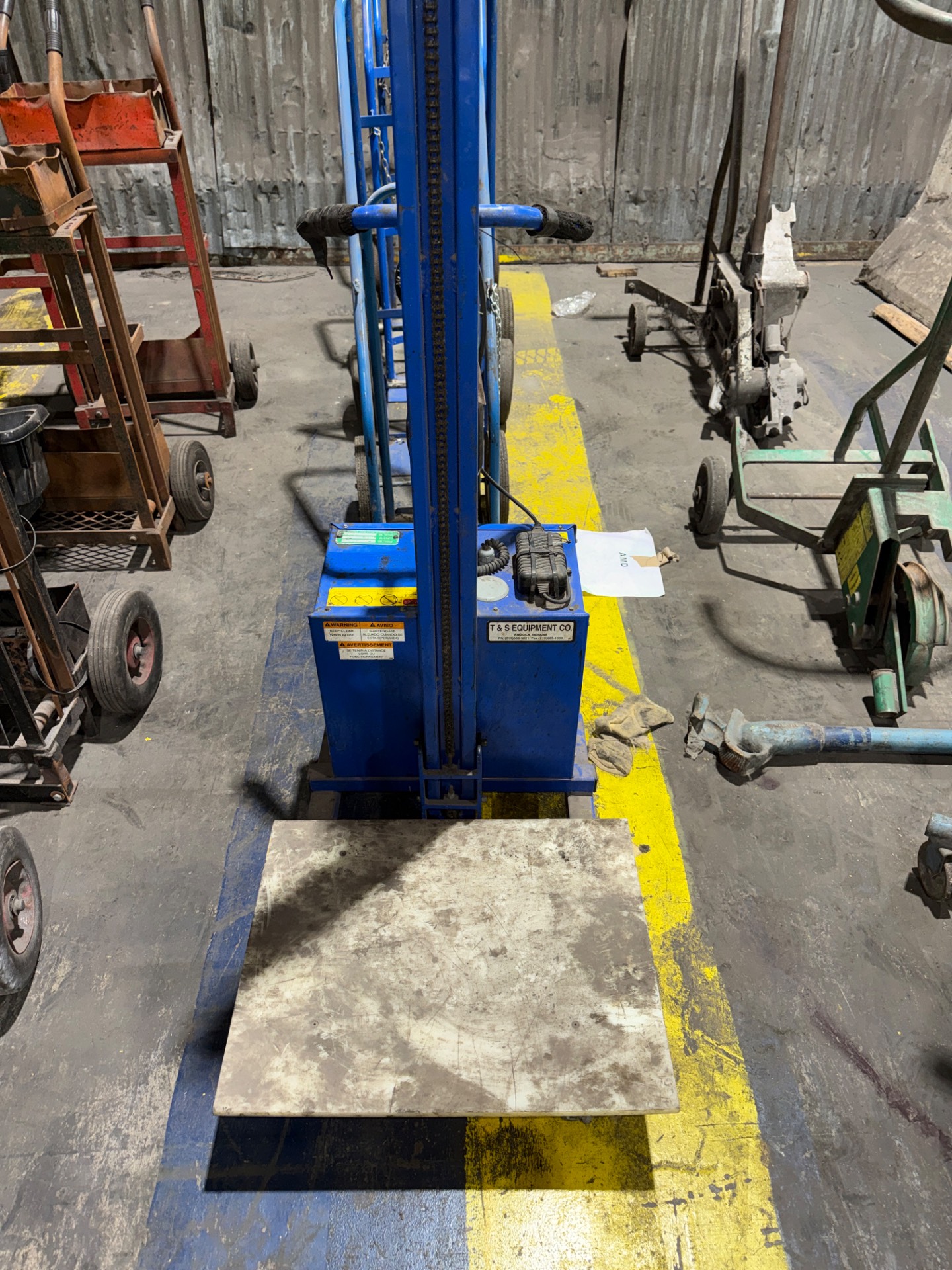

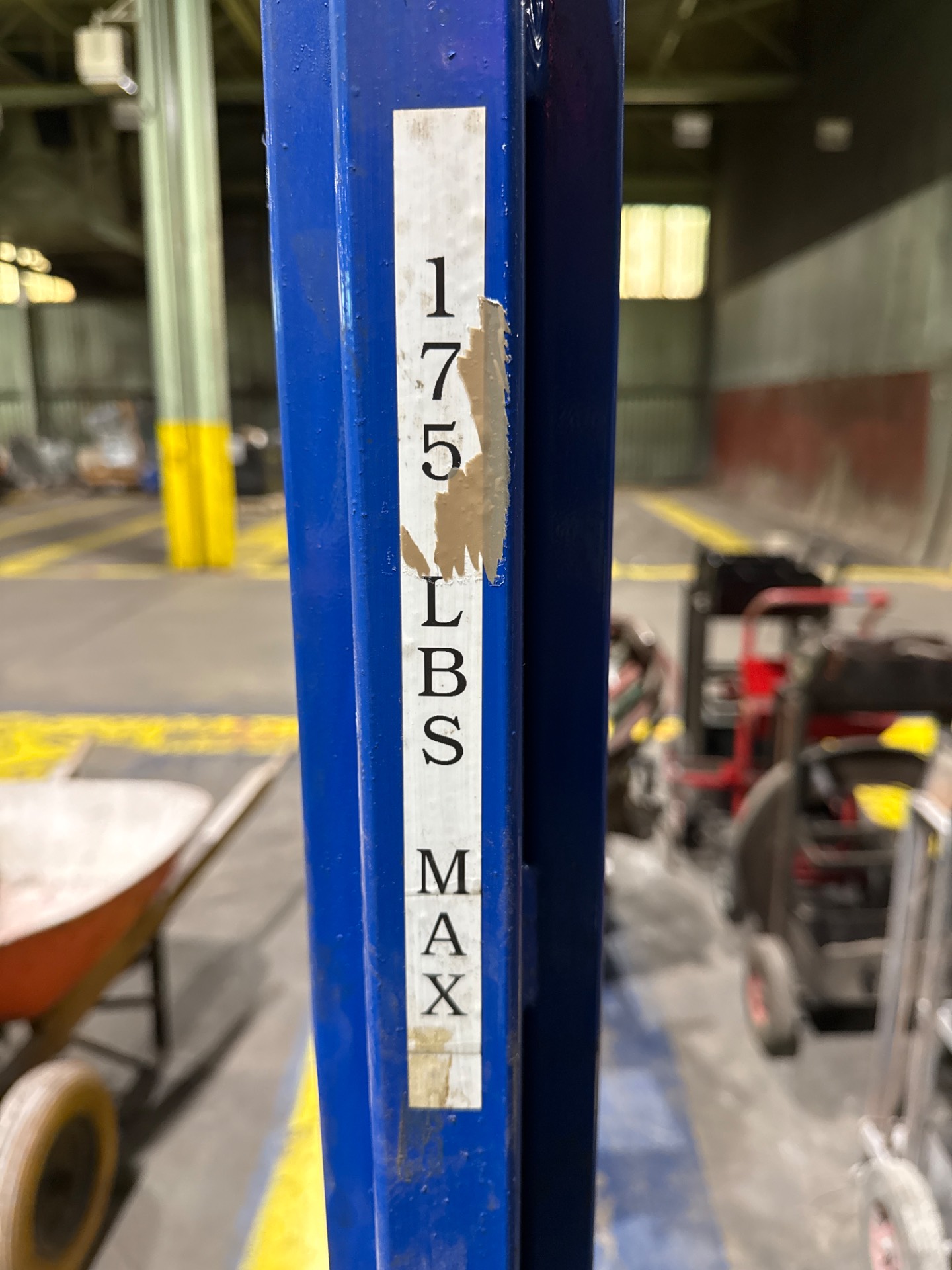

THE T&S EQUIPMENT CO. PEL-88 IS A DC-POWERED QUICK LIFT DESIGNED FOR THE EFFICIENT TRANSPORT AND POSITIONING OF LOADS IN NARROW AISLES AND CONFINED SPACES. CONSTRUCTED FROM EITHER STEEL OR ALUMINUM, IT FEATURES A 175-LB CAPACITY AND A SERVICE RANGE FROM A LOWERED HEIGHT OF 5.5 INCHES TO A MAXIMUM RAISED HEIGHT OF 57 INCHES. THE UNIT IS EQUIPPED WITH A HIGH-DENSITY POLYETHYLENE (HDPE) PLATFORM MEASURING APPROXIMATELY 24 INCHES WIDE BY 19 INCHES LONG, FEATURING A 9-INCH HORIZONTAL LOAD CENTER. OPERATION IS MANAGED VIA A TOUCH-PAD CONTROL PANEL THAT ALLOWS FOR MULTIPLE LIFT SPEEDS, POWERED BY A 24V DC SYSTEM WITH TWO MAINTENANCE-FREE BATTERIES AND AN ON-BOARD 115V AC CHARGER. THE PLATFORM IS CHAIN-DRIVEN FOR PRECISE POSITIONING, AND THE SCREW DESIGN ELIMINATES LOAD DRIFTING OR COASTING THROUGH AN ELECTROMAGNETIC BRAKE. THE LIFT ROLLS ON FOUR 3-INCH POLY-ON-POLY STEM CASTERS, COMPRISING TWO SWIVEL AND TWO SWIVEL-LOCKING CASTERS FOR MANEUVERABILITY.
