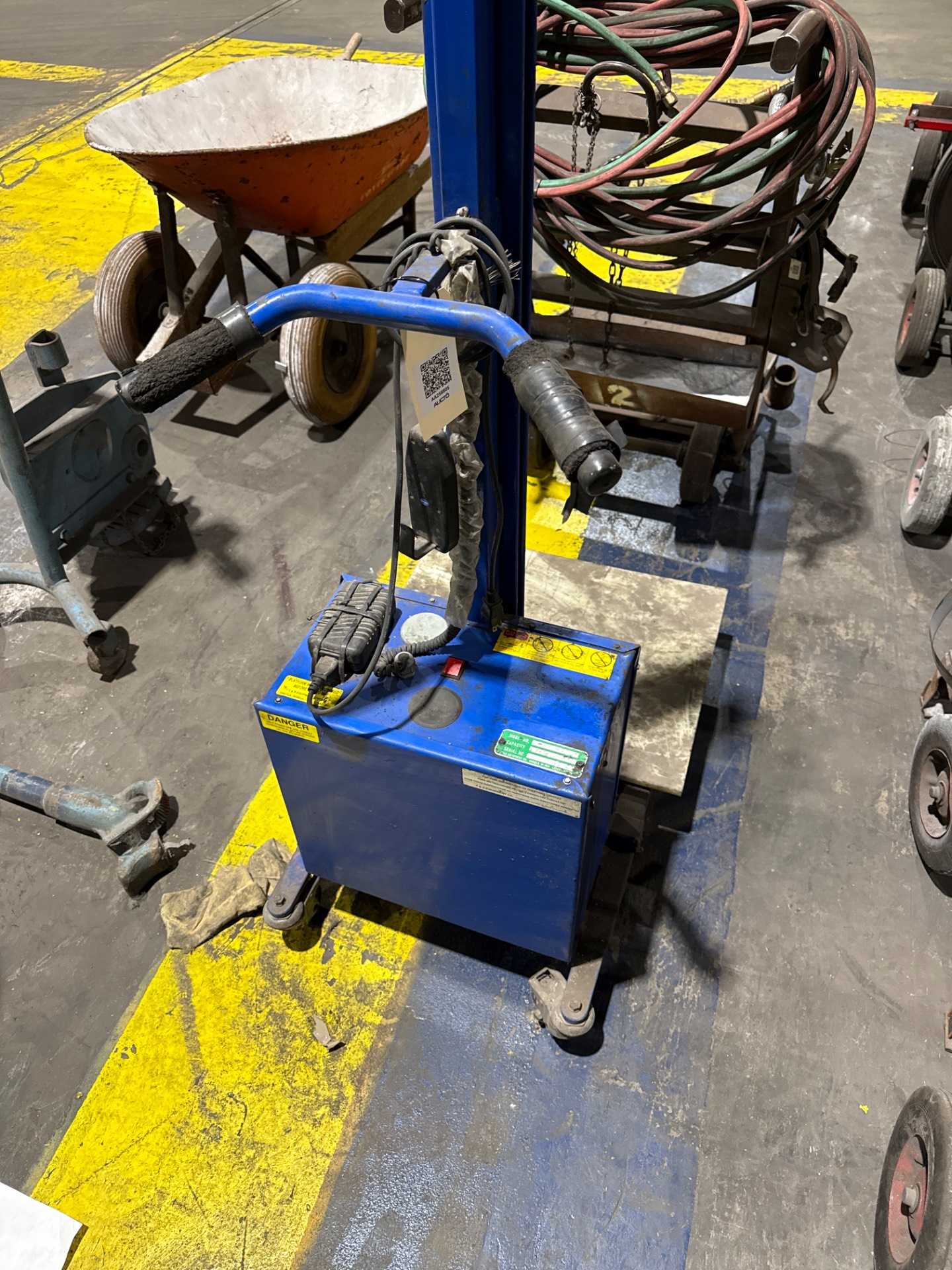

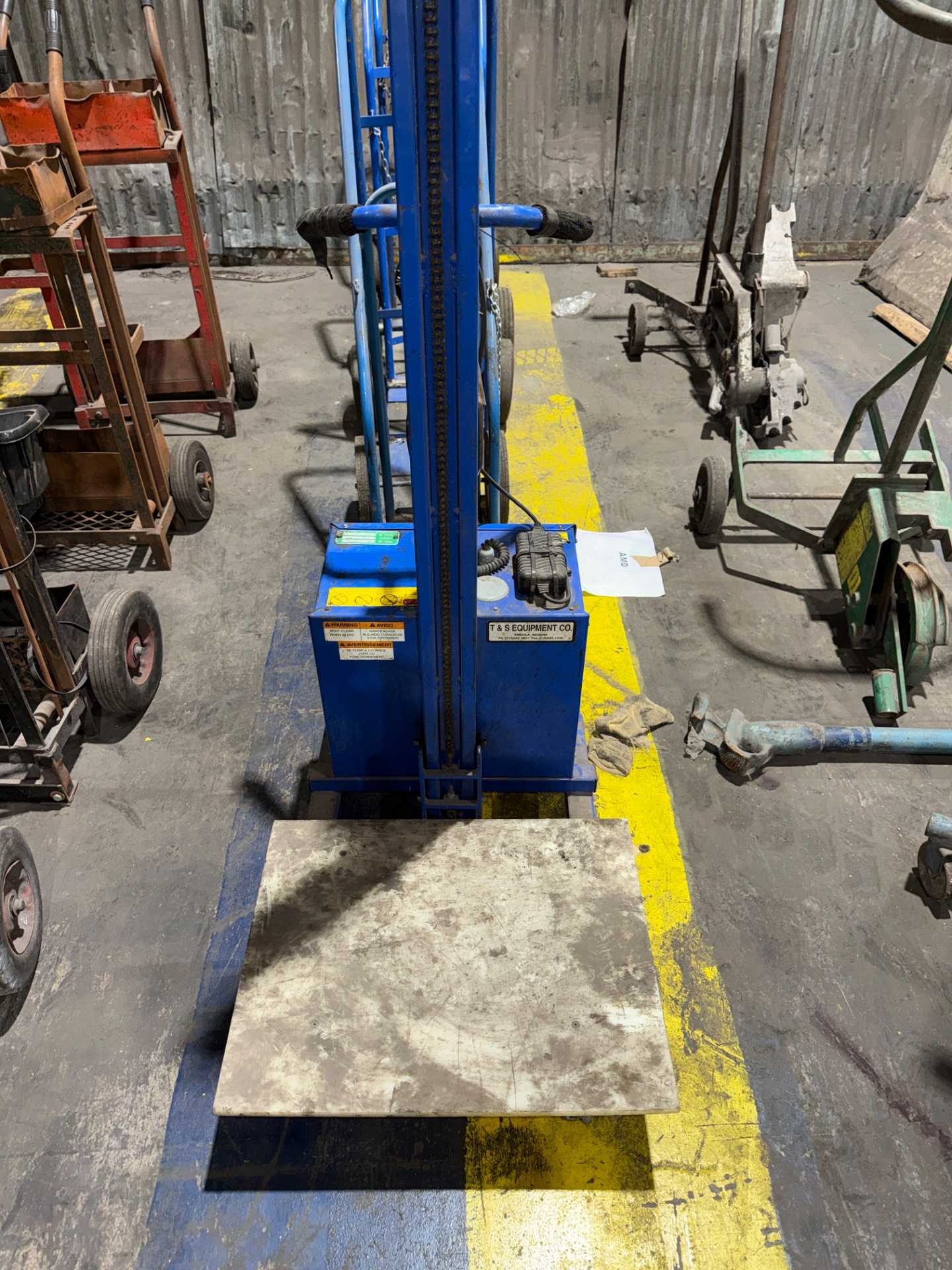

T&S Equipment CO. PEL-88 Lift Cart 175 lb Capacity

The T&S Equipment CO. PEL-88 is a DC-powered quick lift designed for the efficient transport and positioning of loads in narrow aisles and confined spaces. Constructed from either steel or aluminum, it features a 175-lb capacity and a service range from a lowered height of 5.5 inches to a maximum raised height of 57 inches. The unit is equipped with a high-density polyethylene (HDPE) platform measuring approximately 24 inches wide by 19 inches long, featuring a 9-inch horizontal load center. Operation is managed via a touch-pad control panel that allows for multiple lift speeds, powered by a 24V DC system with two maintenance-free batteries and an on-board 115V AC charger. The platform is chain-driven for precise positioning, and the screw design eliminates load drifting or coasting through an electromagnetic brake. The lift rolls on four 3-inch poly-on-poly stem casters, comprising two swivel and two swivel-locking casters for maneuverability.
