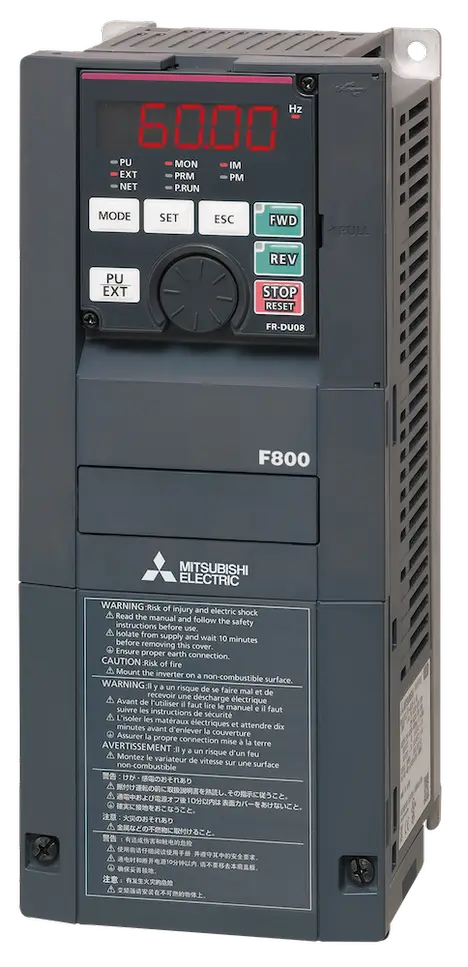

QTY 6: MITSUBISHI FR-F820-00250-E3N6 AC VFD DRIVE

CONDITION: FACTORY NEW VT INVERTER 7.5HP 230V ETHERNET SERIES FR-F800 SERIES TYPE FR-F800 PUMP AND FAN MINIMUM RATED VOLTAGE (V) 200 MIN. PERMISSIBLE VOLTAGE (V) 170 MAXIMUM RATED VOLTAGE (V) 240 MAX. PERMISSIBLE VOLTAGE (V) 264 CURRENT TYPE AC PHASES 3 RATED OUTPUT CURRENT SLD (A) 25 RATED OUTPUT CURRENT LD (A) 23 RATED MOTOR CAPACITY SLD (KW) 5,5 RATED MOTOR CAPACITY LD (KW) 5,5 CONTROL METHOD MAGNETIC FLUX VECTOR CONTROL PM SENSORLESS VECTOR CONTROL SOFT-PWM/HIGH FREQUENCY PWM V/F CONTROL MOTOR TYPE INDUCTION MOTOR, PM MOTOR INTEGRATED EMC FILTER YES (OFF ON INITIAL SETTINGS) SAFE TORQUE OFF (STO) YES REGENERATIVE (4Q) NO INTEGRATED DC CHOKE NO DISPLAY FR-DU08 DISPLAY TYPE 5 DIGITS LED (12 SEGMENT) PLC FUNCTION YES PROGRAM MEMORY 6K PROGRAM MEMORY UNIT STEPS INTEGRATED DIGITAL INPUTS 12 DIGITAL OUTPUTS (TRANSISTOR) 5 DIGITAL OUTPUTS (RELAY) 2 INTEGRATED ANALOGUE INPUTS 3 INTEGRATED ANALOGUE OUTPUTS 2 IO TYPE OF TERMINAL BLOCK SPRING CLAMP EXPANDABLE YES USB 1+1 MINI ETHERNET PORT 1 BUILT-IN NETWORK CC-LINK IE FIELD NETWORK BASIC IQSS SLMP MODBUS/TCP MELSOFT/FA BACNET/IP LEAKAGE CURRENT (MA) 22(EMC ON)/1(EMC OFF) POWER LOSS SLD (W) 310 POWER LOSS LD (W) 285 STANDBY POWER CONSUMPTION (W) - PROTECTION CLASS IP20 FREQUENCY RANGE (HZ) 0,2–590
