UNKNOWN LEBLOND REGAL 19" X 78" ENGINE LATHE 10HP 38-1500 RPM 1-49/64" BORE

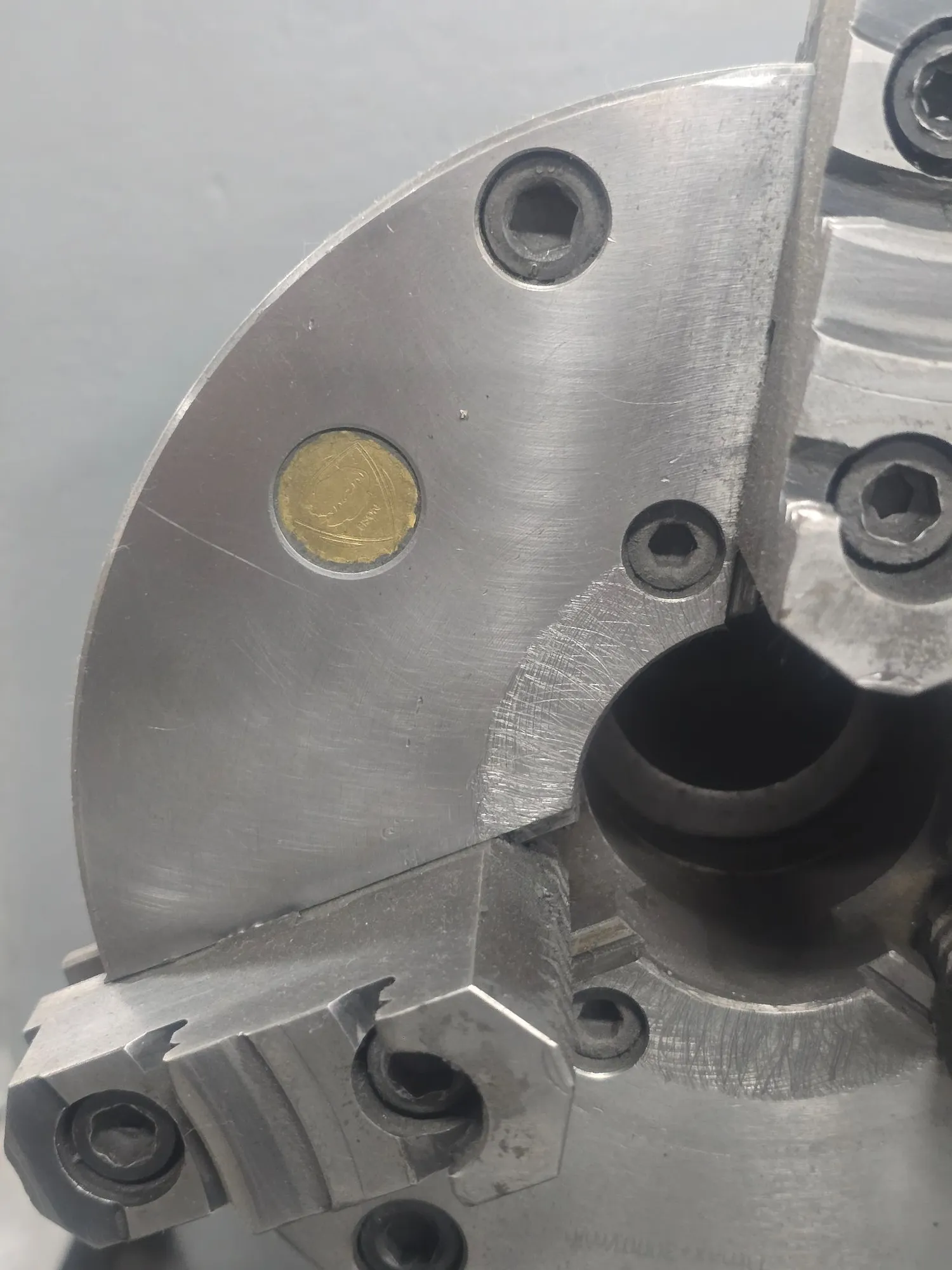

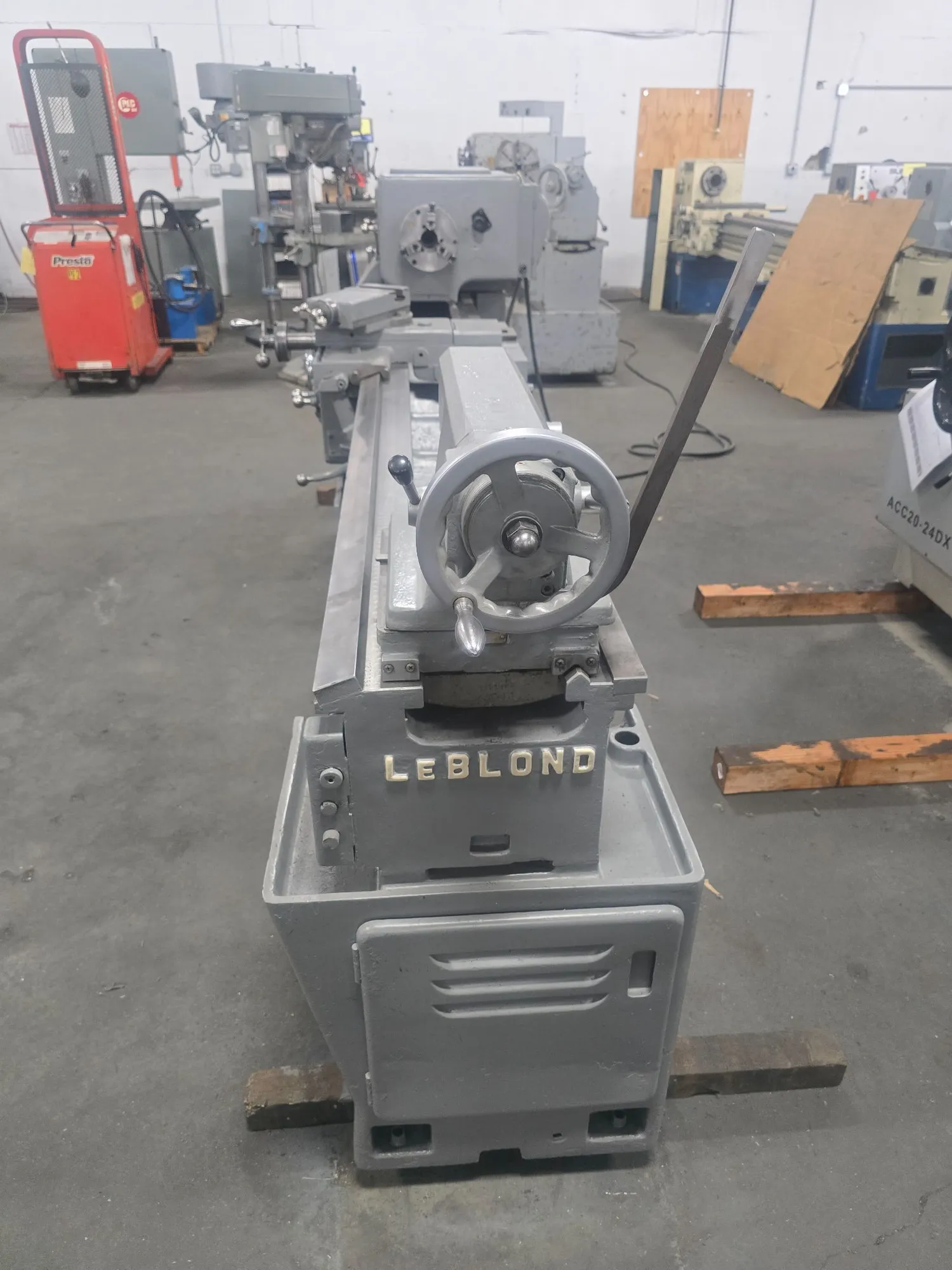

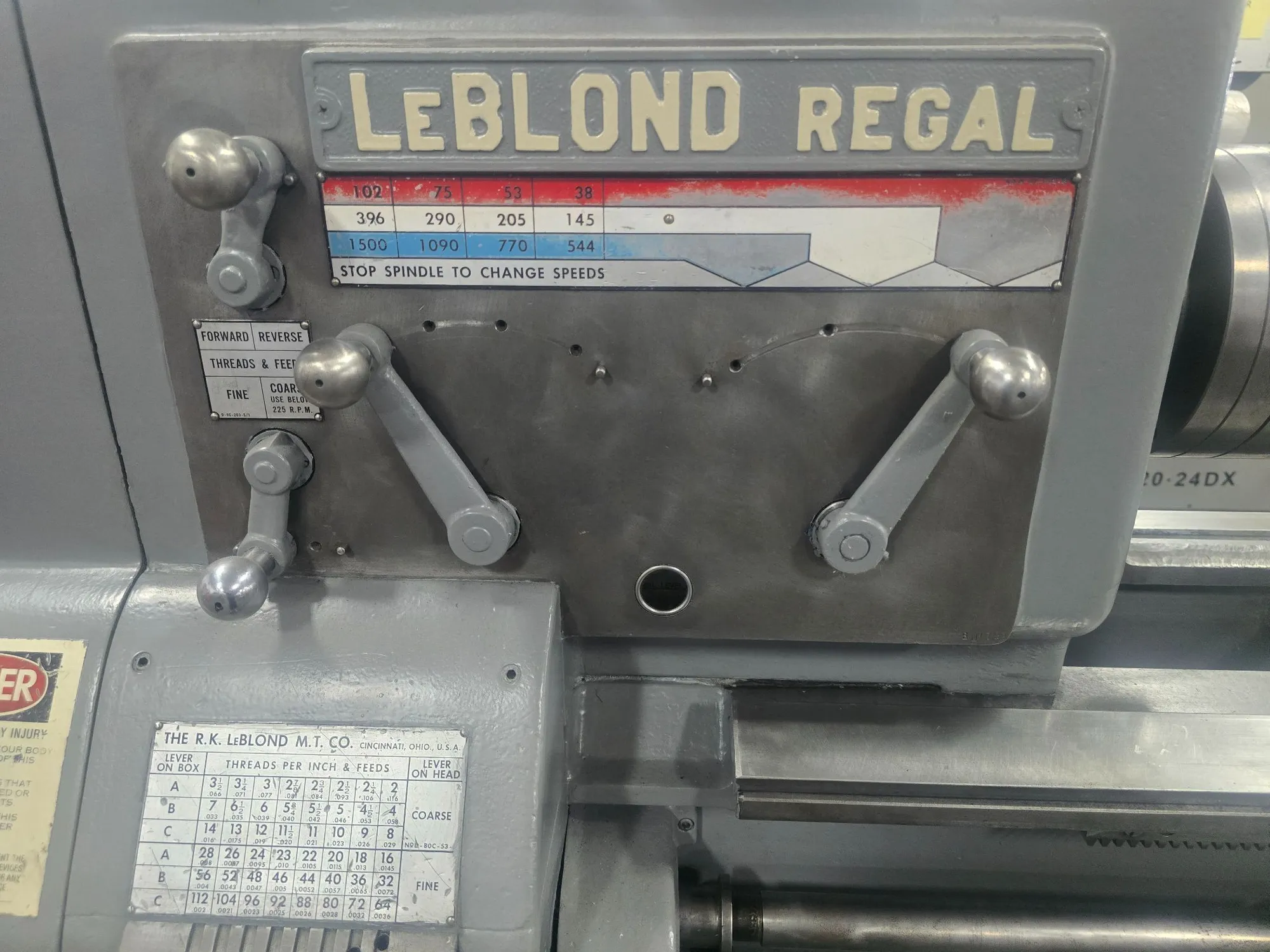

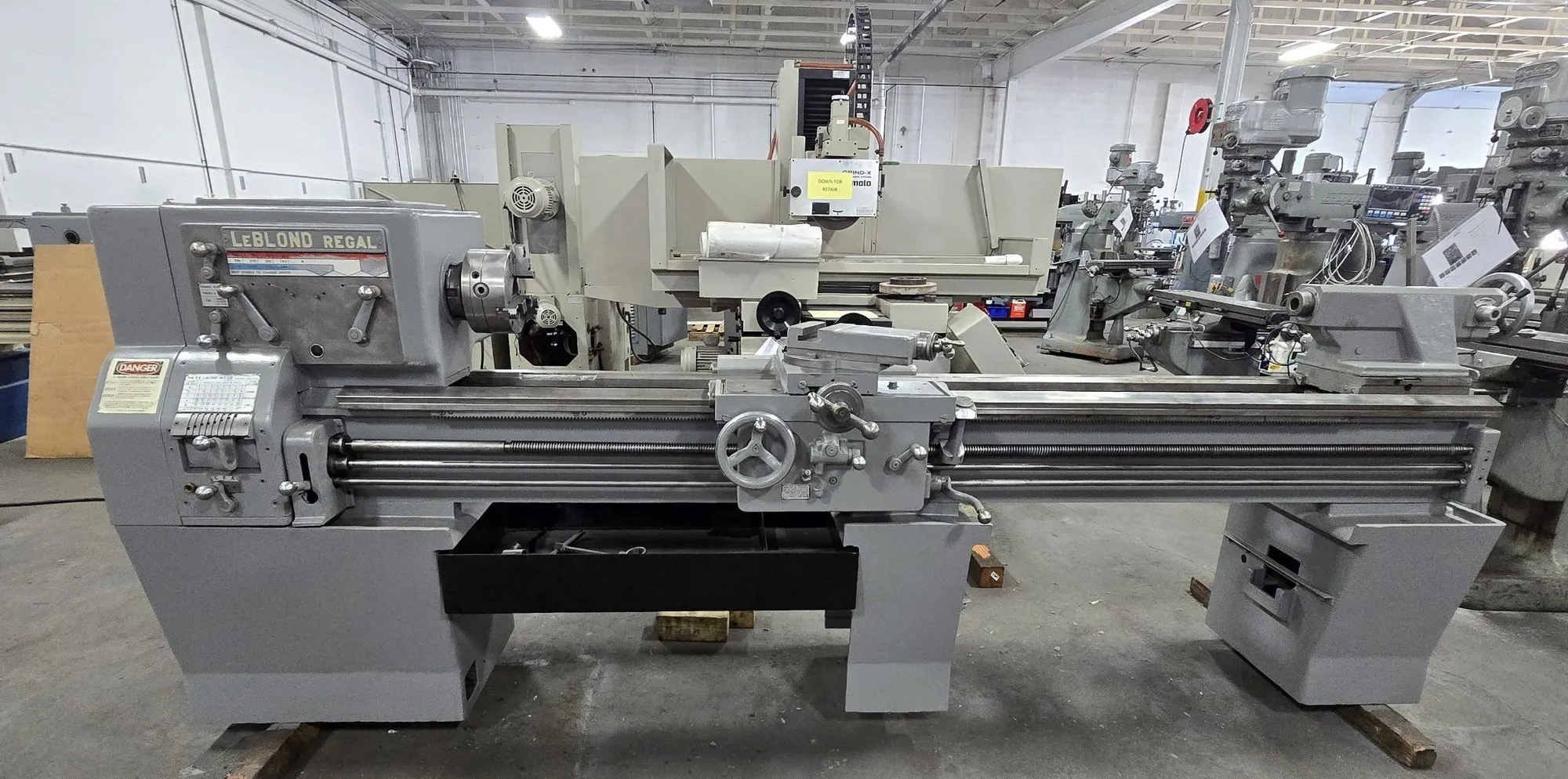

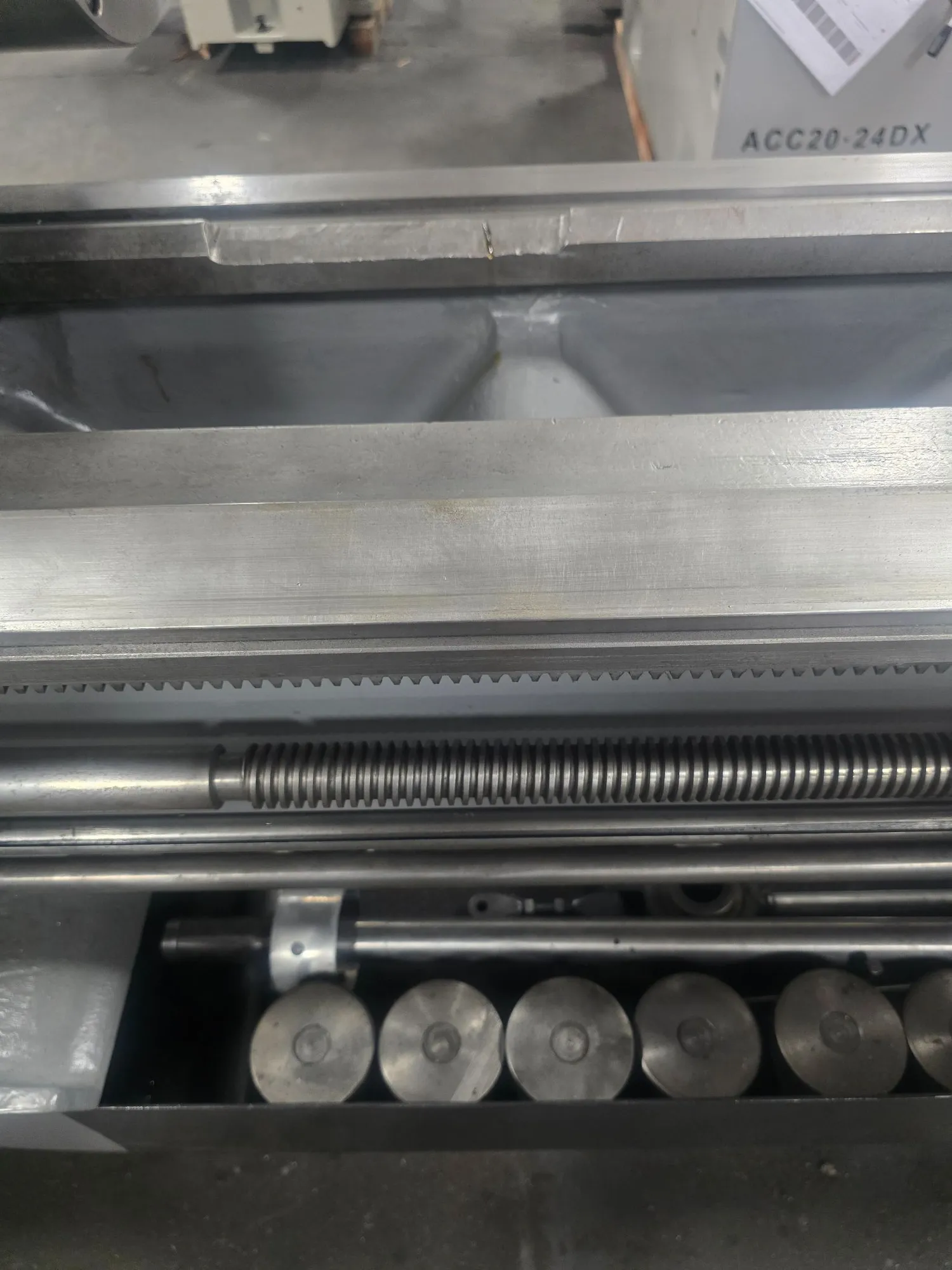

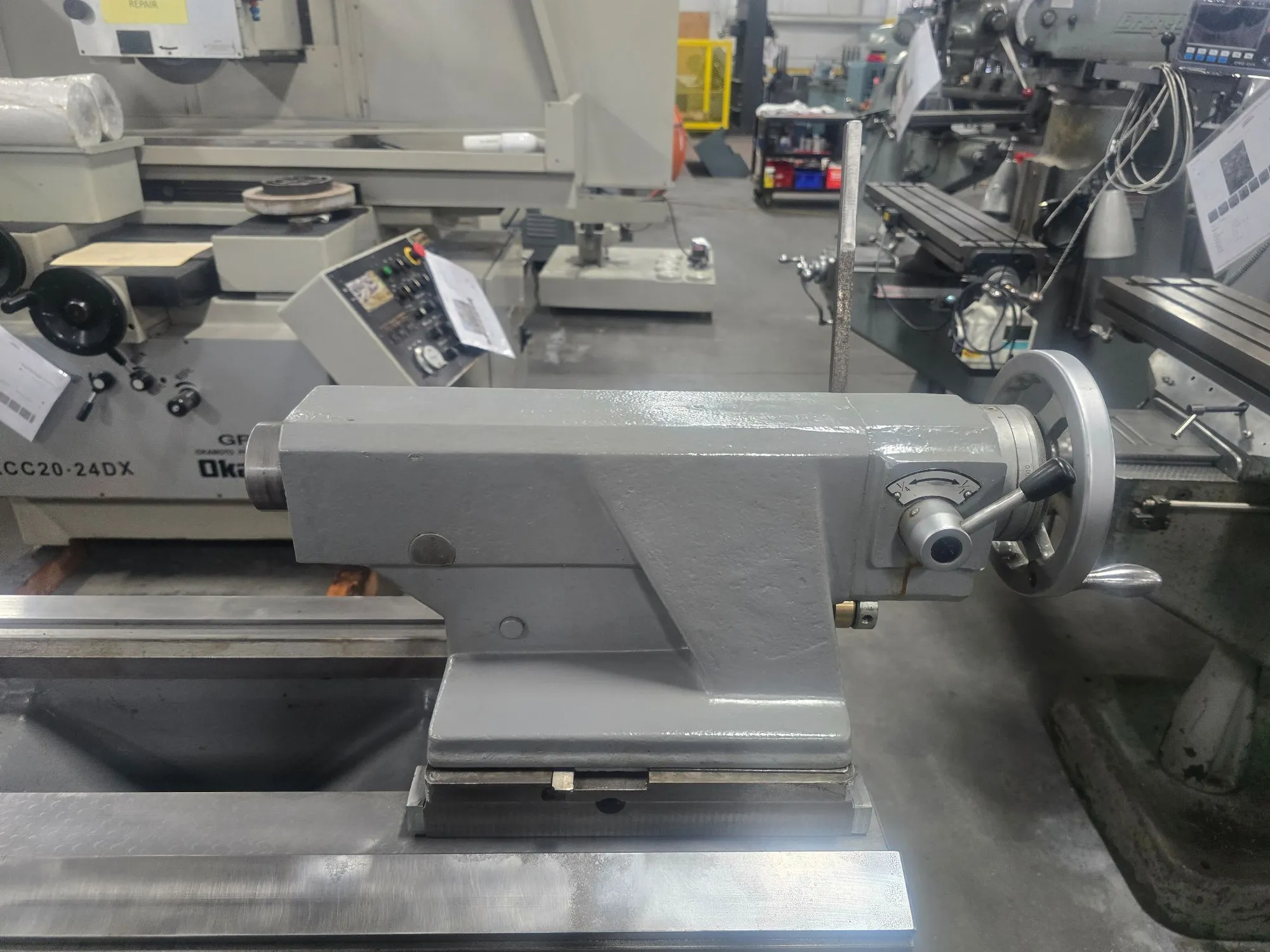

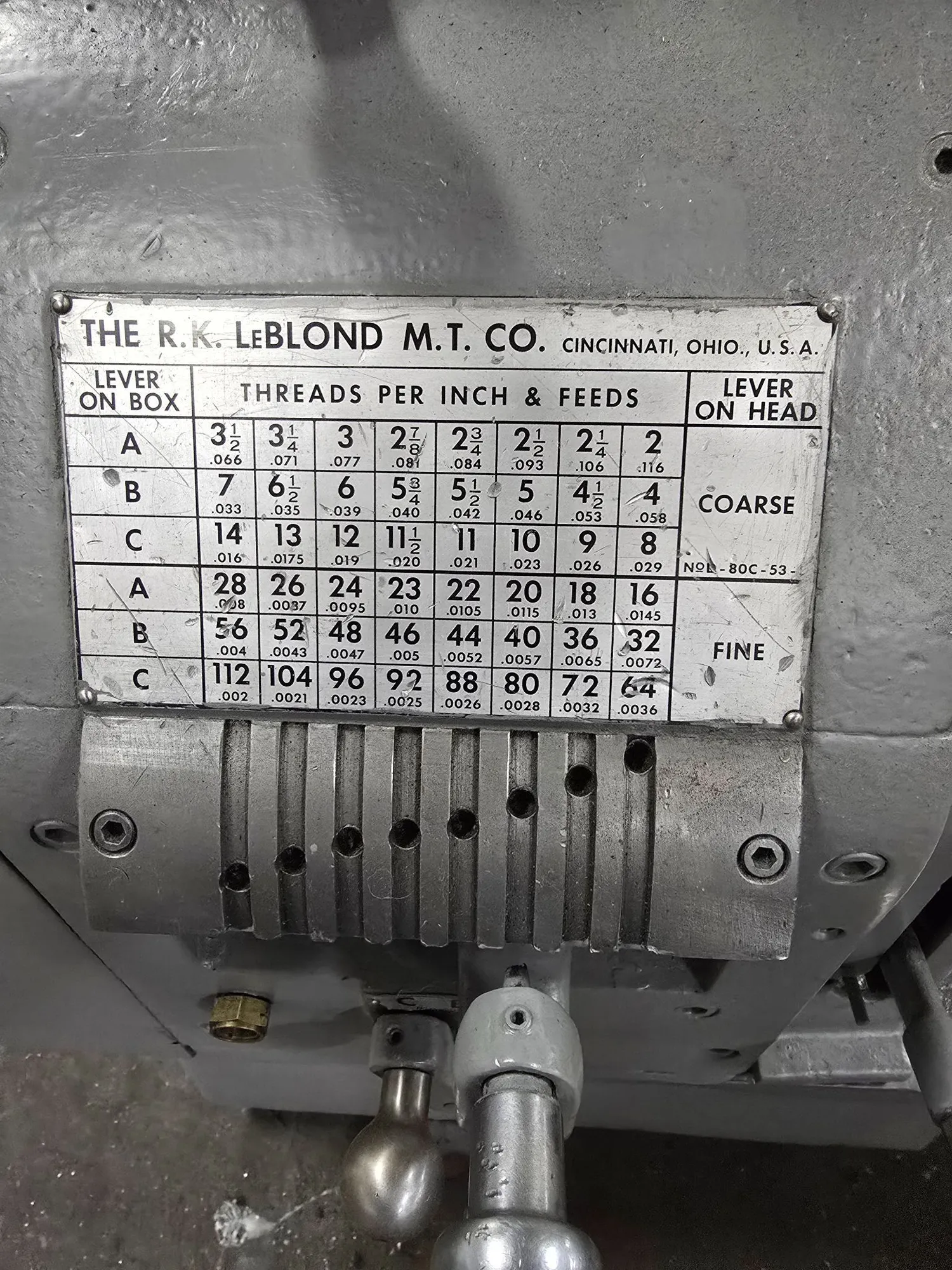

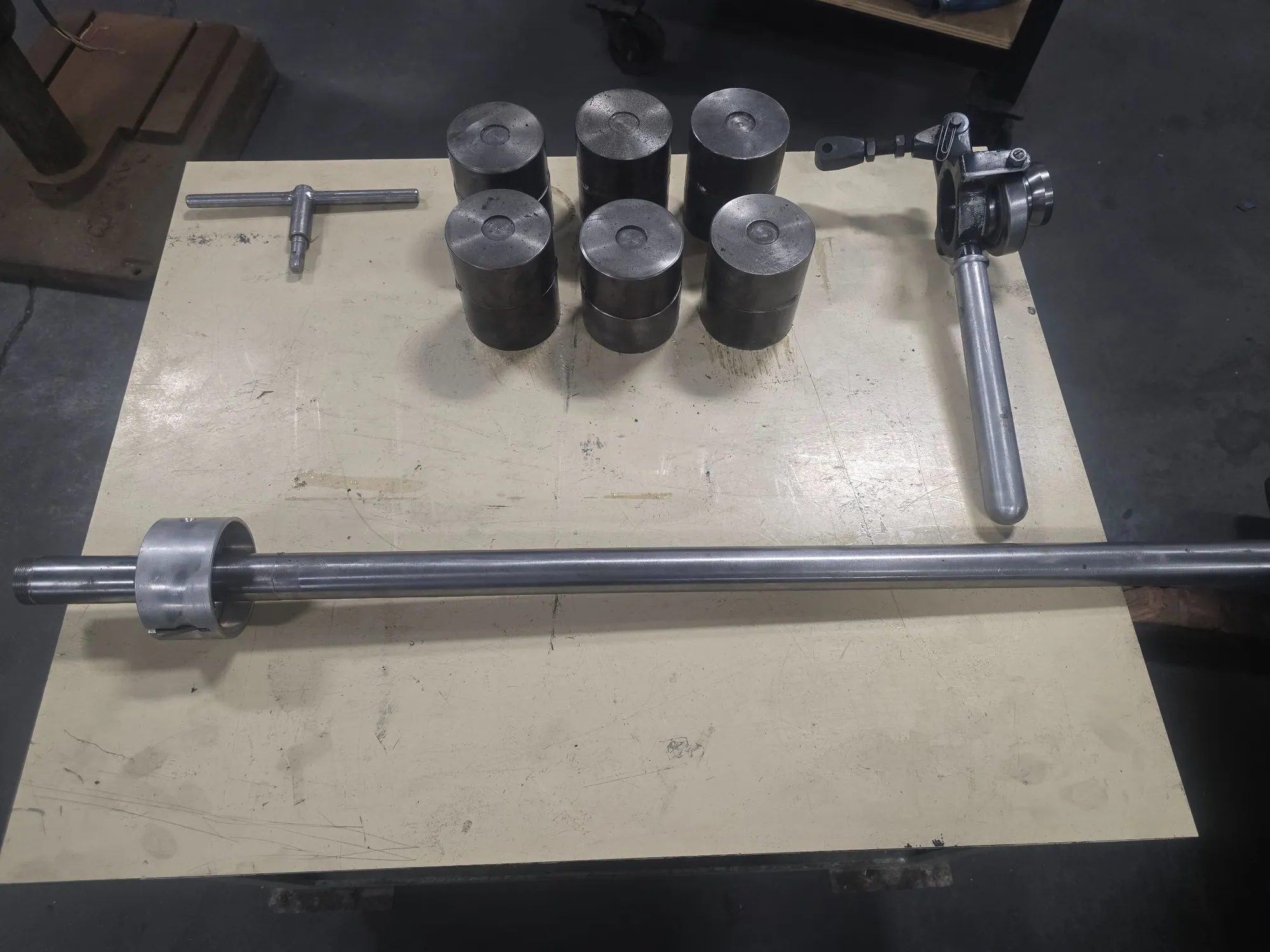

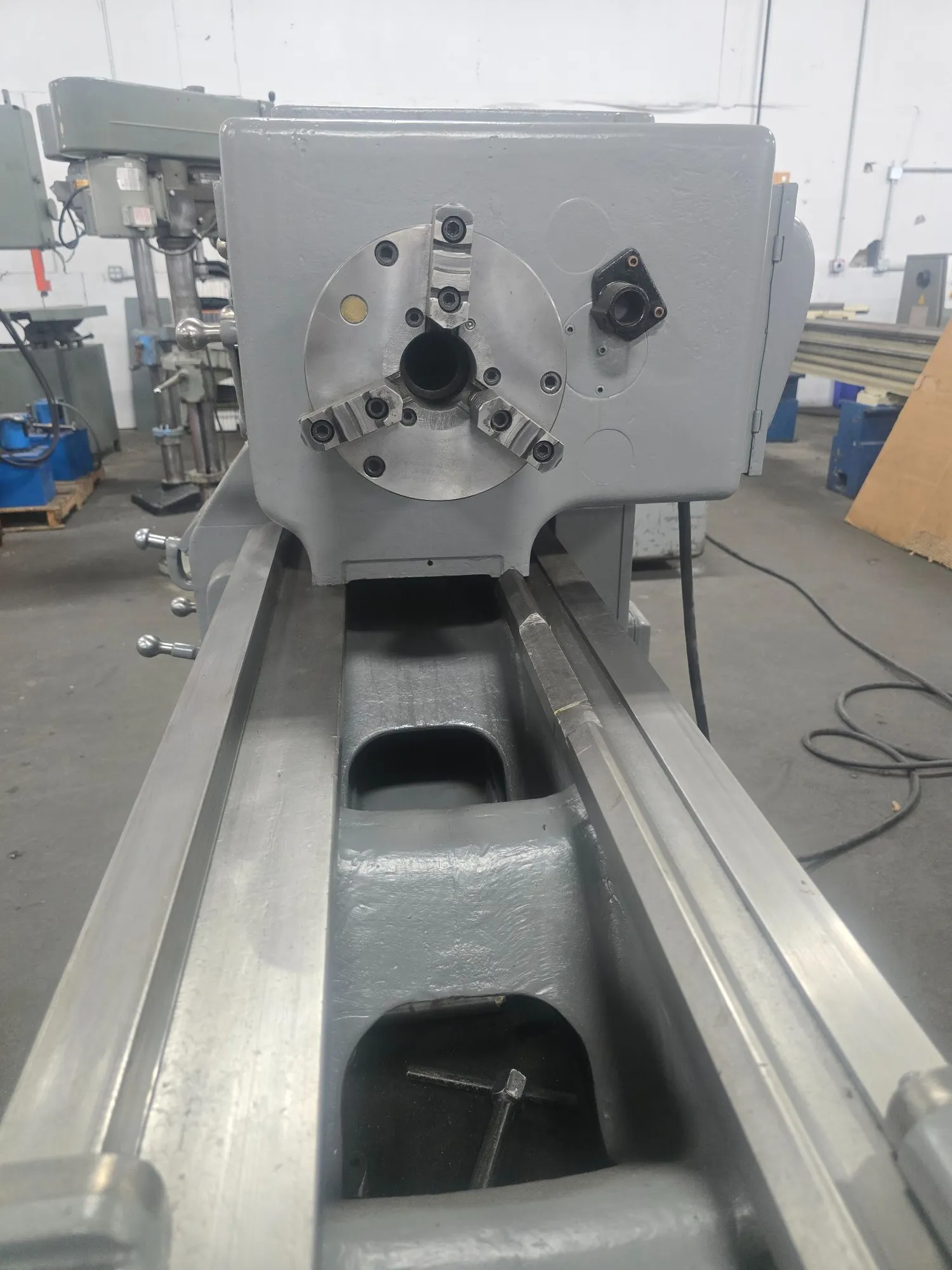

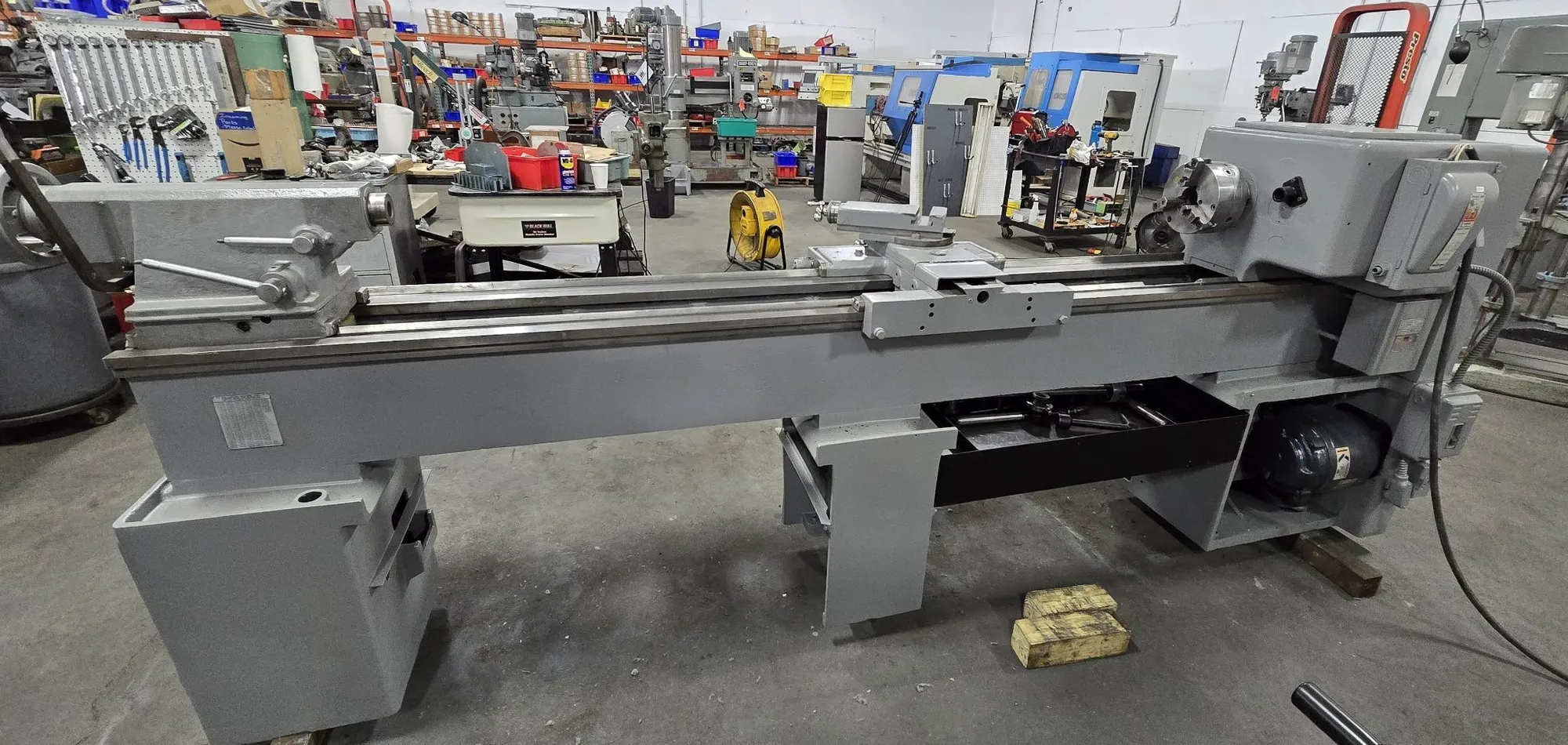

THIS LEBLOND REGAL IS A 19" X 78" ENGINE LATHE. ITS TECHNICAL CAPABILITIES INCLUDE A 19-1/2" SWING OVER WAYS AND A 12-1/4" SWING OVER THE CROSS SLIDE, WITH A GENEROUS 78" DISTANCE BETWEEN CENTERS. THE MACHINE IS EQUIPPED WITH A 10 HORSEPOWER MOTOR. THE SPINDLE OFFERS TWELVE SPEEDS RANGING FROM 38 TO 1500 RPM. OPERATORS HAVE ACCESS TO FORTY-EIGHT FEED SETTINGS, FROM .002 TO .116 INCHES PER REVOLUTION (IPR), AND FORTY-EIGHT THREAD SETTINGS, COVERING 2 TO 112 THREADS PER INCH (TPI). THE SPINDLE HOLE DIAMETER MEASURES 1-49/64". STANDARD FEATURES AND INCLUDED ACCESSORIES CONSIST OF A BISON 3-JAW CHUCK, A 5C COLLET CLOSER, HARDEN REPLACEABLE WAYS, A THREAD DIAL, A CHIP PAN, AND A TAIL STOCK.
