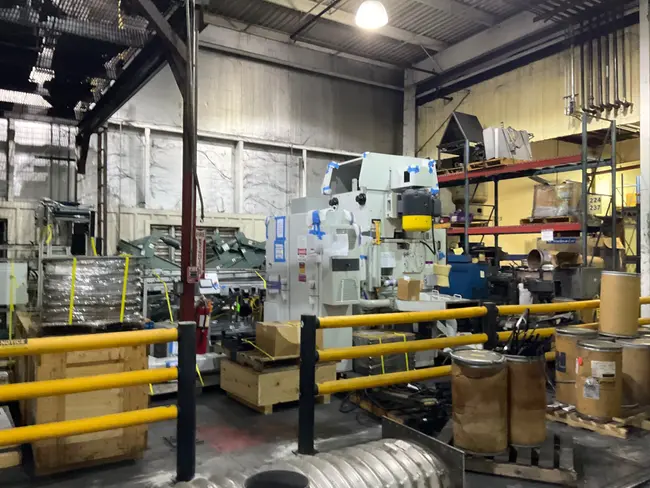

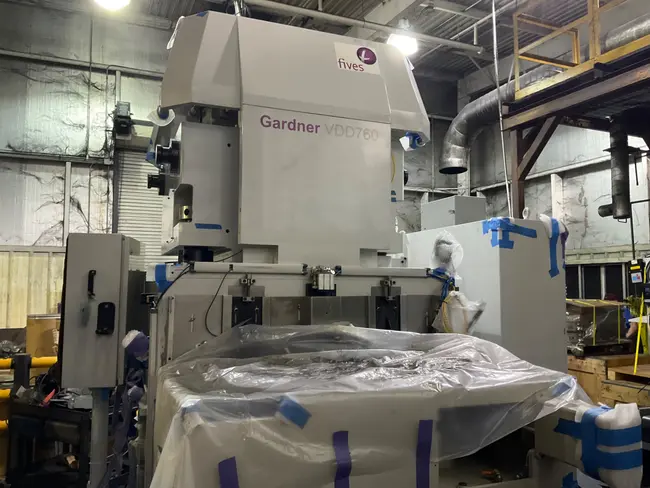

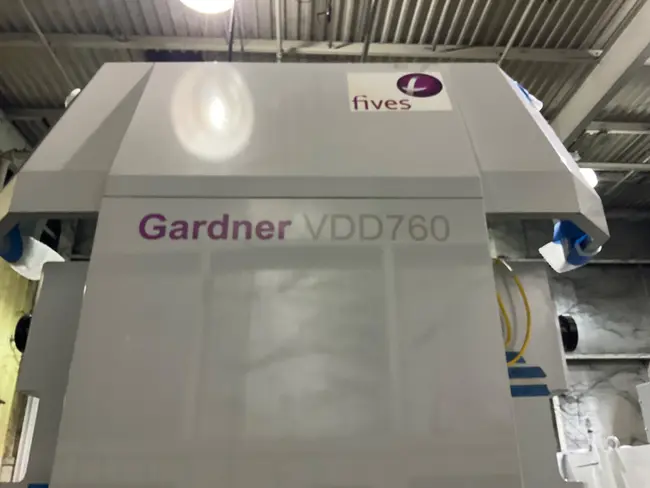

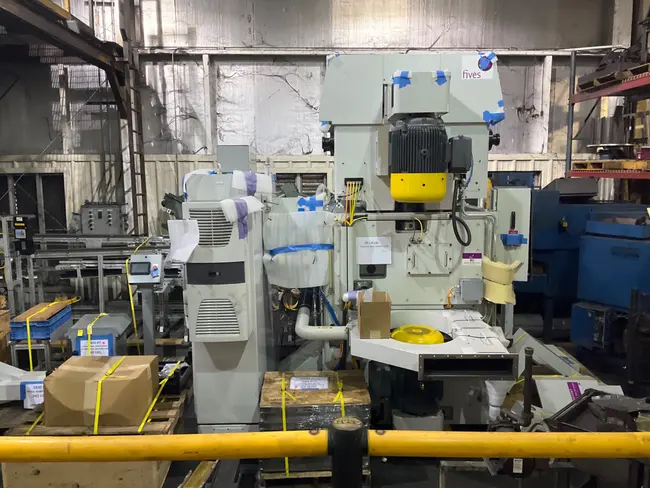

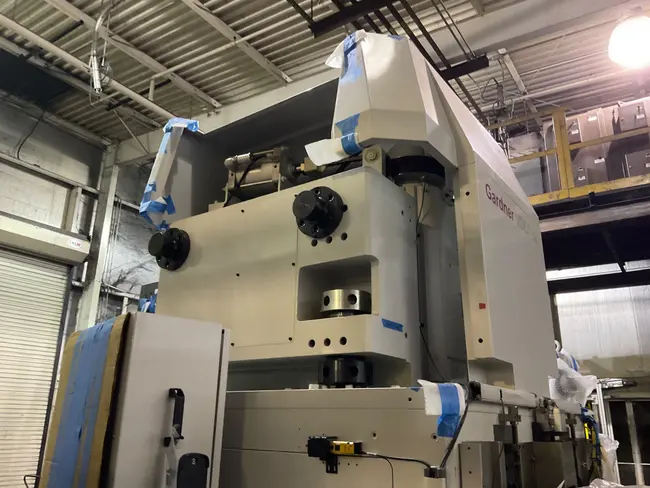

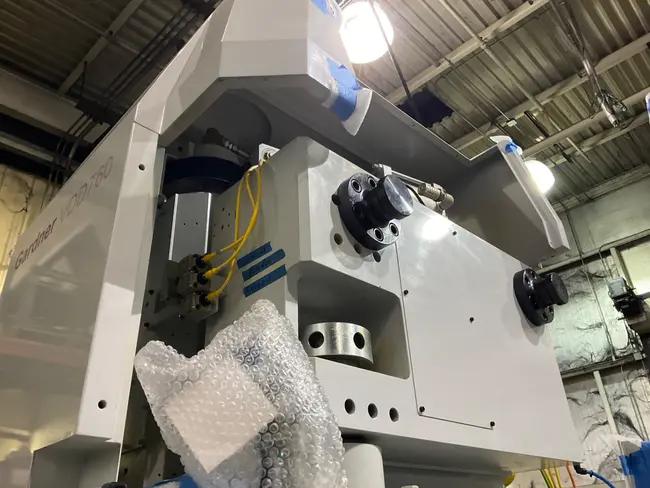

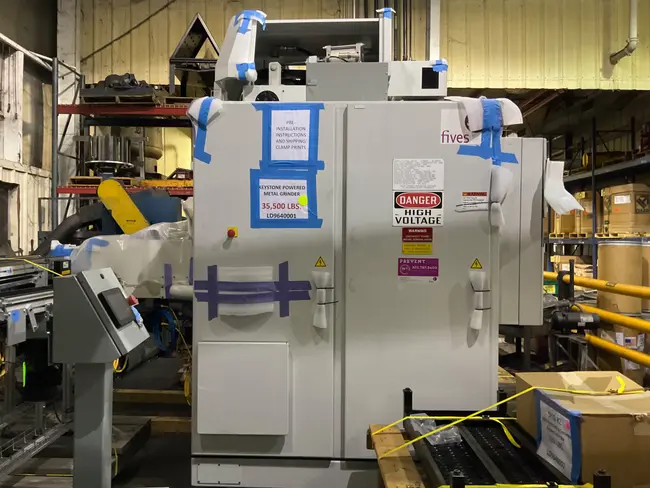

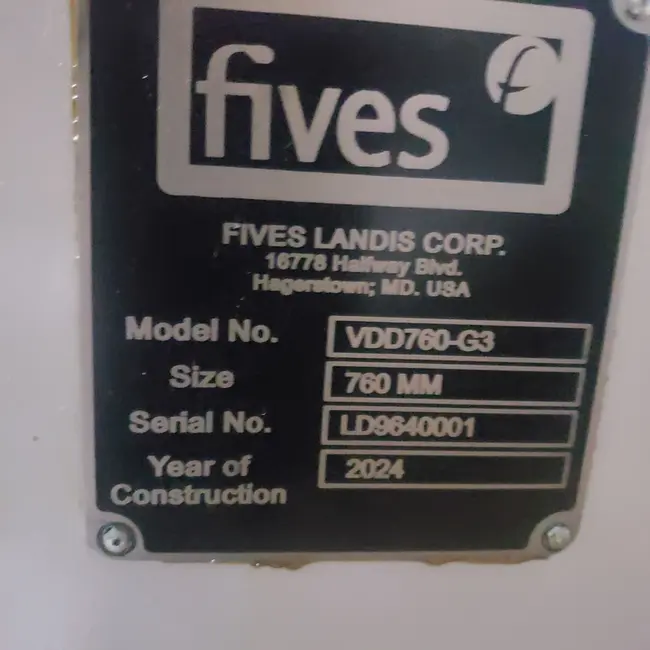

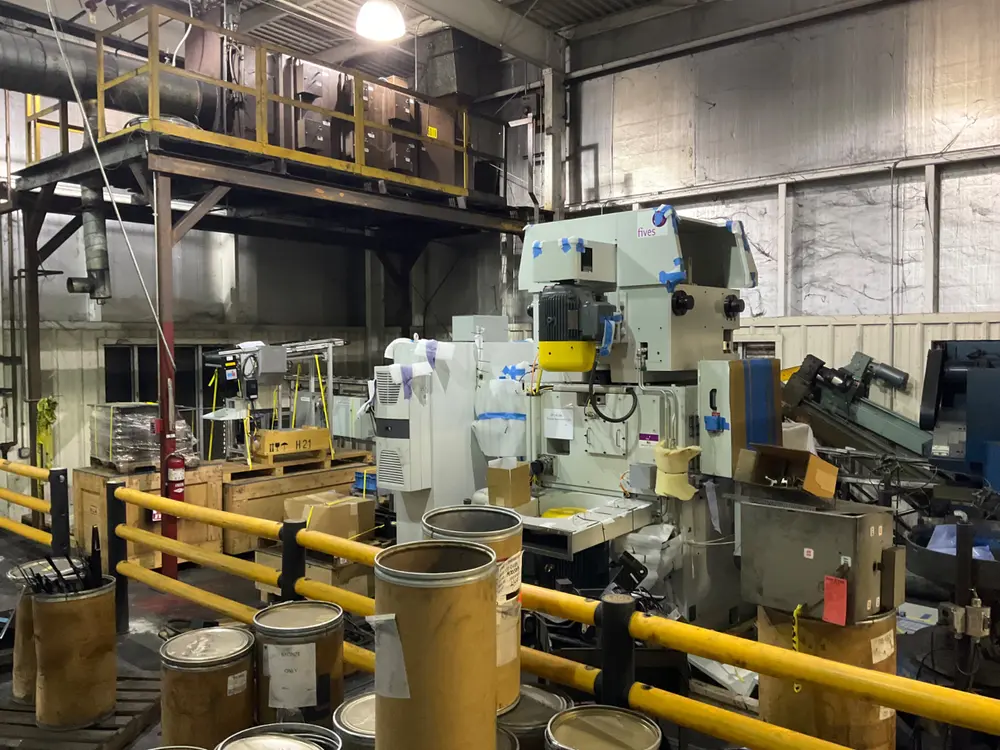

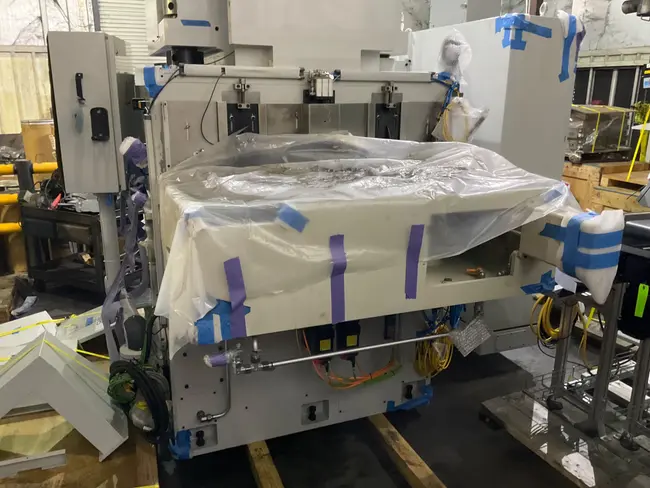

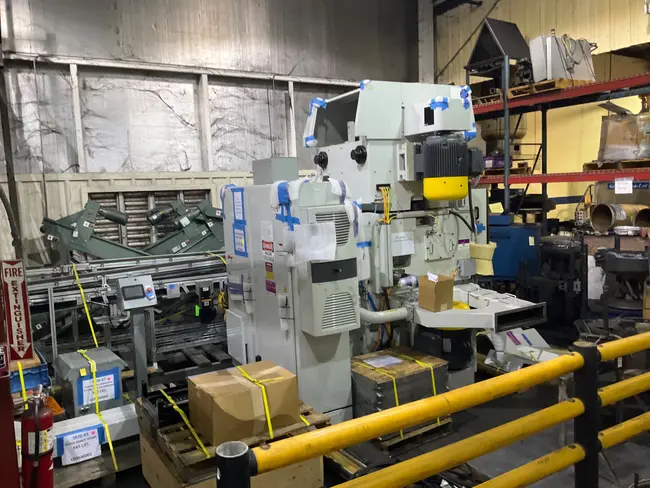

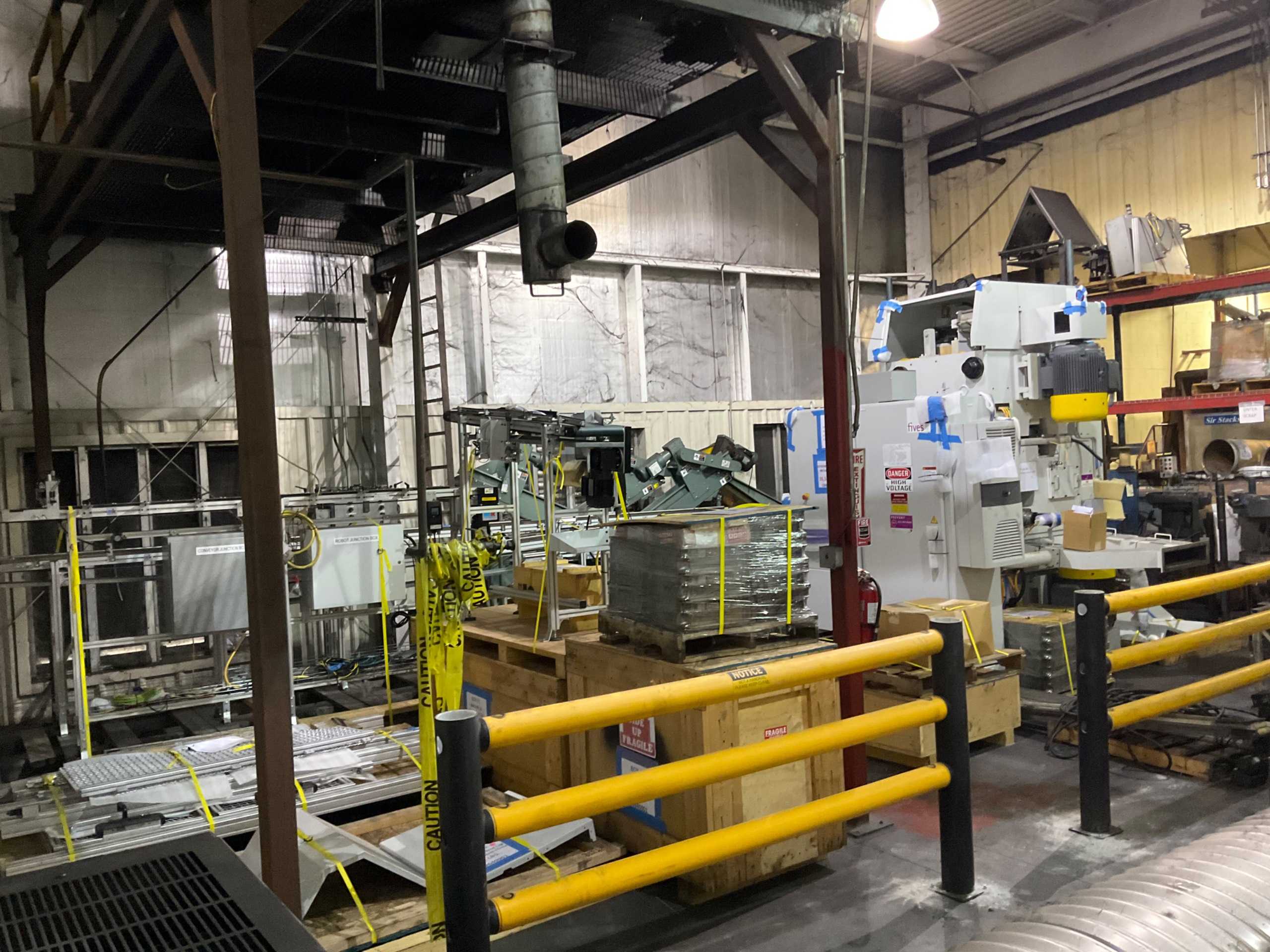

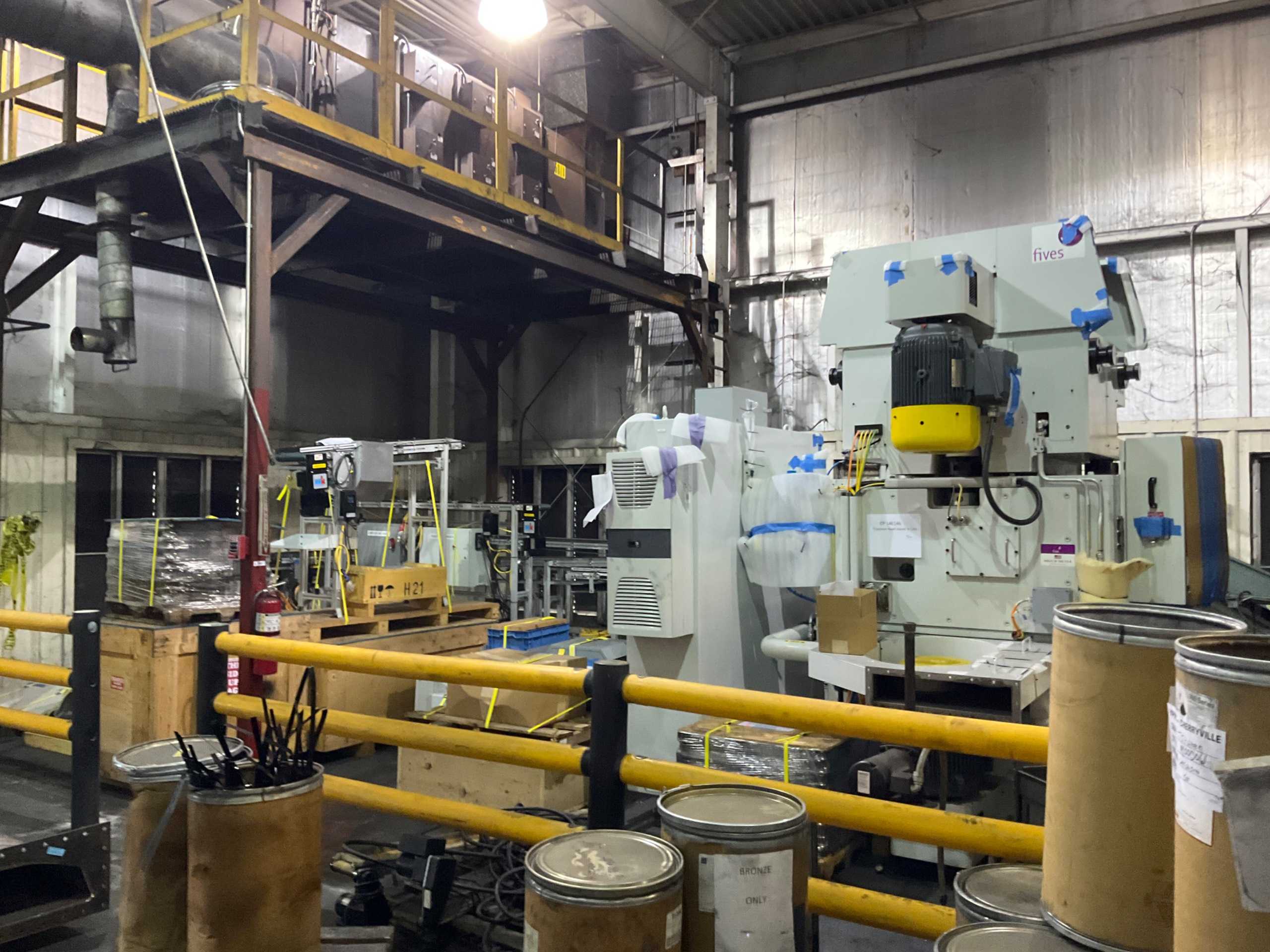

UNUSED 2024 FIVES LANDIS GARDNER VDD760G3 VERTICAL DOUBLE DISC GRINDER

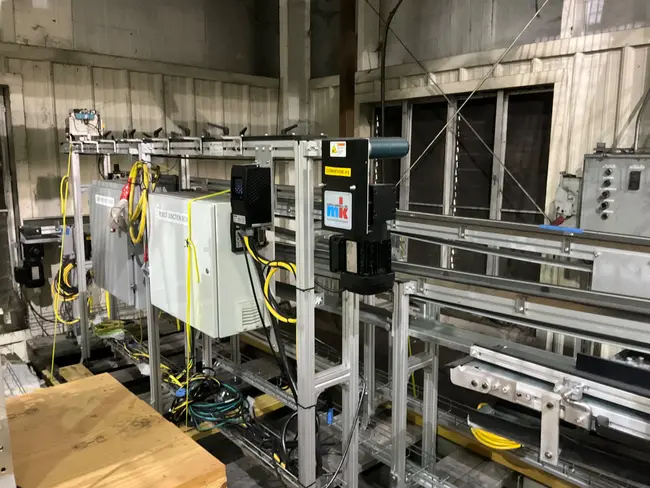

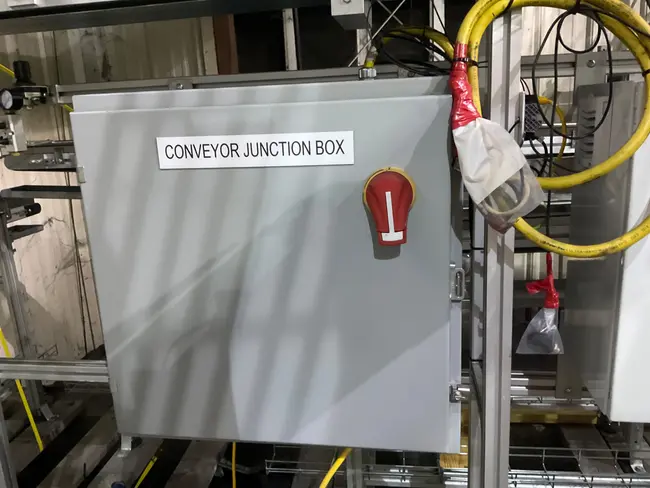

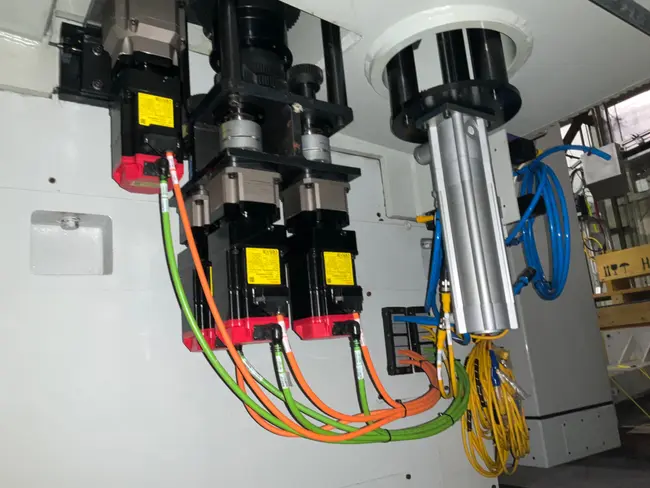

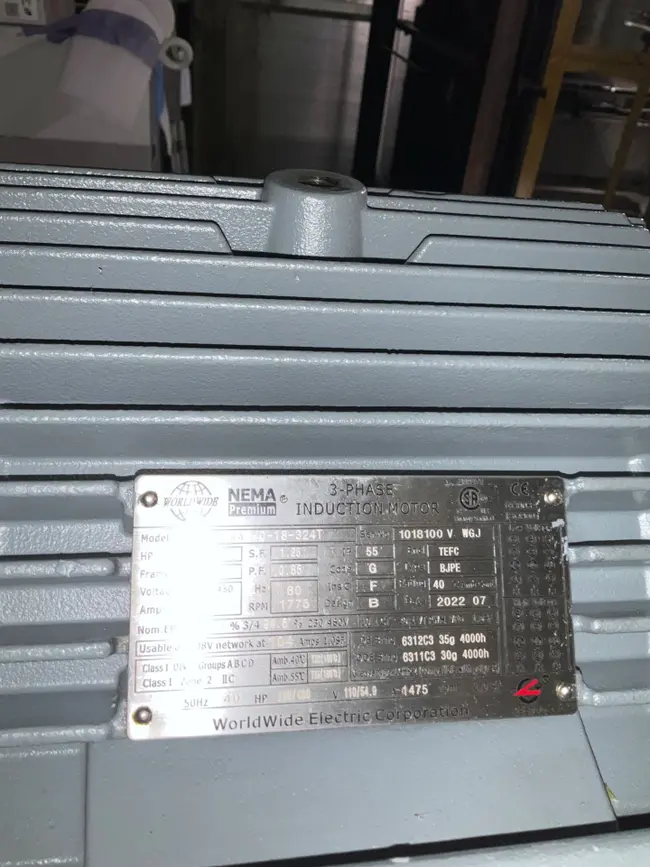

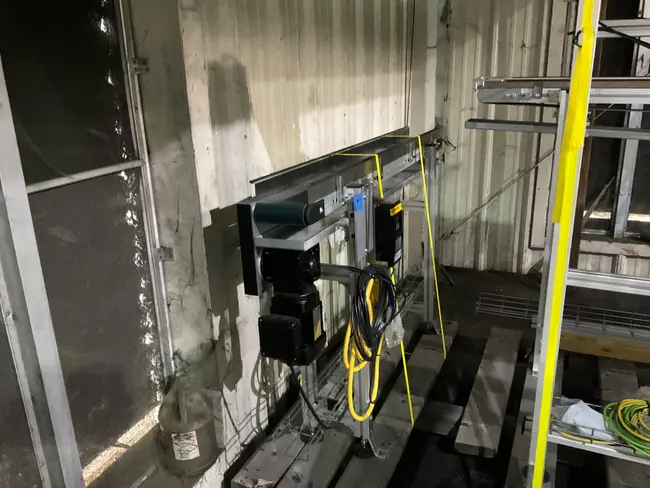

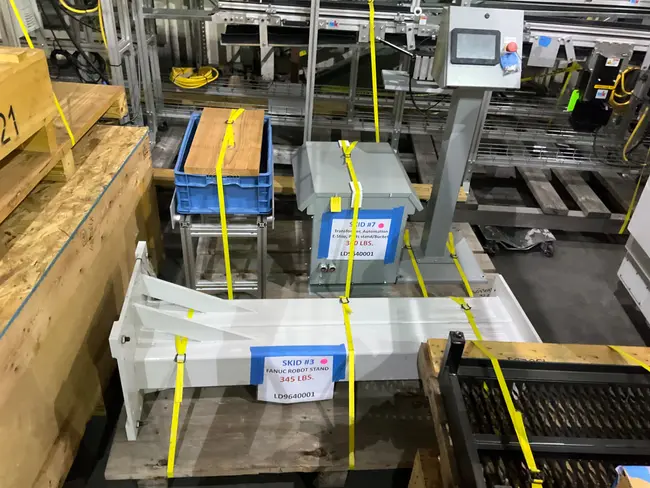

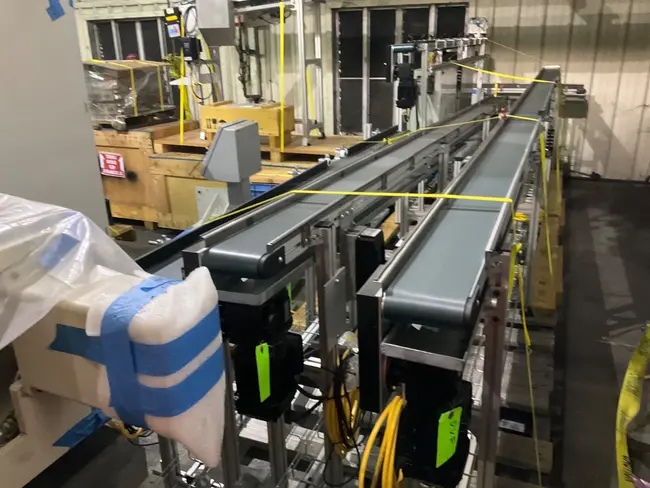

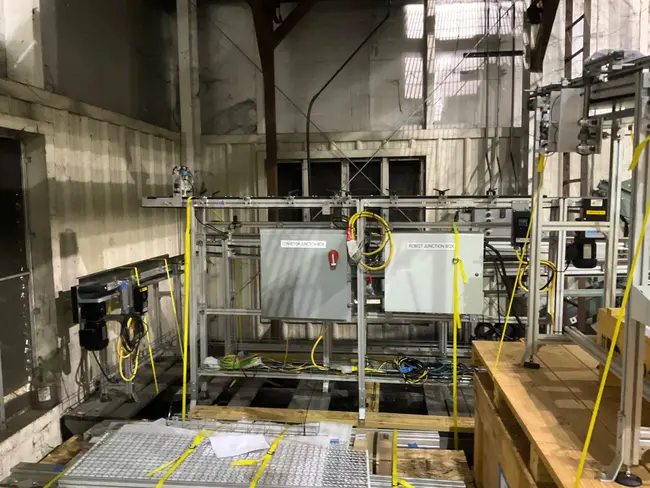

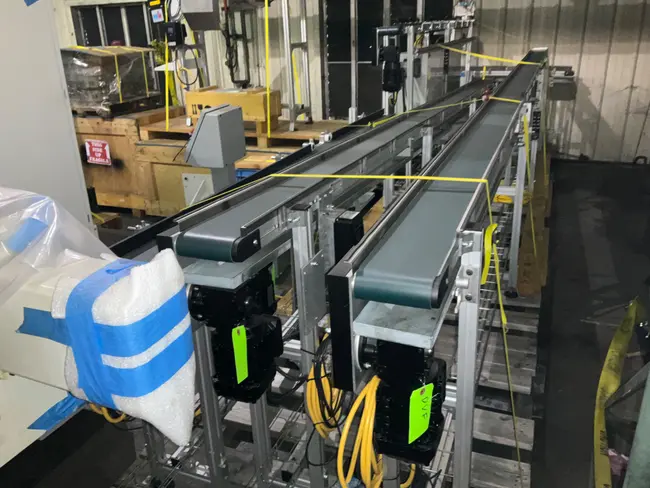

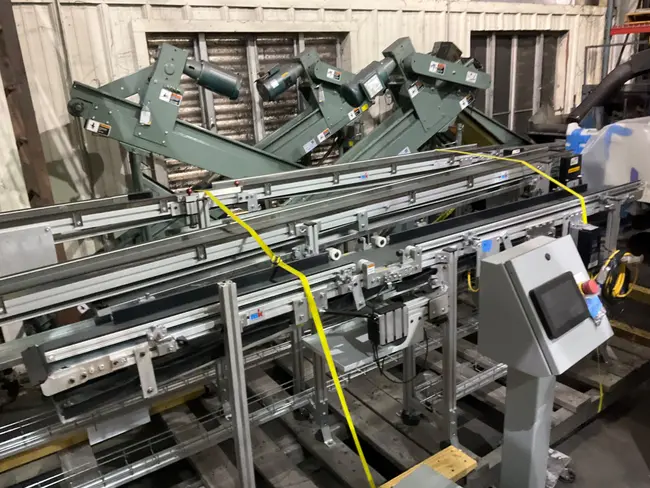

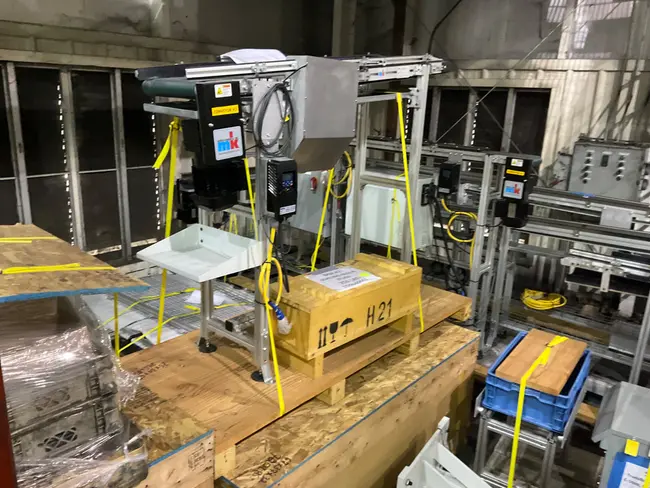

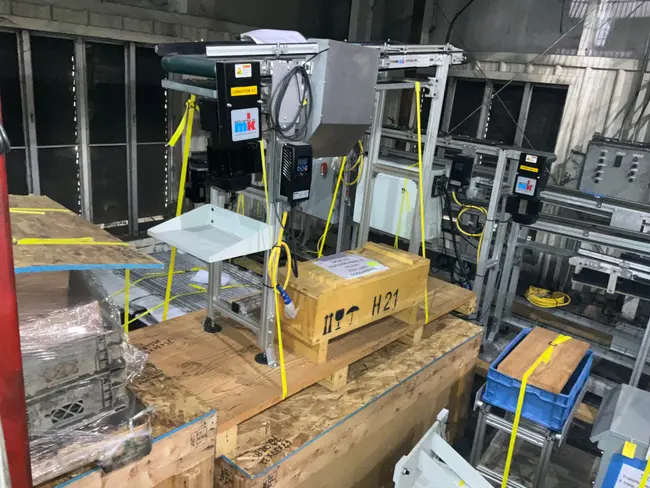

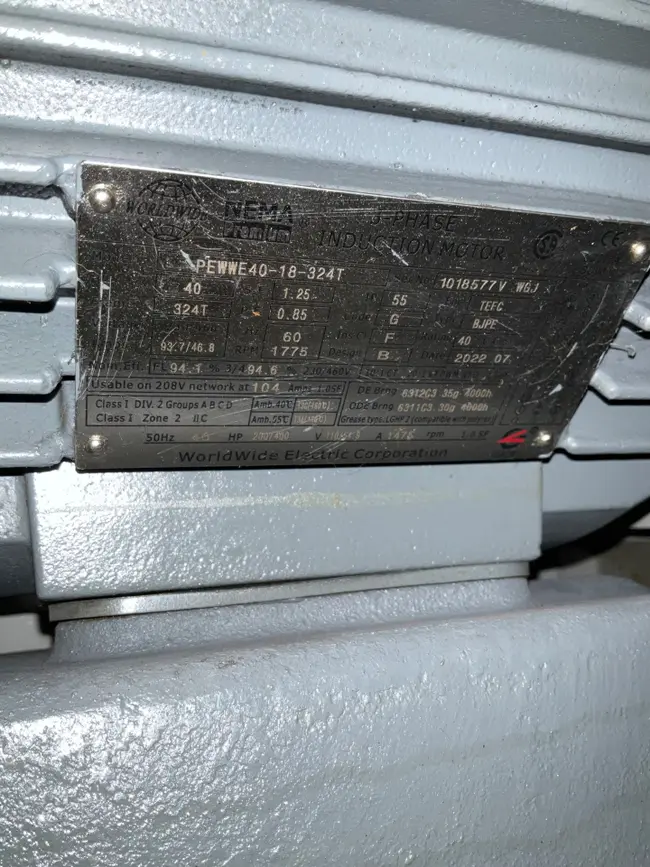

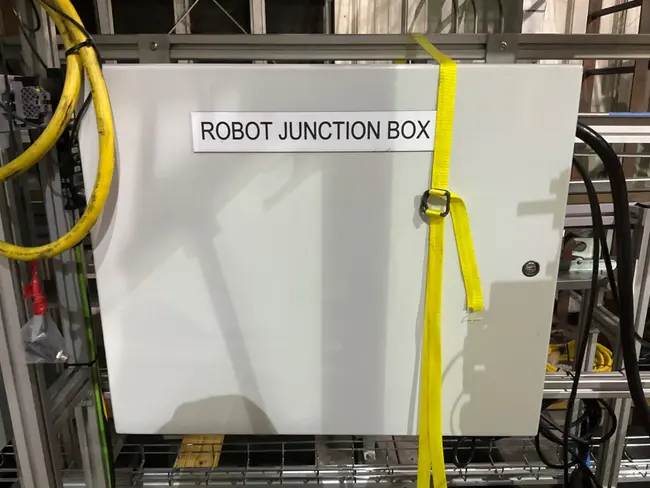

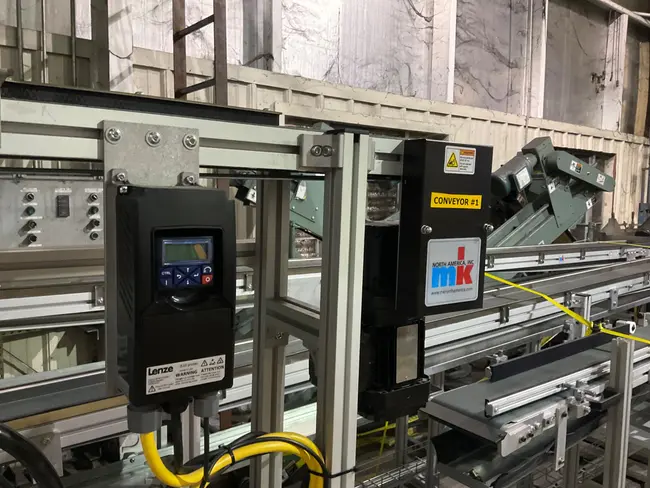

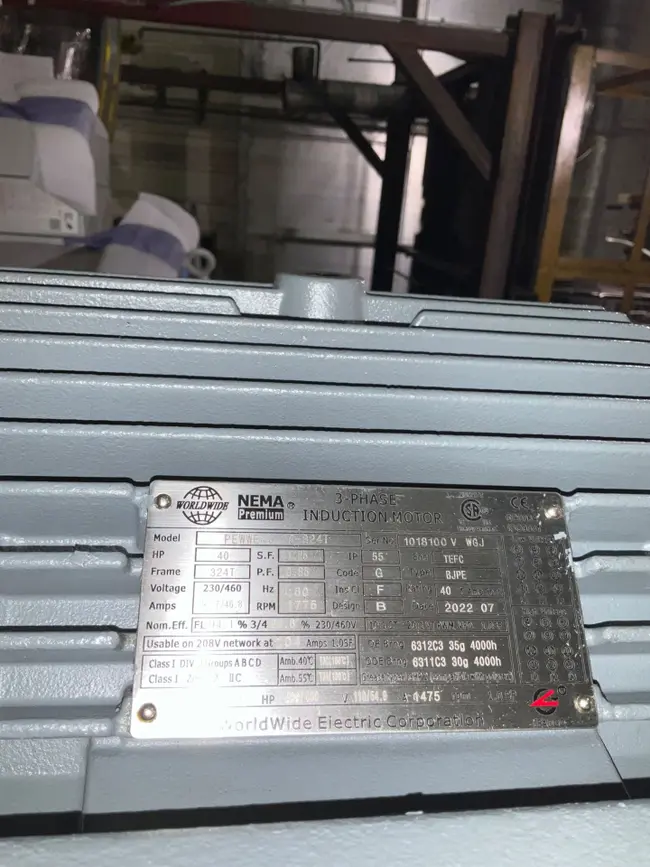

Type: Vertical Double Disc Grinder 760MM Contents: 1.) NEW VDD-760G3 Double Disc Grinder Cell: a. VDD-760G3 Double Disc Grinder b. Load / Unload Robot c. Post-Process Gage Linked to Grinder for Automatic Adjustment 2.) Conveyor System a. Infeed and Outfeed Conveyors for Double Disc Cell b. QC / Load/Unload Station c. Bypass Conveyor around Centerless Cell d. Infeed and Outfeed Conveyors for Centerless Cell e. Outfeed Conveyor from Centerless Cell f. QC / Load/Unload Station g. Drip Pans under Conveyors h. Interlocked Safety Fencing Around Double Disc Cell i. Interlocked Safety Fencing Around Centerless Cell Wheel Size: 760 mm x 190 mm x 5 mm Power: 40 hp TEFC premium efficient spindle motor with variable frequency drive Speed: Adjustable, driven by multiple vee belt and spline drive Grinding Cycle: 30mm part: Approx. 2.1 seconds per part 44mm part: Approx. 4.4 seconds per part 68mm part: Approx. 7.0 seconds per part 83mm part: Approx. 7.5 seconds per part Fixturing: Servo powered rotary carrier index fixture with 3 index plates (3 independent rotary pockets) Work Support: Supported via G3 fixture pocket and carrier plates Wheel Dressing: Rotary diamond dressing motor on a heavy-duty cast-iron arm Cooling System: Water-soluble coolant (Hocut 795), 60 GPM flow at 50 PSI, 30-micron filtration Machine Control: Fanuc 35i machine controller Lubrication: Automatic lubrication to linear rails and ball screw thrust bearings Noise Level: 80 dB(A) Electrical Supply: Voltage: 480V Phase: 3 Frequency: 60 Hz Full Load Current: 155A Disconnect Capacity: 200A Short Circuit Current Rating: 65KA Control Voltage: 24VDC Full Load Rating of Largest Motor: 57A Foundation Requirements: Stable floor capable of supporting 250 lbs/in², avoid shock loading areas Additional Features: Safety enclosures with sensor doors and signal tower Operator controls with manual and remote control options Integrated wheel balancing system Heavy-duty, motorized wheel change jib crane mounted on base Coolant flushing system and discharge from the side of the bed Demonstration: Dry Cycle: 8-hour test run Part Run: 1-hour with 30-piece continuous sample (Cpk 1.33)
