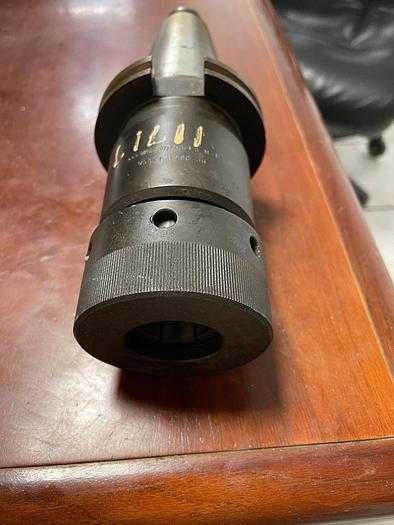

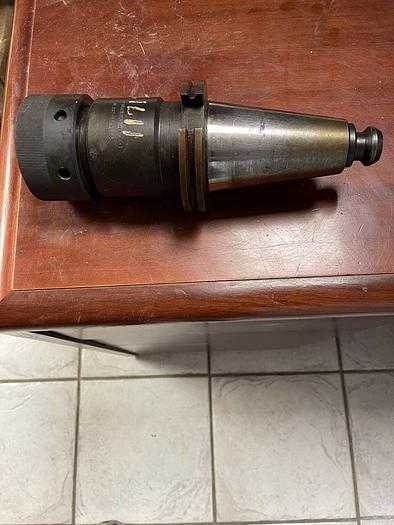

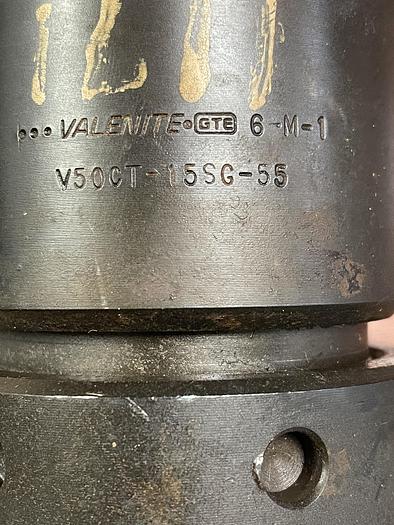

Valenite V50CT-15SG-55 CAT 50 Collet Holder, 5.5" Gage Length, TG150 Collet System, Tir 0.0004

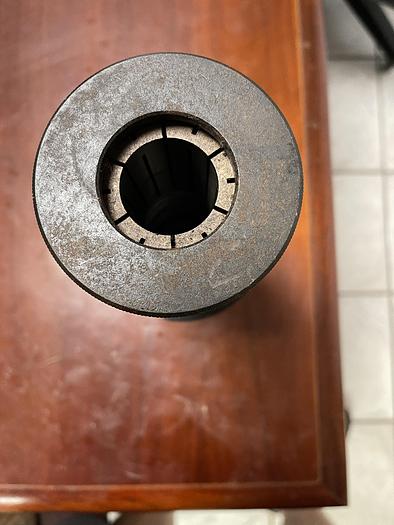

The Valenite V50CT-15SG-55 is a CAT 50 taper collet holder designed for use with TG150 series collets. This tool holder features a V-flange configuration suitable for CNC machining centers and is engineered to accommodate the industry-standard Erickson single-angle collet system. The TG150 collet system provides a 3:1 gripping advantage for high-accuracy applications, including tapping and drilling. Technical specifications indicate a projection or gage length of 5.5 inches (represented by the 55 suffix in the model number). The holder includes a collet lock nut and is compatible with TG150 collets which offer a clamping range of 1/64 inch and a typical TIR of 0.0004 inch. The system supports cylindrical shanks with squares, and the collet design includes a slot that acts as a drive for tap squares to ensure reliable torque transmission. No year of manufacture is available.
