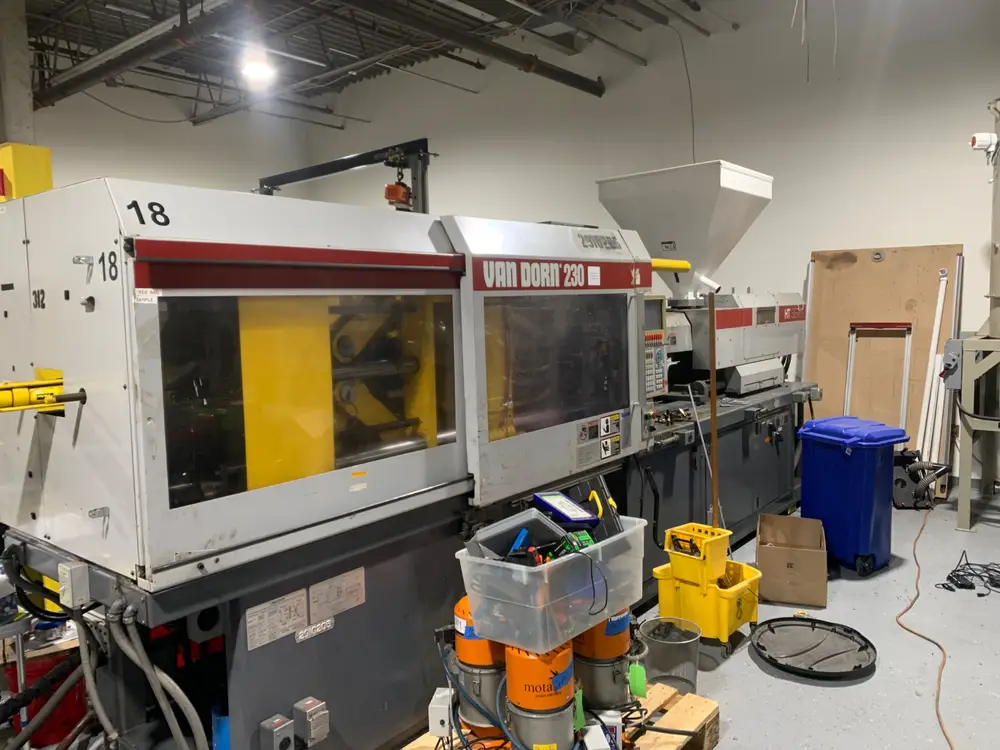

VAN DORN 230 INJECTION MOLDING MACHINE

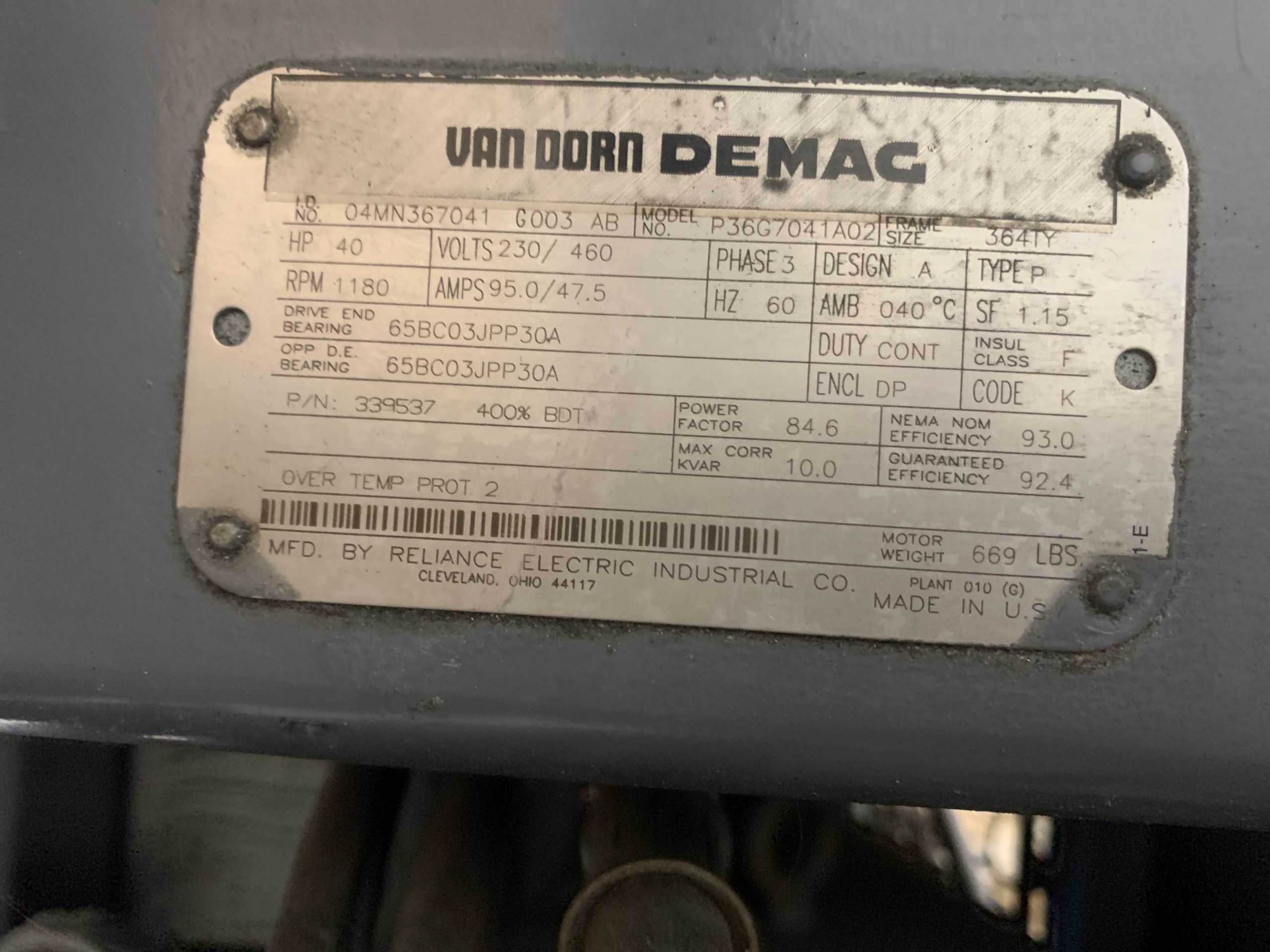

OVERVIEW THE VAN DORN 230 HT IS A HIGH-PERFORMANCE INJECTION MOLDING MACHINE ENGINEERED FOR PRECISION AND EFFICIENCY IN HIGH-PRESSURE AND HIGH-SPEED MOLDING APPLICATIONS. THIS MACHINE IS DESIGNED TO MEET THE DEMANDING REQUIREMENTS OF VARIOUS INDUSTRIES, INCLUDING AUTOMOTIVE, CONSUMER GOODS, AND MEDICAL DEVICE MANUFACTURING. SPECIFICATIONS CLAMPING FORCE: 230 TONS SHOT SIZE CAPACITY: VARIES BY MODEL; COMMON CONFIGURATIONS INCLUDE: 25.4 OZ (E.G., HT-230-1220) 8.2 OZ (OLDER MODELS) TIE BAR SPACING: 22" X 22" PLATEN SIZE: 32" X 32" MAXIMUM DAYLIGHT: 42" FEATURES HIGH-PRESSURE AND HIGH-SPEED OPERATION: THE VAN DORN 230 HT IS DESIGNED TO DELIVER RAPID CYCLE TIMES AND HIGH INJECTION PRESSURES, ENSURING EFFICIENT PRODUCTION OF COMPLEX PARTS. VERSATILE MATERIAL COMPATIBILITY: CAPABLE OF PROCESSING A WIDE RANGE OF THERMOPLASTIC MATERIALS, MAKING IT SUITABLE FOR DIVERSE APPLICATIONS. ROBUST CONSTRUCTION: BUILT FOR DURABILITY AND RELIABILITY, THE MACHINE IS ENGINEERED TO WITHSTAND THE RIGORS OF CONTINUOUS INDUSTRIAL USE. USER-FRIENDLY INTERFACE: EQUIPPED WITH AN INTUITIVE CONTROL SYSTEM THAT ALLOWS FOR EASY OPERATION AND MONITORING OF THE MOLDING PROCESS. RELIANCE P36G7041A02 MOTOR SPECIFICATIONS VOLTS 230/460 AMPS 95.0/47.5 HP 40 RPM 1180 PHASE 3 HZ 60
