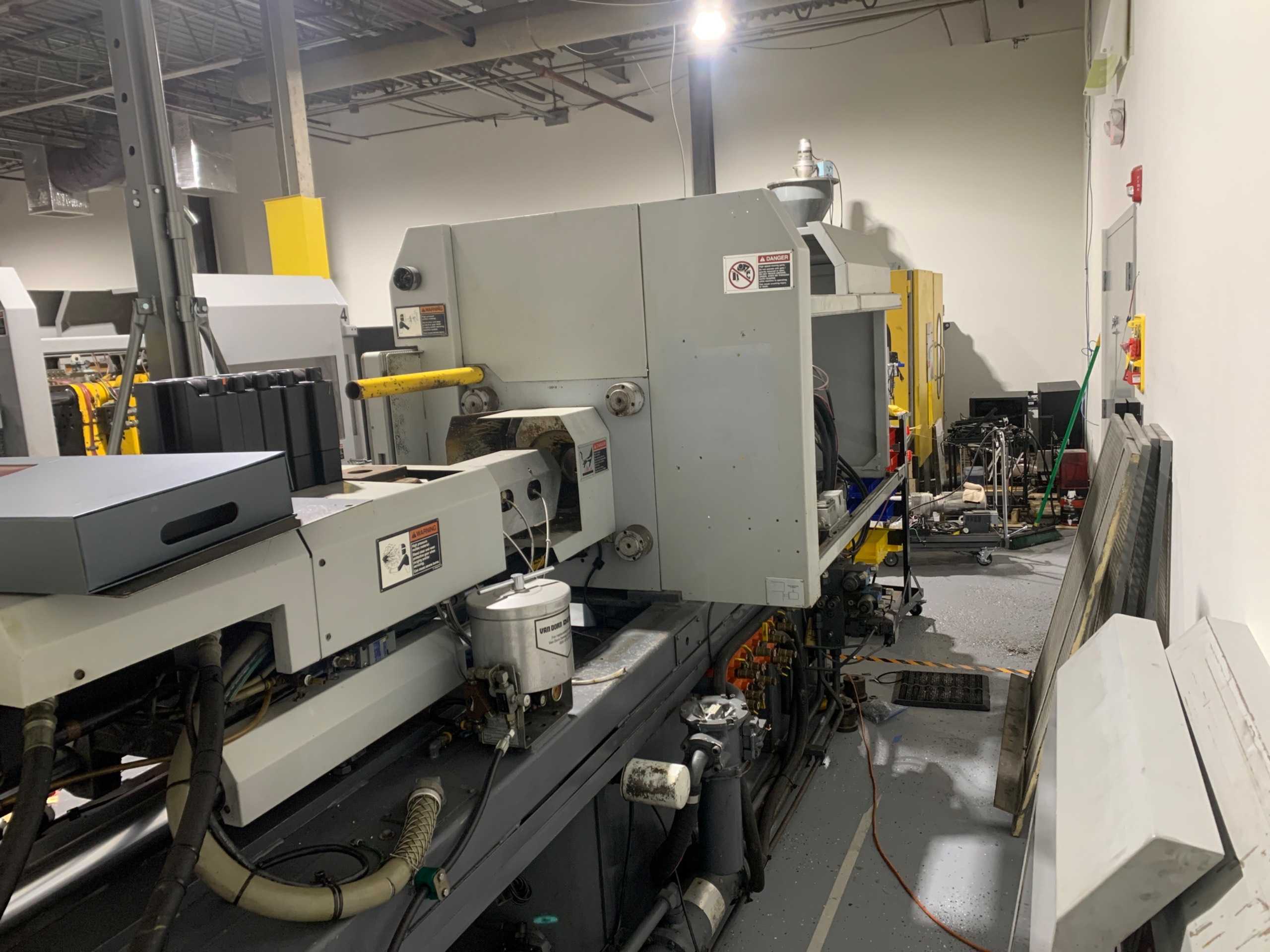

VAN DORN PATHFINDER 1000 INJECTION MOLDING MACHINE

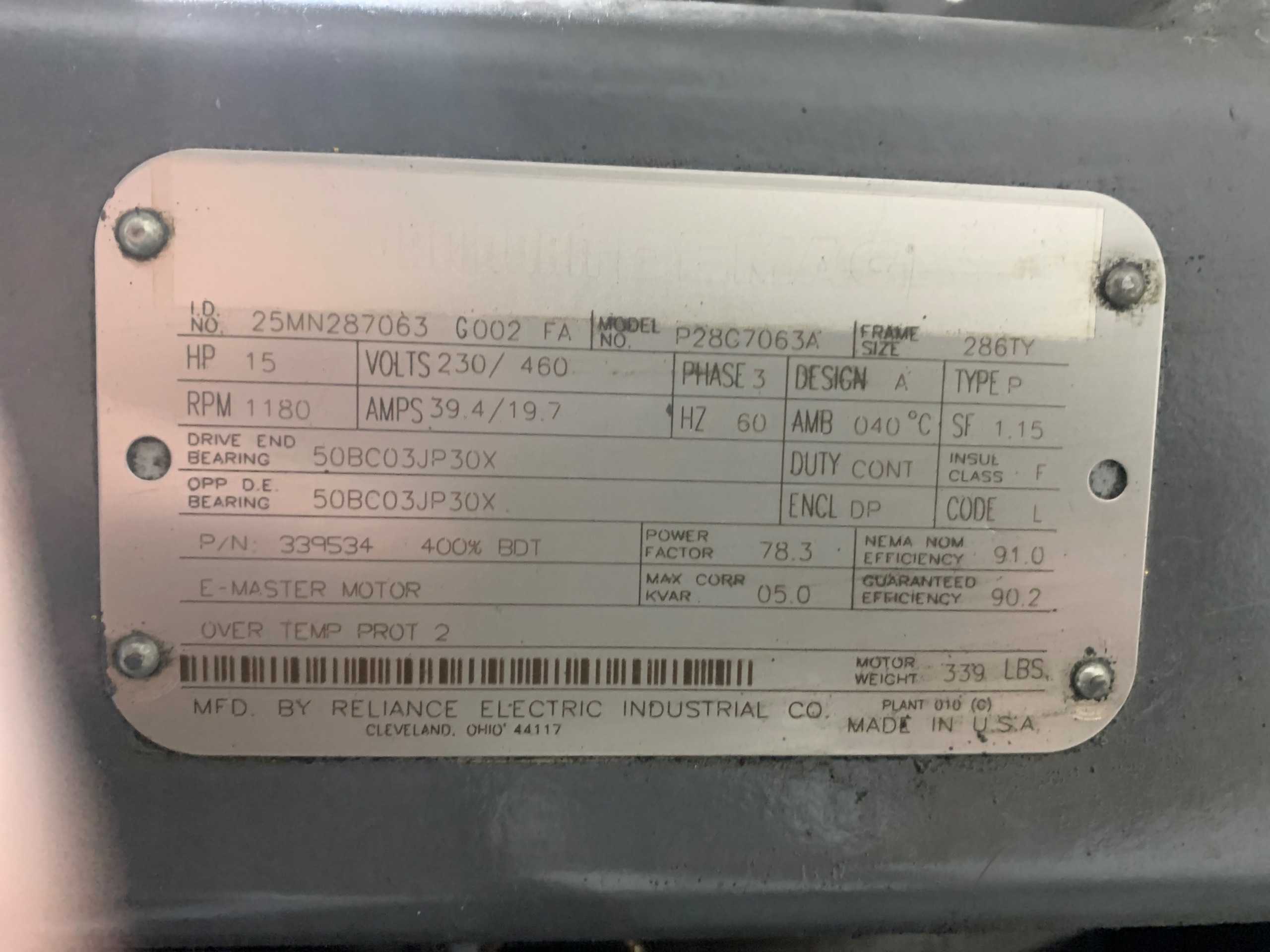

85 TON INJECTION MOLDING MACHINE OVERVIEW: THE VAN DORN 85 IS A HYDRAULIC INJECTION MOLDING MACHINE DESIGNED FOR THE EFFICIENT AND PRECISE MANUFACTURING OF PLASTIC COMPONENTS. WITH A CLAMPING TONNAGE OF 85 TONS, THIS MACHINE IS WELL-SUITED FOR PRODUCING SMALL TO MEDIUM-SIZED PARTS, MAKING IT IDEAL FOR VARIOUS APPLICATIONS IN INDUSTRIES SUCH AS AUTOMOTIVE, MEDICAL DEVICES, AND CONSUMER GOODS. SPECIFICATIONS: CLAMPING TONNAGE: 85 TONS SHOT SIZE: 5 OZ (APPROXIMATELY 142 GRAMS) TIE BAR SPACING: 16" X 13.6" (406MM X 345MM) PLATEN SIZE: 22.8" X 20.04" (APPROXIMATELY 579MM X 509MM) DAYLIGHT RANGE: 4" (MINIMUM) TO 28" (MAXIMUM) INJECTION RATE: 8.4–8.5 CU. IN./SEC (APPROXIMATELY 138–139 CM³/SEC) AT 700 BAR 13.6 CU. IN./SEC AT 10,000 PSI MOTOR POWER: 15 HP CONTROLS: PATHFINDER 1000 RELIANCE P28G7063A MOTOR SPECIFICATIONS VOLTS 230/460 AMPS 39.4/19.7 HP 15 RPM 1180 PHASE 3 HZ 60
