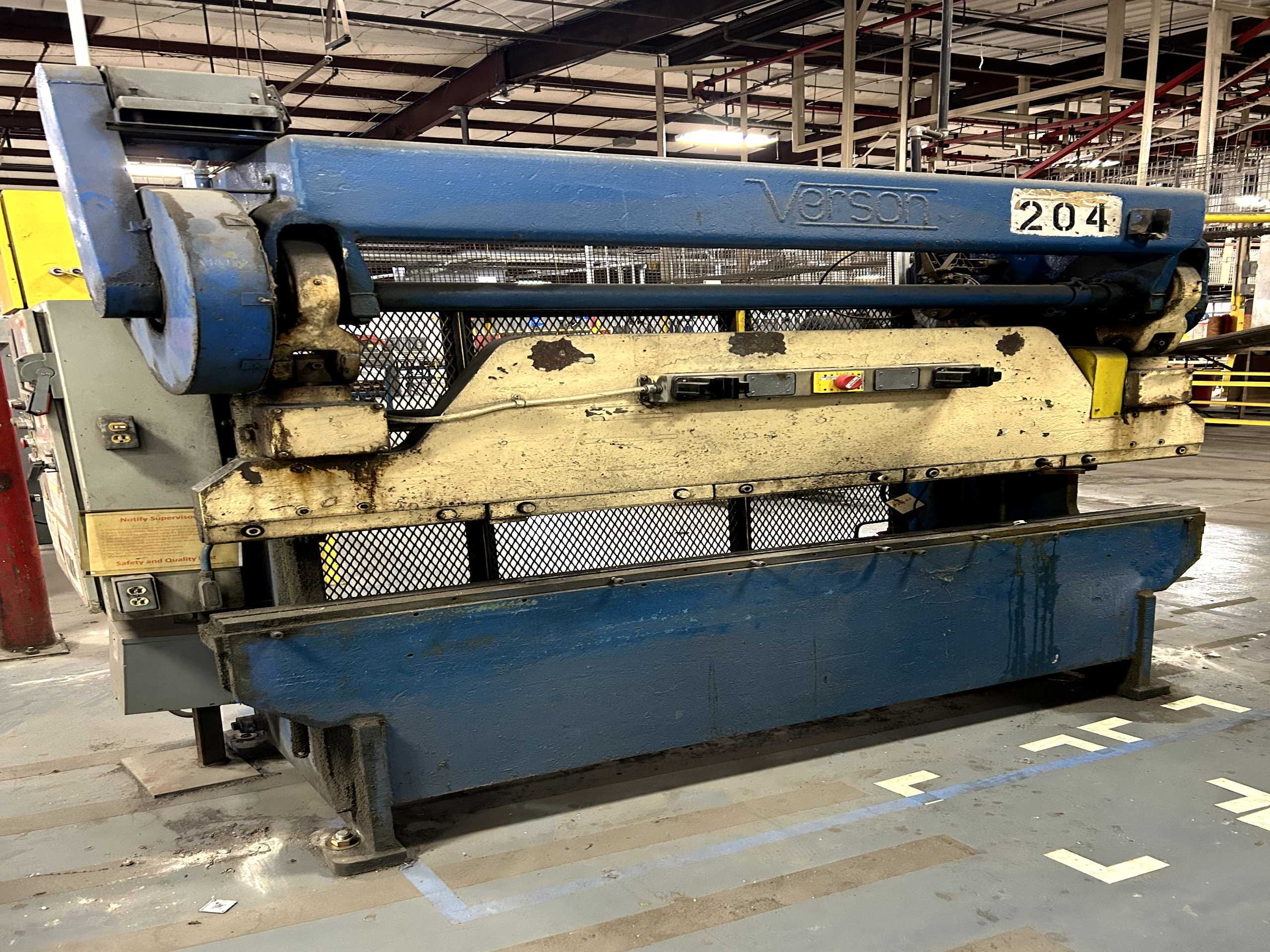

VERSON 2078 JR. PRESS BRAKE 50-TON, 8-FOOT, 40-SPM, 3-HP, 2.5-INCH-STROKE, 230/460V

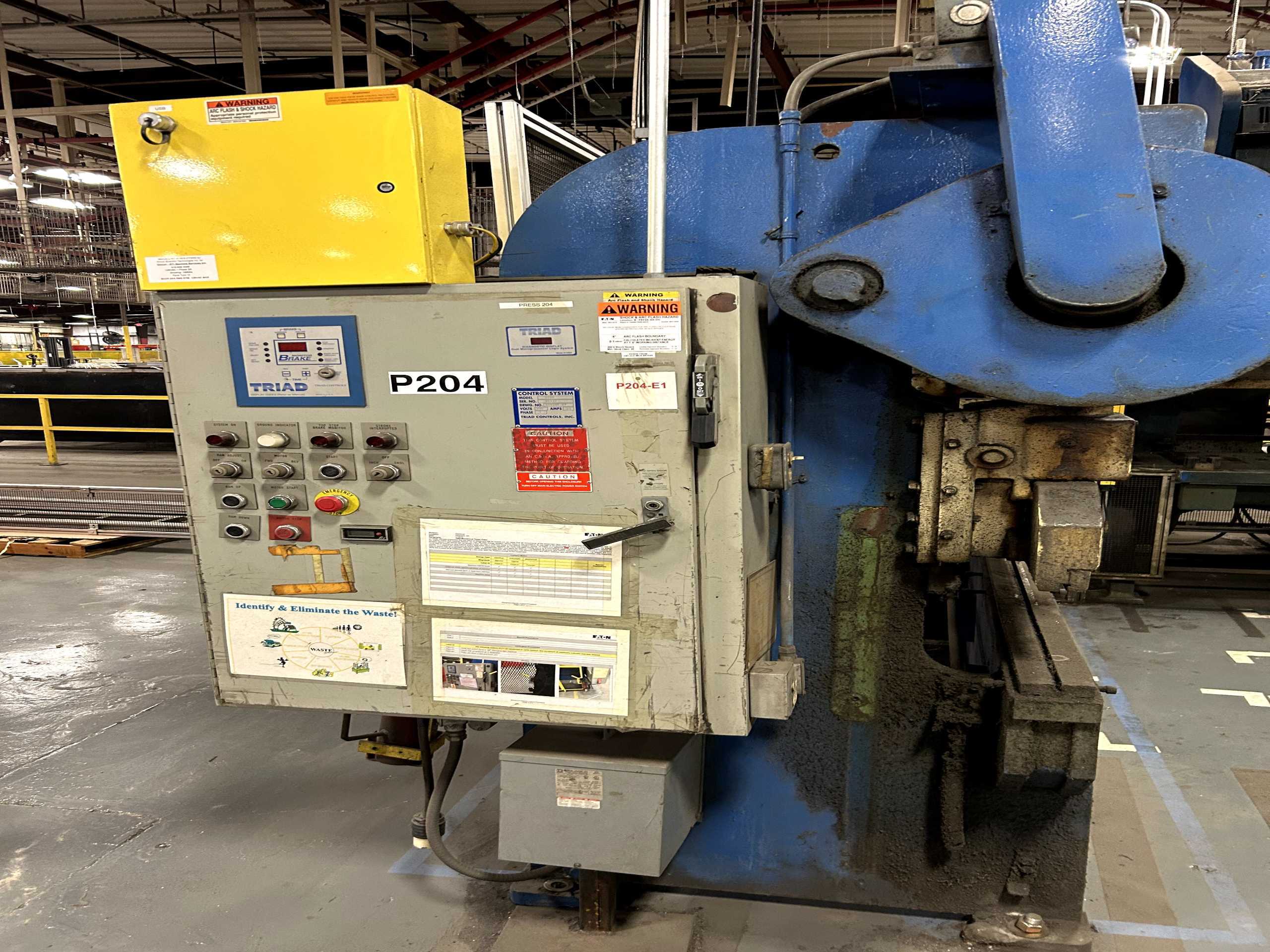

THE VERSON MODEL 2078 JR. IS A MECHANICAL PRESS BRAKE DESIGNED FOR PRECISION METAL BENDING AND FABRICATION. THIS ALL-STEEL MACHINE FEATURES A 45-TON TO 50-TON CAPACITY AND AN 8-FOOT (96-INCH) OVERALL BED AND RAM LENGTH. THE DISTANCE BETWEEN THE HOUSINGS IS 78 INCHES. IT IS TYPICALLY POWERED BY A 3 HP DRIVE MOTOR OPERATING AT 1,800 RPM, SUPPORTING A PRODUCTION SPEED OF APPROXIMATELY 40 STROKES PER MINUTE. TECHNICAL SPECIFICATIONS INCLUDE A STANDARD STROKE OF 2.5 INCHES, A 3-INCH POWER RAM ADJUSTMENT, AND A SHUT HEIGHT OF 12 INCHES WITH THE STROKE DOWN AND ADJUSTMENT UP. THE MACHINE INCORPORATES A 7-INCH TO 8-INCH THROAT DEPTH AND A BED HEIGHT OF 32 TO 36 INCHES FROM THE FLOOR. ELECTRICAL REQUIREMENTS ARE GENERALLY 230/460 VOLTS, 3-PHASE, 60 HZ POWER. THIS MODEL MAY BE EQUIPPED WITH A MODEL 3200 CONTROL SYSTEM, MANUAL BACK GAUGES, AND A FULL-LENGTH FOOT TREADLE. PHYSICAL DIMENSIONS ARE APPROXIMATELY 112 INCHES WIDE, 72 INCHES DEEP, AND 85 TO 93 INCHES HIGH, WITH AN ESTIMATED WEIGHT OF 8,000 TO 9,000 LBS. ADDITIONAL FEATURES OFTEN INCLUDE SECTIONAL RAM DIE CLAMPS, A 6.25-INCH HIGH DIE RAIL, AND A 19:1 GEARING RATIO.
