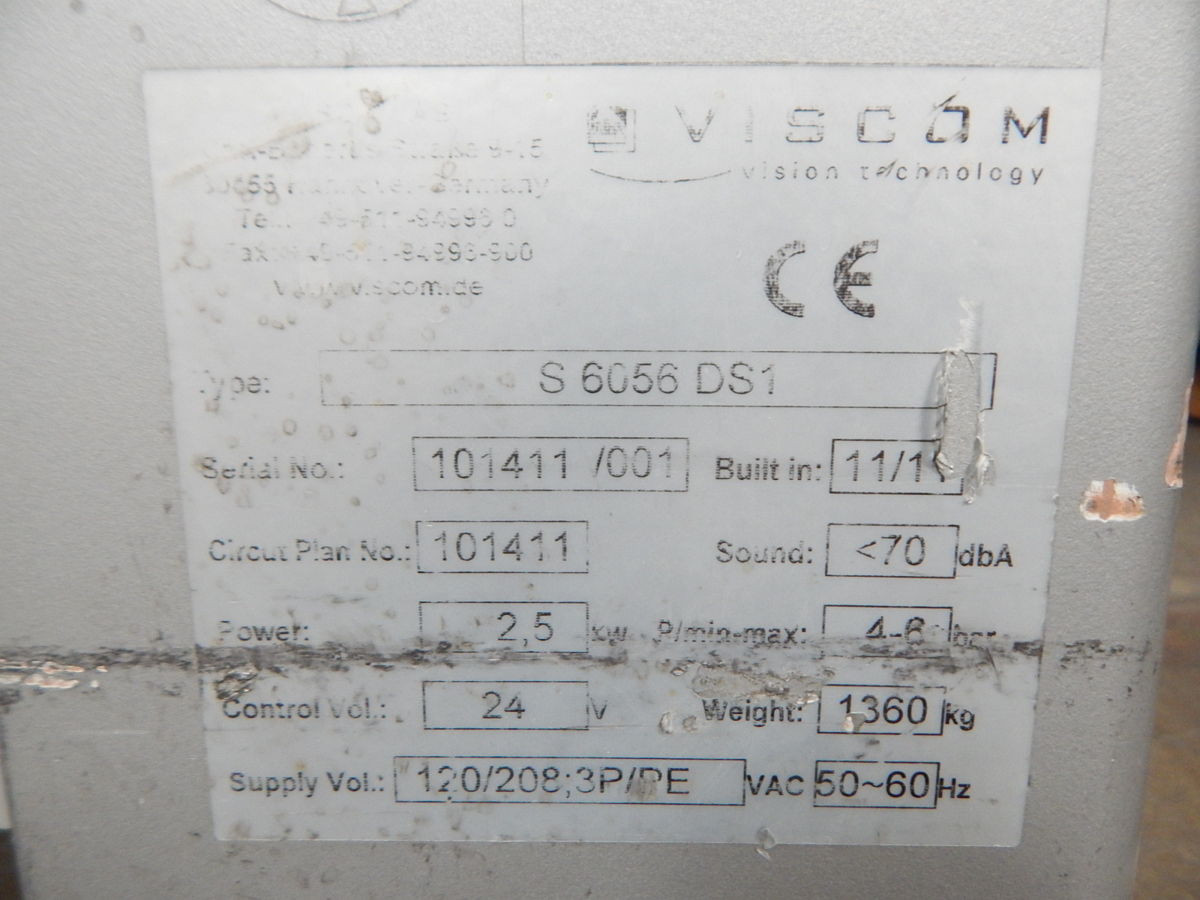

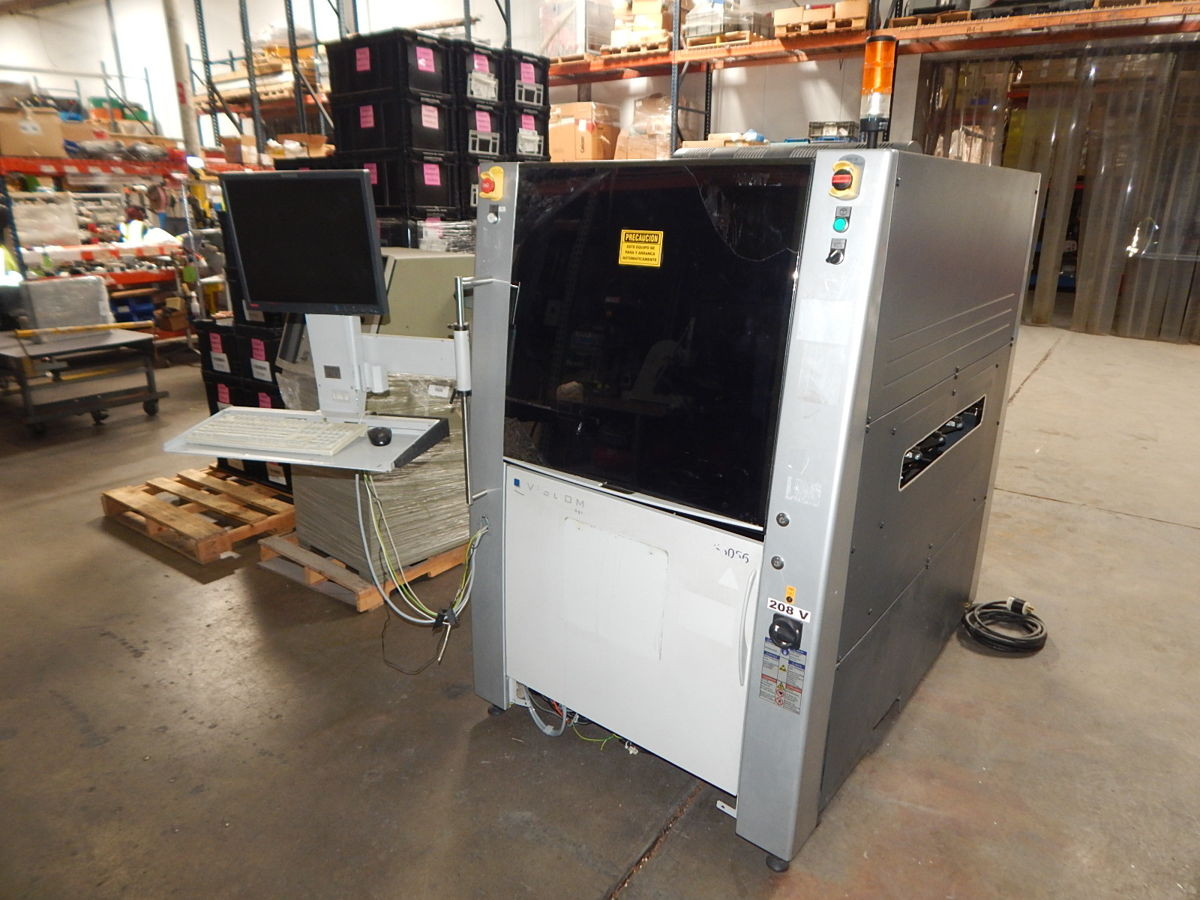

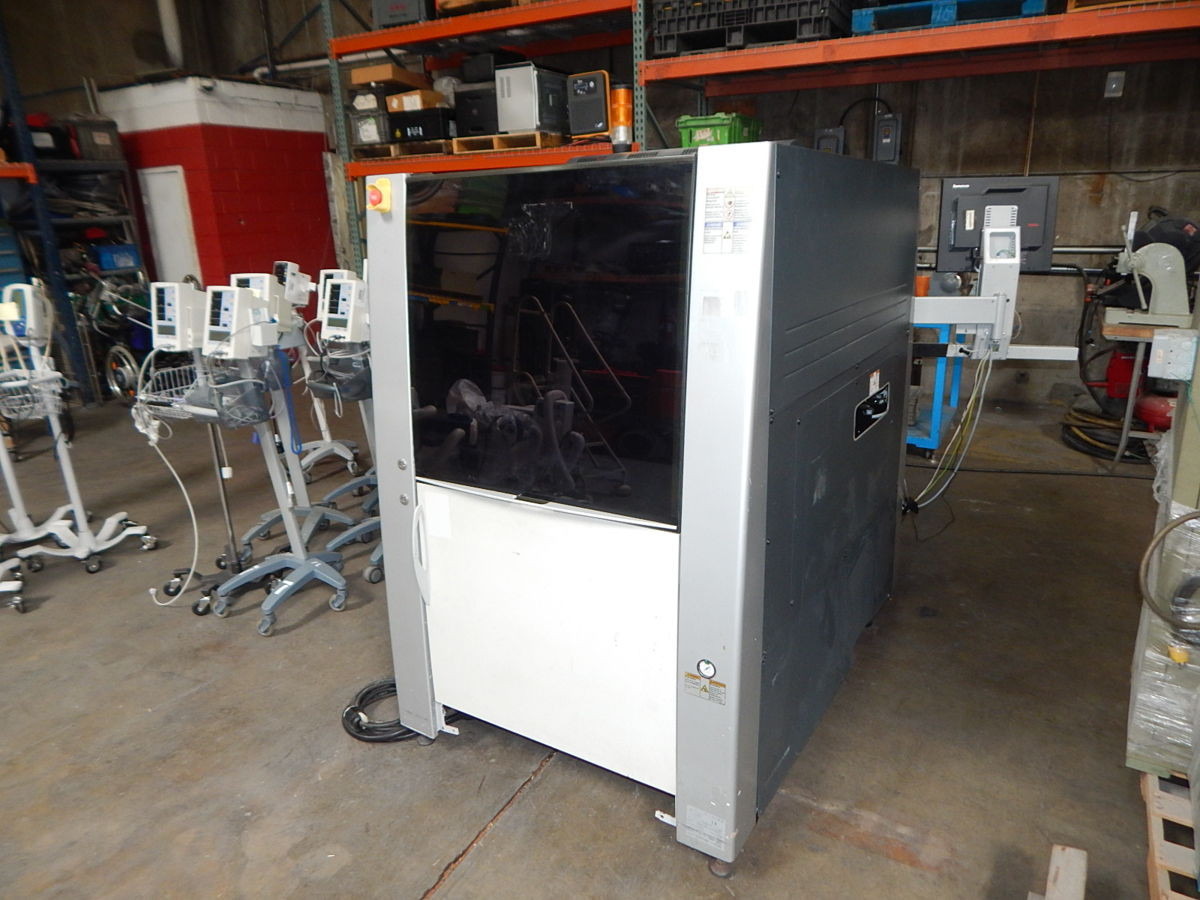

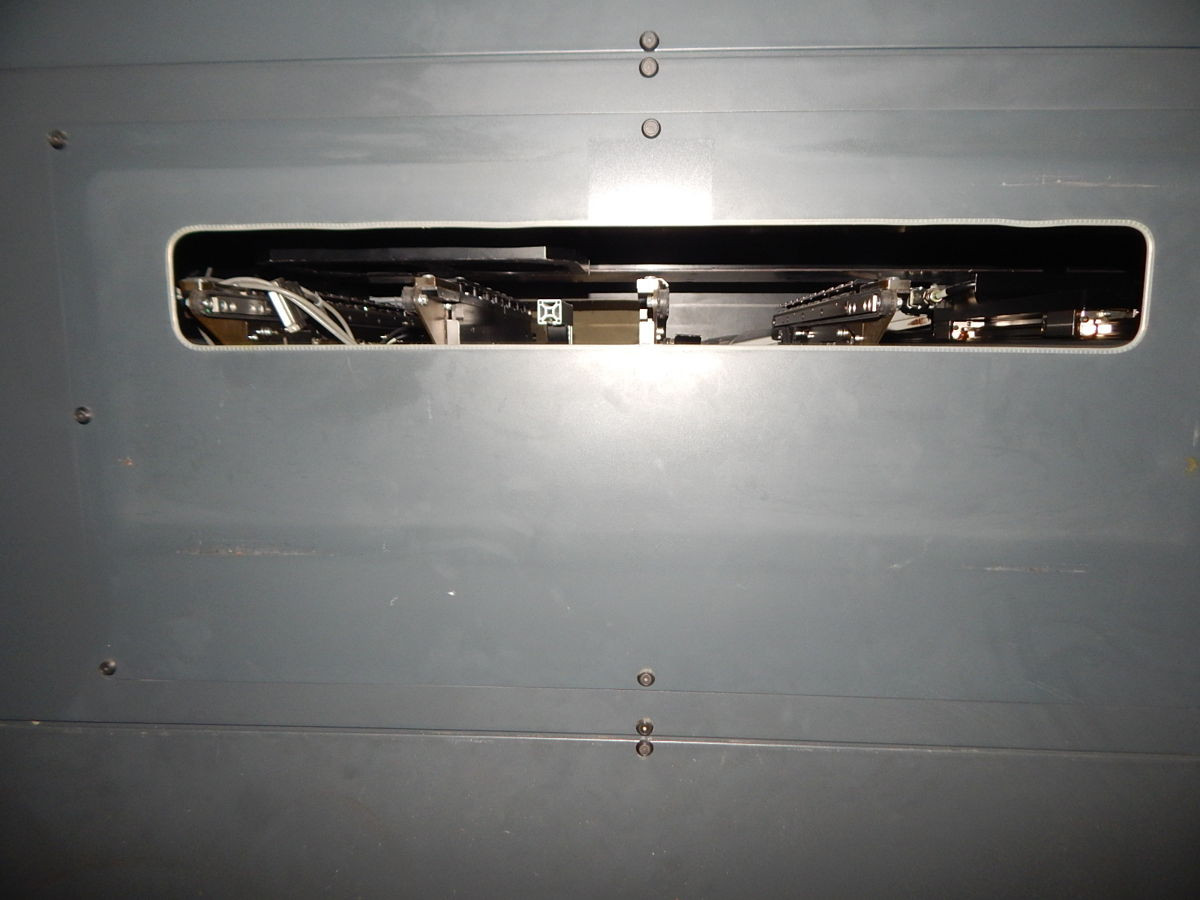

VISCOM S 6056 DS1 AOI SYSTEM, 8M XM CAMERA, MAX PCB SIZE: 510X510 MM, POWER: 220VAC 3PH

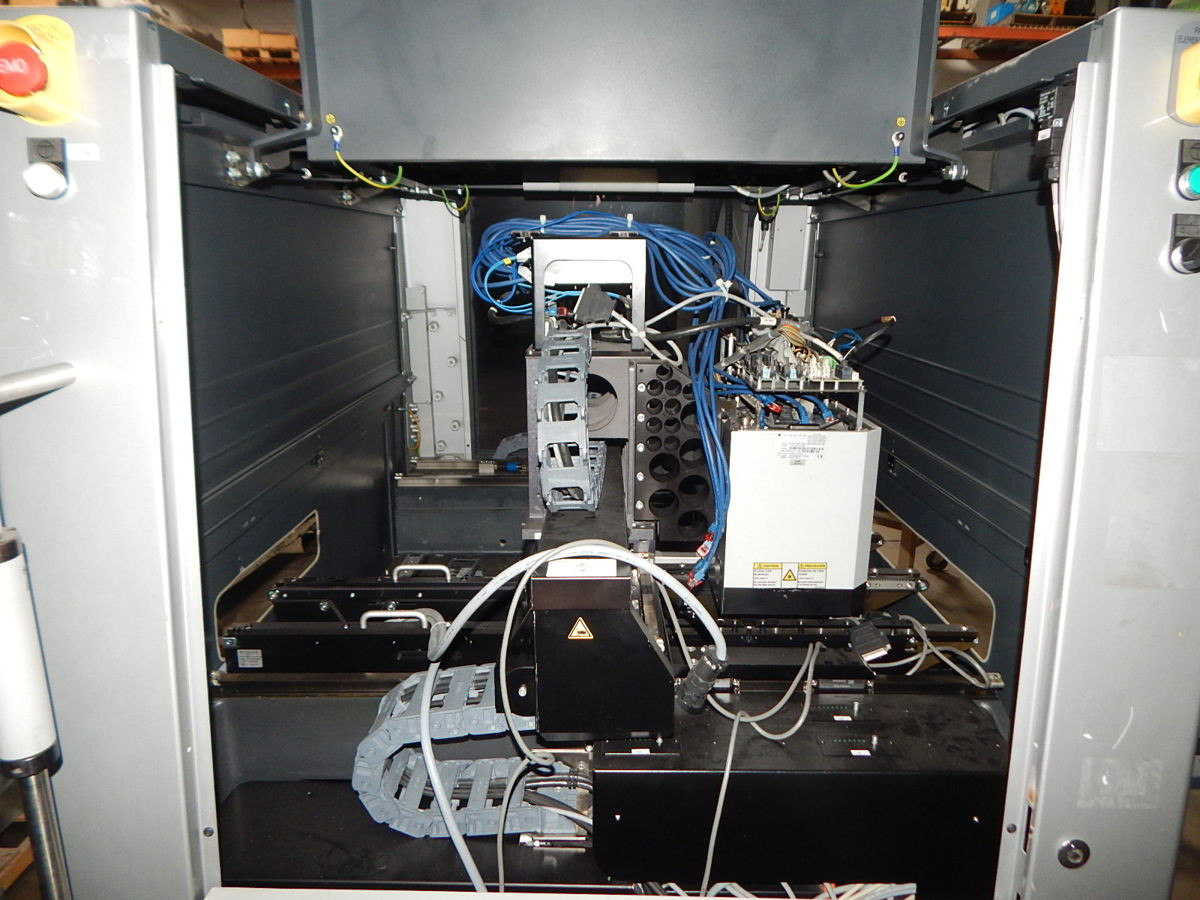

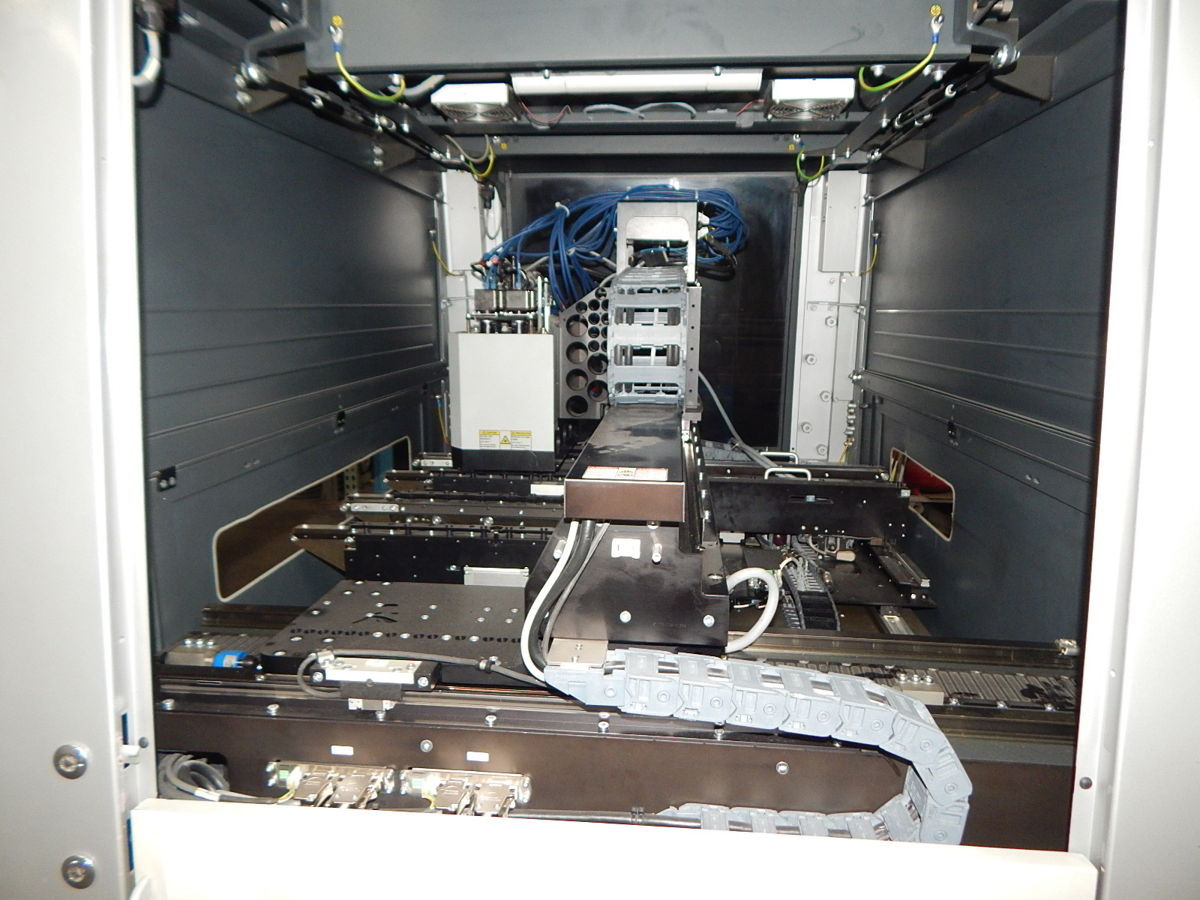

THE VISCOM 6056 DS1 IS A 3D AUTOMATIC OPTICAL INSPECTION (AOI) SYSTEM UTILIZED IN PCB ASSEMBLY FOR COMPREHENSIVE INSPECTION OF ASSEMBLED PRINTED CIRCUIT BOARDS. IT FEATURES VISCOM'S 8M XM CAMERA TECHNOLOGY, INCORPORATING A HIGH-SPEED SENSOR FOR HIGH-RESOLUTION IMAGE ACQUISITION. THE SYSTEM EMPLOYS A SOPHISTICATED LIGHTING ARCHITECTURE THAT COMBINES 2D ILLUMINATION, INCLUDING AN 8-SEGMENT RING LIGHT AND COAXIAL LIGHT, WITH DIGITAL FRINGE PROJECTION FOR ACCURATE 3D HEIGHT MEASUREMENTS. INSPECTION CAPABILITIES ENCOMPASS DEFECT DETECTION FOR SOLDER JOINT QUALITY, LIFTED LEADS, BRIDGING, TOMBSTONING, AND COMPONENT PRESENCE/ABSENCE, ALONG WITH POLARITY VERIFICATION. THE SYSTEM ACCOMMODATES A MAXIMUM PCB SIZE OF 510 X 510 MM. ELECTRICAL POWER REQUIREMENTS ARE 220 VAC, 3 PHASE.
