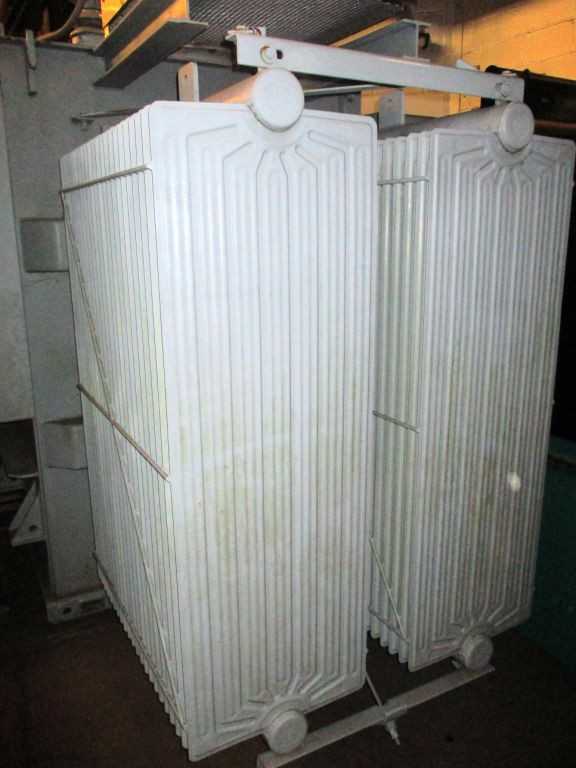

VTC Substation Transformer 2000 KVA - ONAN

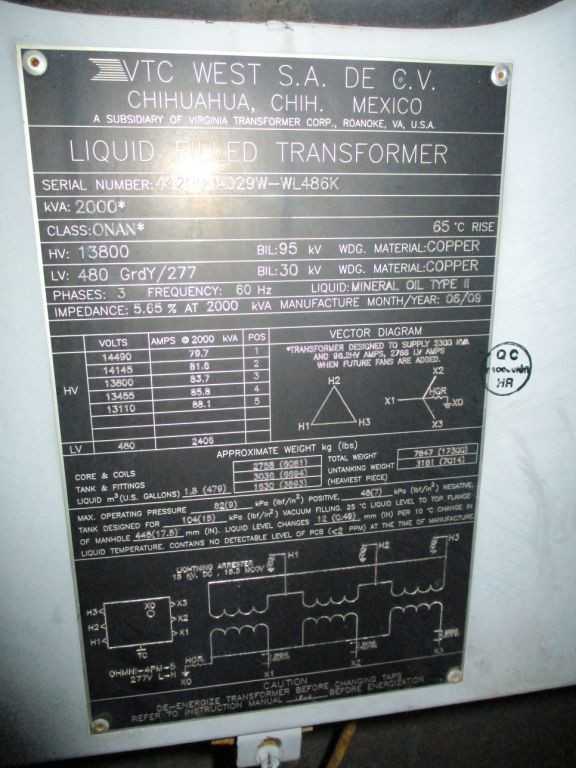

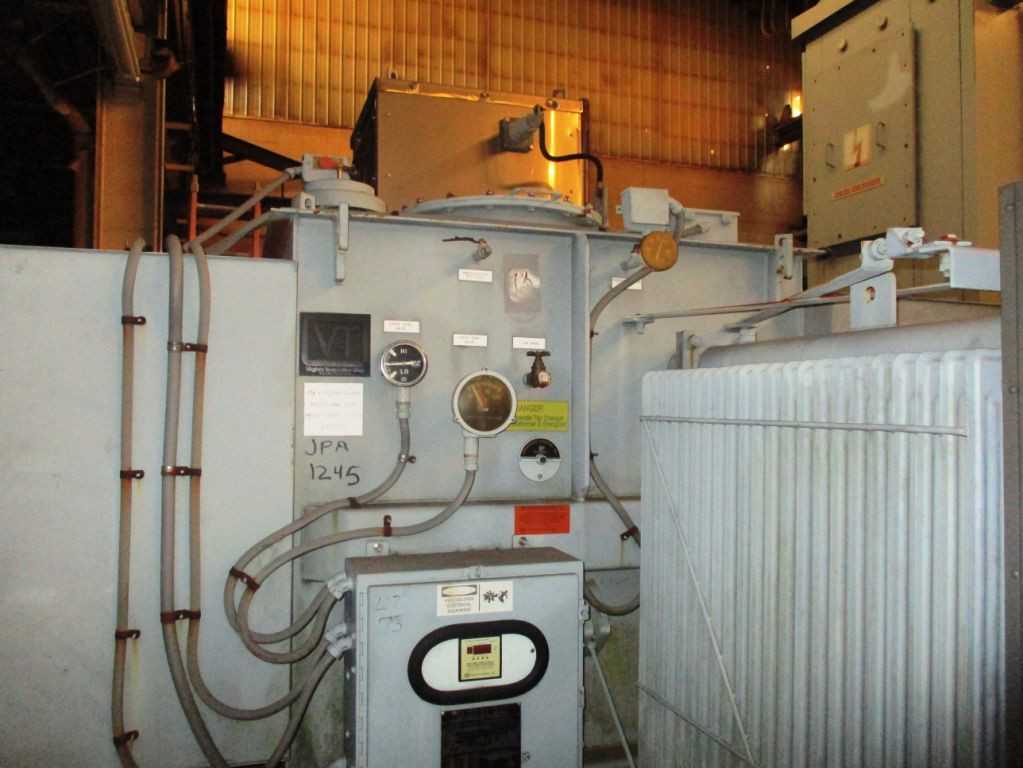

VTC Substation Transformer UNUSED 2000 KVA - ONAN 2300 KVA - ONAF* Primary: 13,800 Delta with standard straddle no load taps - BIL 95 kV Secondary: 480 Y/277 - BIL 30 kV LV Amps: 2,766 Amps @ 2300 KVA - ONAF* 3 Phase 60 Hertz Class ONAN / ONAF* Impedance 5.65 % Mineral Oil Type 2 HV & LV Air Terminal Chambers Enclosed, Half Length All Copper HV & LV Windings Standard Gauges & Valve Package Manufactured 2009 HV Taps: 14,490 - 14,145 - 13,800 - 13,455 - 13,110 Weight: 17,500 lbs. See attached Nameplate & Photos for details. Located at: 2137 Fairfield Ave. Niagara Falls, NY PLEASE UNDERSTAND THAT EVERYTHING IS SOLD “AS IS, WHERE IS”…PLEASE READ THE AUCTION CONTRACT. WE ENCOURAGE MAKING AN INSPECTION. PLEASE CALL 310-487-3800 FOR INSPECTION. THANK YOU.
