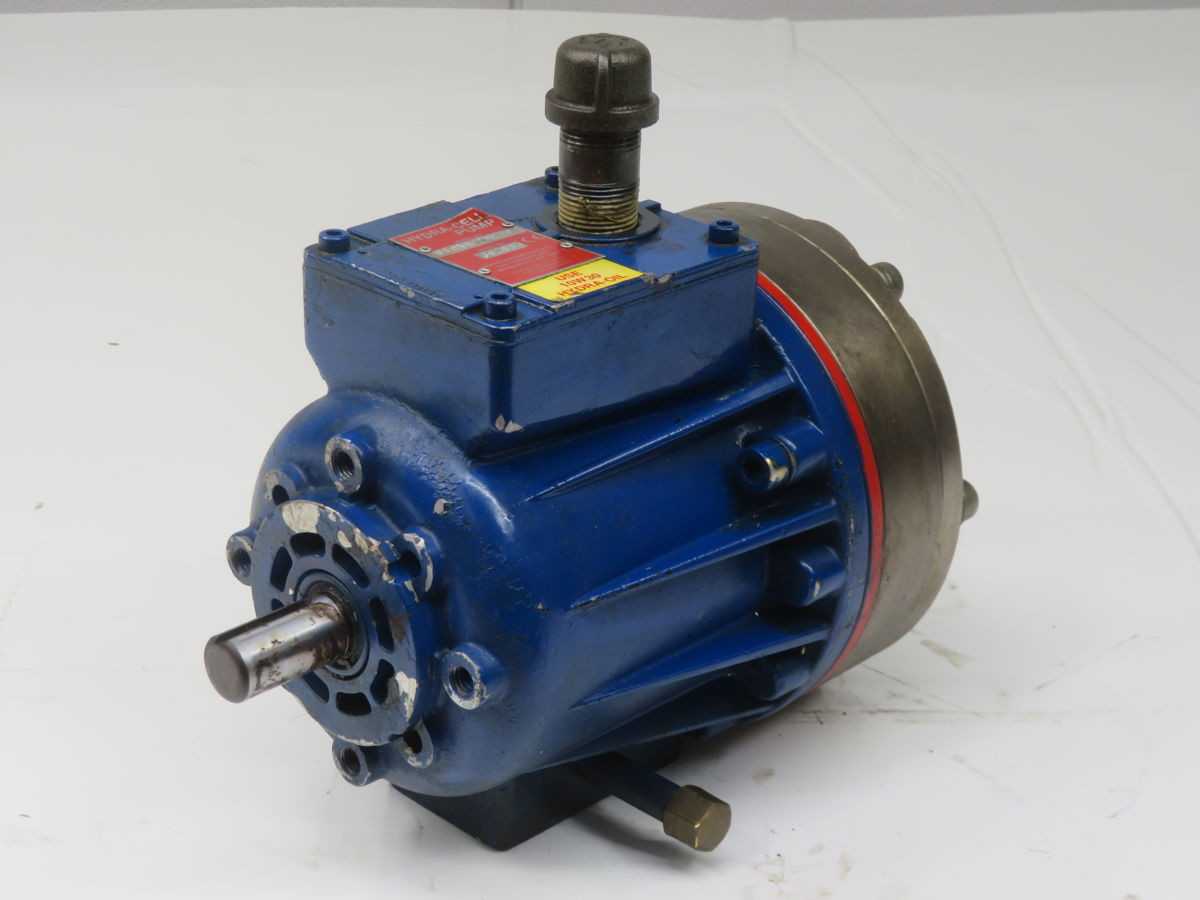

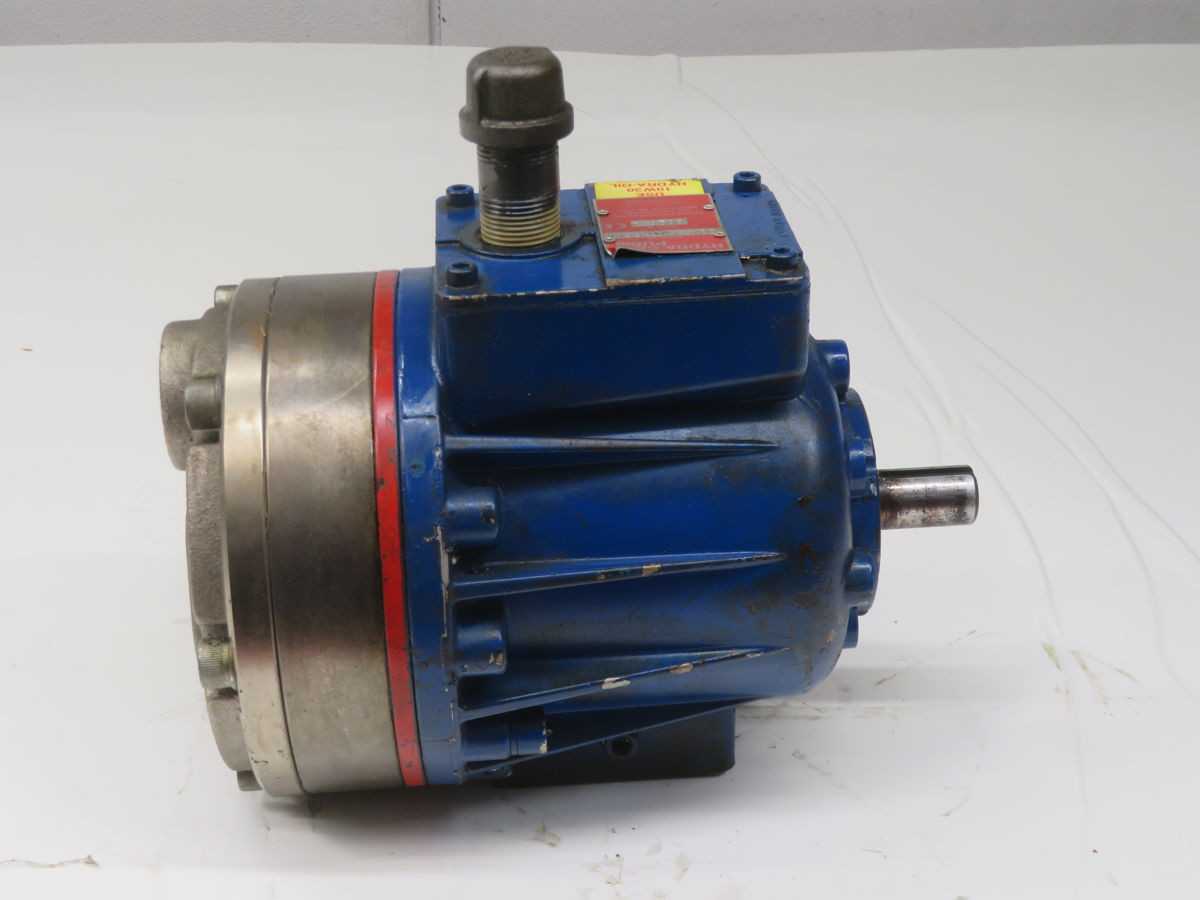

Wanner D10XKBTHFECA Hydraulic Pump, Flow: 10 GPM, Pressure: 2500 PSI, 1450 RPM, 316L SS

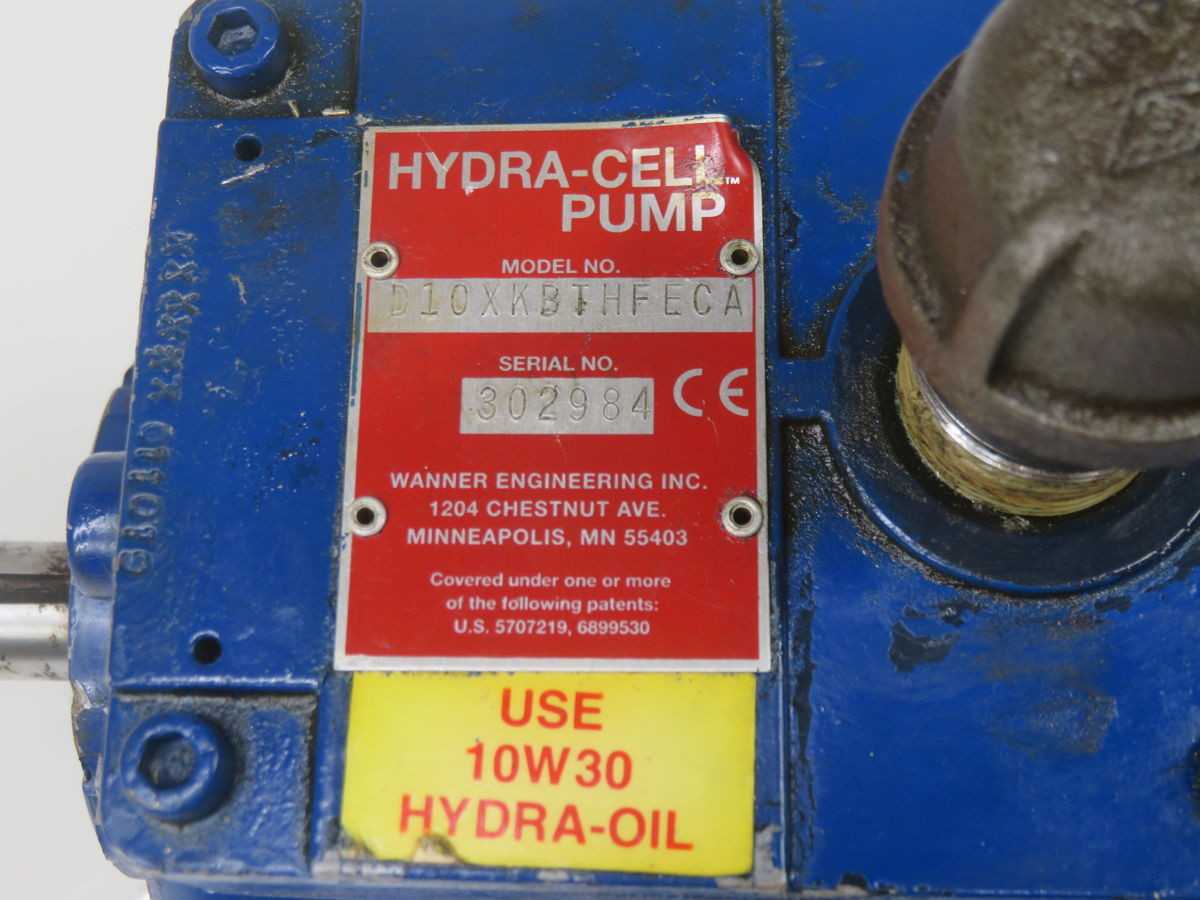

The Wanner D10XKBTHFECA is a Hydra-Cell hydraulic pump designed for industrial fluid handling. It features wetted components constructed from 316L stainless steel, complemented by Buna-N diaphragms and Kalrez seals for chemical compatibility and durability. This pump delivers flow rates up to 10 GPM (37.9 L/min) and is rated for operating pressures reaching 2500 PSI (172 bar). It operates efficiently at a maximum rotational speed of 1450 RPM. Inlet and outlet connections are configured with 1-inch flanged ports, facilitating robust system integration. The unit requires 10w30 Hydra-oil for optimal lubrication.
