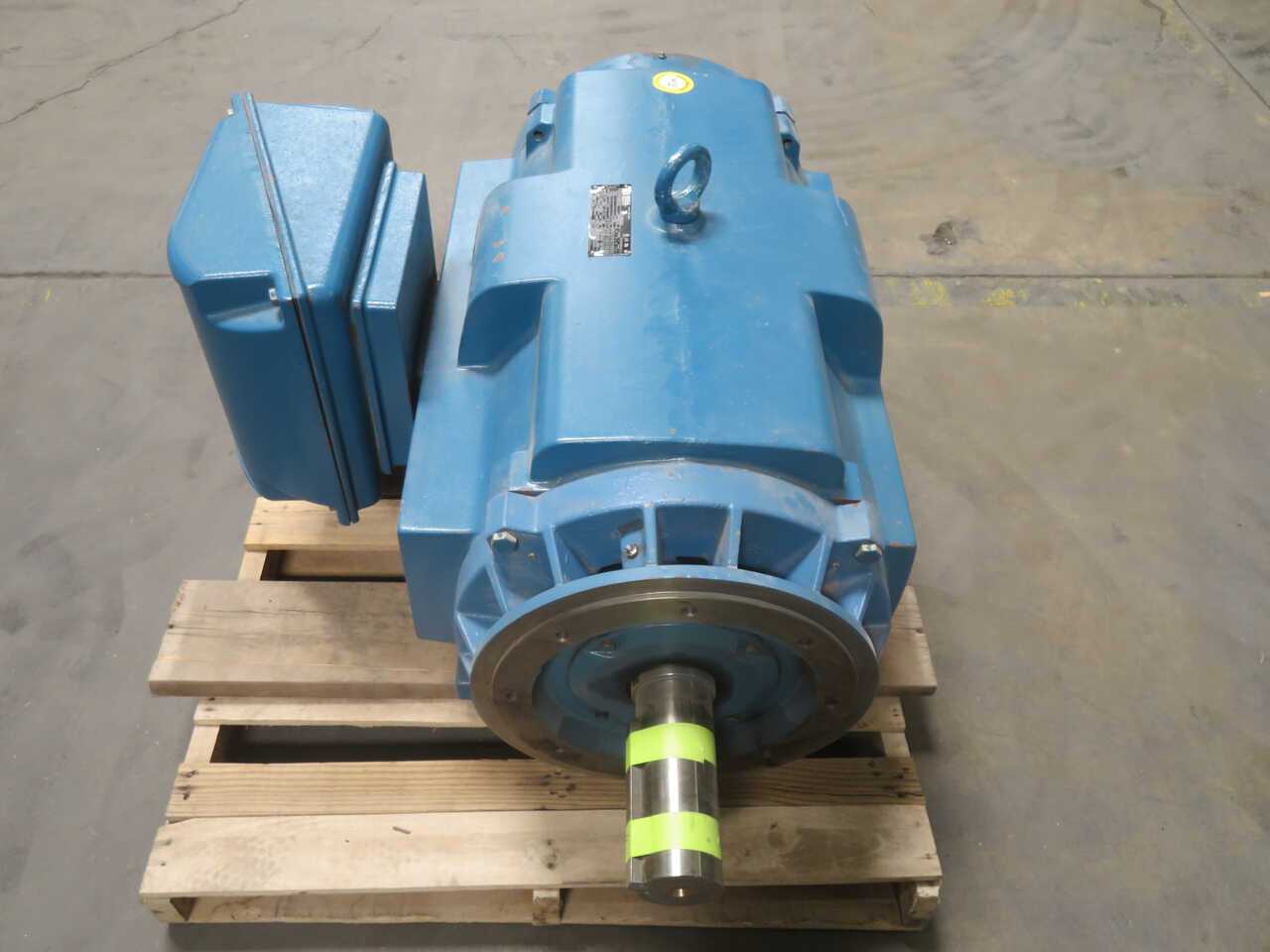

WEG 10SET10 1009125191, 400 HP, 3 PHASE, 460 VAC, 1780 RPM, 60 HZ, 447/9T NEMA, TEFC

THE WEG MODEL 10SET10 1009125191 IS A 400 HP, 3-PHASE, INVERTER DUTY AC MOTOR. IT OPERATES AT 460 VAC WITH A NOMINAL SPEED OF 1780 RPM AND IS CONSTRUCTED WITHIN A 447/9T NEMA FRAME. THIS MOTOR FEATURES A TOTALLY ENCLOSED FAN COOLED (TEFC) ENCLOSURE AND IS RATED FOR 60 HZ OPERATION. IT MEETS NEMA PREMIUM EFFICIENCY STANDARDS AND UTILIZES CLASS F INSULATION WITH A CLASS B TEMPERATURE RISE, ALONG WITH A 1.15 SERVICE FACTOR. THE DESIGN INCORPORATES REGREASEABLE BALL BEARINGS, TYPICALLY INCLUDING AN ISOLATED BEARING ON THE DRIVE END FOR VARIABLE FREQUENCY DRIVE APPLICATIONS.
