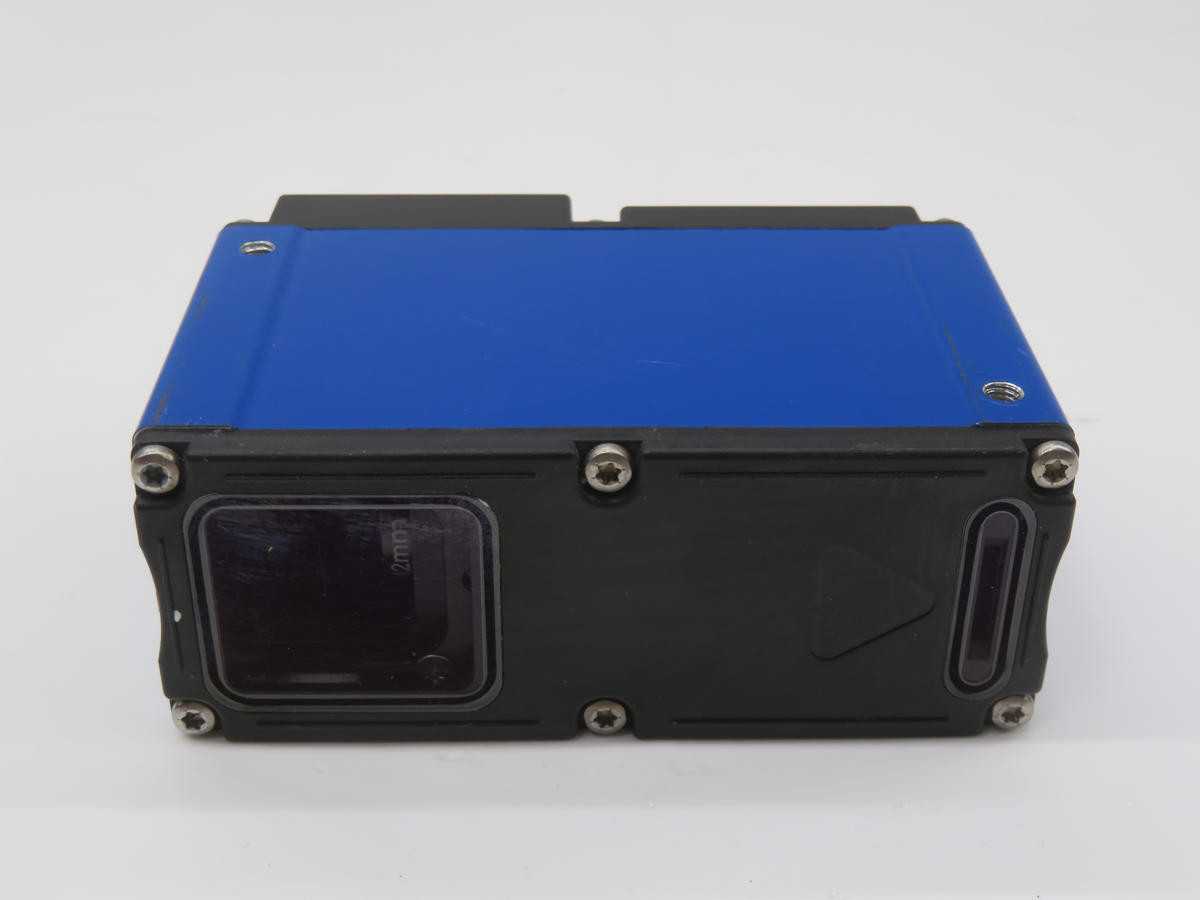

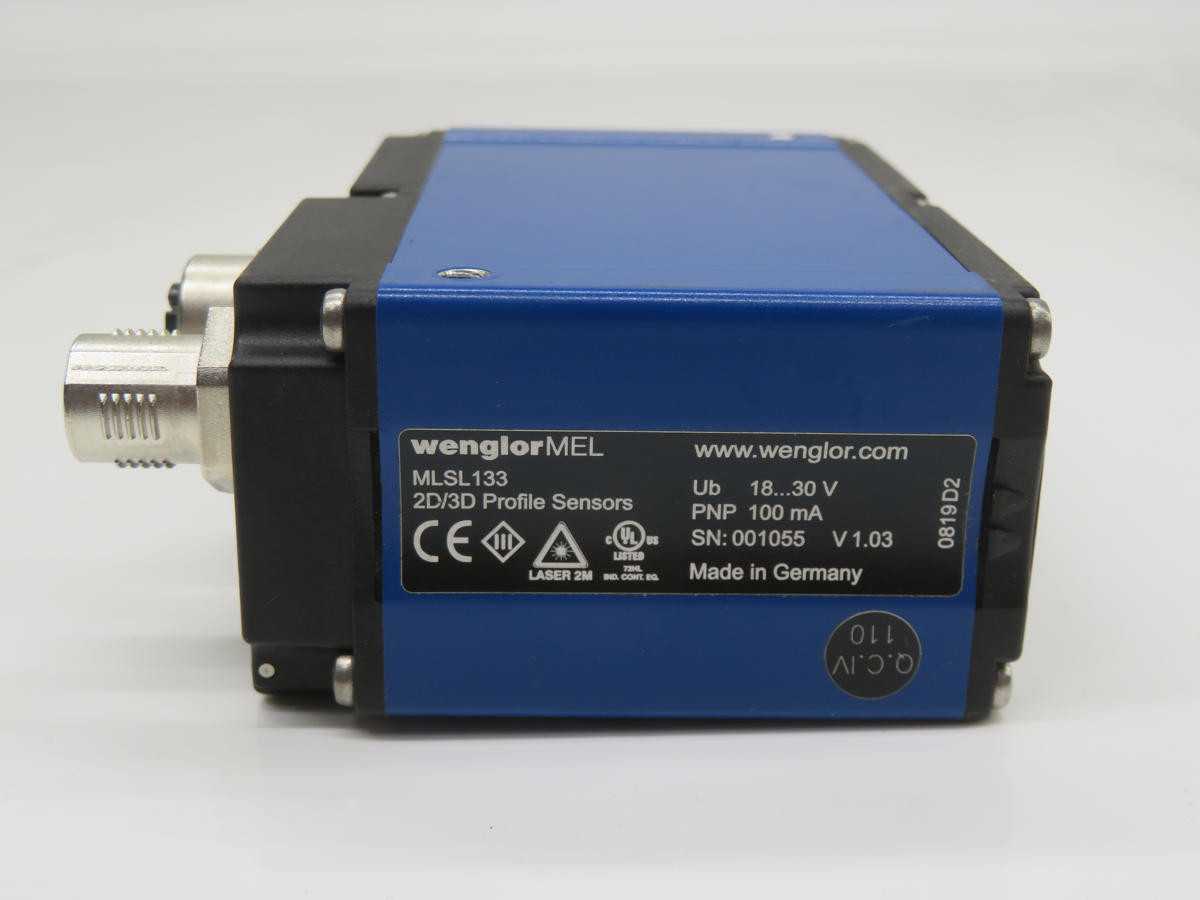

WENGLOR MLSL133 PHOTOELECTRIC SENSORS, 30-180 MM Z-RANGE, 0.05 MM RES, 1000 SCAN RATE, IP67

THE WENGLOR MLSL133 IS A PHOTOELECTRIC LIGHT SECTION PROFILE SENSOR DESIGNED FOR 2D AND 3D DETECTION. IT OPERATES ON THE LASER TRIANGULATION PRINCIPLE, UTILIZING A CLASS 2 RED LASER (660 NM) AS ITS LIGHT SOURCE. THE SENSOR PROVIDES A Z-AXIS MEASURING RANGE OF 30 TO 180 MM WITH A RESOLUTION OF 0.05 MM, AND AN X-AXIS MEASURING RANGE FROM 35 TO 110 MM. IT ACHIEVES A HIGH SCAN RATE OF UP TO 1000 PROFILES PER SECOND, ENABLING RAPID ACQUISITION OF OBJECT PROFILES. CONNECTIVITY OPTIONS INCLUDE GIGABIT ETHERNET WITH UDP PROTOCOL AND AN RS-485 INTERFACE. THE DEVICE FEATURES THREE DIGITAL INPUTS AND TWO DIGITAL OUTPUTS. HOUSED IN ALUMINUM WITH AN IP67 PROTECTION RATING, THE MLSL133 OPERATES ON A 20 TO 30 V DC POWER SUPPLY AND SUPPORTS AN OPERATING TEMPERATURE RANGE OF 0 °C TO 45 °C.
