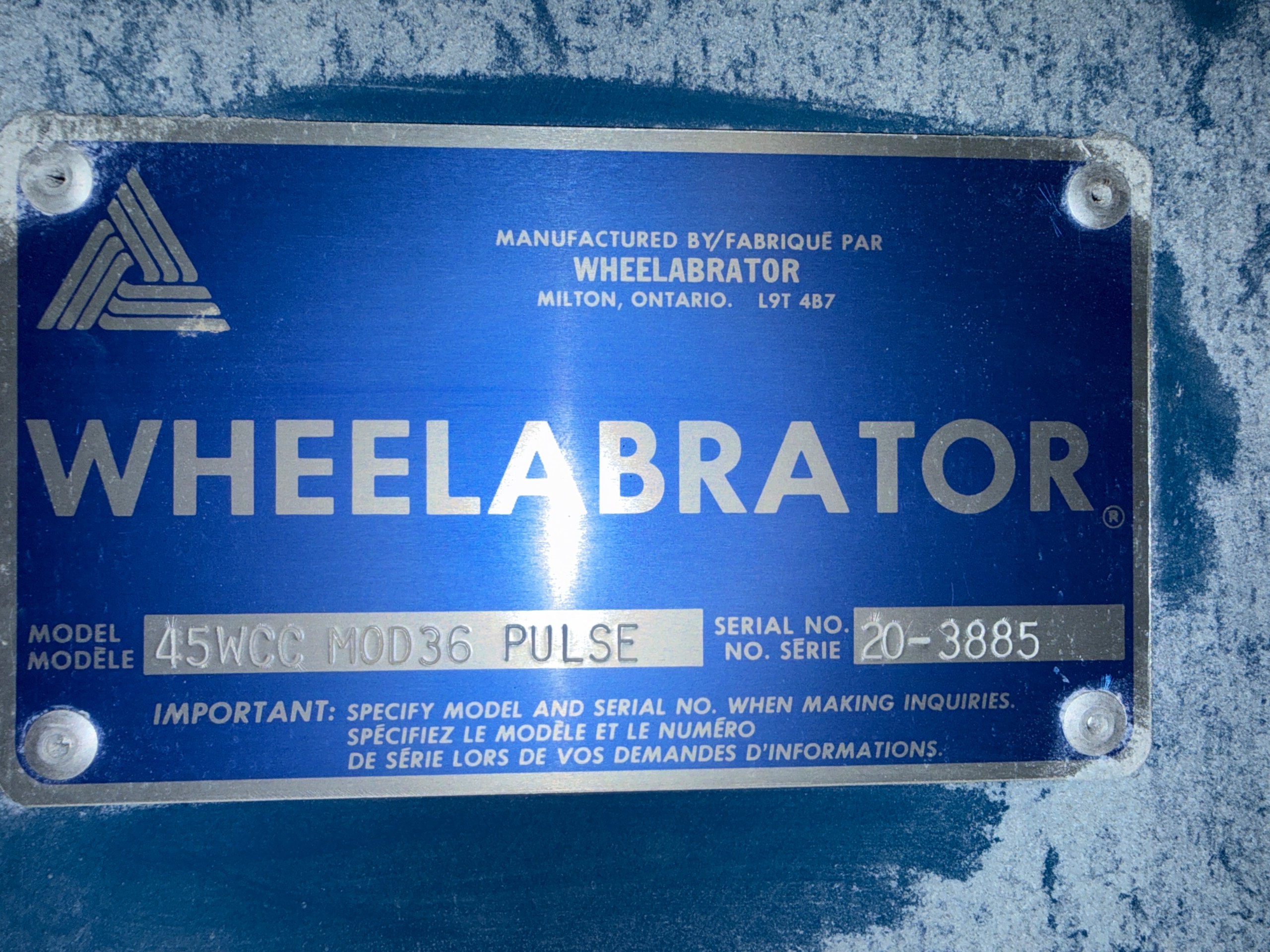

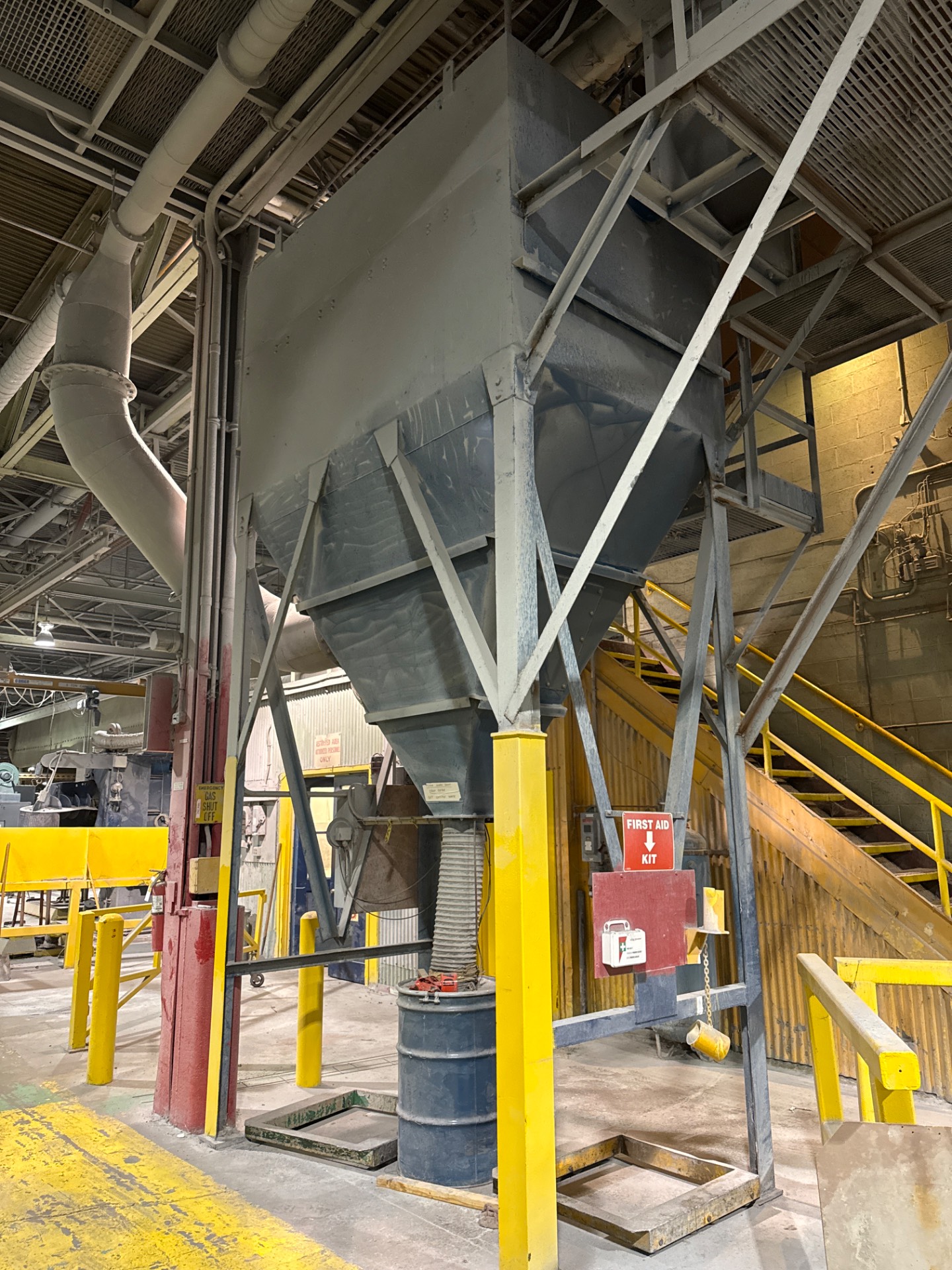

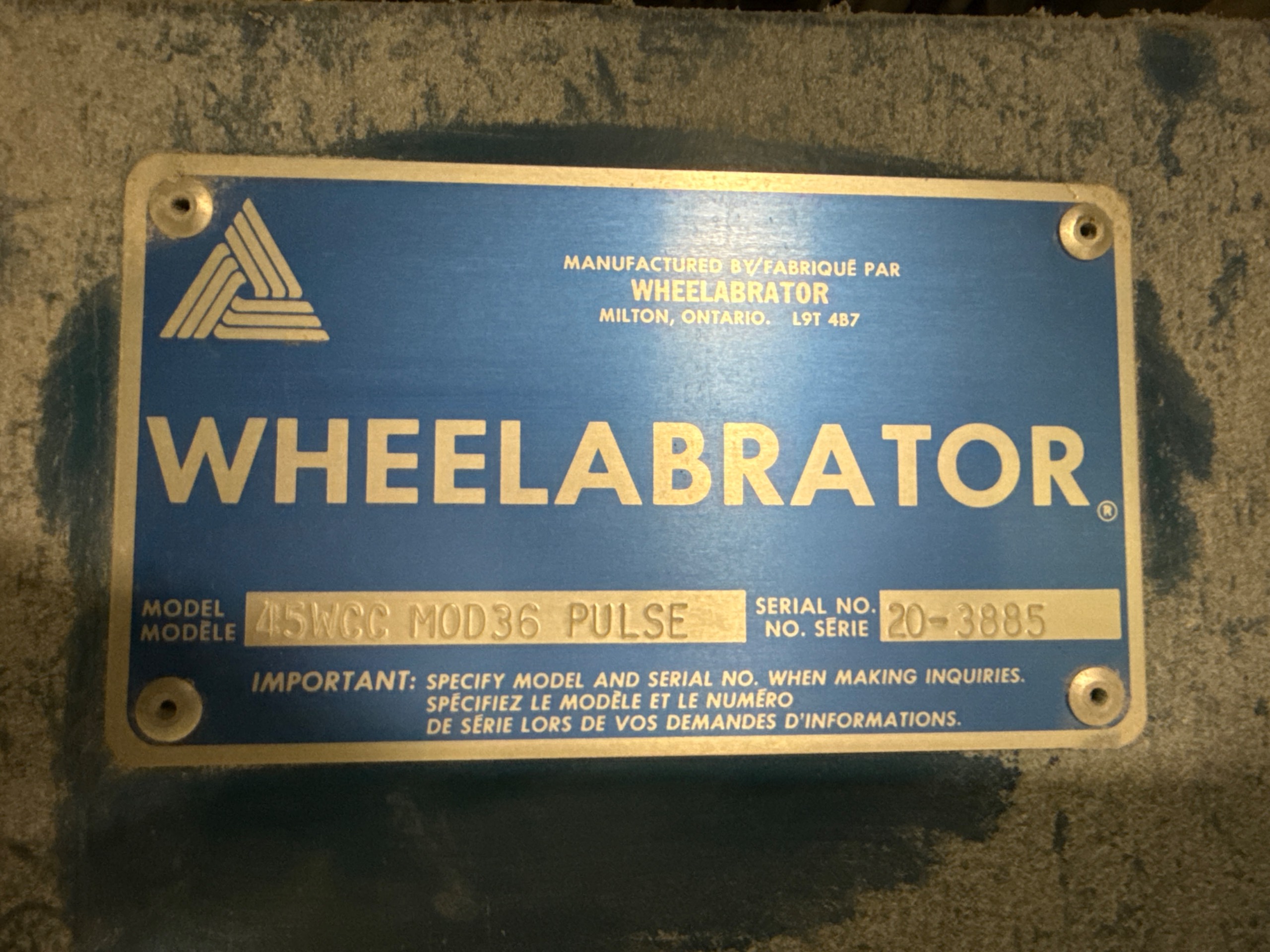

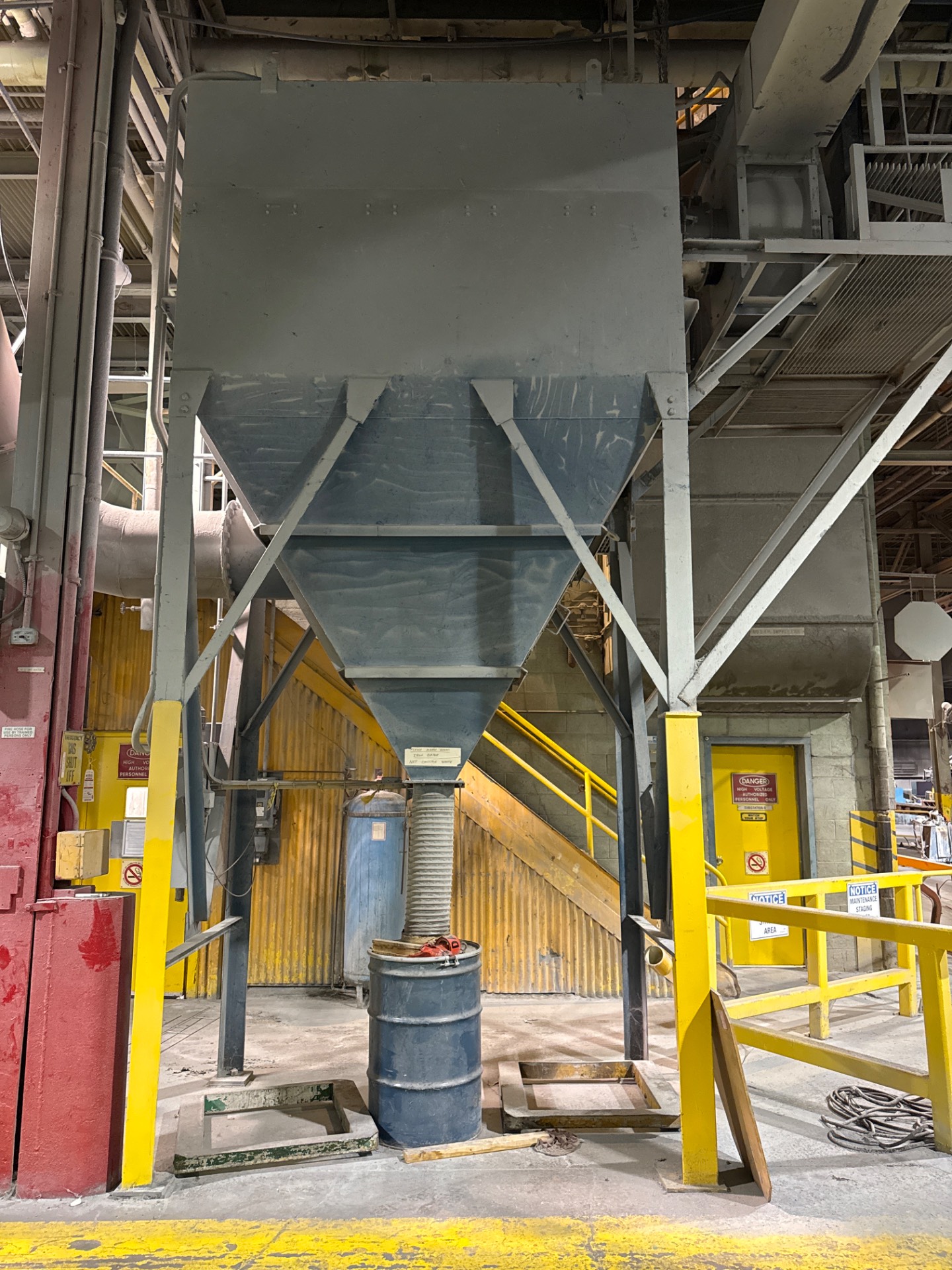

WHEELABRATOR 45WCC (WCC 36) CARTRIDGE DUST COLLECTOR, 10,000 CFM, 16 FILTERS, 5,040 SQ FT

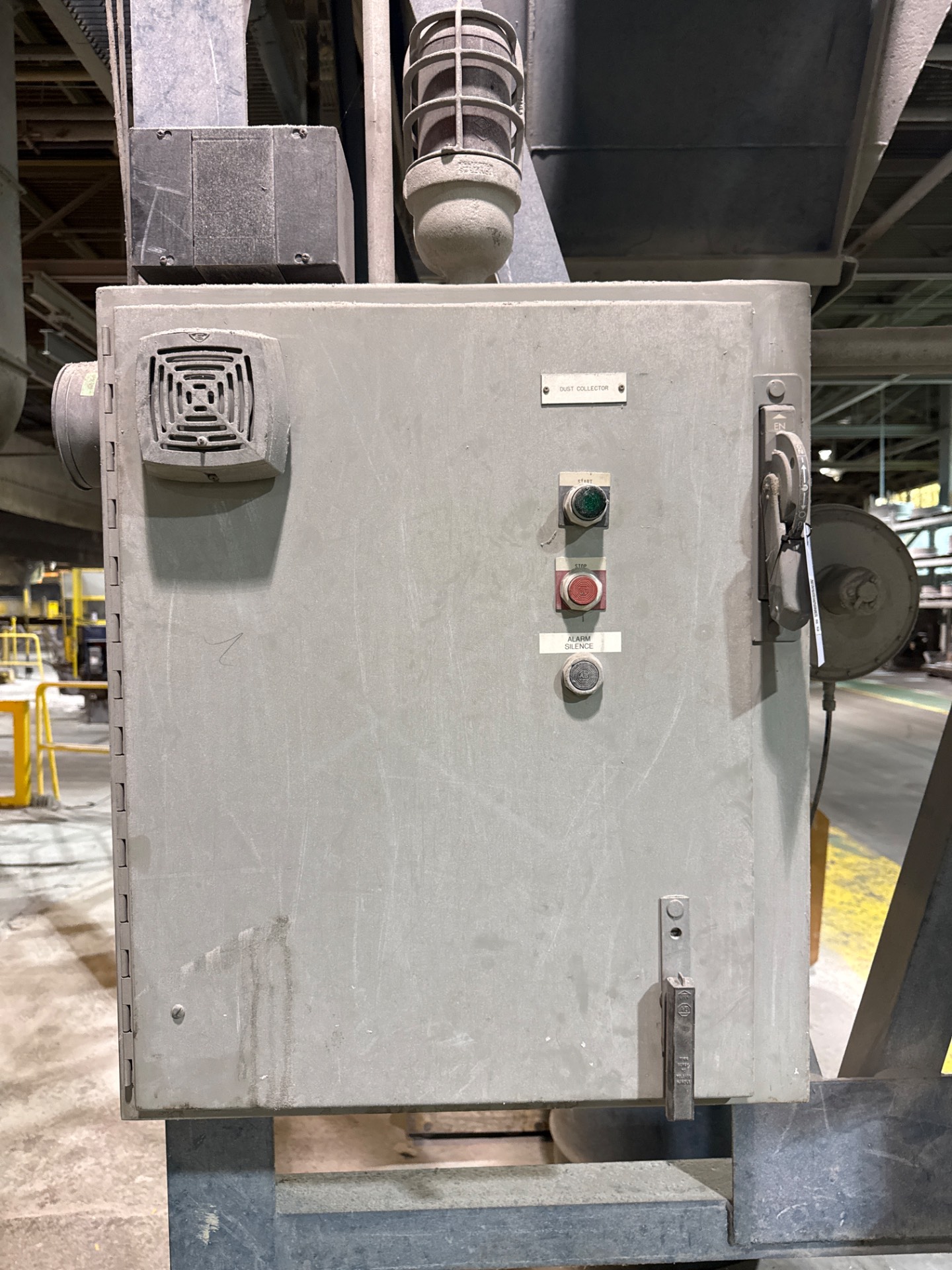

THE WHEELABRATOR 45WCC (WCC 36) IS A HIGH-CAPACITY CARTRIDGE DUST COLLECTOR DESIGNED FOR INDUSTRIAL AIR FILTRATION AND POLLUTION CONTROL. THIS UNIT FEATURES A 10,000 CFM CAPACITY AND IS EQUIPPED WITH 16 VERTICALLY INSTALLED CARTRIDGE FILTERS, PROVIDING APPROXIMATELY 5,040 SQUARE FEET OF FILTER MEDIA AREA. THE VERTICAL ORIENTATION OF THE CARTRIDGES MINIMIZES DUST HOLDUP AND ENHANCES CLEANING EFFICIENCY. THE SYSTEM UTILIZES AN AUTOMATIC PULSE-JET CLEANING MECHANISM ASSISTED BY A VENTURI NOZZLE TO MAXIMIZE CLEANING FORCE. THIS CLEANING CYCLE IS MANAGED BY AN INTEGRATED SEQUENCING TIMER AND A DIFFERENTIAL PRESSURE GAUGE HOUSED IN A DEDICATED ENCLOSURE.
